Интегрированный лазерный сварочный аппарат 1500 Вт 2000 3000 из нержавеющей стали углеродистой
- Категория: Laser Welders >>>
- Поставщик: Liaocheng,Voiern,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5950.28 $* | 6248.38 $* |
| Aug-19-2025 | 5900.85 $* | 6195.18 $* |
| Jul-19-2025 | 4950.81 $* | 5198.16 $* |
| Jun-19-2025 | 5800.88 $* | 6090.83 $* |
| May-19-2025 | 5050.83 $* | 5303.48 $* |
| Apr-19-2025 | 5700.56 $* | 5985.10 $* |
| Mar-19-2025 | 5650.67 $* | 5933.79 $* |
| Feb-19-2025 | 5600.98 $* | 5880.74 $* |
| Jan-19-2025 | 5550.46 $* | 5828.63 $* |
Характеристики

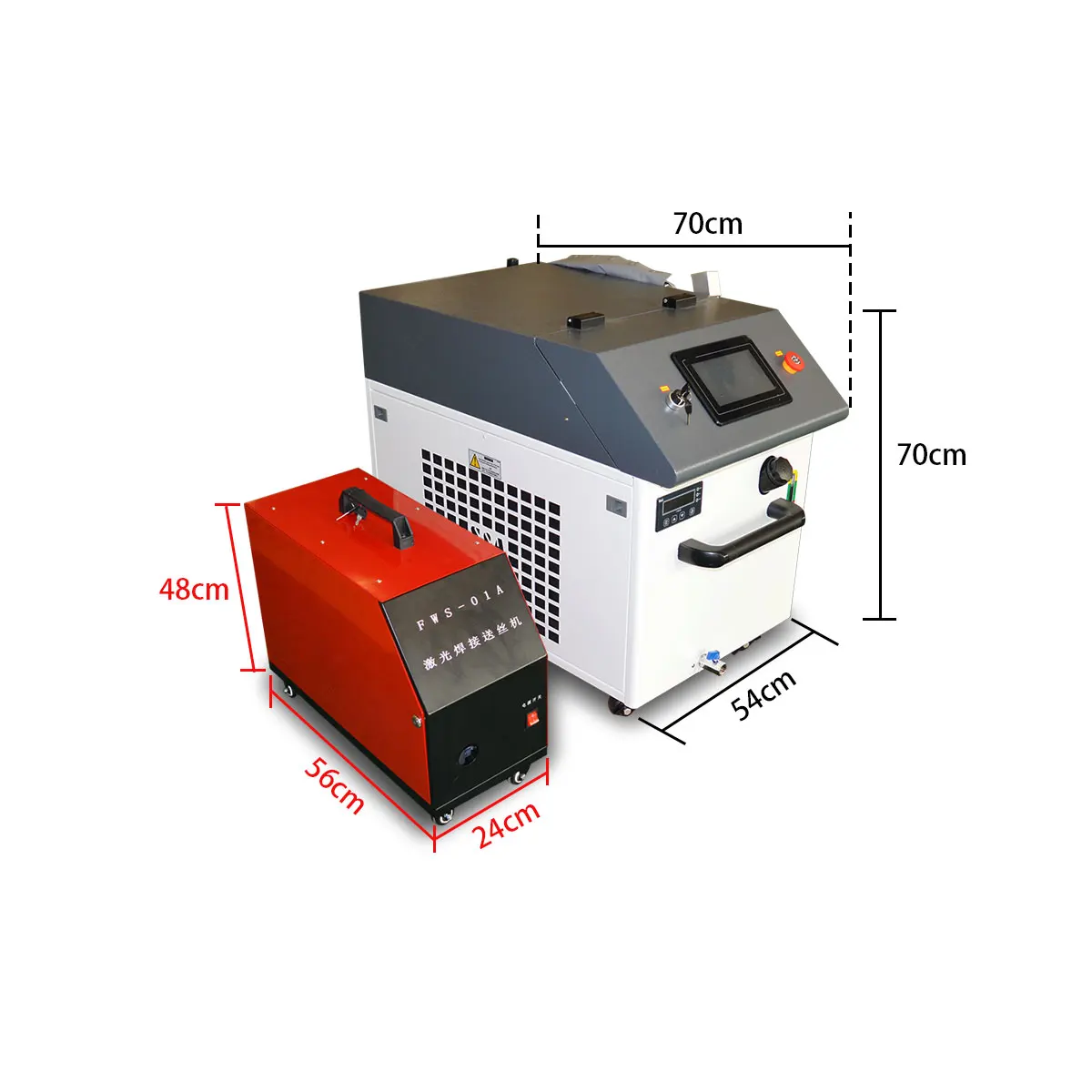

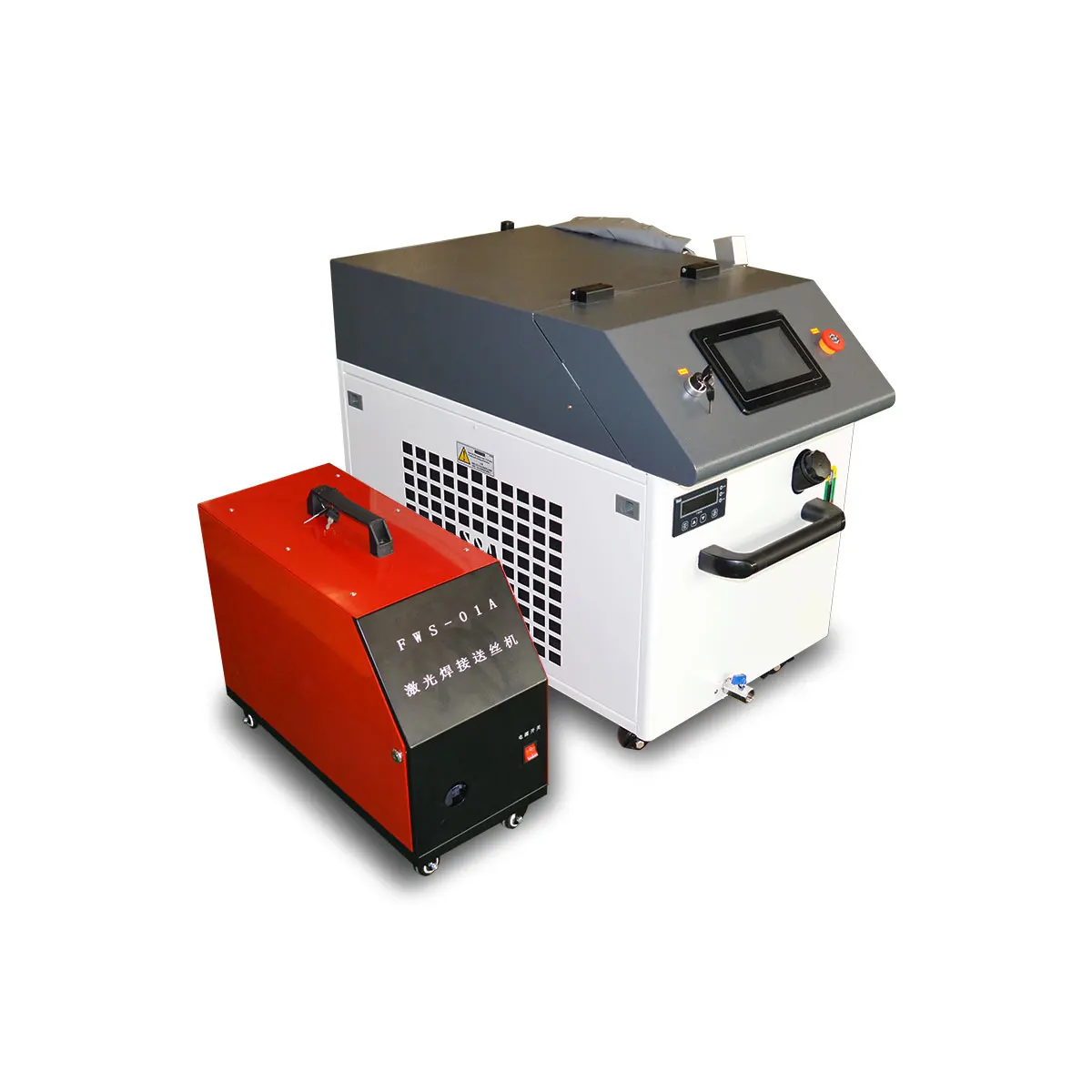

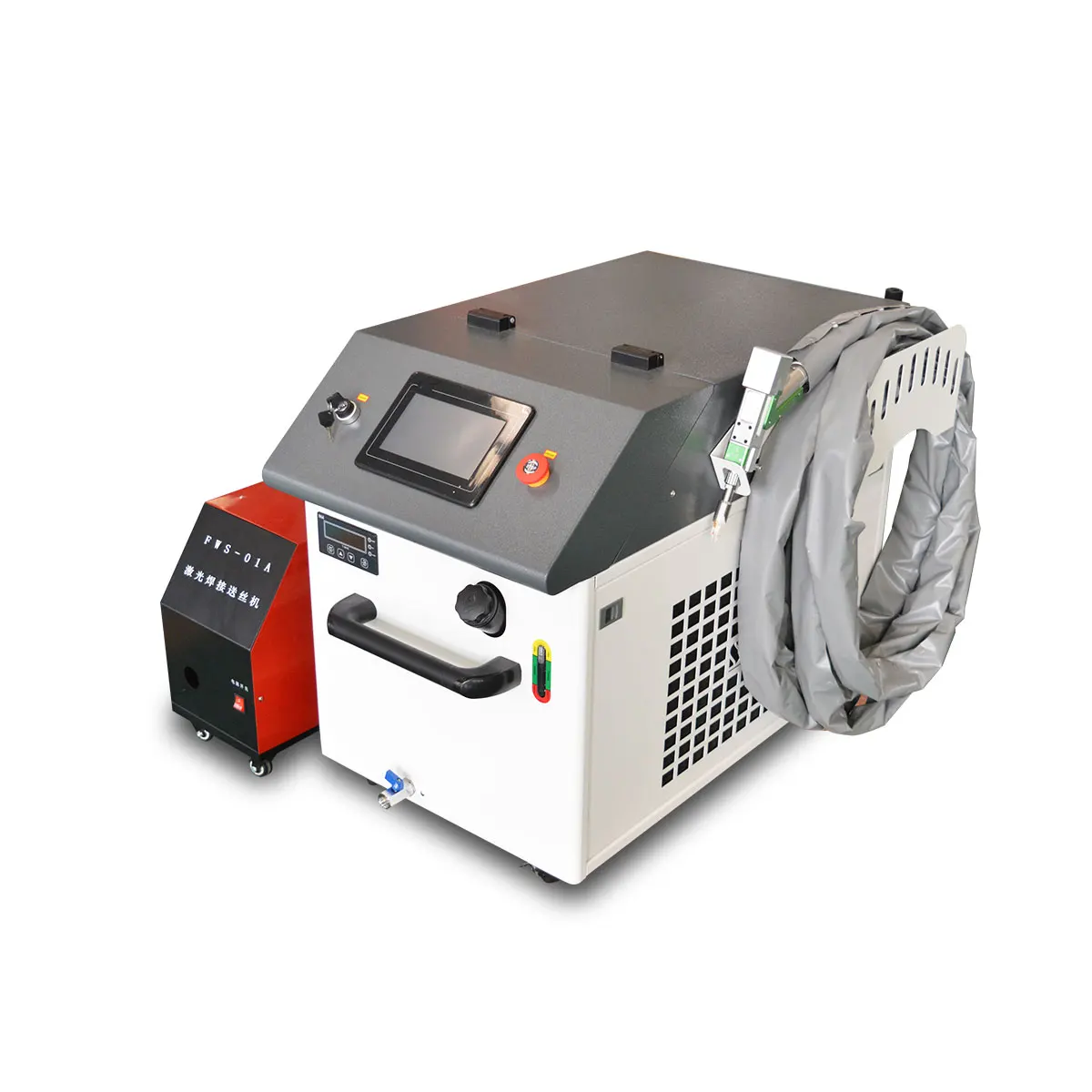

Product Description
Model | Fiber laser welding machine |
Laser wavelength | 1070nm |
Laser power | 1000W/1500W/2000W |
Operating mode | Continuous/pulse |
Length of fiber-optical | 10m(standard) |
Interface of fiber-optical | QBH |
Module life | 100000hrs |
Power supply | 220V / 380V |
Cooling method | Water Cooling |
Laser Energy Stability | <2% |
Air humidity | 10-90% |
Recommended welding thickness | 1000W Stainless steel, carbon steel 0-2mm |
Red light positioning | Support |
Recommended welding thickness | ||||||||
1000W | Stainless steel, carbon steel 0-2mm, Galvanized sheet, aluminum 0-1.5mm | |||||||
1500W | Stainless steel, carbon steel 0-3mm, Galvanized sheet, aluminum 0-2mm | |||||||
2000W | Stainless steel, carbon steel 0-4mm, Galvanized sheet, aluminum 0-3mm | |||||||

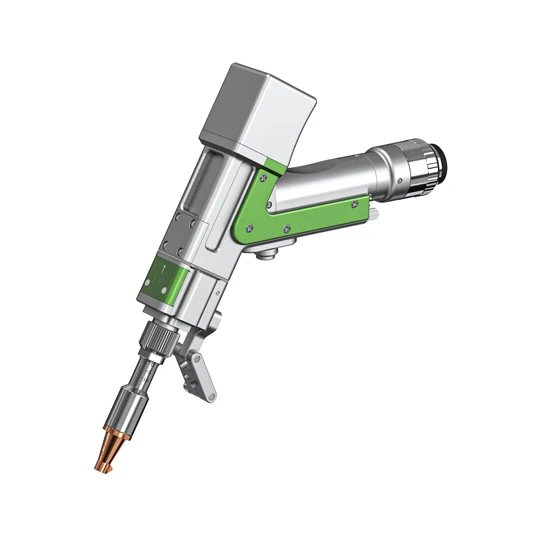

Laser welding gun
Welding, cutting and cleaning
Hand-held laser welding head, with double protective lens and temperature sensor inside the laser head, providing maximum protection.
operation panel
Change the welding parameters via the touch screen control panel. The user could save the normal using parameter inside the system, and fast setting it before work.
Wire feeder
★ Function application, wire feeding.
★ High-power motor, fast wire feeding, accurate wire feeding, improve welding efficiency.
★ Double drive wire feeding, large thrust, more stable wire feeding.
★ With brake resistance disc shaft to prevent loose welding wire when the motor stops.
★ The machine body is equipped with sliding wheel, which is convenient to move.
★ Large storage and wire feeding capacity, ready to go.
★ High-power motor, fast wire feeding, accurate wire feeding, improve welding efficiency.
★ Double drive wire feeding, large thrust, more stable wire feeding.
★ With brake resistance disc shaft to prevent loose welding wire when the motor stops.
★ The machine body is equipped with sliding wheel, which is convenient to move.
★ Large storage and wire feeding capacity, ready to go.
Nozzle and Lens
Special nozzle can meet different tasks.

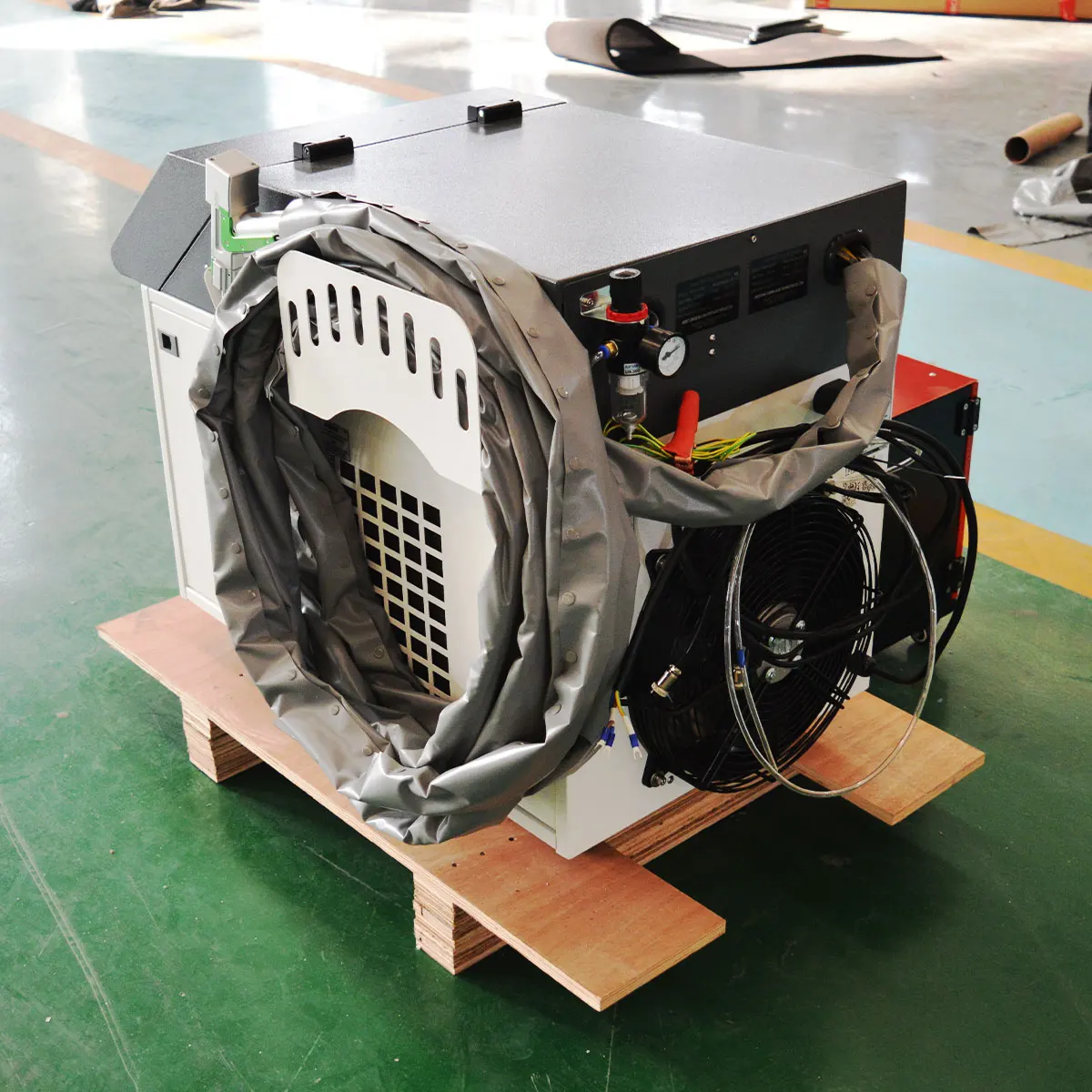

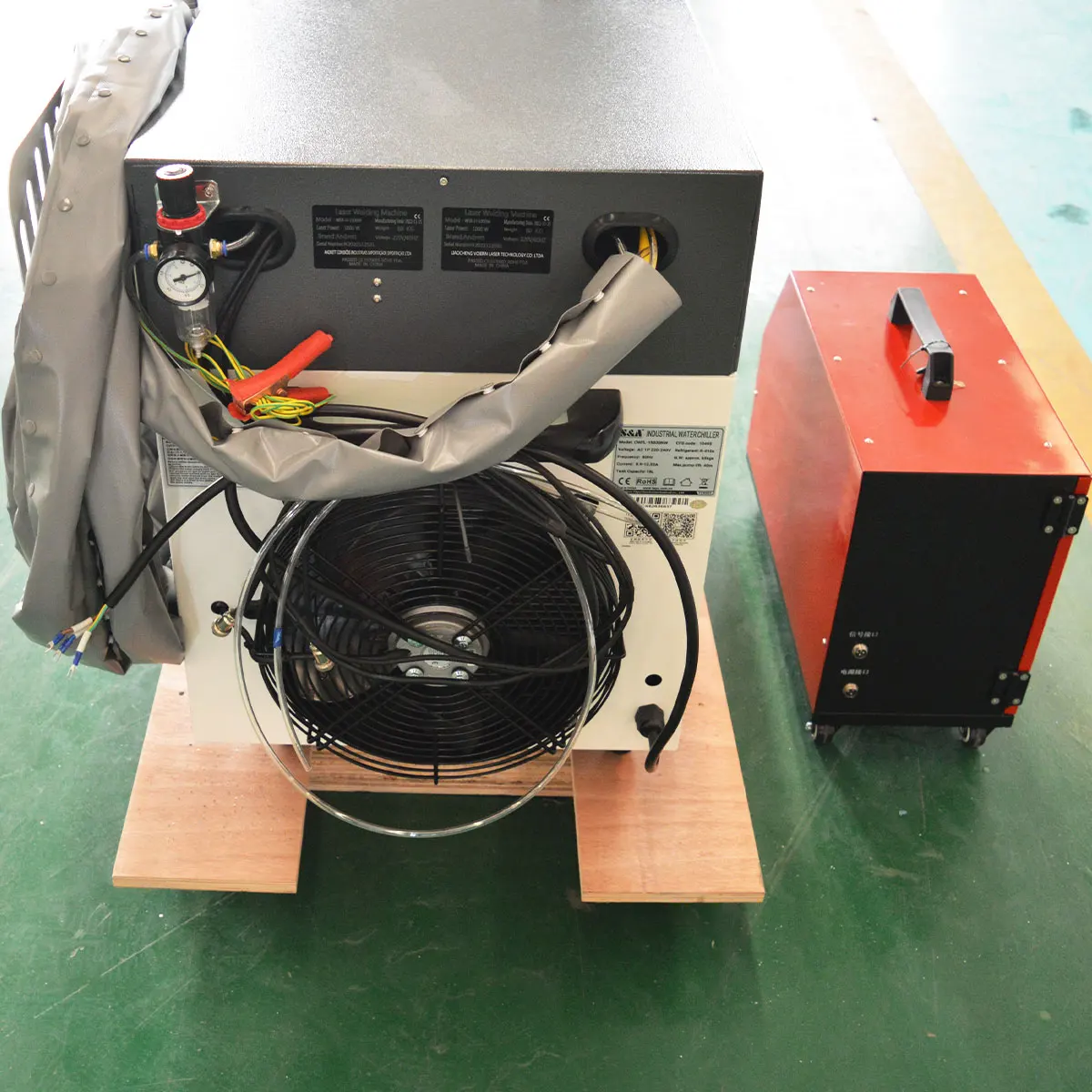

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Founded in 2010, Liaocheng Voiern Laser Technology Co., Ltd. (Voiern Laser for short) locates in Hi-Tech industrial development area. As a high-tech enterprise, we are specializing in research, development, production, sales and services of laser machines. With ten years’ dedicated running, Voiern laser has a professional R & D team and laboratory, dozens of laser application technology patents and appearance patents, and has been recognized by national high-tech enterprises.
After ten years’ accumulation and development, Voiern laser has been highly accepted by customers and peer companies on products’ quality and technology services. Also, Voiern laser has always been taken the leading position of laser technology development and application fields. Now, Voiern Laser has passed ISO9001 certification, international CE certification, SGS certification, Saudi SASO certification, etc. And has customers spread all over the world, such as USA, Britain, Singapore, Japan, China Taiwan province, Korea, Malaysia, Thailand, Australia, Brazil, India, Russia, etc. Presently, we produce laser engraving machine, laser cutting machine, fiber laser cutting machine, fiber laser marking machine, UV laser marking machine, CO2 laser marking machine and laser-beam welding machine. Meanwhile, we provide customers with a variety of laser automation applications for the whole set of equipment.
After ten years’ accumulation and development, Voiern laser has been highly accepted by customers and peer companies on products’ quality and technology services. Also, Voiern laser has always been taken the leading position of laser technology development and application fields. Now, Voiern Laser has passed ISO9001 certification, international CE certification, SGS certification, Saudi SASO certification, etc. And has customers spread all over the world, such as USA, Britain, Singapore, Japan, China Taiwan province, Korea, Malaysia, Thailand, Australia, Brazil, India, Russia, etc. Presently, we produce laser engraving machine, laser cutting machine, fiber laser cutting machine, fiber laser marking machine, UV laser marking machine, CO2 laser marking machine and laser-beam welding machine. Meanwhile, we provide customers with a variety of laser automation applications for the whole set of equipment.
contact us
