DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00

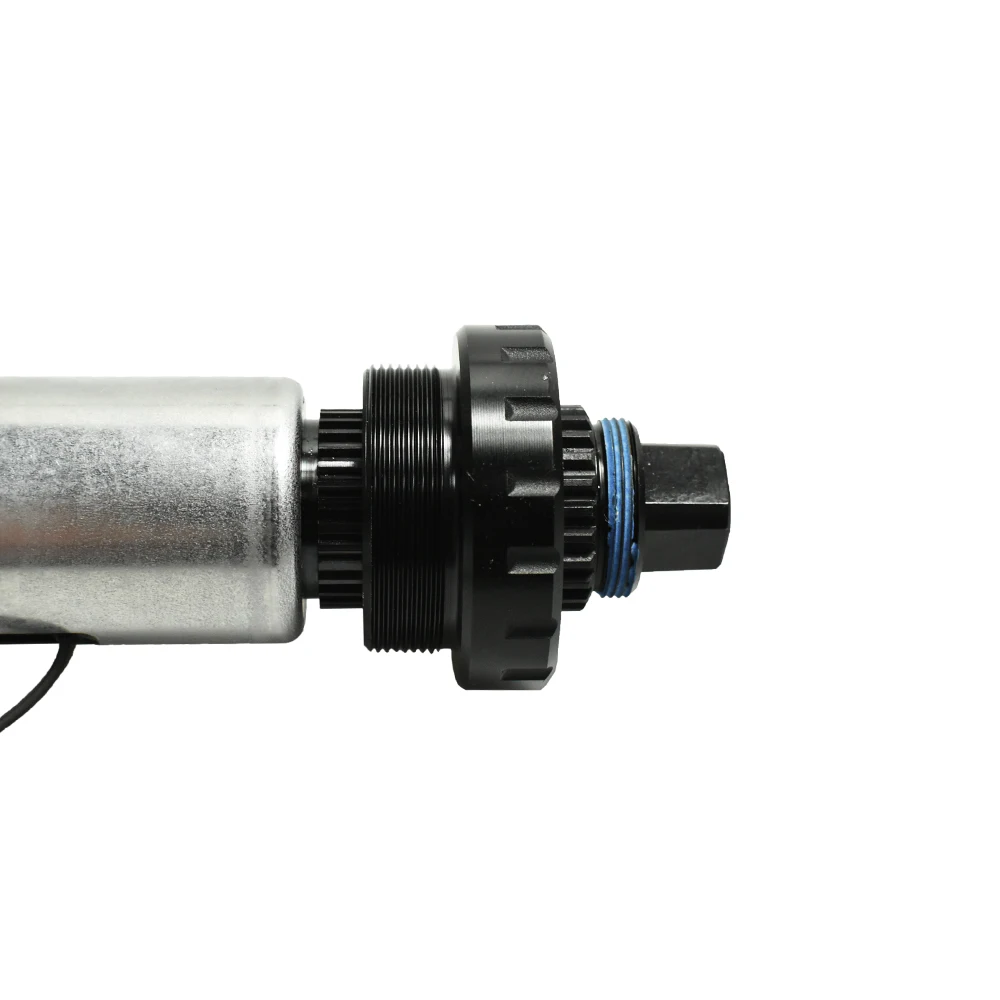

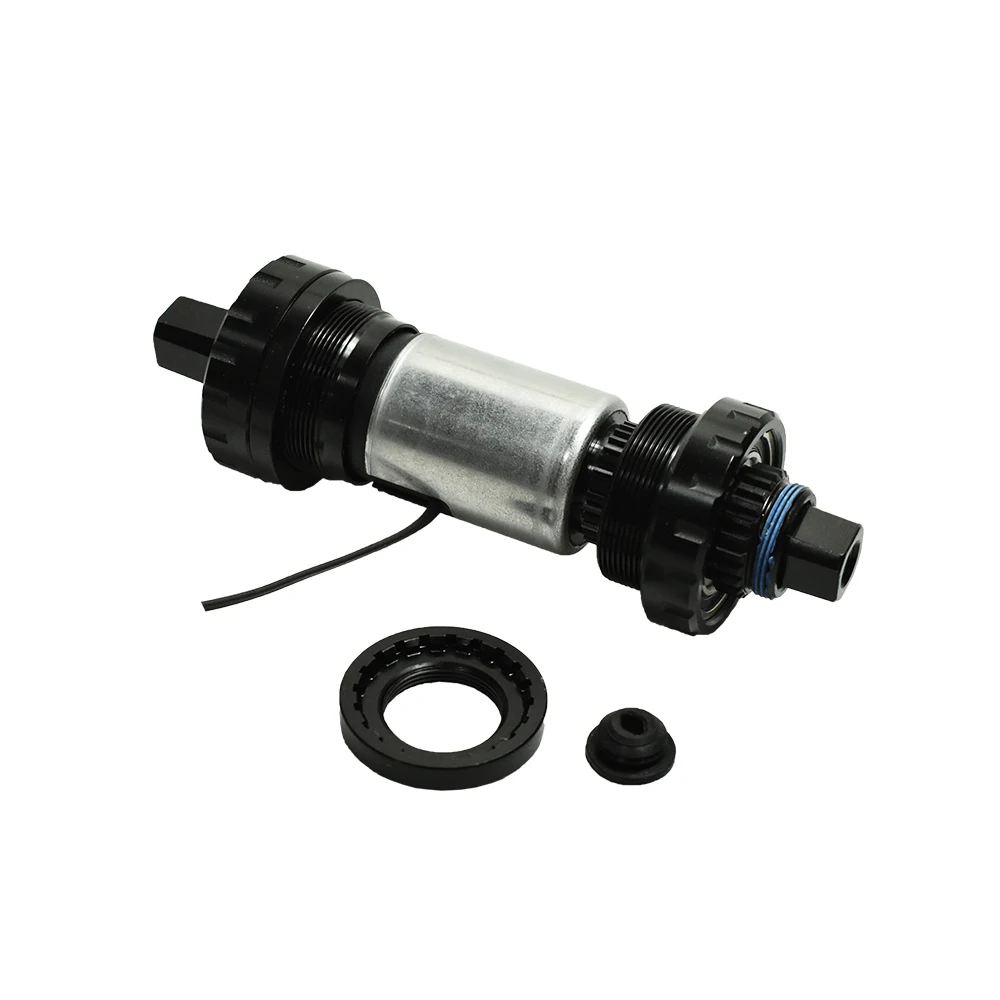

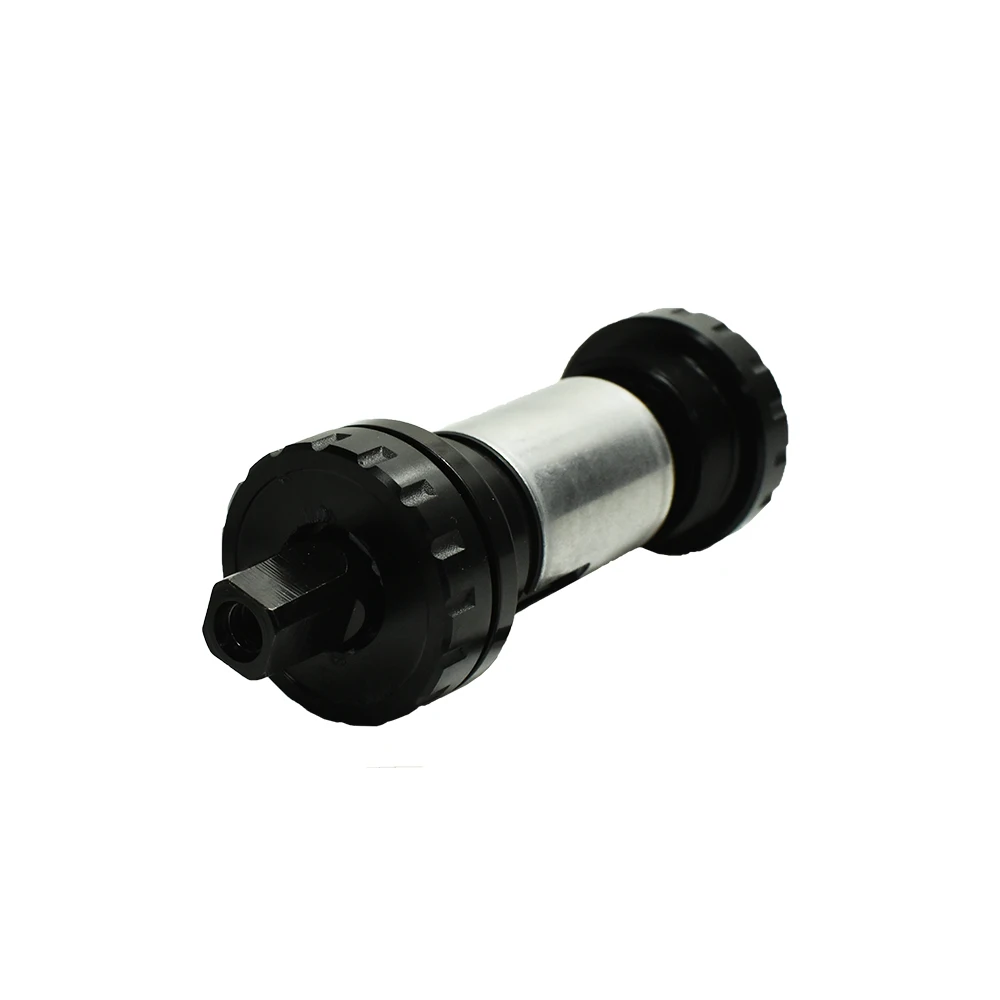

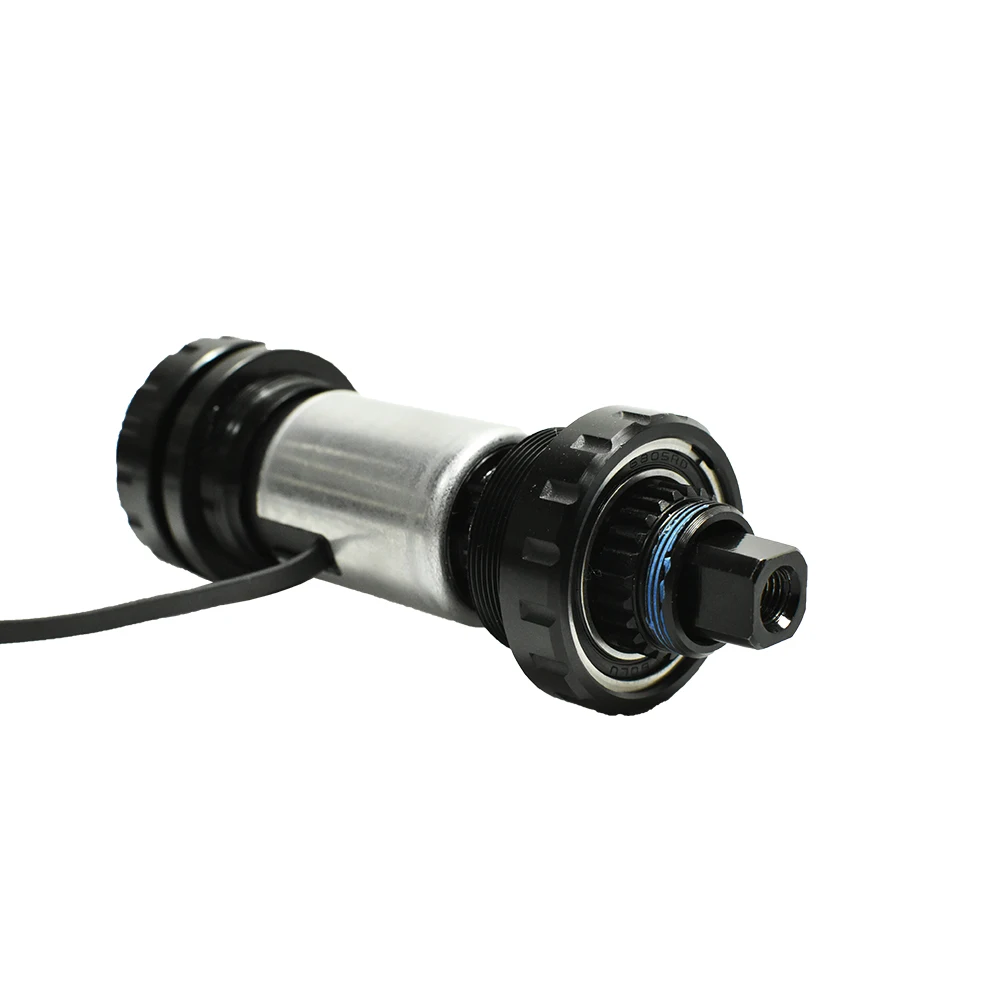

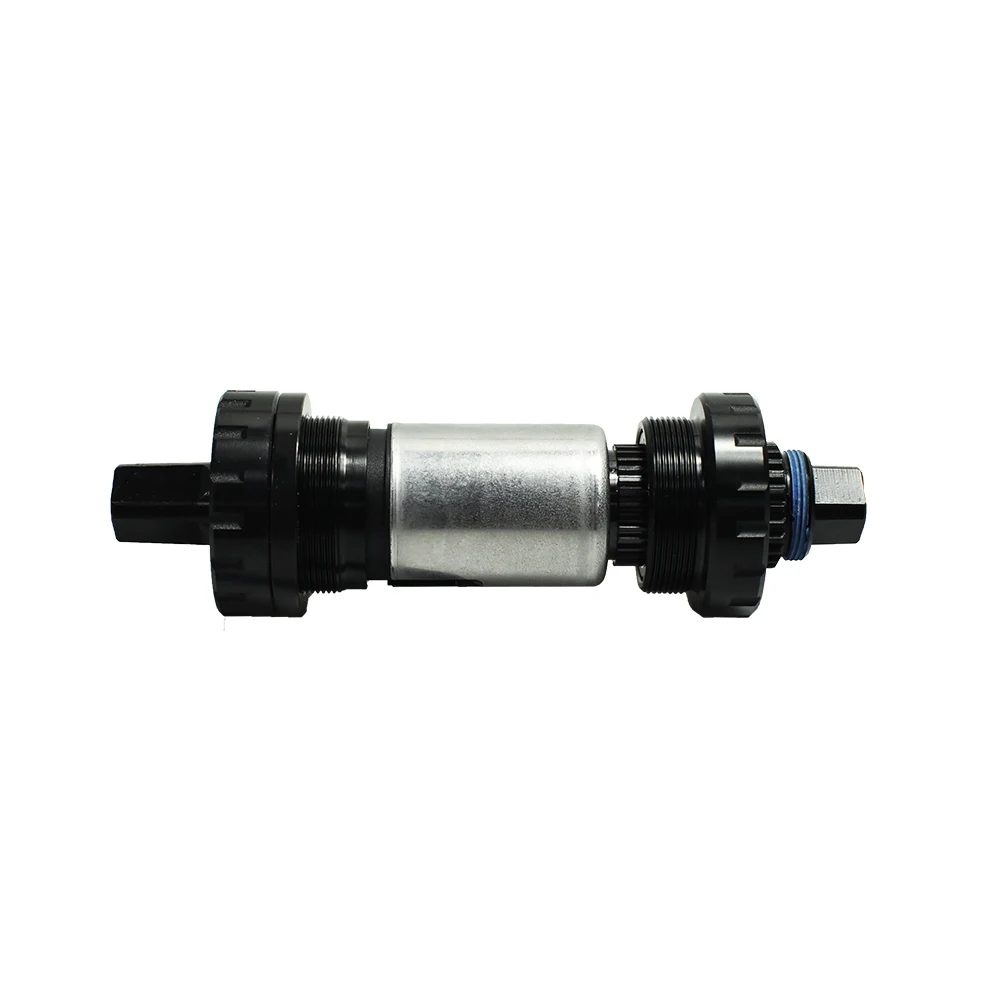

Недорогой водонепроницаемый прочный стабильный датчик крутящего момента
- Категория: Other Electric Bicycle Parts >>>
- Поставщик: Changzhou,Suring,Motor,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 48.45 $* | 50.89 $* |
| Aug-19-2025 | 47.61 $* | 49.30 $* |
| Jul-19-2025 | 40.64 $* | 42.5 $* |
| Jun-19-2025 | 46.34 $* | 48.27 $* |
| May-19-2025 | 40.39 $* | 42.67 $* |
| Apr-19-2025 | 46.92 $* | 48.10 $* |
| Mar-19-2025 | 45.90 $* | 47.25 $* |
| Feb-19-2025 | 45.48 $* | 47.42 $* |
| Jan-19-2025 | 44.61 $* | 46.26 $* |
Характеристики
Product Description
The characterstics of the sensor are as follows:
1. High precision and good linearity;
2. Fast dynamic response;
3. Maintenance free and good interchangeability;
4. Small volume(can be fitted with the standard BB);
5. Non-contact type, long service life, insensitive to bending moment and axial force;
6. Low power consumption and good stability;
7. Assembly dimensions and input/output signals can be adjusted.
2. Fast dynamic response;
3. Maintenance free and good interchangeability;
4. Small volume(can be fitted with the standard BB);
5. Non-contact type, long service life, insensitive to bending moment and axial force;
6. Low power consumption and good stability;
7. Assembly dimensions and input/output signals can be adjusted.
Advantages of Torque Sensor in ebike
A torque sensor is an important component in modern electric bicycles, as it allows the bike to measure the amount of force the rider is applying to the pedals. This enables the bike to adjust the amount of assistance the motor provides to match the rider’s effort. The main advantage of having a torque sensor in an electric bike is that it allows the rider to have a more natural riding experience. It also ensures that the motor is only providing enough assistance for the rider to maintain their desired speed.
In addition, torque sensors provide more accurate power delivery. This means that the motor only provides the amount of assistance that is needed, rather than too much or too little. This helps to conserve battery life, as the motor is not wasting energy by providing more assistance than necessary.
The torque sensor also helps to make the ride more comfortable. This is because the motor can be programmed to smooth out the power delivery. It can also be programmed to respond to small changes in the rider’s effort, meaning that the motor can provide a more consistent power delivery.
Torque sensors also help to make electric bikes safer. This is because the motor will only provide the amount of assistance that is needed, so the rider can remain in control of their bike. The motor will also respond to sudden changes in the rider’s effort, so that the rider won’t be surprised by sudden accelerations or decelerations.
Overall, the torque sensor is a valuable component of an electric bike. It provides a more natural and comfortable riding
experience, while also being more efficient and safer.
In addition, torque sensors provide more accurate power delivery. This means that the motor only provides the amount of assistance that is needed, rather than too much or too little. This helps to conserve battery life, as the motor is not wasting energy by providing more assistance than necessary.
The torque sensor also helps to make the ride more comfortable. This is because the motor can be programmed to smooth out the power delivery. It can also be programmed to respond to small changes in the rider’s effort, meaning that the motor can provide a more consistent power delivery.
Torque sensors also help to make electric bikes safer. This is because the motor will only provide the amount of assistance that is needed, so the rider can remain in control of their bike. The motor will also respond to sudden changes in the rider’s effort, so that the rider won’t be surprised by sudden accelerations or decelerations.
Overall, the torque sensor is a valuable component of an electric bike. It provides a more natural and comfortable riding
experience, while also being more efficient and safer.
Input voltage | 4.5~5.5V |
Input power | <0.15W |
Torque output range | 0.75~3.3V |
Speed signal pulse | 36R |
Speed signal duty cycle | 50% |
Torque signal resolution | 35mV/N.m |
Torque measuring range | 0.5~80N.m |
Protect grade | IP66 |
Working temperature | -20~85℃ |
Storage temperature | -40~120℃ |
Company Profile
Other products
FAQ
1. Q: What is your packing terms?
2. Q. What is your terms of payment?
A: Generally, electric bike motors are packed in foam and macarboard boxes, suitable for sea containers.
2. Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. 100% for sample. We'll show you the photos or videos of the products and packages before you pay the balance. Or you can come to have a check of it.
3. Q: Do you test all your goods before delivery?
3. Q: Do you test all your goods before delivery?
A: Yes, all products will be tested before delivery.
4. Q: Could you print customer’s logo and information on motors?
4. Q: Could you print customer’s logo and information on motors?
A:Yes, OEM and ODM are available for ebike motor.
5. Q: Do you accept sample order?
5. Q: Do you accept sample order?
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
6. Q: How long is your lead time?
6. Q: How long is your lead time?
A:Sample order for e-bike motor is within 15 working days Sample order for E-bike conversion kit is about 25-30 working days.
7. Q: How to confirm the conversion kit fit my bicycle?
7. Q: How to confirm the conversion kit fit my bicycle?
A：The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel .
8. Q: How do you make our business long-term and good relationship?
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit; Second we respect each customer. We sincerely do business and make friends with them.
