Характеристики

Frp Rebar Production Machine Structure principle

The unit is mainly composed of yarn frame, dipping tank, winding, oven, tractor, cutting saw and stacking device.

1. Yarn frame:

place yarn group and adopt steel plate, steel pipe and Angle steel welding structure.

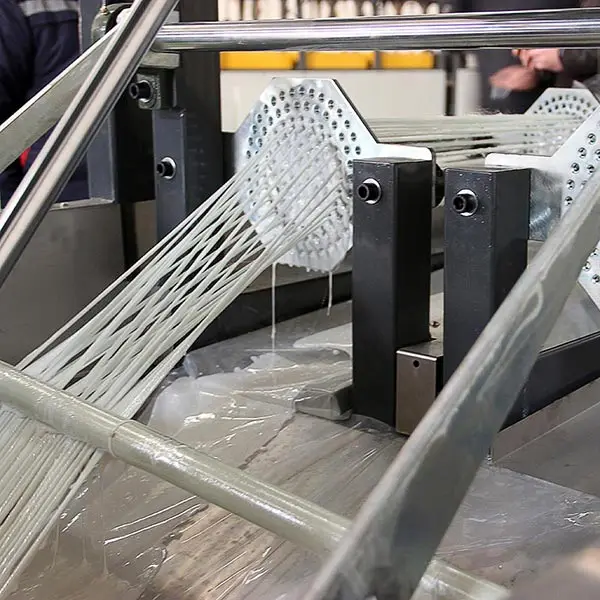

2. dipping tank: made of stainless steel welding, internal yarn pressing roller to make roving fully impregnated in resin.

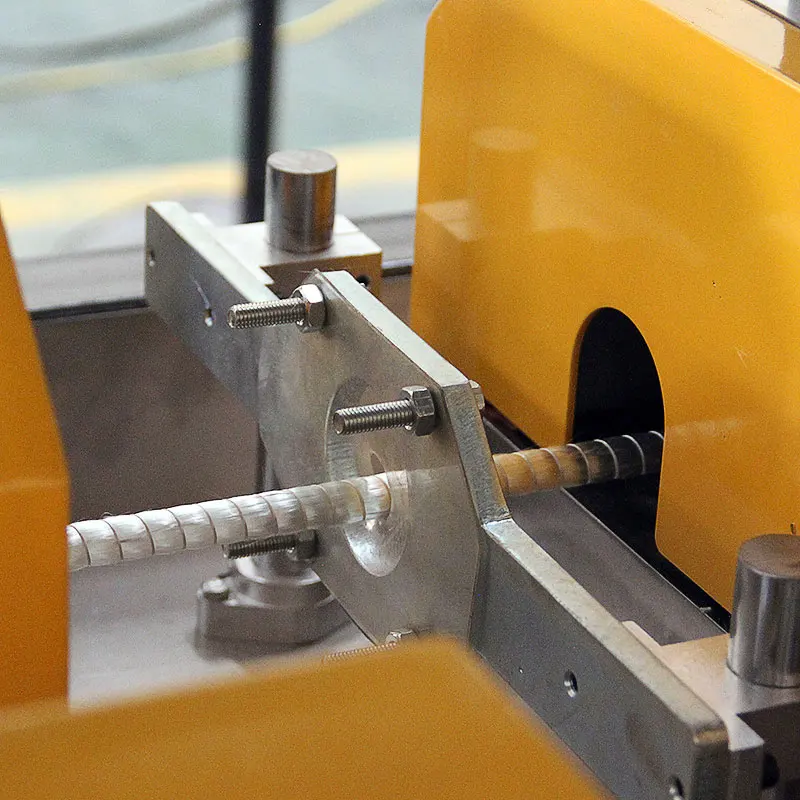

3.winding device: gear drive line roller around the product, winding thread. Adopt frequency conversion speed regulation mode, speed stepless adjustment.

4. Unwinding device:

gear drive is adopted to push down the winding belt which is wound to the glass and steel bar to form the thread. Frequency conversion speed regulation is adopted to adjust the speed stepless.

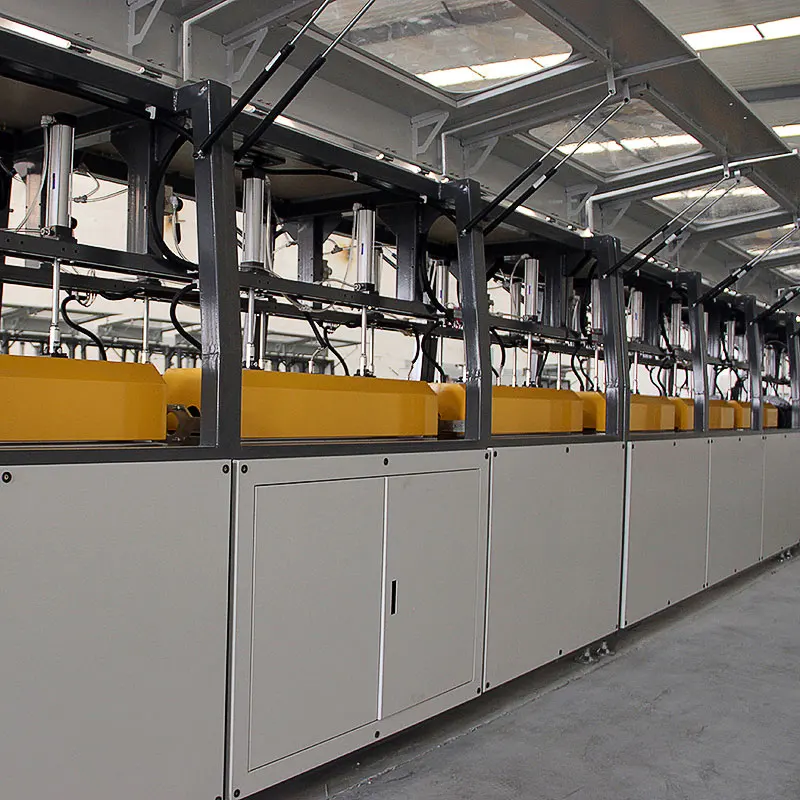

5. oven:

casting aluminum heater, intelligent temperature controller temperature control. The heating box adopts split structure,
which can be convenient Remove dripping resin and fill the interior with thermal insulation.

6. automatic tracking cutting saw:

according to the specific requirements of the production line of glass and steel line fixed length cutting.

7. product stacking device:

FRP REBAR after cutting stacking, by the production personnel to take away

Technical parameters

operating voltage	380V & 440V /50HZ	Air pressure	0.4-0.6Mpa
total power	40Kw	center height	1000mm
Winding Numbers	2	Center distance of winding head	411mm
Winding speed	9-95rpm	Coil diameter	Max 40mm
Traction speed	0.1-1m/min	The traction	Max100Kn
Effective track holding length	2500mm	Track clamp width	600mm
Cutting range	（W X H）600X65mm	Cuttin speed	2850rpm
Tracking cut stroke	700mm	Fixed-length	travel switch
Unit dimensions	20000X1850X1450mm

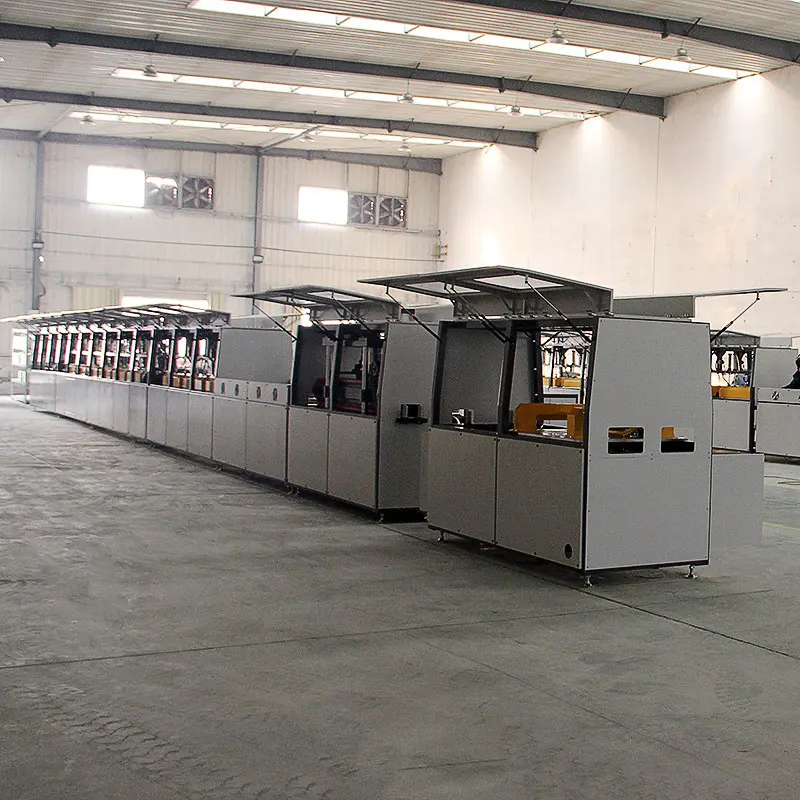

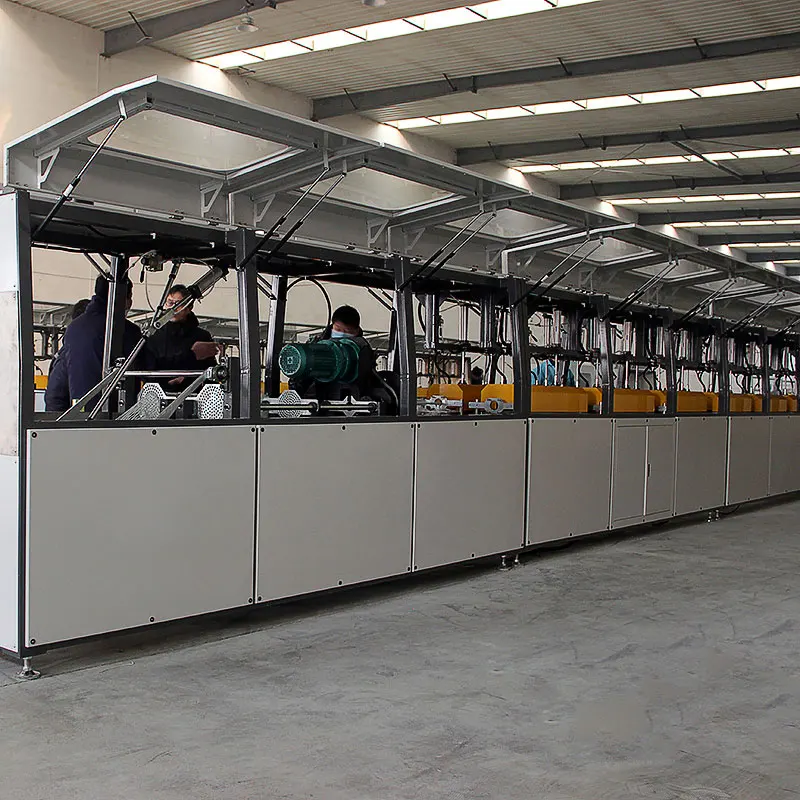

frp rebar machine layout

Technical parameters of components of fiberglass equipment

yarn 2000×600×2000mm 3 UNITS

Resin tank one layer 1 UNIT

Oven (including winding device, unwinding device)

6 meters 1 UNIT

1) Double head heating 12 sections in total
2) FRP rebar production range: maximum ф 30mm
3) Heating ring: 48 pieces
4) Power: 33.6KW
5) Overall size: 9130x1400X850mm
6) Speed: frequency conversion speed regulation

Tractor 1 unit

1) Large reduction ratio cycloidal gear reducer, Omron frequency conversion speed regulation
2) polyurethane wear resistant rubber block
3) Pneumatic compression, through the double pressure regulating valve to adjust the lifting and compression force

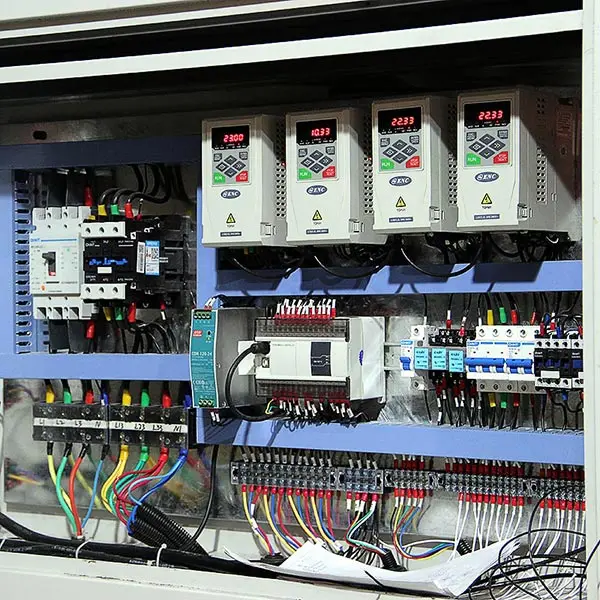

4) Omron PLC control
5) Traction speed can be adjusted by buttons on the panel, and digital display of line speed indicator
6) Traction clamping range : 500X100mm
7) Power : 3KW
8) Effective traction length : 2000 mm
9) Traction speed : 0.1-1m /min
10) Traction : 150KN
11) The length of traction glue block : 600 mm
12) Traction mode : flat open caterpillar type
13) Overall size : 2500×1300×1450 mm

Automatic cutting saw

1) Cutting power : 3KW
2) Vacuum power, water and dust removal
3) The maximum cutting section size : 600X100mm
4) Saw blade speed : 1400r/min
5) Saw blade diameter : φ300/φ50
6) Cutting mode automatic/manual
7) Track cutting stroke : 700 mm
8) Exterior size : 1850×1250×1510 mm
