GPS-трекер умная
- Категория: Navigation & GPS >>>
- Поставщик: Shenzhen,Jlxt,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 110.49 $* | 112.50 $* |
| Jul-20-2025 | 90.51 $* | 92.33 $* |
| Jun-20-2025 | 109.50 $* | 111.88 $* |
| May-20-2025 | 108.50 $* | 110.35 $* |
| Apr-20-2025 | 86.36 $* | 88.67 $* |
| Mar-20-2025 | 106.90 $* | 108.19 $* |
| Feb-20-2025 | 105.99 $* | 107.22 $* |
| Jan-20-2025 | 104.32 $* | 106.5 $* |
Характеристики
Products Description
TL10 is 2G/3G/4G Smart Electronic Lock, bulit-in10400maH battery, G-sensor and RFID reader, and monitor the container or asset's location. Through the wireless technology, User can open the GPS lock remotely by SMS password or (android or IOS) app.If there is no cellular network, user can also open the lock by the authorized RFID key on spot.
Specification
GNSS Specification | |
SYSTEM | GPS+BEIDOU+GLONASS |
Chipset | AT6558R |
Receiver | 32 Channel |
Cold start | ≤32s |
Hot start | ≤1s |
Cold start capture sensitivity | -148dBm |
Tracking sensitivity | -165dBm |
Accuracy | <2.5m（CEP50） |
4G Module Specification | |
SYSTEM | |
Bands | -CN LTE FDD：Band 1,3,5,8 LTE TDD：Band 34,38,39,40,41 WCDMA: Band 1,5,8 GSM/EDGE: Band 3,8(Optional) -EU LTE FDD：Band 1,3,5,7,8,20,28 LTE TDD：Band 38,40,41 WCDMA: Band 1,5,8 GSM：Band 3,8 -AU LTE FDD：Band 1,2,3,4,5,7,8,28,66 LTE TDD：Band40 WCDMA: Band 1,2,4,5,8 GSM/EDGE：Band 2,3,5,8 |
General Specification | |
Size | 195mm x 114mm x 37mm |
Weight | 833g( Include main unit and Hard lock hock soft rope) |
Material | Engineering plastic |
GPS Module | AT6558R |
GSM module | Quectel M25 ,EC200 series or EC25 series |
Working temperature | -20°C -- +80°C |
Store temperature | -40°C -- +80°C |
Humidity | 5%—99% |
Built in battery capacity | Rechargeable battery 10400mAh |
Average working current | <90 mA |
Average current standby | <100uA |
Working hour | 2G device(10400mAh) continuous full load operation for 100 hours |
3/4G device(10400mAh) normal working mode: 70 hours | |
Waterproof | IP67 |
Transmission mode | Support TCP(GPRS) or SMS(short message) |
Charging specification | DC5V, 2A, 5521 interface |
Motion sensor | 3D acceleration sensor |
Memory | 2MB |
Antenna | GSM/GPS default built-in antenna |
lock hook | Stainless steel, tensile resistance 200KG |
LED | 4 indicator（Communication. Location. Low power. Charge） |
SIM | Double card single standby，Micro SIM card |

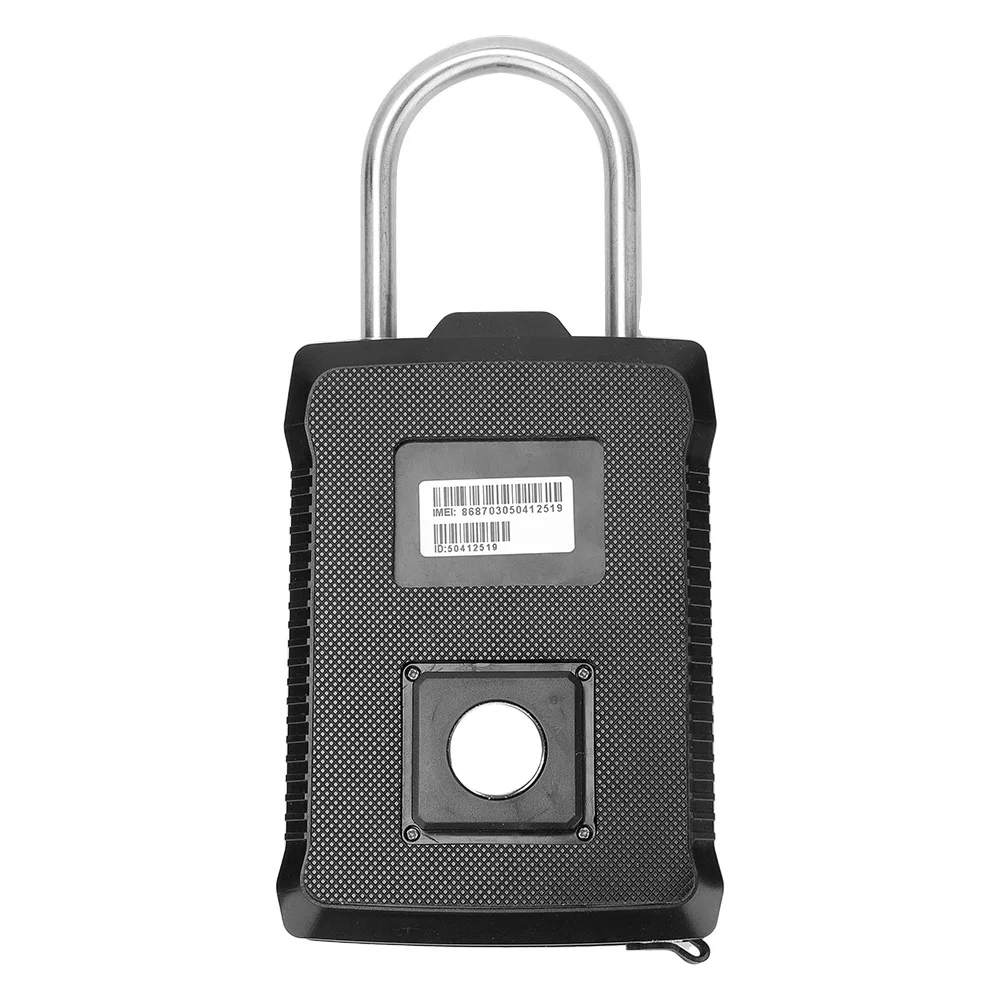

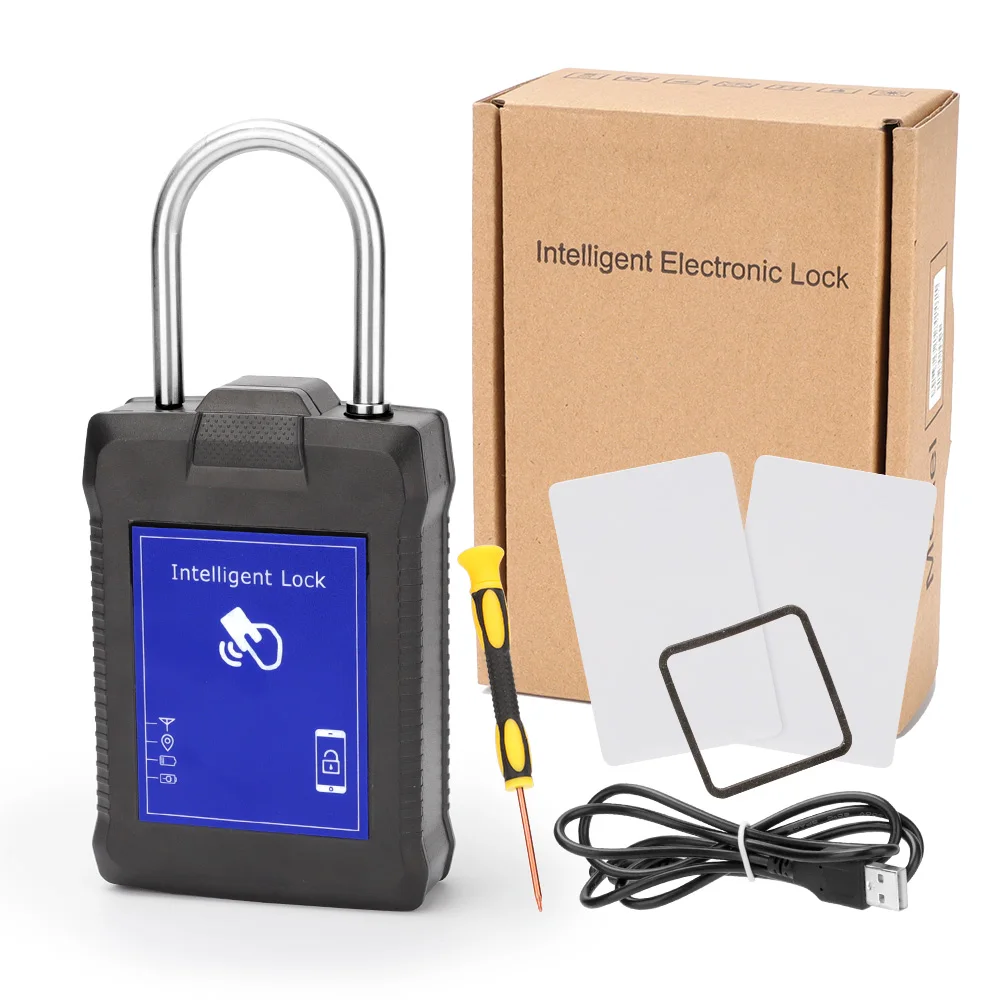

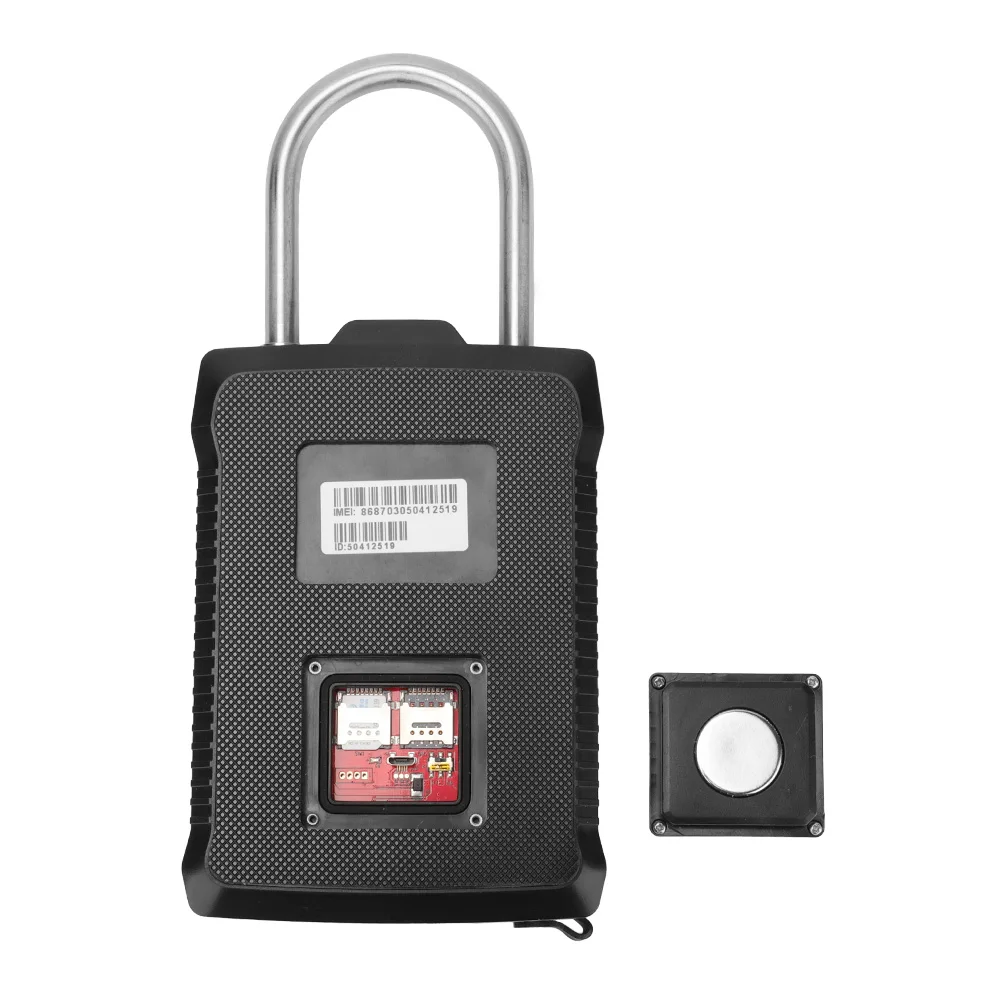

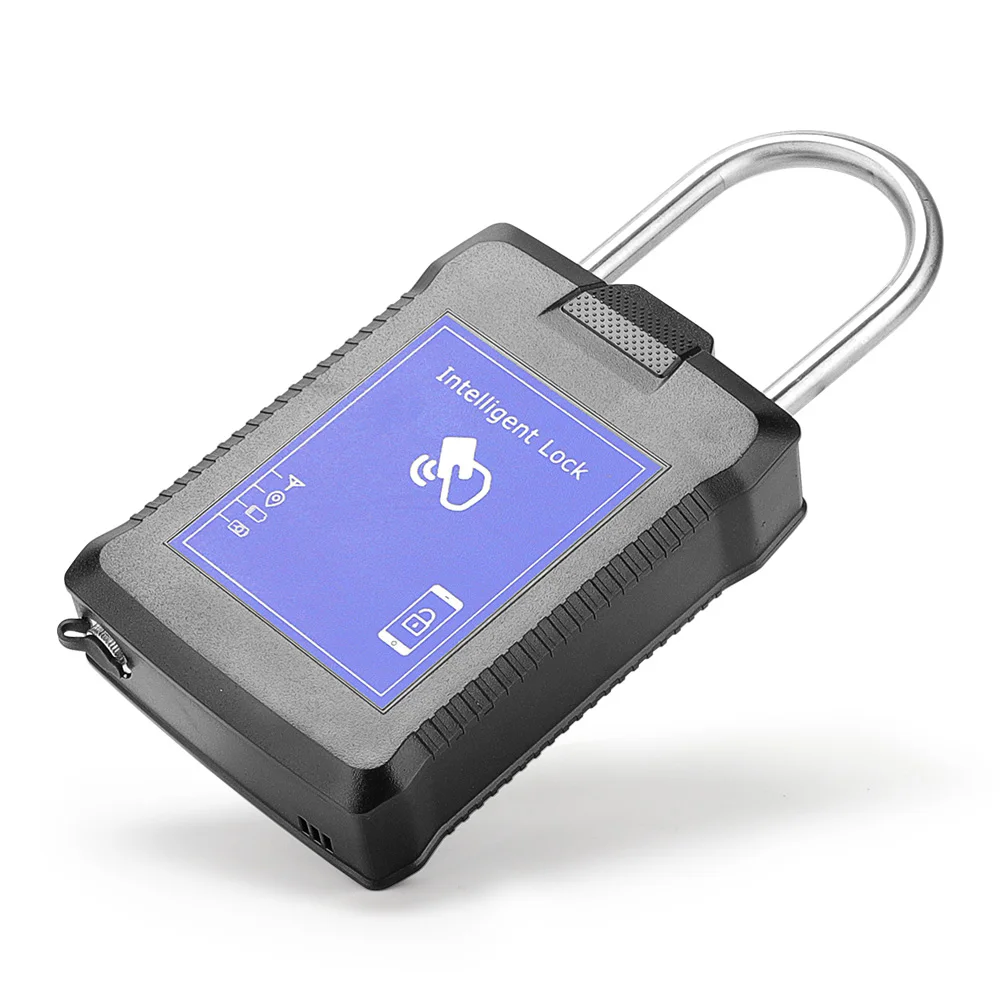

Product Pictures
Details Images
FAQ
What is your terms of packing?
Generally, we pack our goods in neutral blank brown-paper boxes.
What is your terms of payment?
(1). For order quantity less than 200pcs,100% TT accepted;
(2). For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
(3). For sample and order less than 100pcs, Trade Assurance accepted.
(2). For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
(3). For sample and order less than 100pcs, Trade Assurance accepted.
What is your terms of delivery?
EXW, CNF Shenzhen or FOB Shenzhen.
How about your delivery time?
Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.
Do you accept re-branding?
Yes, re-branding on product case and gift box is available.
Can you do hardware/firmware customization?
Yes, OEM/ODM is our specialty. Our R&D team has more than 6years of industry experience.
What is your policy sample?
If we have ready-made parts inventory, we can provide samples, but the customer must pay the sample cost and higher cost.
How are quality control and warranty?
All products have been 100% strictly Quality Checked in the house before packing.
How do you make our business long-term and good relationship?
We will maintain good quality and competitive prices to ensure that our customers benefit. We regard every customer as our friend, and we sincerely do business with them and make friends with them. No matter where they come from.
