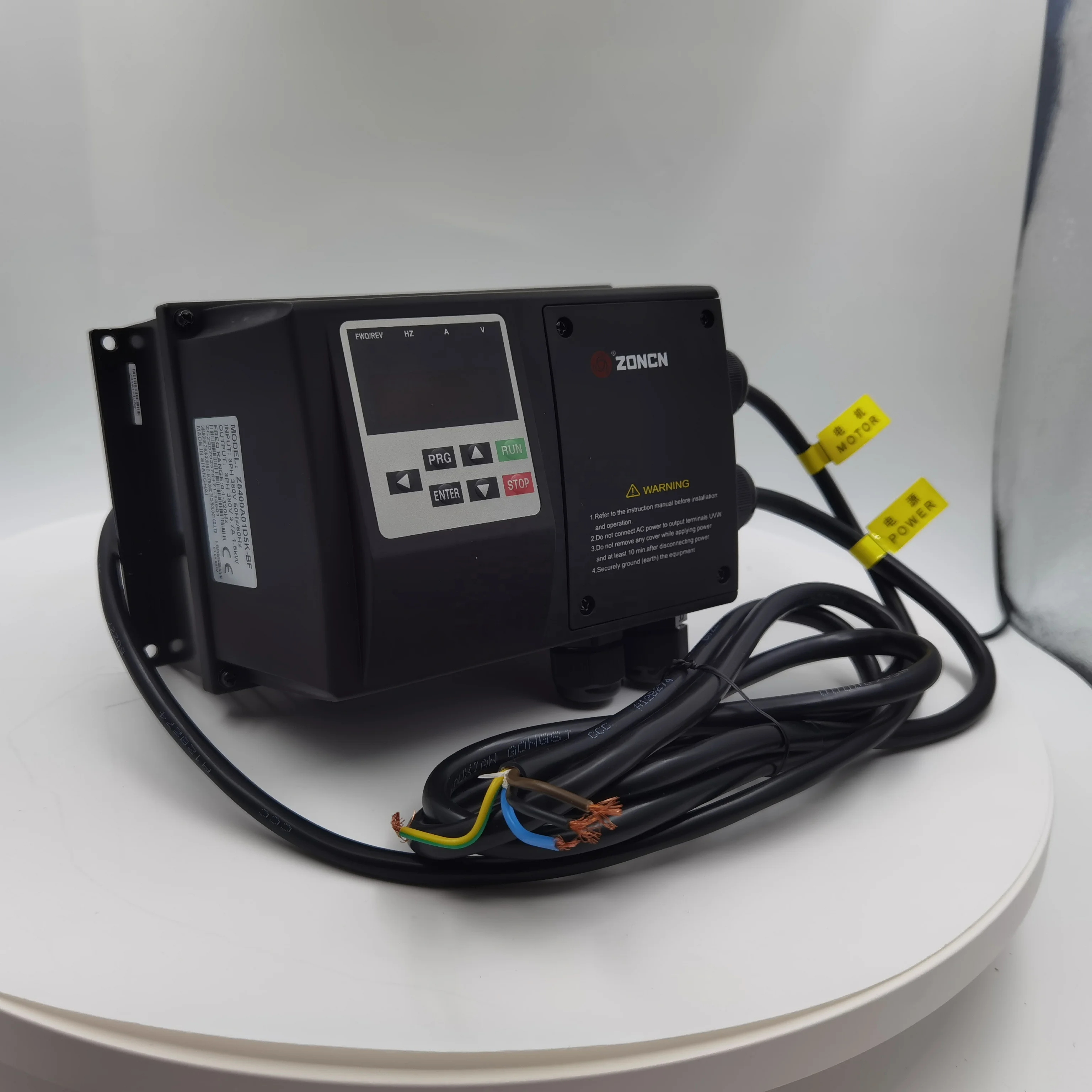

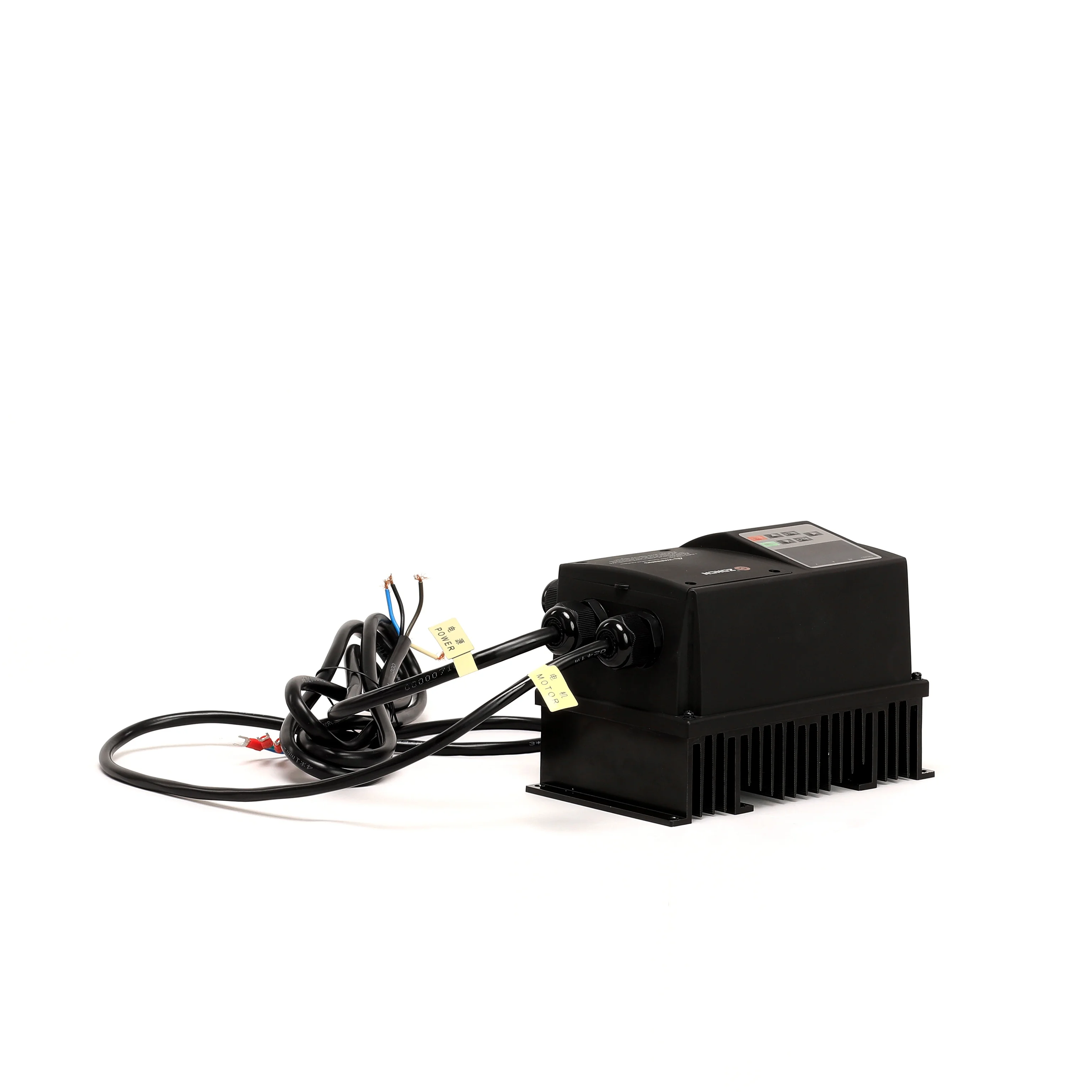

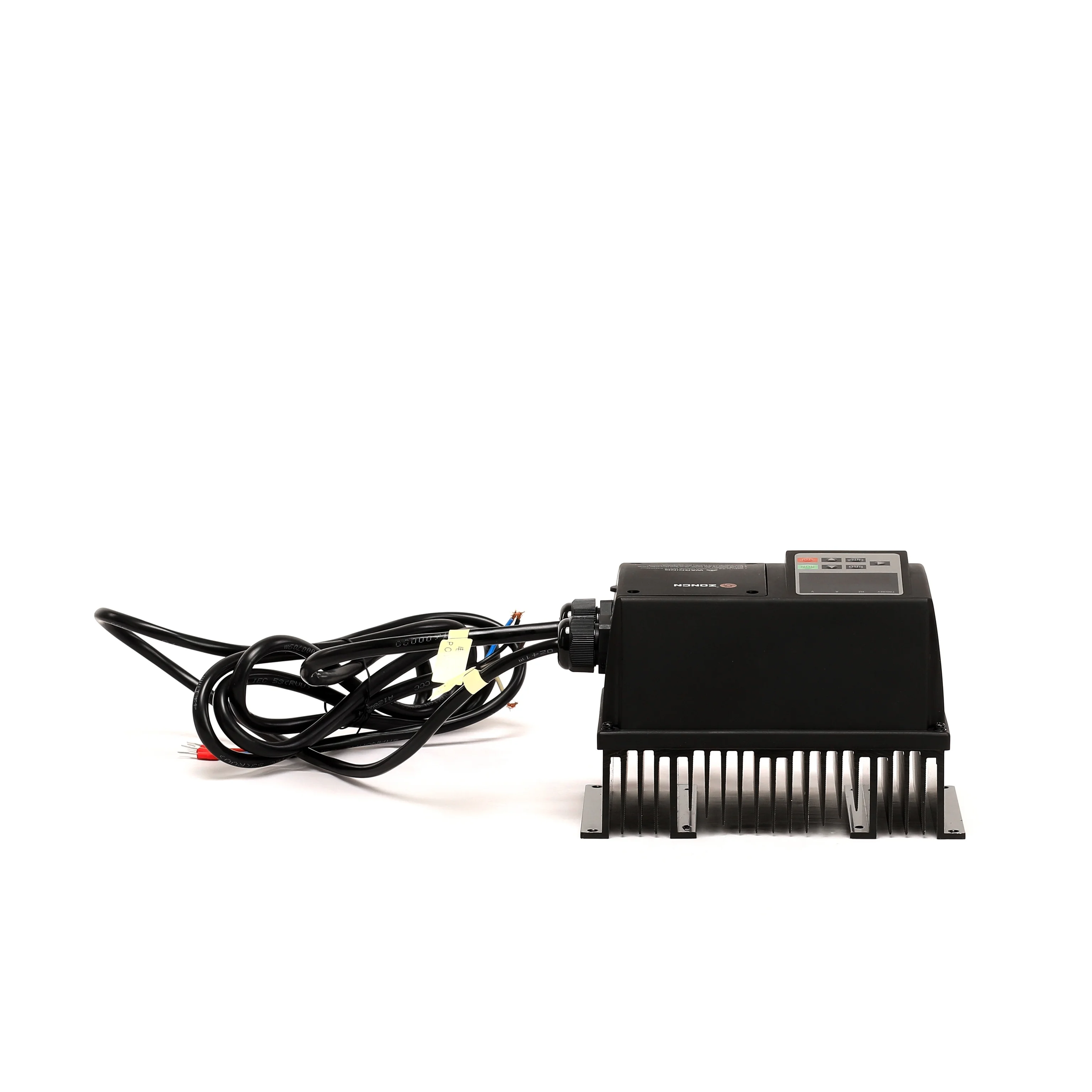

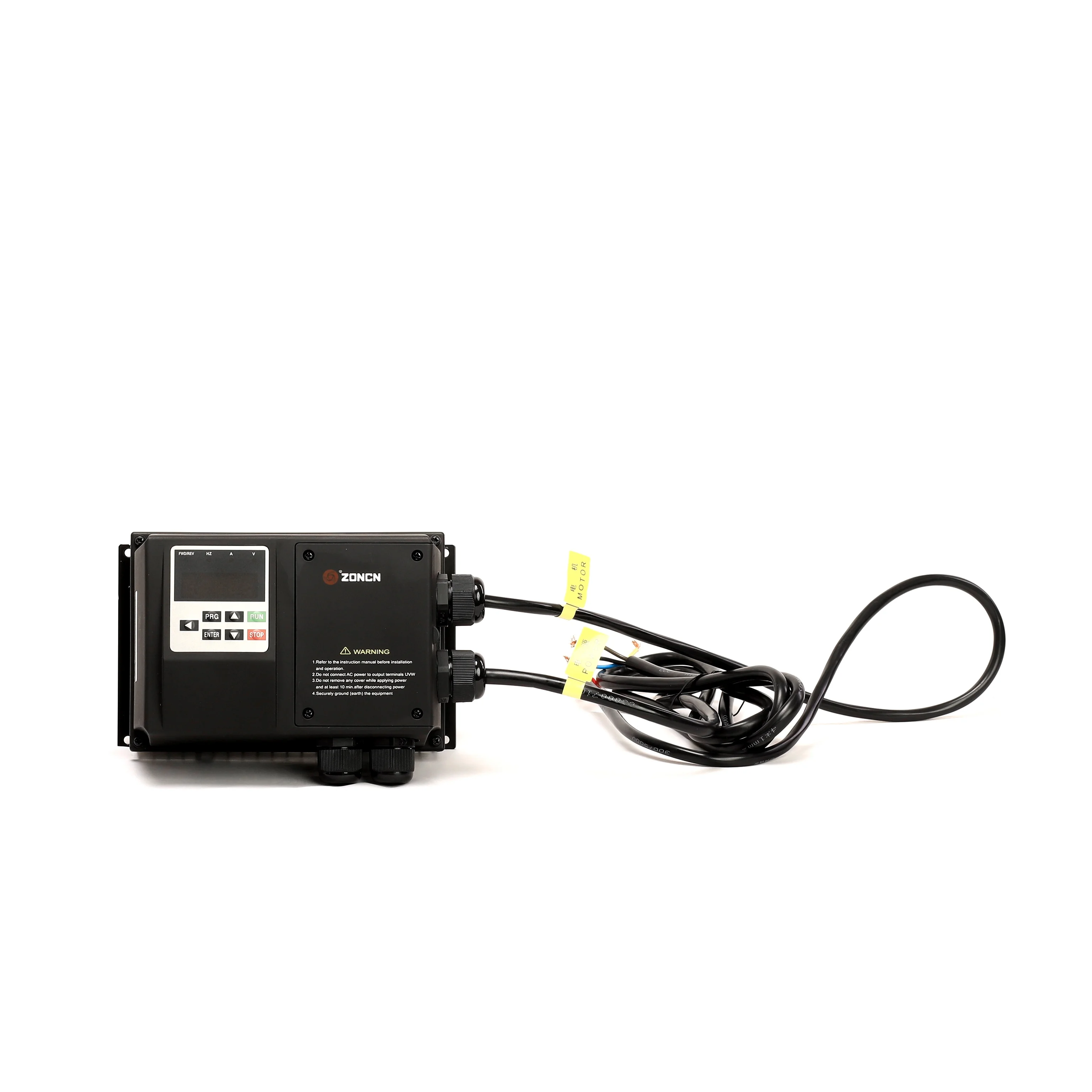

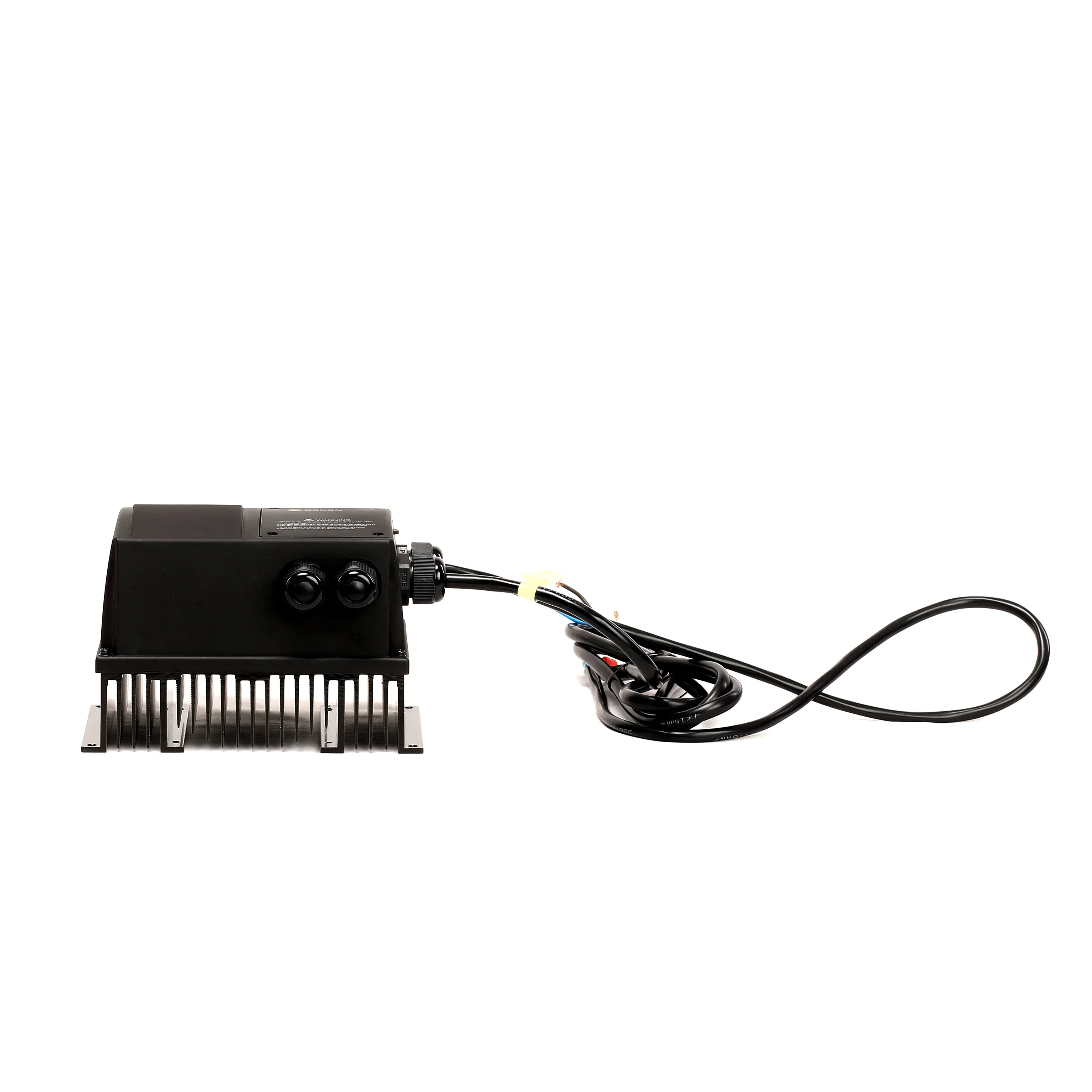

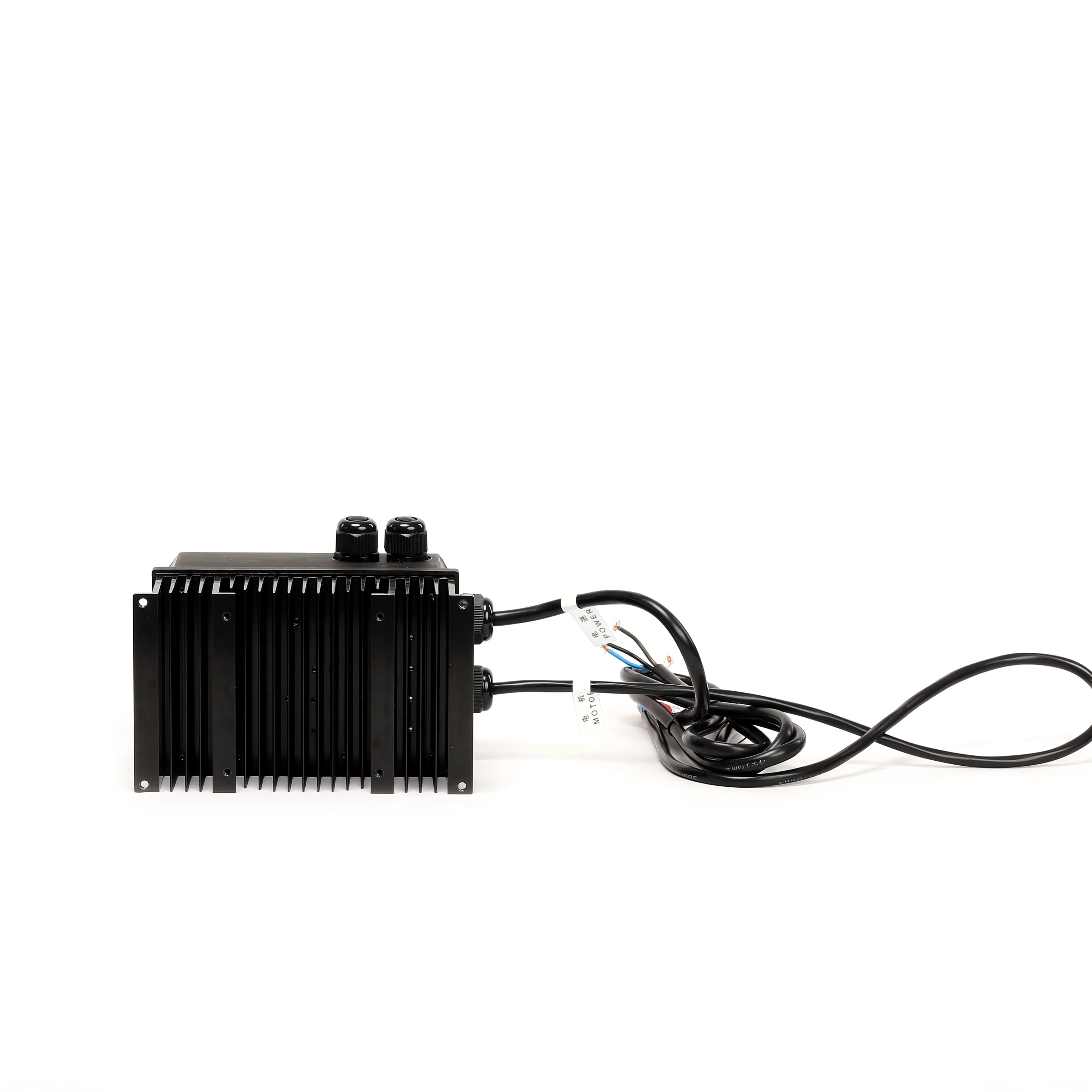

1 5 кВт IP65 Водонепроницаемый инвертор частоты 220 В однофазный VFD непосредственно установленный для водяного
- Категория: Power Supplies >>>
- Поставщик: Wuhu,Zoncn,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 110.57 $* | 112.48 $* |
| Jul-17-2025 | 90.55 $* | 92.29 $* |
| Jun-17-2025 | 109.45 $* | 111.19 $* |
| May-17-2025 | 108.80 $* | 110.93 $* |
| Apr-17-2025 | 86.35 $* | 88.17 $* |
| Mar-17-2025 | 106.66 $* | 108.98 $* |
| Feb-17-2025 | 105.77 $* | 107.33 $* |
| Jan-17-2025 | 104.9 $* | 106.99 $* |
Характеристики
Product Parameters
H5000 series inverter function and characteristics | ||||||||
Rated voltage | 1PH/3PH AC 220V 50/60Hz (Input) | |||||||
Voltage range | 3PH AC 380V 50/60Hz (Input) | |||||||
Voltage Range | 220V: 170~240V; 380V: 330V～440V (Input) | |||||||
Voltage Range | 220V: 0~220V ; 380 V: 0～380 V (Output) | |||||||
Frequency Range | 0.10～400.0 Hz (Output） | |||||||
Control method | V/F control, Space vector control | |||||||
Indication | Operating status/Alarm definition, interactive guidance; eg, frequency setting, the output frequency /current, rotating speed, fault and so on. | |||||||
Output Frequency Range | 0.10～400.00 Hz. | |||||||
Frequency Setting Resolution | Digital input: 0.01 Hz. Analog input:0,1% of maximum output frequency | |||||||
Output Frequency Accuracy | 0.01HZ | |||||||
V/F Control | Setting V/F curve to satisfy various load requirements | |||||||
Torque Control | Auto increase: auto raise torque by loading condition; Manual increase: enable to set 0.0~20% of raising torque | |||||||
Multifunctional Input Terminal | 4 multi-function input terminals, realizing functions including 15 section speed control, program running, 4 section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions | |||||||
Multifunctional Output Terminal | 1 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings | |||||||
Acceleration/deceleration Time Setting | 0~999.9 s acceleration/deceleration time can be set individually | |||||||
PID Control | Built-in PID control | |||||||
RS485 | Standard RS485 communication function (MODBUS) | |||||||
Frequency Setting | Analog input 0～10V, 0～20мА, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN | |||||||
Multi-speed | 4 multi-function input terminals,15 section speed can be set | |||||||
Automatic voltage regulation | Automatic voltage regulation function can be selected | |||||||
Counter | Built-in 2 group of counters | |||||||
Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling | |||||||
Protective Structure | IP54 IP65 | |||||||
Specification
Model | Output power(kW) | Capacity(KVA) | Output Current（A） | Overload capacity（60s/A） | Motor equipped(kW) | |||||
Input 1PH AC 220V±15% | ||||||||||
H5200P0D75K-BF | 0.75 | 2 | 5 | 7.5 | 0.75 | |||||
H5200P01D5K-BF | 1.5 | 2.8 | 7 | 10.5 | 1.5 | |||||
H5200P02D2K-BF | 2.2 | 4.5 | 11 | 16.5 | 2.2 | |||||
Input 3PH AC 380V±15% | ||||||||||
H5400P0D75K-BF | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 | |||||
H5400P01D5K-BF | 1.5 | 3.2 | 4 | 6 | 1.5 | |||||
H5200P02D2K-BF | 2.2 | 4 | 5 | 7.5 | 2.2 | |||||
H5400P03D7K-BF | 3.7 | 6.8 | 8.6 | 12.9 | 3.7 | |||||
H5400P05D5K-BF | 5.5 | 10 | 12.5 | 18.75 | 5.5 | |||||
H5400P07D5K-BF | 7.5 | 14 | 17.5 | 21 | 7.5 | |||||
H5400P0011K-BF | 11 | 19 | 24 | 36 | 11 | |||||
H5400P0015K-BF | 15 | 26 | 33 | 39.6 | 15 | |||||
H5400P0018K-BF | 18.5 | 32 | 40 | 48 | 18.5 | |||||
H5400P0022K-BF | 22 | 37 | 47 | 56.4 | 22 | |||||
H5400P0030K-BF | 30 | 52 | 65 | 78 | 30 | |||||
*Max support 160kw, consult customer service. | ||||||||||
