hot sale fiberglass mesh line yarn warping machine/fiberglass mesh making machine price





It is composed of three units :



a) Warping Machine

b) Weaving Machine

c) Glued and Coating Equipment



It is mainly used to weave the fiberglass mesh. The fiberglass mesh can be used on wall  thermal insulating material.



1. Detailed Paramters of Fiberglass Mesh Mahine

Mesh Size	4x4mm, 5x5mm,6x6mm
Width :	1000mm/2000mm/2400mm( 2 rollers , every 1000mm )
Length	50m,100m, and any length required
Speed :	90-140 times/min
Production Capacity	70-80sqm/h
Motor power	1.5KW
Overall dimension	4.2x1.8x1.4m (2.4m width)
Weight	2.0 tons (2.4m width)



Function Features of Fiberglass Mesh Machine



a) This machine model is our latest development. It is designed at 2400mm width , as so, it can produce two rollers , every at 1m. And the production efficiency will be greatly improved . Another the 2000mm width mesh will be cut automatically along with the weaving process.

b)  Another after this new improvement, the cross fiberglass feeding will be more faster.

c)  For some key and important part ,like as sword scalp plate and needle row , we will exactly make sure every manufacturing procedure to required quality.

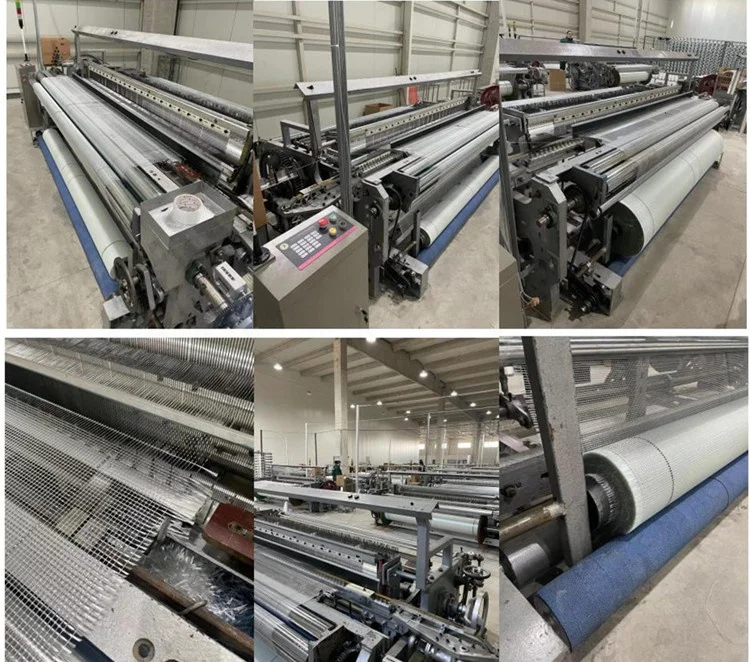

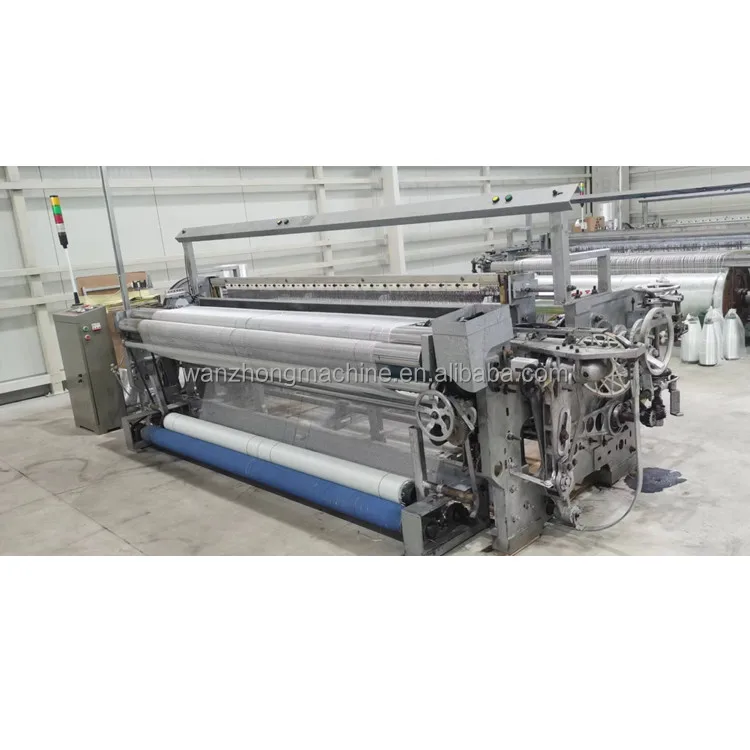

Reference Picture of Automatic Fiberglass Mesh Machine





2. Detailed Paramters of Warping Machine





Width :	1000mm/2000mm/2400mm
Length	0-10000m
Speed :	1000-1300m/hour
Motor power	3.0KW
Overall dimension	8.0x4.0x1.8m (2.5m width)
Weight	1.8 tons (2.5m width)





Main Function Features and Advantages:

a)Through this machine, the fiberglass line yarn on the pay off will be rolled on a roller, which will save workshop space.

b) In front of every pay off, we will comply with one tension-er, which will control the line fiberglass winding  tension.

c) With automatic alarm and shutdown function of broken wire

d)With automatic counting and shutdown function

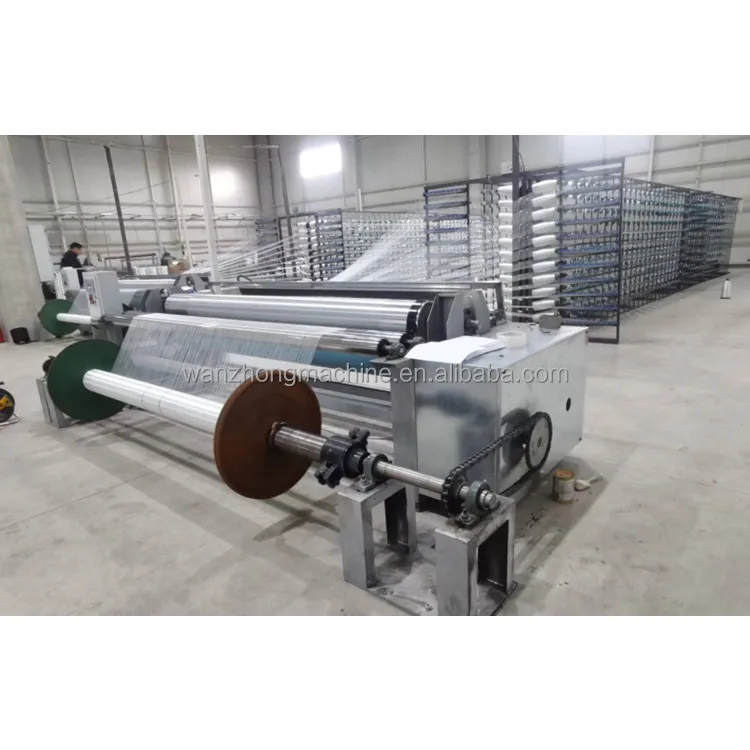

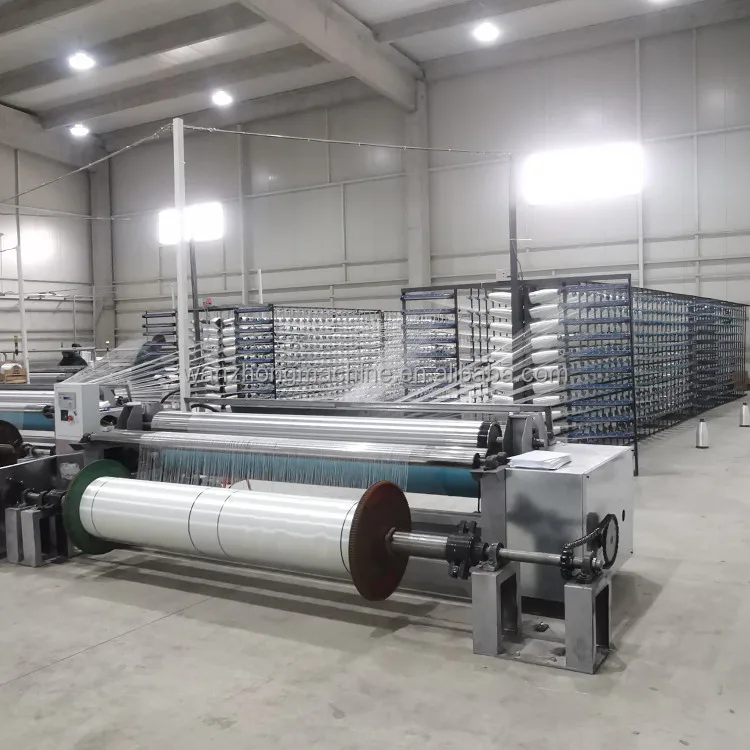

Pictures are referring to the below:







3. Detailed Paramters of Glued and Coating Machine(The Furnace)



Width :	1000mm/1200mm/2000mm or customized
Heating Way:	Natural Gas
Speed :	1300-1500m/hour(1.0m width)
Total power	10.0KW(1.0m width)
Gas Consumpition	about 10.0cbm (1.0m width)
Weight	9.8 tons (1.0m width)



Main Function Features and Advantages:



u  The coating line can produce the fiberglass mesh with max width at 1000mm,which adopts vertical type and can avoid the mesh hang down because of self-weight .At same time,the coating device adopts the structure of the air pressure to let the glue be coated more uniform and make the mesh joint better, and save the glue.



u Our drying baker adopts natural gas type, not the resistance wire. It can heat the mesh in circle and avoid the mesh burned . It is more important that the consumption power is less .





u The heating temperature can be controlled in the control panel,which can ensure every part of fiberglass mesh will be the same heat. Of course the finished mesh quality will be very good. Not like the electricity, this part is in high temperature while that parts is in low temperature.



u We have a store cloth unit, which can make sure the machine is not stopped when the fiberglass mesh is load-off. The cloth store unit can store about 30m mesh.



u Our production capacity can reach 1300-1500m each hour.

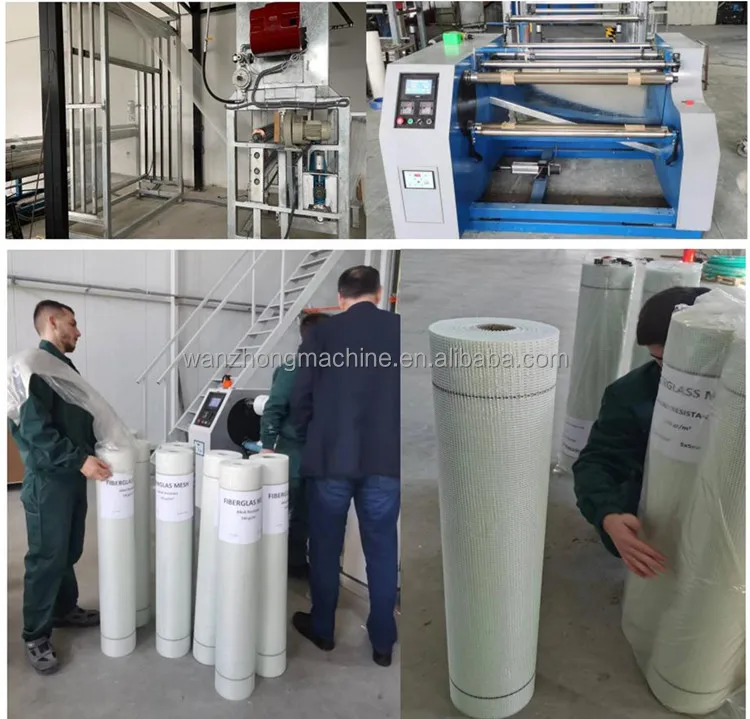

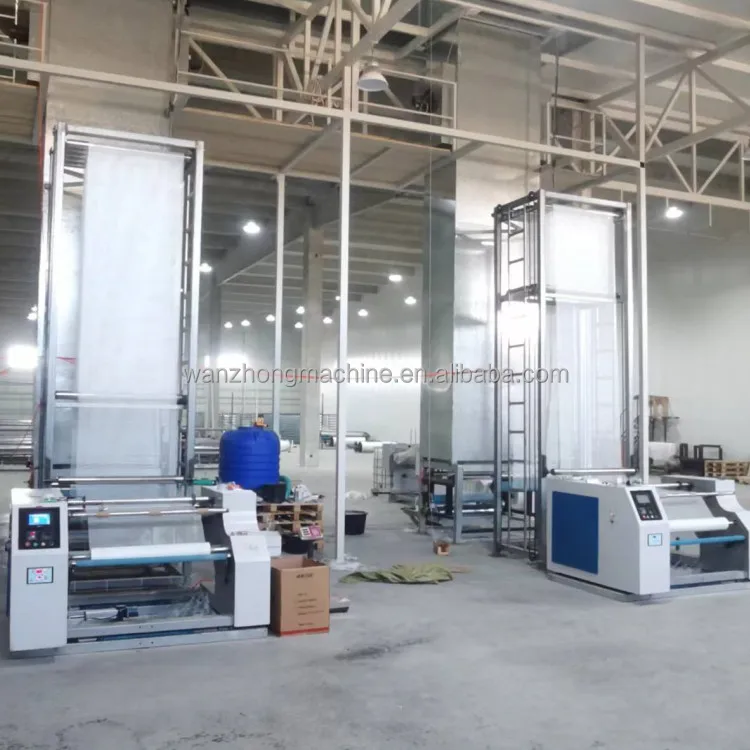

Pictures are referring to the below:
