F370 edgebander Деревообработка X J C L Профиль многофункциональный полностью автоматический 45 градусов угол конической кромки bander
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Shandong,Dongteng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 40639.58 $* | 41452.97 $* |
| Jul-20-2025 | 32959.8 $* | 33618.67 $* |
| Jun-20-2025 | 39999.11 $* | 40799.53 $* |
| May-20-2025 | 39679.5 $* | 40473.69 $* |
| Apr-20-2025 | 31679.8 $* | 32313.67 $* |
| Mar-20-2025 | 39039.90 $* | 39820.23 $* |
| Feb-20-2025 | 38719.10 $* | 39493.69 $* |
| Jan-20-2025 | 38399.27 $* | 39167.29 $* |
Характеристики

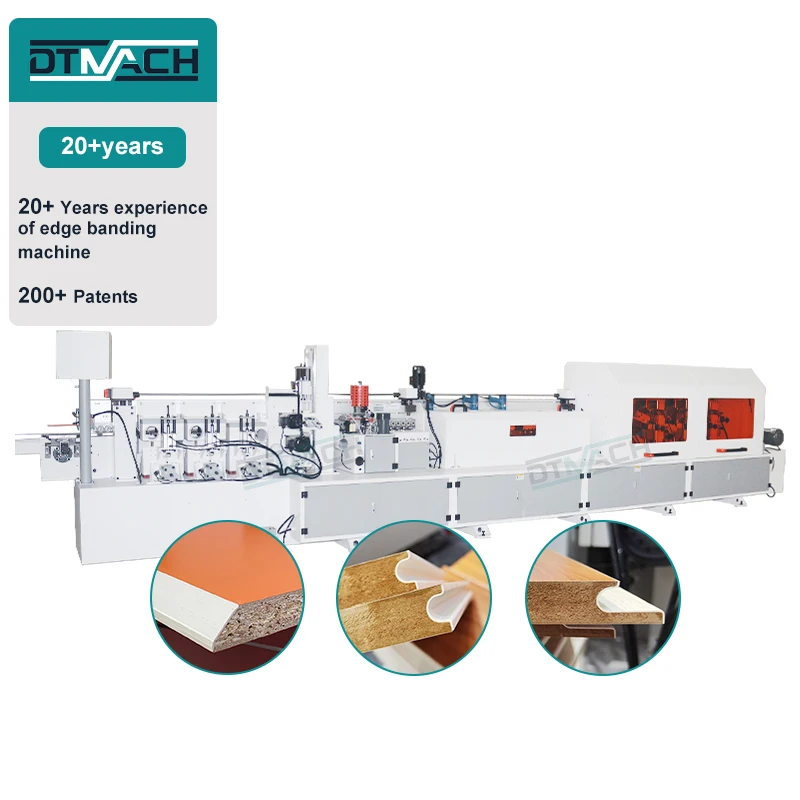

DTMACH J C X L straight shape 45 degree edge banding machine features:
1. 8 Functions: pre-milling, gluing, bonding, end cutting, trimming, scraping, polishing and cleaning. 2. Top glue pot: 3000ml. It can use both EVA and PUR glue to achieve the best working effect.
3. Cleaning glue pot automatically. It can discharge glue pot by one-click, which is easy to operate.
4. 3 diamond pre-milling cutter: rough milling and fine milling
5. 2 bonding system to ensure the bonding effect.
6. Cleaning device: spray anti-adhesion liquid aotumatically to make the baord clear. Recommended water-based cleaning liquid.
Model | F370 |
Voltage | 380V/50hz/3 phase can customize |
Total power | 41.5kw |
Air pressure | 0.6-0.8Mpa |
Tank volume | 5L |
Exernal dust collector | Φ100*8 |
Glue pot operating temperature | 110℃-210℃ |
Edge band thickness | 0.52-0.56mm |
Glue pot | 3000ml |
Feeding speed | 12m/min |
Type of hot melt adhesive | PUR EVA |
Edge band width | J type 54mm C type 33mm |
Plate size | ≥250*120mm |

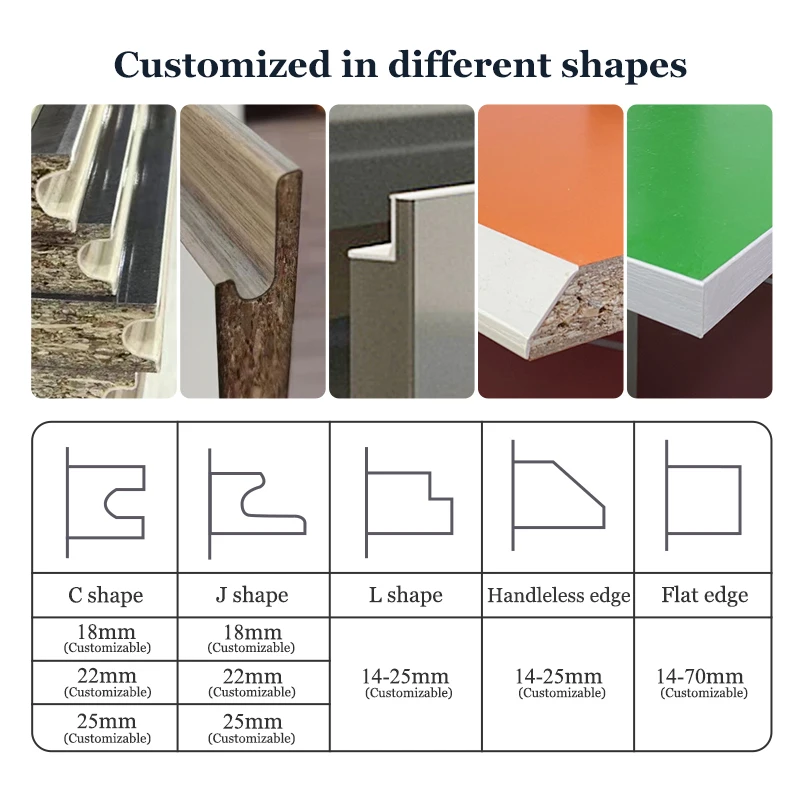

Plate shape | J shape, C shape（customized L shape, bevel straight edge） |
Edge banding material | PVC （matter surface is recommend, no glossy surface is required） |
Dimensions | 8300*1000-1560*1610 |
Net weight | 2700kg |

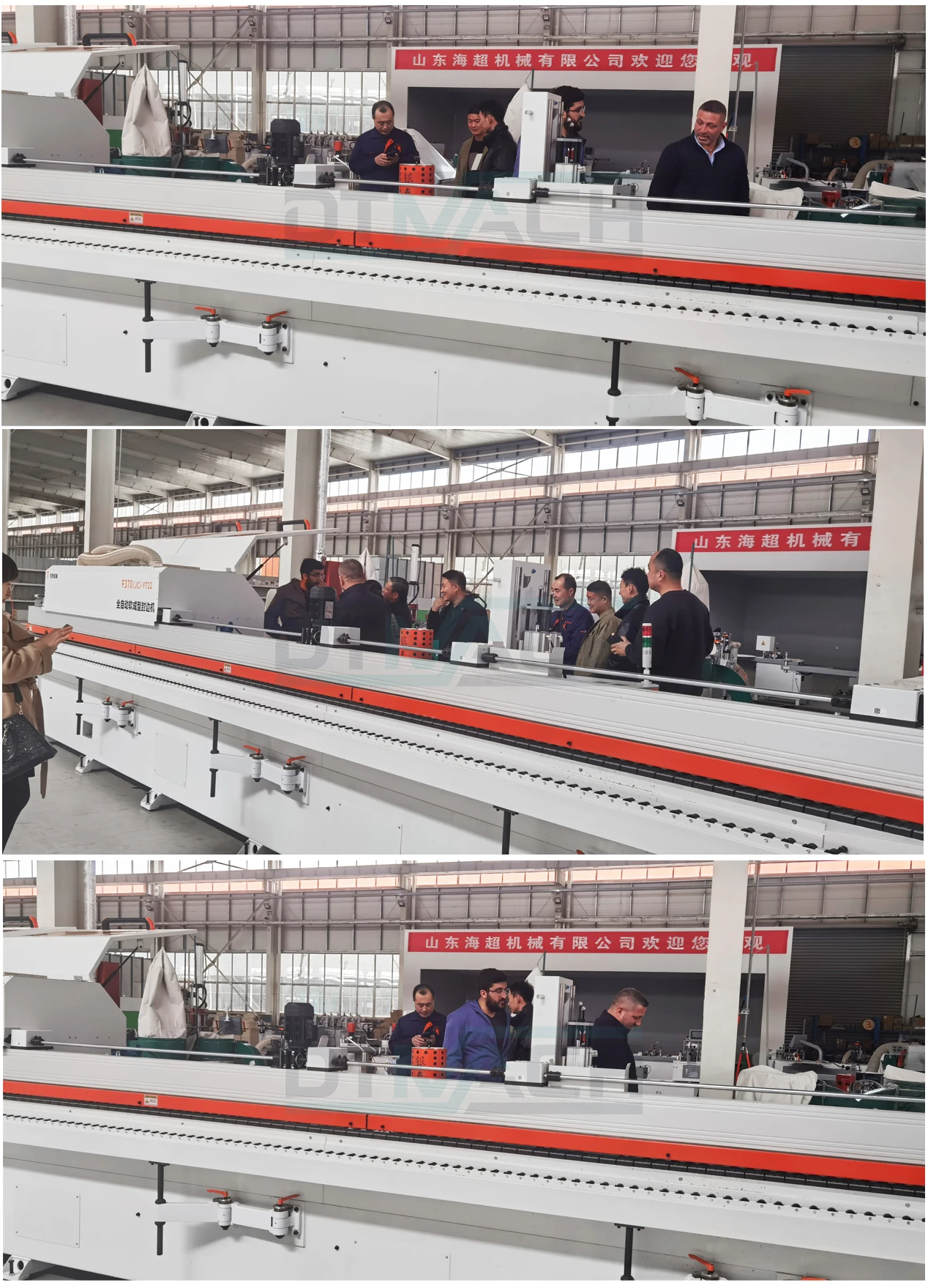

Customers come to visit the factory

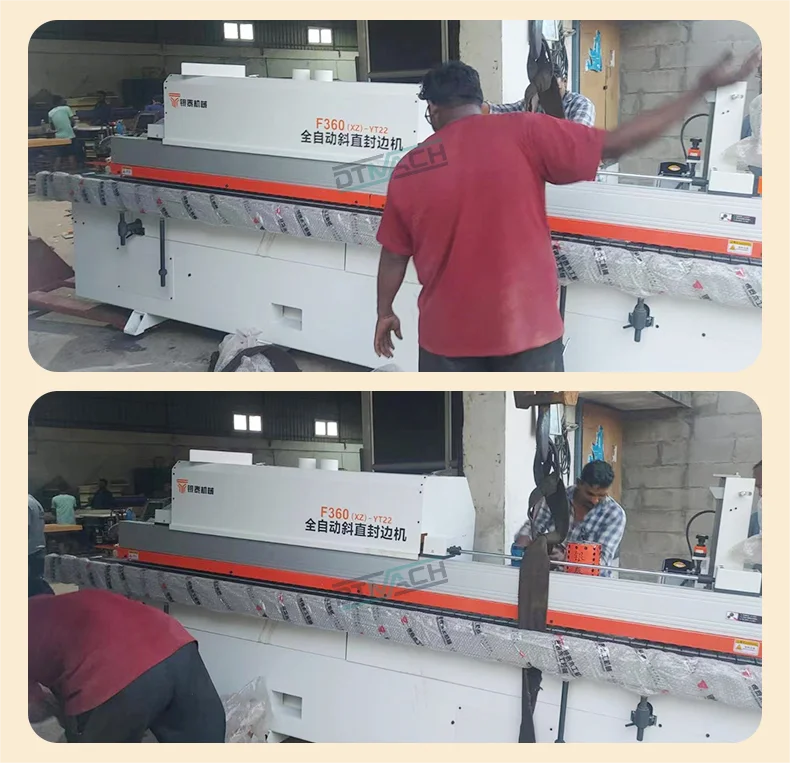

Customer Feedback
Product Features
PUR/ EVA glue pot
Automatic cleaning the glue pot by one-click
2 high-power milling motors
J/C shape pre-milling of the plate, one-time forming
Fully enclosed vacuum, three vacuum ports
The position of the cylinder can be adjusted, and the J/C shape can be switched with one click.
End cutting
Cutting the excess edge band strips of two ends
Trimming both sides
Two kinds of trimming mode, cutting the excess edge band strips clearly
Scraping both sides
Make the edge of edge band strips in top and bottom of board smooth and round with a natural arc.
Polishing both sides
Make the finished effect of board better
Product Display
Application

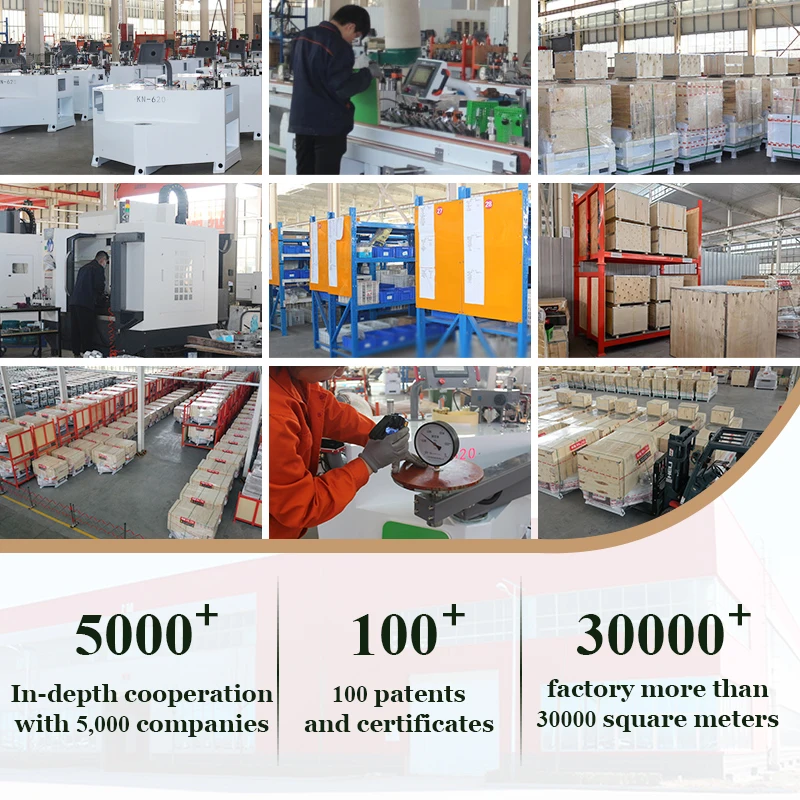

About Us
Shandong Dongteng Machinery Co., Ltd. is committed to developing ,manufacturing and servicing of the woodworking machinery industry, improving production efficiency for the majority of manufacturers, and contributing to the development of the industry. The company’s factory covers an area of more than 30,000㎡, with more than 200 employees, more than 20 engineers of various types, more than 100 sales, an exhibition hall area of more than 1,500㎡, and a warehouse area of more 4,000 ㎡, providing customers with the best quality service as all times.
* In-depthcooperation with 5000companies
* 100 patents and certificates
* Factory more than 30000 square meters
* After sale Service experienced and knowledgeable team of technical support.
* In-depthcooperation with 5000companies
* 100 patents and certificates
* Factory more than 30000 square meters
* After sale Service experienced and knowledgeable team of technical support.
Certifications
Product packaging
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .
