Хонинговальный инструмент хонинговальный оправки BL-10-308AH для
- Категория: Tool Parts >>>
- Поставщик: Zhengzhou,Ruizuan,Diamond,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 22.85 $* | 22.13 $* |
| Jul-18-2025 | 18.34 $* | 18.76 $* |
| Jun-18-2025 | 21.3 $* | 21.23 $* |
| May-18-2025 | 21.60 $* | 21.76 $* |
| Apr-18-2025 | 17.13 $* | 17.22 $* |
| Mar-18-2025 | 21.10 $* | 21.31 $* |
| Feb-18-2025 | 21.70 $* | 21.41 $* |
| Jan-18-2025 | 20.74 $* | 20.51 $* |
Характеристики
Products Description
With the rapid development of the automotive industry, the requirements for the performance of automotive engines are higher and higher. The automobile engine is the most important part of the automobile. Honing is the main way to process cylinder holes. So, the way of honing process and the quality of diamond cylinder honing stones affect the quality of the cylinder.
[ Feature ]
* High machining accuracy
* Good quality surface
* Wide processing range
* High productivity
* Less cutting allowance
* Strong ability of hole rectification

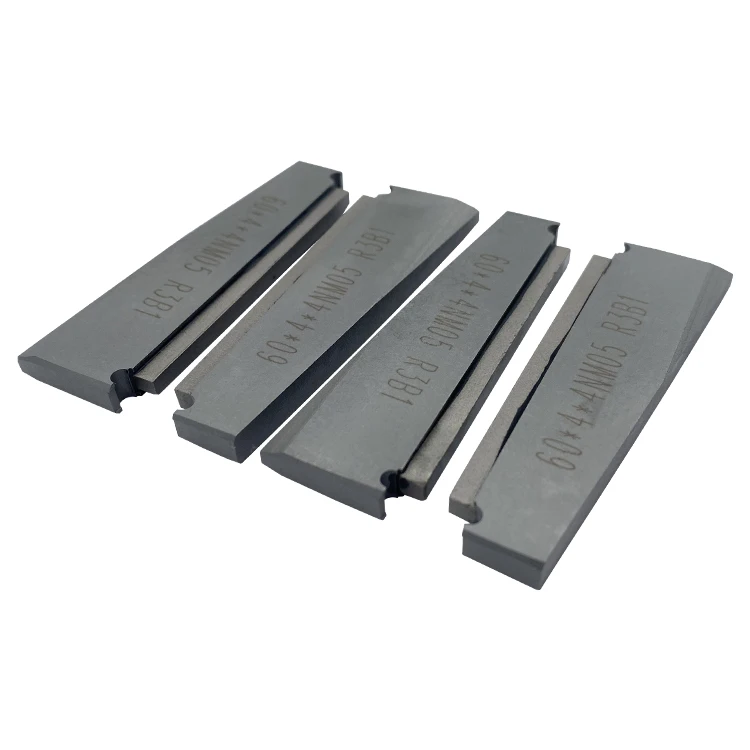

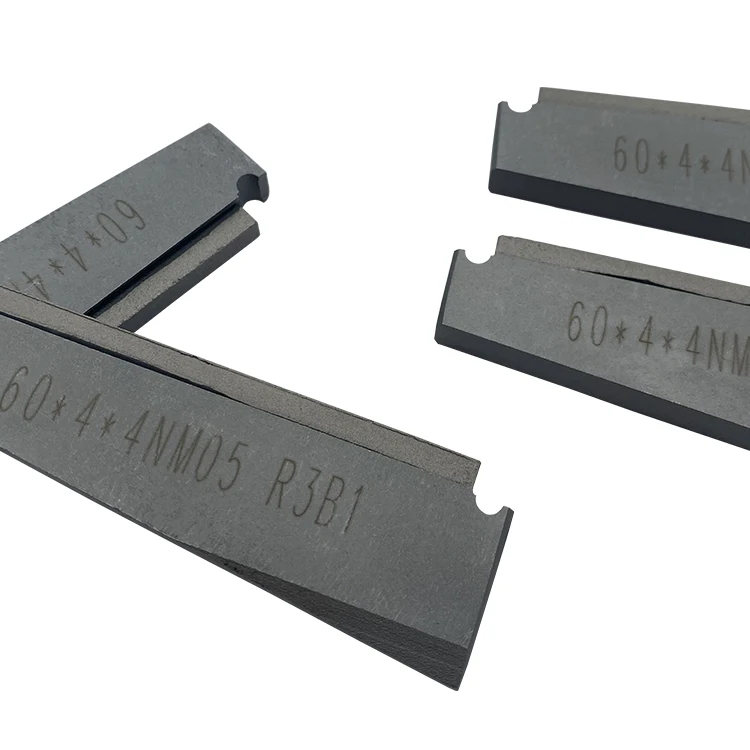

Diamond Honing Stones
* Good quality surface
* Wide processing range
* High productivity
* Less cutting allowance
* Strong ability of hole rectification
Diamond Honing Stones
Synthetic diamond is used to process hard and brittle materials, such as honing high carbon steel, cast iron, cemented carbide,etc.
CBN Honing Stones
Cubic Boron Nitride hardness is lower than diamond, but strength, heat resistance, chemical stability is good, mainly used for honing high strength alloy steel, tool steel, stainless steel heat-resistant alloy steel.
For Advantage of our diamond honing stone
1.Out performs ordinary stone in cutting action,finish speed and wear resistence.
2.Superior performance with increased efficiencies perfect for any size operation.
3.Low production cost,high precision and long workpiece life.
4.Our honing stones can honed the bore diameter smallest to 1.5mm(0.6inches)
2.Superior performance with increased efficiencies perfect for any size operation.
3.Low production cost,high precision and long workpiece life.
4.Our honing stones can honed the bore diameter smallest to 1.5mm(0.6inches)

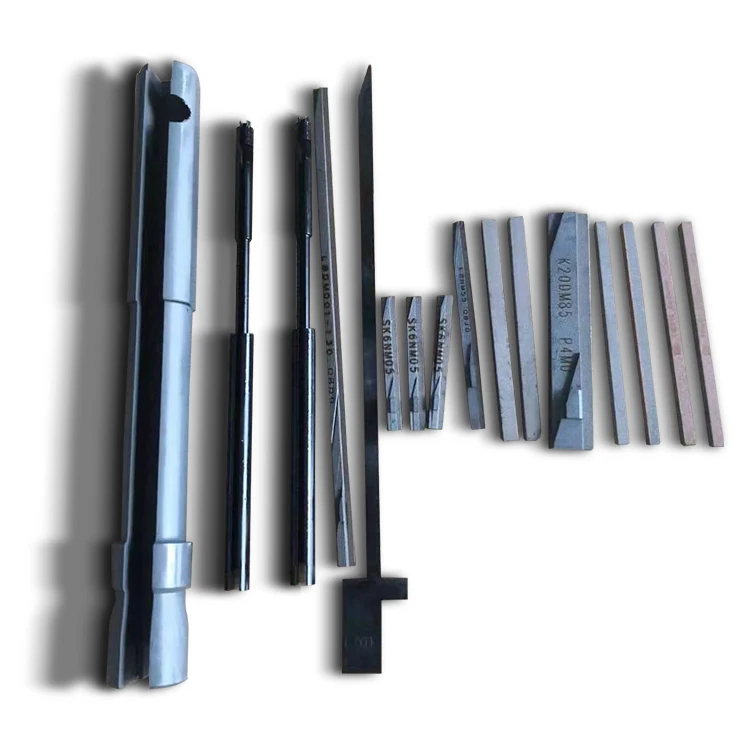

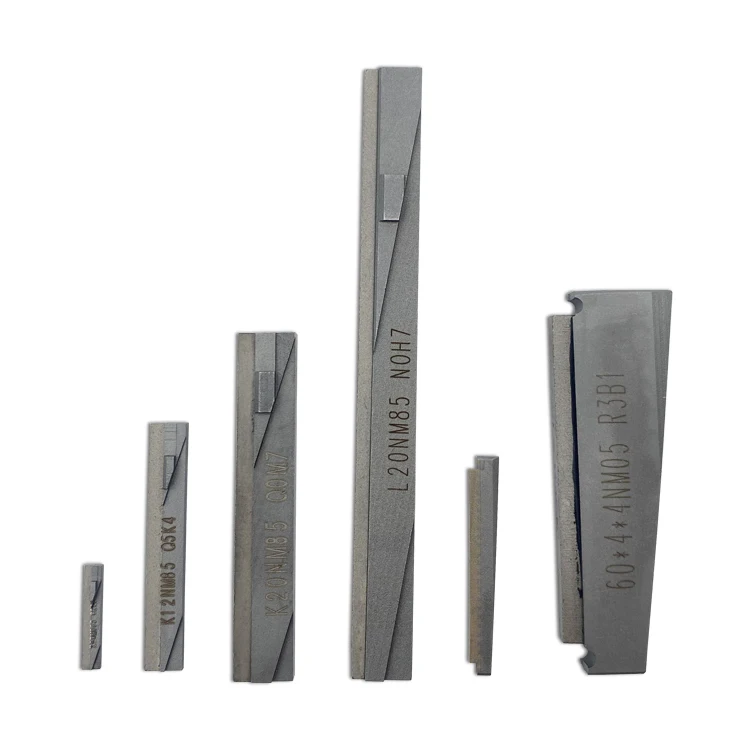

Replacement of SUNNEN Honing Stone Series Specifications
K series: K3, K4, K5, K6, K8, K10, K12, K16, K20, AK20
SUNNEN Honing Stone K Series Specifications | ||||||||||||||||||
Series Number | K3 | K4 | K5 | K6 | K8 | K10 | K12 | K16 | K20 | |||||||||
Stone length(mm) | 14.25 | 14.25 | 17.25 | 19 | 31.5 | 31.5 | 44 | 57 | 63 | |||||||||
Bone Dia.(mm) | 2.54-3 | 3-4 | 4-5 | 5-6 | 6-8 | 8-9.5 | 9.5-13 | 13-16 | 16-19 | |||||||||
Adapter | K3-A | K4-A | K5-A | K6-A | K8-A | K10-A | K12-A | K16-A | K20-A | |||||||||
B series: BL3, BL4, BL5, BL6, BL8, BL10, BL12, BL16, BL20
SUNNEN Honing Stone BL Series Specifications | ||||||||||
Series Number | BL8 | BL10 | BL12 | BL16 | BL20 | |||||
Stone length(mm) | 47 | 47 | 60 | 114 | 114 | |||||
Bone Dia.(mm) | 6-8 | 8-9.5 | 9.5-13 | 13-16 | 16-19 | |||||
Adapter | BL8-A | BL8-A | BL8-A | BL8-A | BL8-A | |||||
L series: L3, L4, L5, L6, L8, L10, L12, L16, L20
SUNNEN Honing Stone L Series Specifications | ||||||||||||||||||
Series Number | L3 | L4 | L5 | L6 | L8 | L10 | L12 | L16 | L20 | |||||||||
Stone length(mm) | 25 | 25 | 32 | 36 | 57 | 57 | 89 | 114 | 114 | |||||||||
Bone Dia.(mm) | 2.54-3 | 3-4 | 4-5 | 5-6 | 6-8 | 8-9.5 | 9.5-13 | 13-16 | 16-19 | |||||||||
Adapter | BL3-A | BL4-A | BL5-A | BL6-A | BL8-A | BL10-A | BL12-A | BL16-A | BL20-A | |||||||||
H series: H70, H50
YY series: YY32, YY48, Y56, Y32, Y20
Other series: AL20, P20, P28
YY series: YY32, YY48, Y56, Y32, Y20
Other series: AL20, P20, P28
We also offer customized services
These CBN and diamond honing stones are used on SUNNEN, NAGEL, GEHRING, KADIA, FUJI, NISSIN machine, and etc.
These CBN and diamond honing stones are used on SUNNEN, NAGEL, GEHRING, KADIA, FUJI, NISSIN machine, and etc.
Grit
Under the same roughness requirement, the grain size of superhard abrasive used in finish honing is 1# or 2 # finer than that of ordinary abrasive, and that of unhardened steel is 1# or 2# finer than that of hardened steel.
Superhard honing stone(stick) is suitable for rough and finish honing of various materials, but it is less efficient than ordinary abrasive for low roughness (Ra< 0.1μm).
Application
Our company uses various sizes of diamond and CBN powders, through metal sintering, to produce various specifications and various sizes of honing rods, which are widely used in the honing of automobile engines, cylinder liners, connecting rods, gears, shift forks and other parts. High efficiency, stable precision and long life.
Applicable machine brand: SUNNENSERDIROTTLERCARMECRobinsFENTECH
Why Choose Us
Customer Reviews
Company Profile
Our Equipments
8 Press machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines
3 Lathe machines
2 Blance machines
2 Vollmer QWD760 EDM Cutting
2 Ewag CNC grinding machines
1 Zoller Inspections machines
1 Optical Projector
1 Drilling machines
Packing & Delivery
Packaging | ||
Size | 100 (L) * 50 (W) * 8mm (D) | |
Weight | 0.2KG | |
Packaging Details | The normal package is Plastic box. Sizes: 100x50x8mm | |
DELIVERY TIME:
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
3-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
