Фабрика электромагнитных сточных вод жидкости расходомер
US $240.00-$320.00
Датчик расхода воды TDS расходомер холла скорость 2 ~
- Категория: Flow Sensors >>>
- Поставщик: Shenzhen,Yunxinger,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9.53 $* | 9.87 $* |
| Jul-16-2025 | 7.33 $* | 7.25 $* |
| Jun-16-2025 | 9.77 $* | 9.2 $* |
| May-16-2025 | 9.60 $* | 9.70 $* |
| Apr-16-2025 | 7.2 $* | 7.84 $* |
| Mar-16-2025 | 9.53 $* | 9.92 $* |
| Feb-16-2025 | 8.53 $* | 8.13 $* |
| Jan-16-2025 | 8.63 $* | 8.8 $* |
Характеристики
Product Description
| Part number | sensor |
| Wechat/Tel | +8618683257706 |
| | +8618683257706 |
| | 289925127 |
Specification :
Thread size : QUICK link OD6.5mm for ID6MM PE pipe connect
Connect pipe: 6mm
Color :white
Flow rate : 2~30L/ HOUR (Flow pressure must can start up to turn the Turbine running)
Flow Pulse: F(Hz)=(24xQ) L/min +/- 2 %
Max. Working Current : 15mA (DC5 V)
Min. Working Voltage: DC 4.5V
Working Voltage:DC 5V~18V
Load Capacity: =10 mA (DC 5 V)
Pressure :0.1~0.8mPa
Operating Working Temperature :
-25 Degree centigrade to +60 Degree centigrade
Accuracy :+- 2% ,

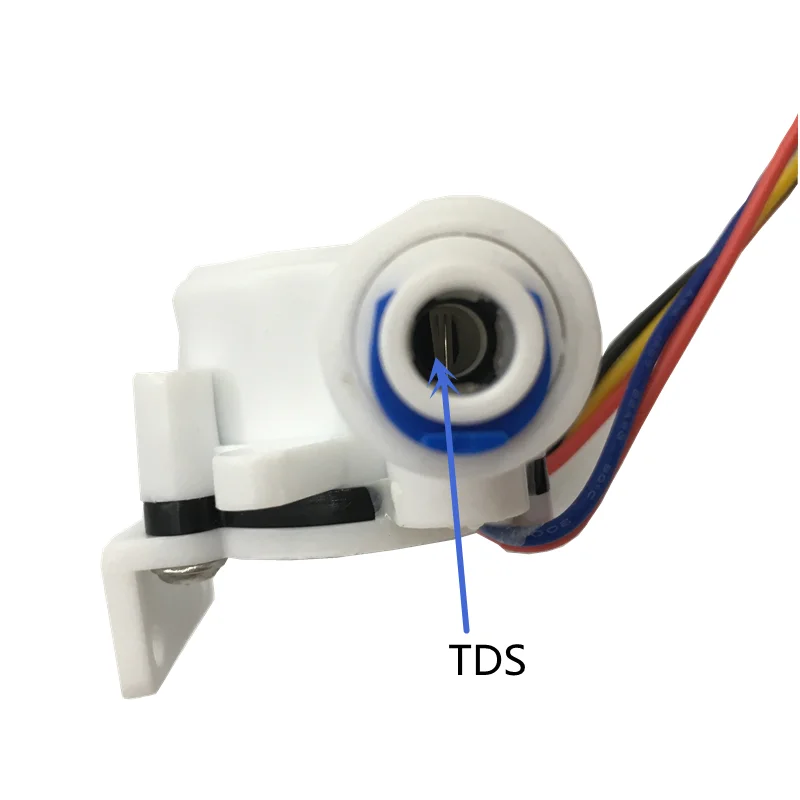

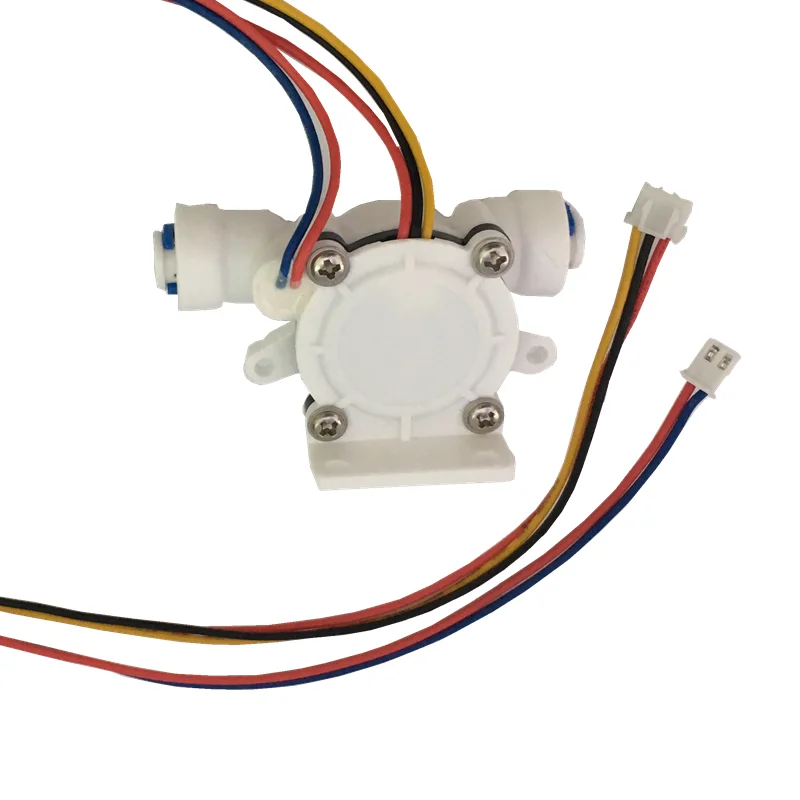

Wires connection : 3 wires ( red + ; black - , yellow : NPN pulse signal output) ,red blue : TDS measurement
