Генератор сигналов PWM импульсная Частота Рабочий цикл регулируемый модуль ЖК-дисплей 1 Гц-150 кГц 3 в-30
- Категория: Signal Generators >>>
- Поставщик: Shenzhen,Yunxinger,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.65 $* | 0.57 $* |
| Aug-16-2025 | 0.26 $* | 0.53 $* |
| Jul-16-2025 | 0.64 $* | 0.39 $* |
| Jun-16-2025 | 0.17 $* | 0.54 $* |
| May-16-2025 | 0.69 $* | 0.21 $* |
| Apr-16-2025 | 0.33 $* | 0.85 $* |
| Mar-16-2025 | 0.36 $* | 0.21 $* |
| Feb-16-2025 | 0.35 $* | 0.25 $* |
| Jan-16-2025 | 0.25 $* | 0.4 $* |
Характеристики
Product Description
Part number | Generator |
Wechat/Tel | +8618683257706 |
+8618683257706 | |
289925127 |
Module Highlights:

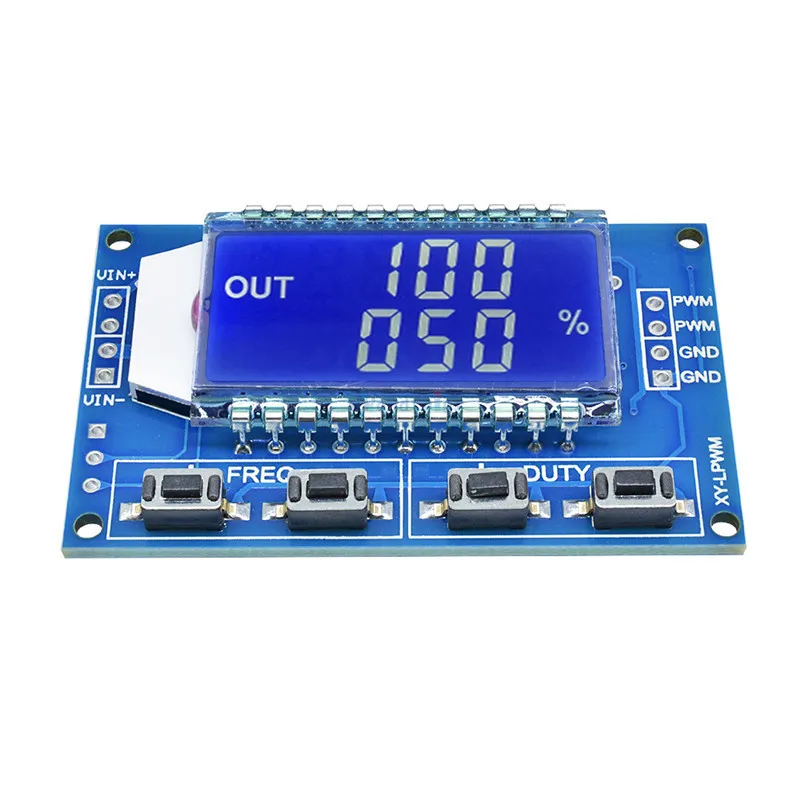

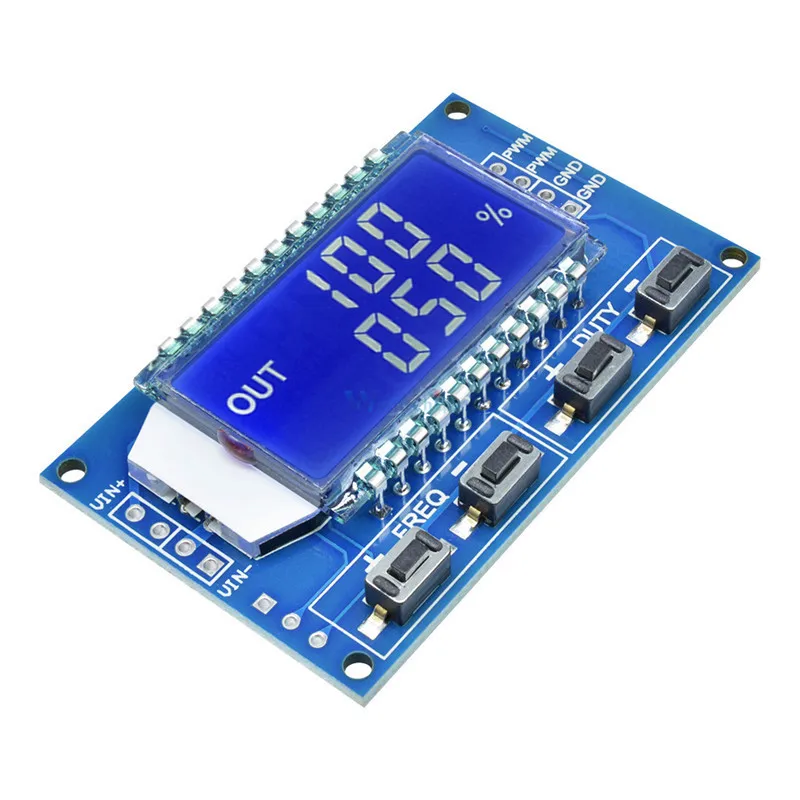

1.LCD display frequency and duty cycle, very clear, PWM output can be set to the frequency and duty cycle;
Wide frequency range, high precision;

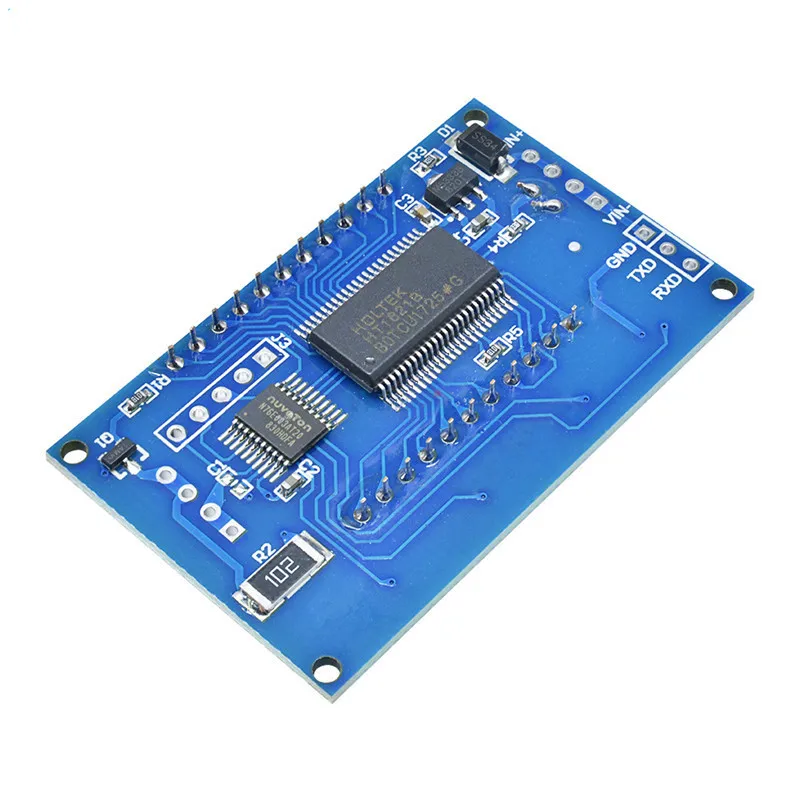

Serial communication, TTL level
First, the module description
PWM output, you can set the frequency, duty cycle;
Frequency is divided into four ranges, automatic switching:
XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz;
X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz;
XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz
X.X.X (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz
frequency display: 100 indicates PWM output 100Hz pulse;
1.01 indicates PWM output 1.01K pulse;
54.1 indicates that the PWM output has a pulse of 54.1 kHz;
1.2.4 indicates that the PWM output is 124 kHz pulse;
Duty cycle range: 0 ~ 100%;
All set parameters, power-down automatically saved.
Second, the parameter settings
The module has four independent keys, used to set the frequency and duty cycle, support touch (increase or decrease a unit) and long press (fast increase or decrease), set the parameters automatically save, power down Not lost.
Third, the module parameters:
Working voltage: 3.3 ~ 30V;
Frequency range: 1Hz ~ 150KHz;
Frequency accuracy: the accuracy in each range is about 2%;
Signal load capacity: the output current can be about 5 ~ 30ma;
Output amplitude: PWM amplitude equal to the supply voltage;
Ambient temperature: -20 ~ +70 ℃.
Fourth, the scope of application:
Used as a square wave signal generator, generate square wave signal for experimental development and use;
Used to generate a square wave signal that controls the motor driver;
generate adjustable pulse for MCU use;
generate adjustable pulse, control the relevant circuit (PWM dimming speed and other applications).
5, serial control (single-chip TTL level communication)
Click here for more details:
