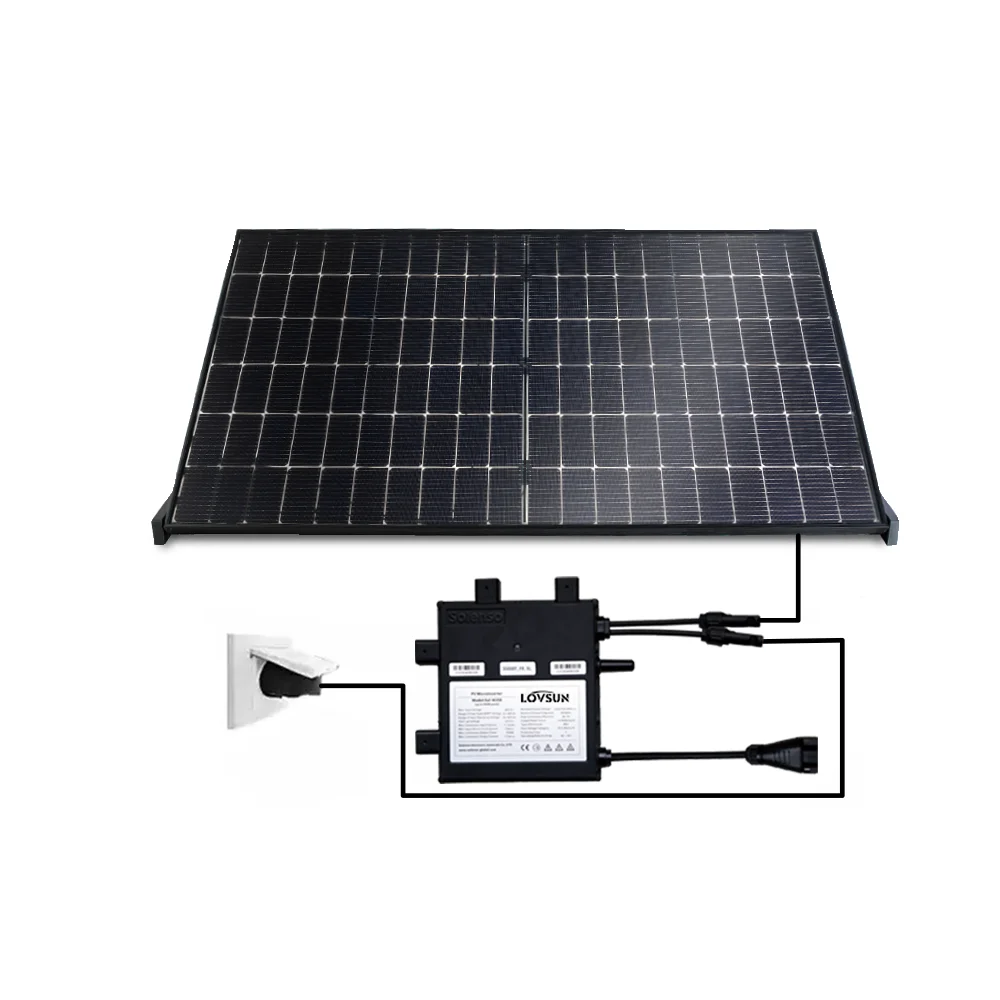

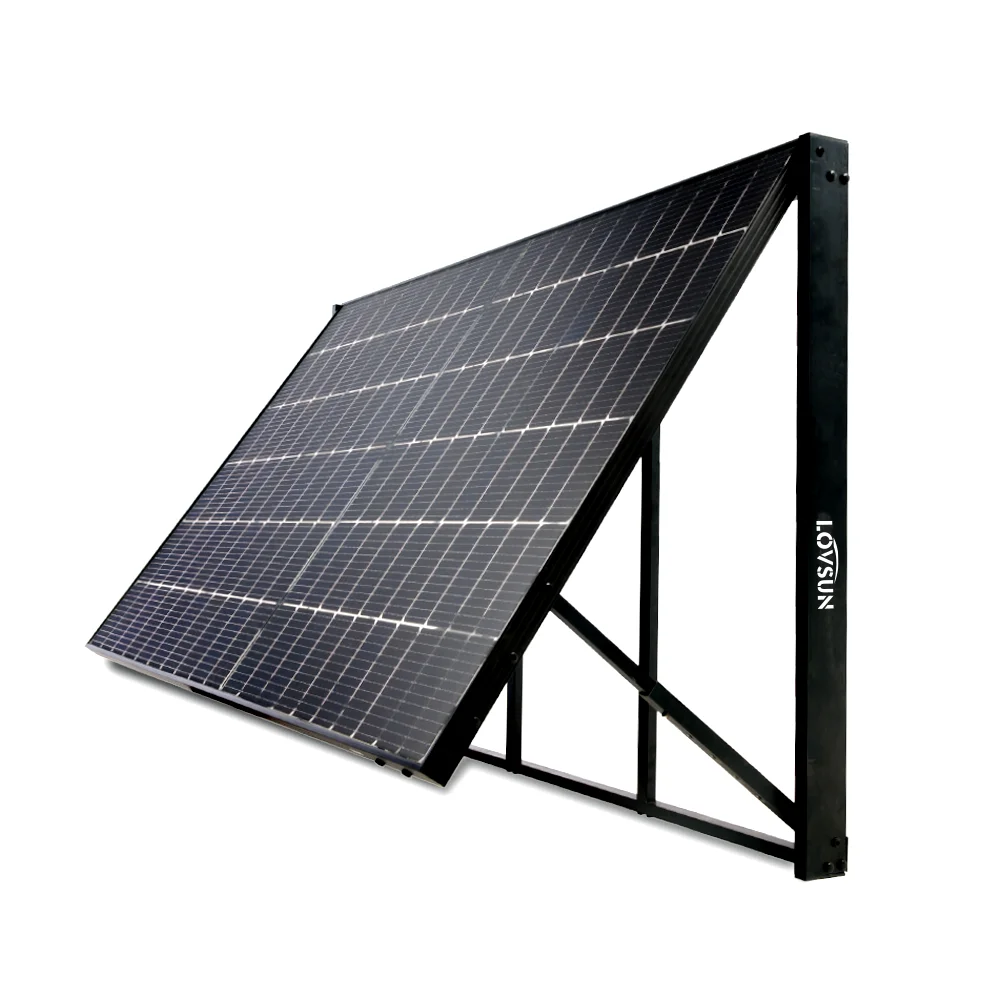

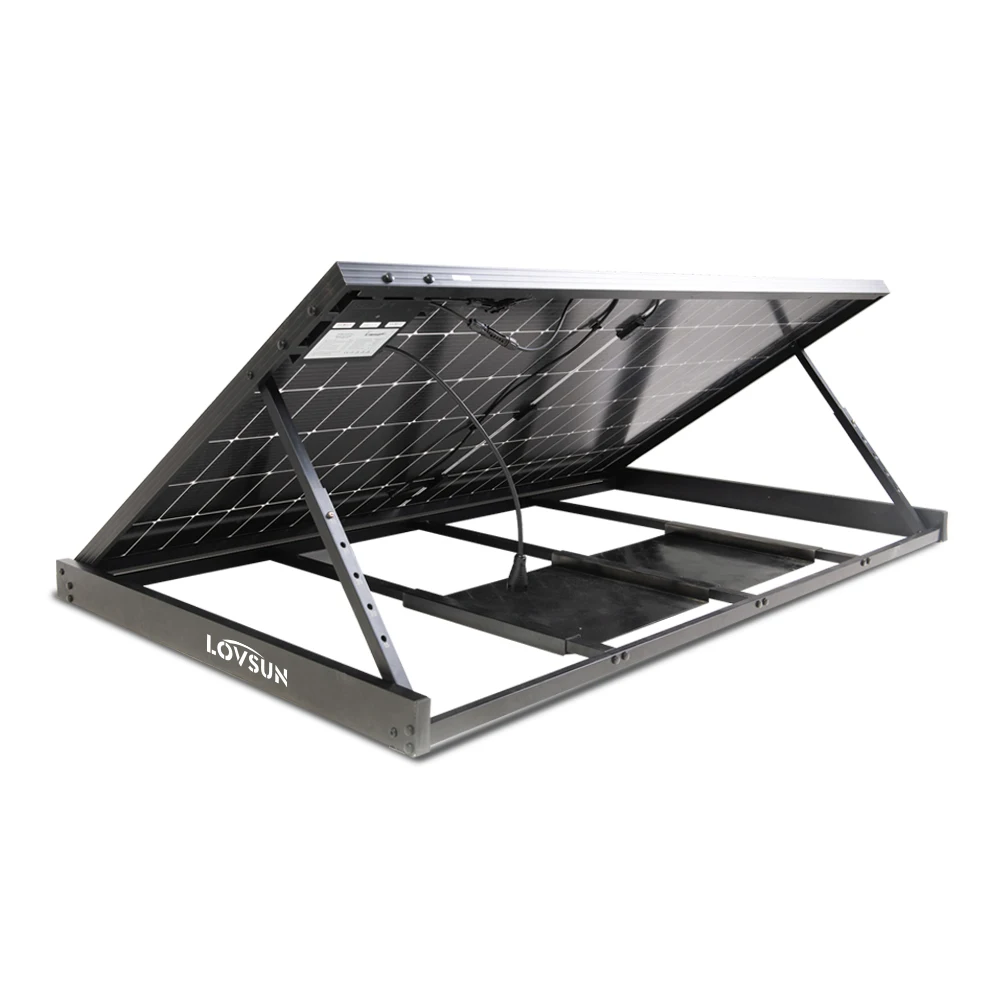

Комплект для солнечных батарей простая установка балкона или наземного подключения комплект
- Категория: Renewable Energy >>>
- Поставщик: Lovsun,Solar,Energy,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 464.94 $* | 487.75 $* |
| Aug-19-2025 | 460.81 $* | 483.29 $* |
| Jul-19-2025 | 386.0 $* | 405.65 $* |
| Jun-19-2025 | 452.63 $* | 475.70 $* |
| May-19-2025 | 394.15 $* | 414.41 $* |
| Apr-19-2025 | 445.38 $* | 467.59 $* |
| Mar-19-2025 | 441.10 $* | 463.78 $* |
| Feb-19-2025 | 437.55 $* | 459.95 $* |
| Jan-19-2025 | 433.55 $* | 455.67 $* |
Характеристики
Product Description
Input Data(DC) | ||
Commonly used module power(Wp) | 280～470 | |
Module compatibility | 60-cell or72-cell PV modules | |
Peak power MPPT voltage range(V) | 33～48 | |
Start-up voltage(V) | 22 | |
Perating voltage range(V) | 16～60 | |
Maximum input voltage(V) | 60 | |
Maximum input current(A) | 11.5 | |
Maximum input short circuit current(A) | 15 | |
Output Data(AC) | ||
Rated output power(VA) | 350 | |
Rated output current (A) | 1.59/1.52/1.46 | |
Nominal output voltage(V | 220/230/240① | |
Nominal frequency(Hz) | 50/60① | |
Displacement power factor | 0.8 leading to 0.8lagging | |
Total harmonic distortion | <3% | |
Maximum units per branch(10AWG) | 18/19/20 | |
Efficiency | ||
CEC peak efficiency | 96.70% | |
CEC weighted efficiency | 96.50% | |
Nomia MPPTefincy | 99.80% | |
Nominal power consumption(mW) | < 50 | |
Mechanical Data | ||
Ambient temperature range(℃) | -40～+65 | |
Dimensions(WxHxD mm) | 184.5×204.5×26 | |
Weight(kg) | 1.7 | |
Fnclosure rating | Outdoor-NEMA(IP 67) | |
Ccolng | Natural convection | |
Features | ||
Communication | 2.4G Hz Proprietary RF(Nordic) | |
Monitoring | Sofia Pro Cloud② | |
Compliance | VDE-R-N 4105:2018,EN 50549-1:2019,VFR 2019, IEC/EN 62109-1/-2,IEC/EN 61000-6-1/-2/-3/-4.IEC/EN 61000-3-2/-3 | |
Specification
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30%T/T in advance,paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30%T/T in advance,paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||||||
West Union | Optional for amount less than 5000usd | ||||||
paypal | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
Welcome to Alibaba Insurance Order
Guarantee of making shipment
Safety of your down payment before the shipment
Guarantee for after sale service for any issues
Inspection service from the third party is optional
Inspection service from the third party is optional
