DZ41 500C SW102 Bafang BBS01 BBS02 M500 M600 дисплей
US $25.00-$45.00
Водонепроницаемый 4-контактный Высокочувствительный динамический датчик крутящего момента для электрического велосипеда
- Категория: Other Electric Bicycle Parts >>>
- Поставщик: Changzhou,Keling,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 57.11 $* | 60.61 $* |
| Aug-18-2025 | 57.25 $* | 60.53 $* |
| Jul-18-2025 | 48.88 $* | 50.32 $* |
| Jun-18-2025 | 56.77 $* | 59.38 $* |
| May-18-2025 | 48.15 $* | 50.0 $* |
| Apr-18-2025 | 55.13 $* | 58.4 $* |
| Mar-18-2025 | 54.82 $* | 57.60 $* |
| Feb-18-2025 | 54.60 $* | 57.90 $* |
| Jan-18-2025 | 53.12 $* | 56.15 $* |

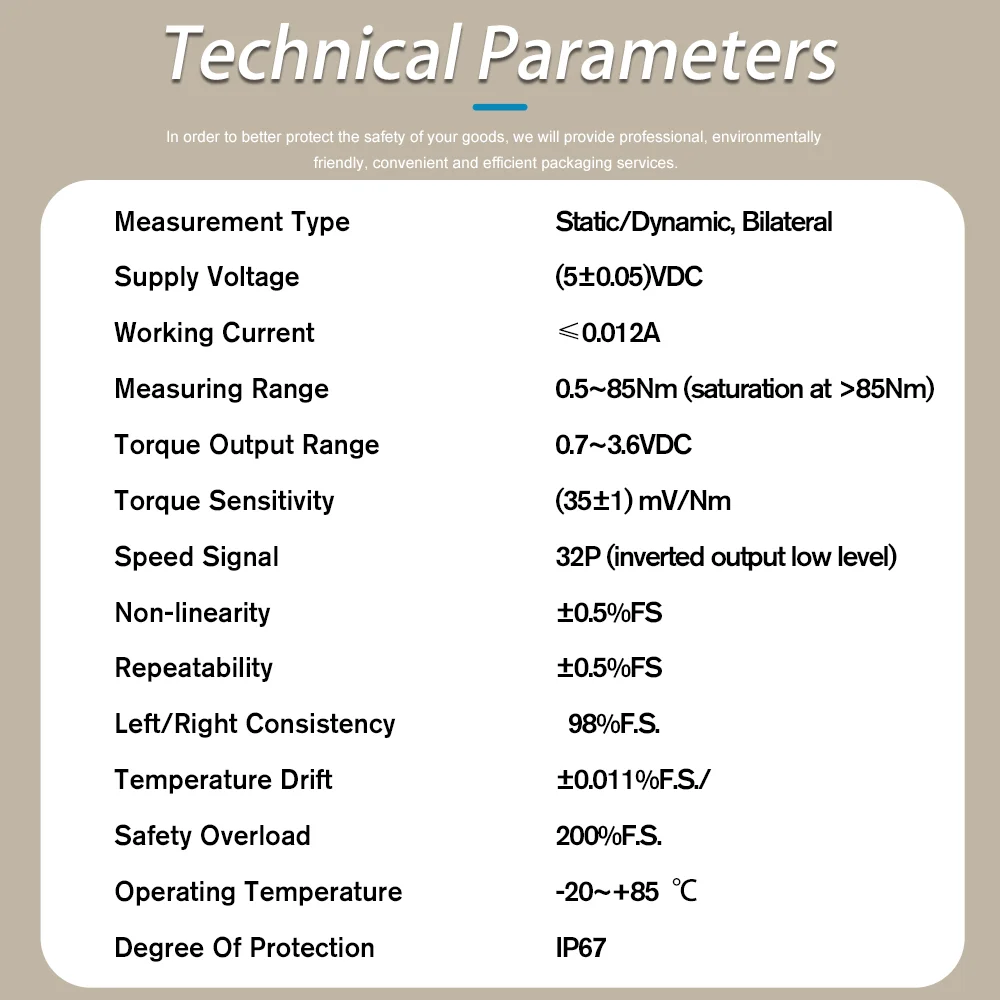

Характеристики
torque sensor
Measurement Type | Static/Dynamic,Bilateral | ||||||
Supply Voltage | (5±0.05)VDC | ||||||
Working Current | ≤0.012A | ||||||
Measuring Range | 0.5~85N.m(Saturation when＞85N.m) | ||||||
Torque Output Range | 0.7~3.6VDC | ||||||
Torque Sensitivity | (35±1mV/Nm) | ||||||
Speed Signal | 32P(Reverse Output Low Level) | ||||||
Nonlinearity | ±0.5%FS | ||||||
Repeatability | ±0.05%FS | ||||||
Left/Right Consistency | ≥98%F.S. | ||||||
Temperature Dirft | ±0.011%F.S./℃ | ||||||
Safety Overload | 200%F.S. | ||||||
Working Temperature | -20~+85℃ | ||||||
Degree Of Protection | IP67 | ||||||
torque sensor for electric bicycle
Our Services
FAQ
1. Q: What is your packing terms?
A: Generally, electric bike motors are packed in foam and macarboard boxes, suitable for sea containers.
A: Generally, electric bike motors are packed in foam and macarboard boxes, suitable for sea containers.
2. Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. 100% for sample. We'll show you the photos or videos of the products
and packages before you pay the balance. Or you can come to have a check of it.
A: T/T 30% as deposit, and 70% before delivery. 100% for sample. We'll show you the photos or videos of the products
and packages before you pay the balance. Or you can come to have a check of it.
3. Q: Do you test all your goods before delivery?
A: Yes, all products will be tested before delivery.
A: Yes, all products will be tested before delivery.
4. Q: Could you print customer’s logo and information on motors?
A:Yes, OEM and ODM are available for ebike motor.
A:Yes, OEM and ODM are available for ebike motor.
5. Q: Do you accept sample order?
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
6. Q: How long is your lead time?
A:Sample order for e-bike motor is within 15 working days Sample order for E-bike conversion kit is about 25-30 working
A:Sample order for e-bike motor is within 15 working days Sample order for E-bike conversion kit is about 25-30 working
days.
7. Q: How to confirm the conversion kit fit my bicycle?
A：The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that
A：The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that
attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel .
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit;
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’ benefit;
Second we respect each customer. We sincerely do business and make friends with them.
