Микроскоп для ремонта мобильных телефонов увеличение 28-240 раз цифровой микроскоп
- Категория: Test Instruments >>>
- Поставщик: Ningbo,Huaguang,Precision,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 890.94 $* | 908.76 $* |
| Jul-19-2025 | 722.3 $* | 736.62 $* |
| Jun-19-2025 | 876.14 $* | 894.16 $* |
| May-19-2025 | 869.27 $* | 886.34 $* |
| Apr-19-2025 | 694.63 $* | 708.21 $* |
| Mar-19-2025 | 855.7 $* | 872.12 $* |
| Feb-19-2025 | 848.45 $* | 865.5 $* |
| Jan-19-2025 | 841.85 $* | 858.94 $* |
Характеристики
Products Description
TDM-6303DMP | ||||||
Warranty: | 3 years | Customized support: | OEM, ODM | |||
Place of Origin: | NingBo, China | Brand Name: | NBHG | |||
Model Number: | TDM-6303DMP | Theory: | Video Microscope | |||
Drawtube: | Monocular | Magnification: | 0.65X~5.0X | |||
Color: | black | Total Magnification | 28-240X(based on 15.6 inch monitor) | |||
Material: | Glass, ABS plastic, alloy, led | Output | High resolution HDMI output | |||
Camera: | Sony 1/2inches 3.0M CMOS Sensor | Working Distance | 86mm | |||
Resolution/Frame | 1920*1080 60fps | Light Source | LED Ring Light with 4 Zones Control | |||
Pixel Size | 3.75x3.75μm | Way of changing times | Manually changing times | |||
Save function | Take photo and video to U disk | Power Supply: | 100V~240V / 12V 1A (or 2A) | |||
Packaging & Delivery | ||
Selling Units: | Single item | |
Packaging Details | Polyfoam Protection + Strong Master Carton | |
Kraft paper box size | 45*41*47cm | |
Weight of 1sets in a case: | 12KG | |
Lead Time | Quantity(Pieces) 1 - 10 >10 Est. Time(days) 10 To be negotiated | |
Details Images

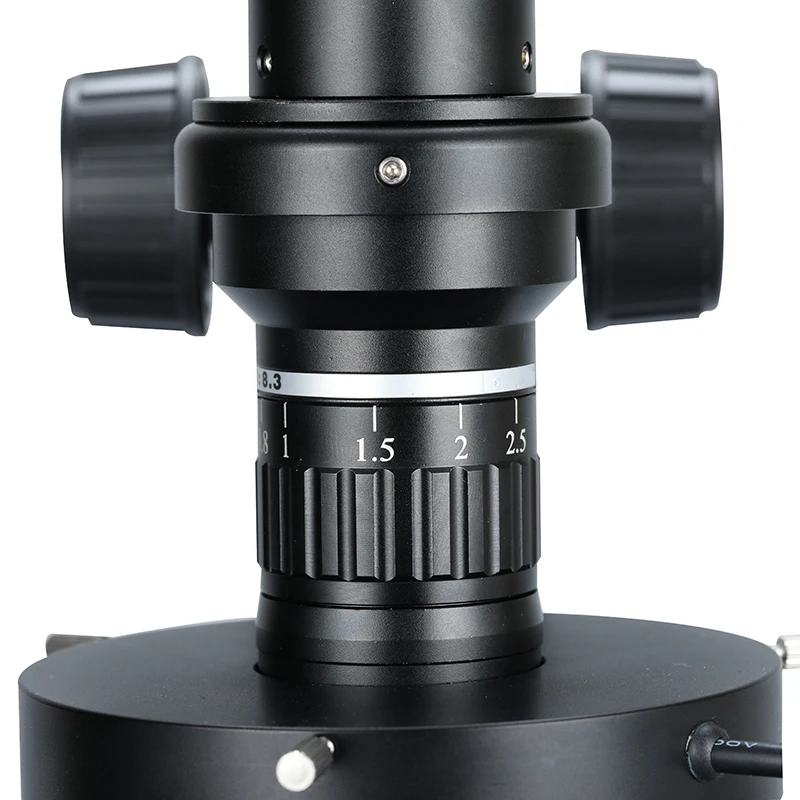

Objective
Infinity optical design with zoom lens 0.6X-5X
Zoom ratio:1:8.3
Working distance 110mm

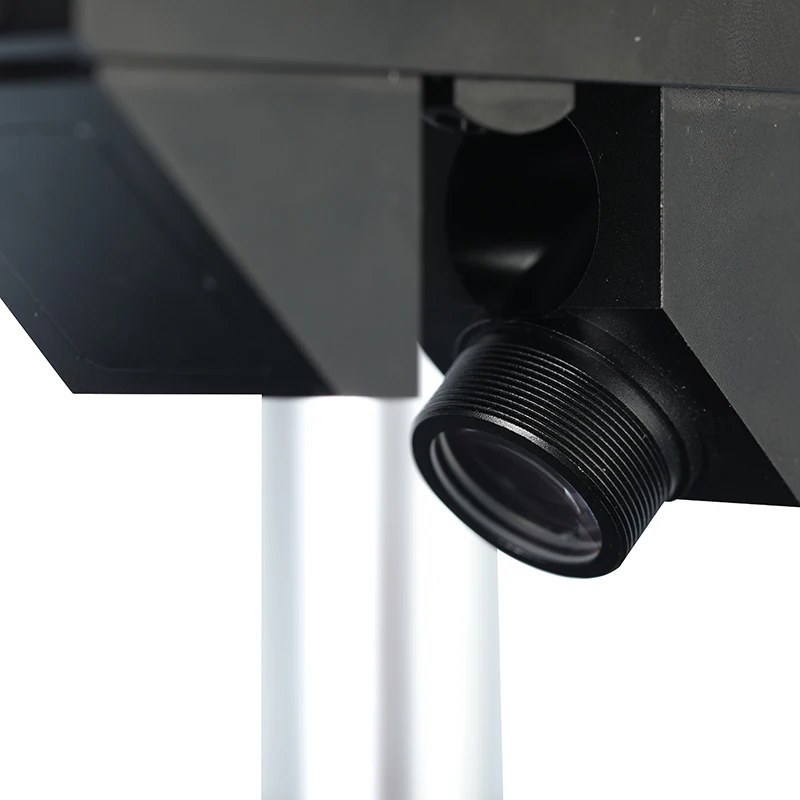

C-mount
Standard 0.5X C-mount. Optional 0.3X and 1X
Varuous filter can be used
Manual switchover
Manual switchover for 2D/3D
360 ° rotatable, Max.viewing angle 45°

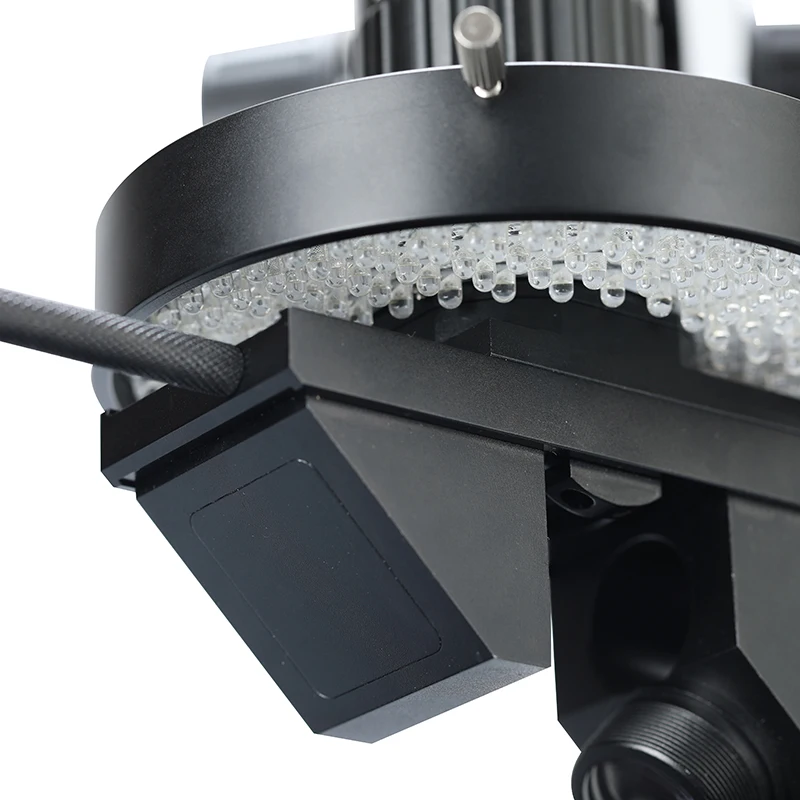

LED ring light with brightness adjustmenable in 4-zone

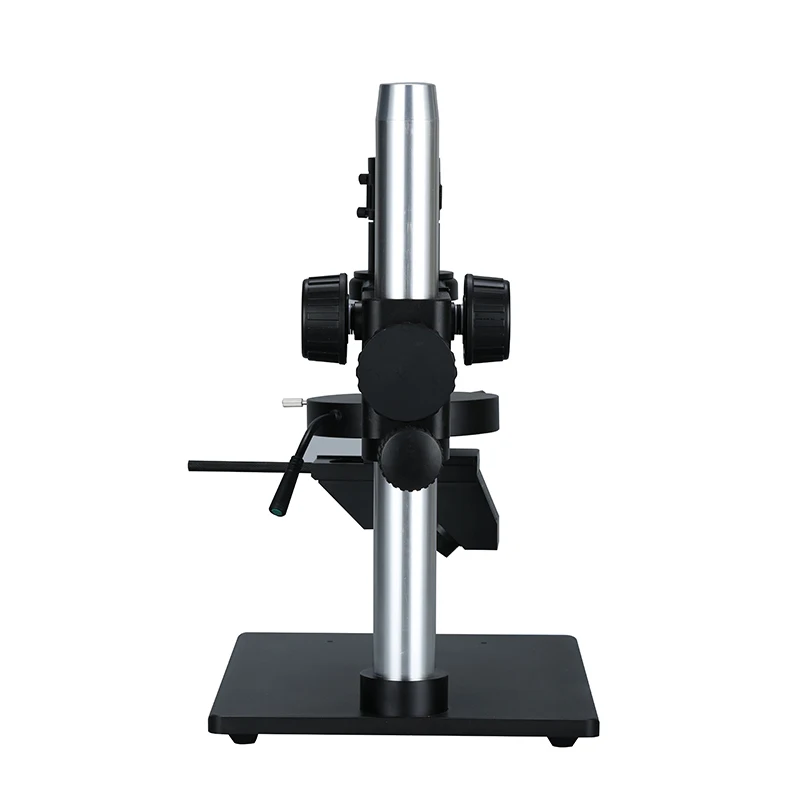

Stand
Round pillar stand with max moving distance 328mm, Pair of locking knobs

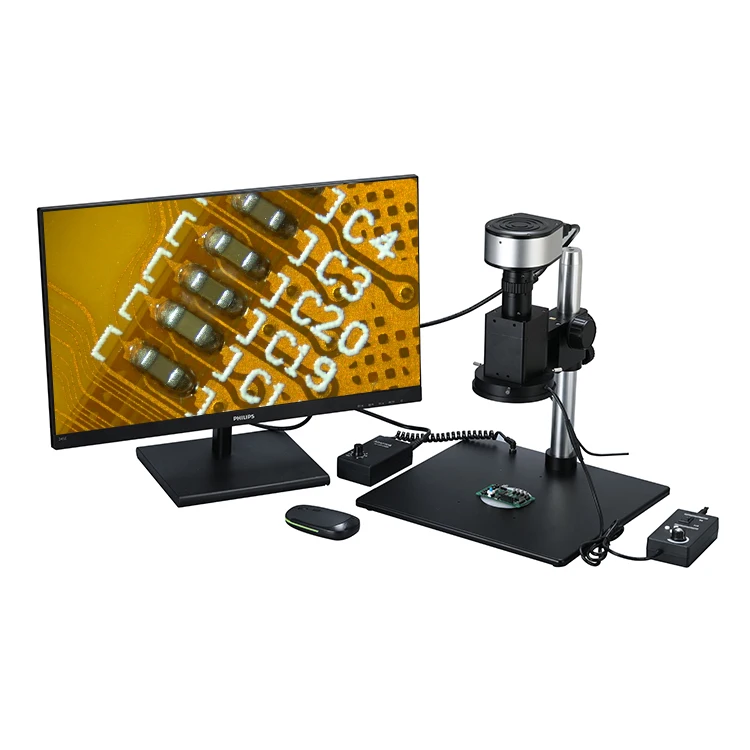

Product Show
Application Field
Main Products
Why Choose Us
FAQ
