0A600 полностью стальной поднятый пол интеллектуальное
- Категория: Anti-Static Flooring >>>
- Поставщик: Shanghai,Longyu,Shidai,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7.7 $* | 7.94 $* |
| Aug-16-2025 | 7.67 $* | 7.99 $* |
| Jul-16-2025 | 6.71 $* | 6.93 $* |
| Jun-16-2025 | 7.22 $* | 7.5 $* |
| May-16-2025 | 6.27 $* | 6.75 $* |
| Apr-16-2025 | 7.24 $* | 7.16 $* |
| Mar-16-2025 | 7.90 $* | 7.84 $* |
| Feb-16-2025 | 7.63 $* | 7.42 $* |
| Jan-16-2025 | 7.20 $* | 7.61 $* |
Характеристики
Product Description

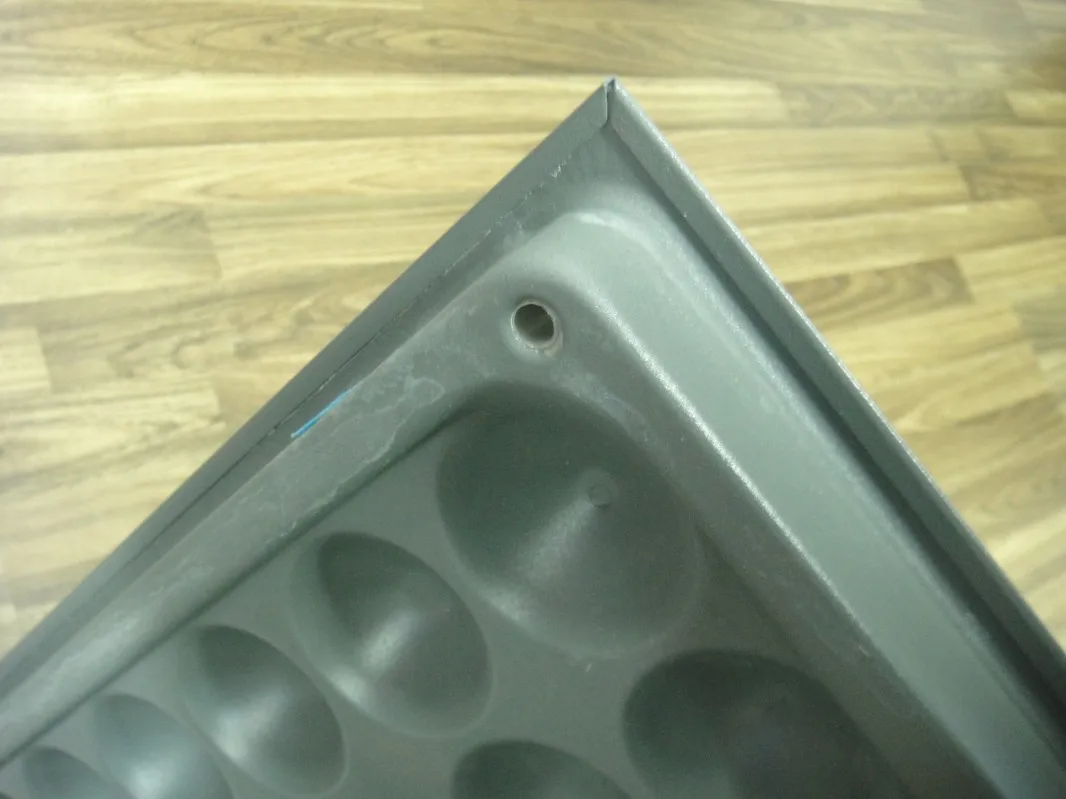

Steel cement raised floor is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled, with corner-lock holes punched in four sides of the panel.

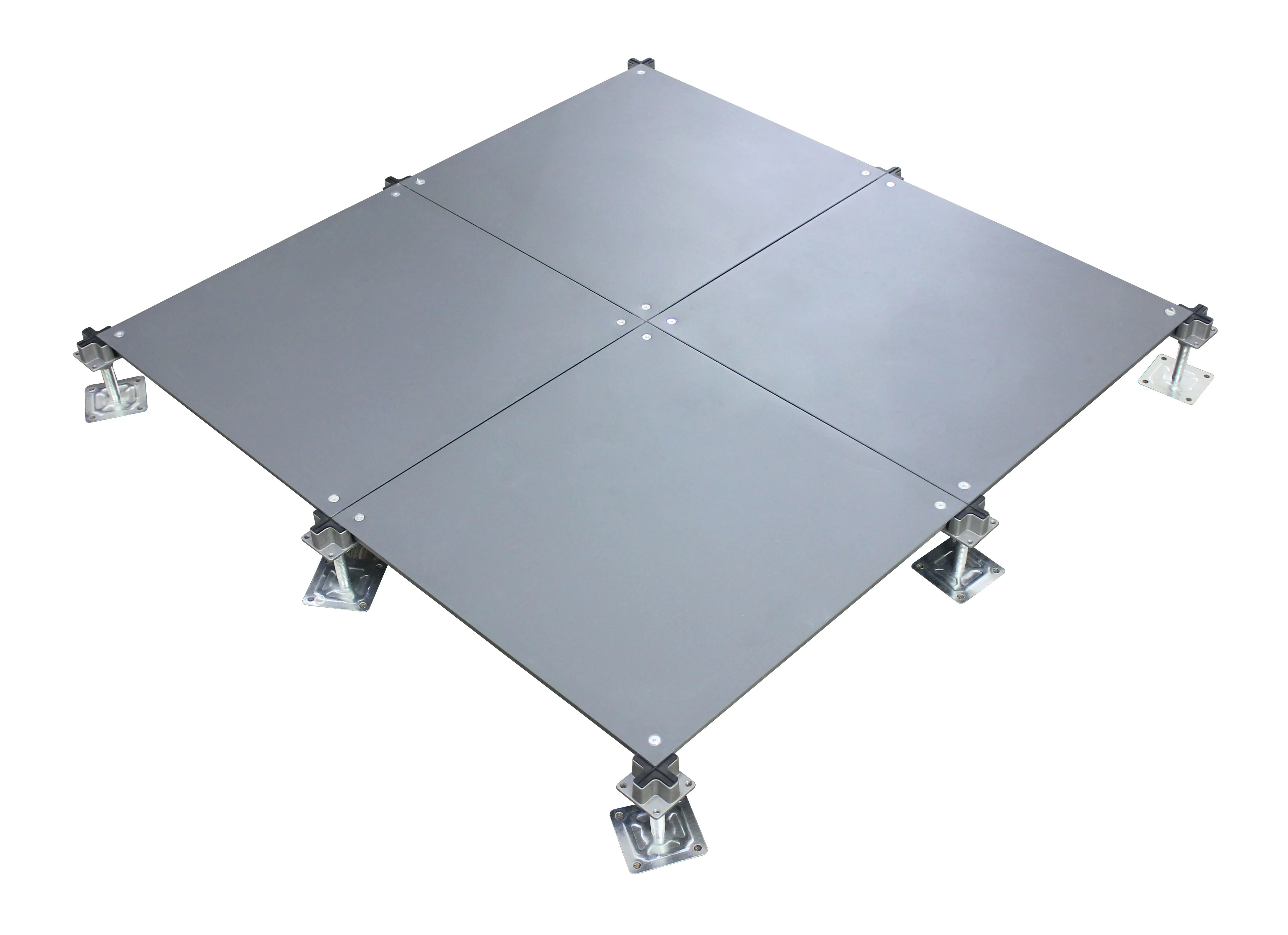

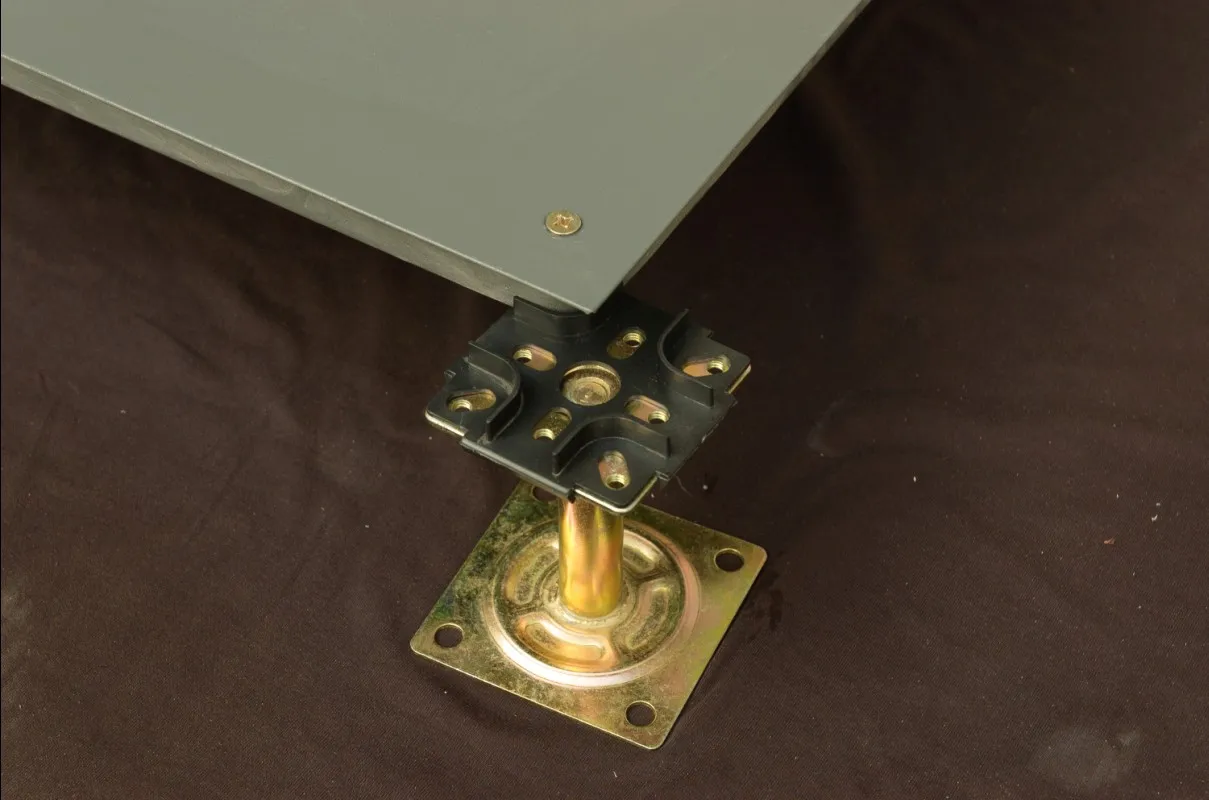

Understructure

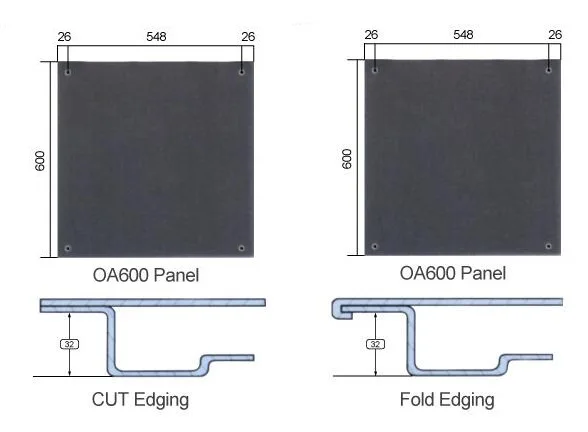

Specification
Type | Size | Rolling load | Uniform load | Ultimate load | Concentrated load | ||||||||
10PASS | 10KPAAASS | 2.5mm deflection | |||||||||||
FS662 | 600*600*33mm | 2.45KN | 2.00KN | 3300LB/㎡ | 14.71KN/㎡ | 2000LB | 8.85KN | 662LB | 2.94KN | ||||
FS800 | 2.94KN | 2.45KN | 4000LB/㎡ | 17.78KN/㎡ | 2530LB | 11.25KN | 800LB | 3.56KN | |||||
FS1000 | 3.56KN | 2.67KN | 5000LB/㎡ | 22.22KN/㎡ | 3260LB | 14.50KN | 1000LB | 4.45KN | |||||
FS1250 | 4.45KN | 3.56KN | 6250LB/㎡ | 27.78KN/㎡ | 4130LB | 18.36KN | 1250LB | 5.56KN | |||||
FS1500 | 5.56KN | 4.45KN | 7500LB/㎡ | 33.34KN/㎡ | 5000LB | 22.17KN | 1500LB | 6.68KN | |||||
Applications

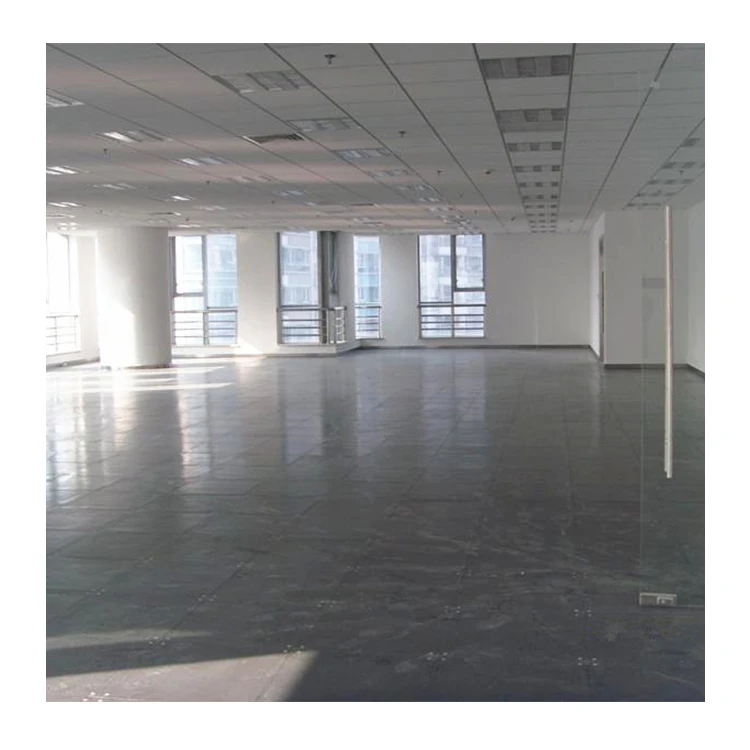

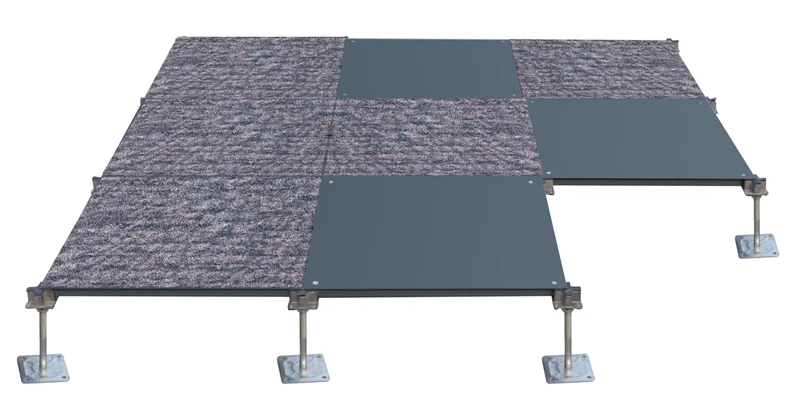

Office building, intelligent office environment, meeting room, commercial and industrial bureau, government, places that have requirements of dust-proof and water-proof, fields with wiring requirements, usually used with square carpet.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
