Высококачественный супер энергосберегающий гипоидный спиральный редуктор скорости конической коробки передач
- Категория: Speed Reducers >>>
- Поставщик: Pingyang,Jinge,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 155.42 $* | 163.87 $* |
| Aug-18-2025 | 153.77 $* | 161.22 $* |
| Jul-18-2025 | 129.19 $* | 135.23 $* |
| Jun-18-2025 | 151.23 $* | 159.62 $* |
| May-18-2025 | 131.0 $* | 138.11 $* |
| Apr-18-2025 | 148.99 $* | 155.10 $* |
| Mar-18-2025 | 147.81 $* | 154.31 $* |
| Feb-18-2025 | 146.52 $* | 153.82 $* |
| Jan-18-2025 | 144.21 $* | 151.59 $* |
Характеристики
Product Description

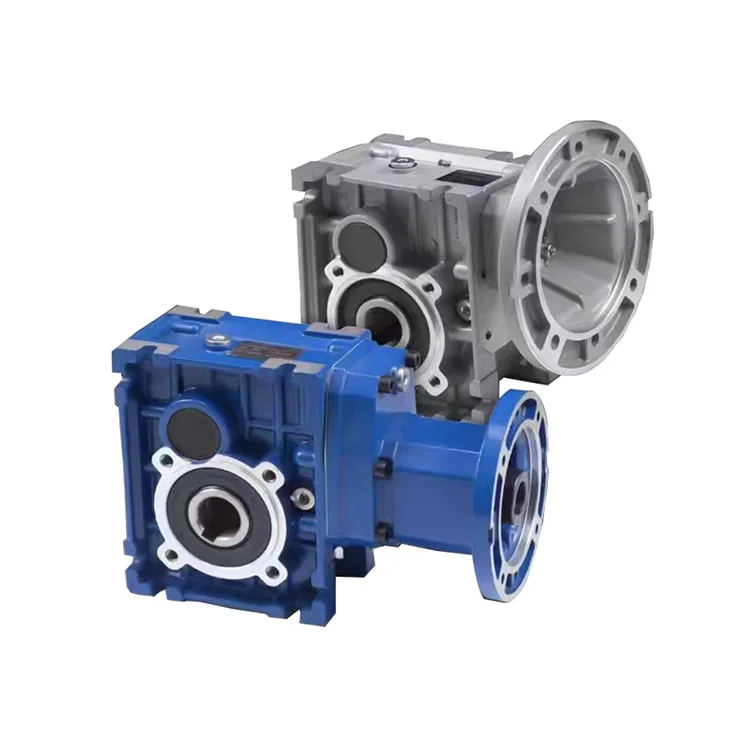

High precision low noise hypoid Reduction Gearbox reducer
KM series high precision hypoid helical bevel gear reducers currently represent the advanced solution to market requirements in terms of high efficiency and flexibility. it has below Features:
KM series high precision hypoid helical bevel gear reducers currently represent the advanced solution to market requirements in terms of high efficiency and flexibility. it has below Features:
1. 2-stage or 3-stage helical & hypoid bevel gear set, large reduction ratio from 7.5 to 300.
2. Hardened gears, higher gear hardness and strength than NMRV series worm gears. Durable and long service life.
3. Super Energy saving. The efficiency is more than 90%. About 10%~40% efficiency higher compared with NMRV series worm gearbox.
4. Modular design, various combinations
5. Mounting dimensions are compatible with NMRV series (Except 050 size)
6. High efficient KM series can replace RV series in wider applications
2. Hardened gears, higher gear hardness and strength than NMRV series worm gears. Durable and long service life.
3. Super Energy saving. The efficiency is more than 90%. About 10%~40% efficiency higher compared with NMRV series worm gearbox.
4. Modular design, various combinations
5. Mounting dimensions are compatible with NMRV series (Except 050 size)
6. High efficient KM series can replace RV series in wider applications
Houshing: | Aluminium Alloy (KM050~KM090) and Cast Iron (KM110) | ||
Gearset: | Helical & Hypoid Bevel Gear Set, 20CrMnTi Steel, Carburizing & cementation penetration depth 0.3-0.5mm remaining carburized layer after precise grinding, Gears Hardness: 56-62 HRC | ||
shaft material: | Shaft-chromium steel-45# | ||
Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 120,125,150,180,200,250,300 | ||

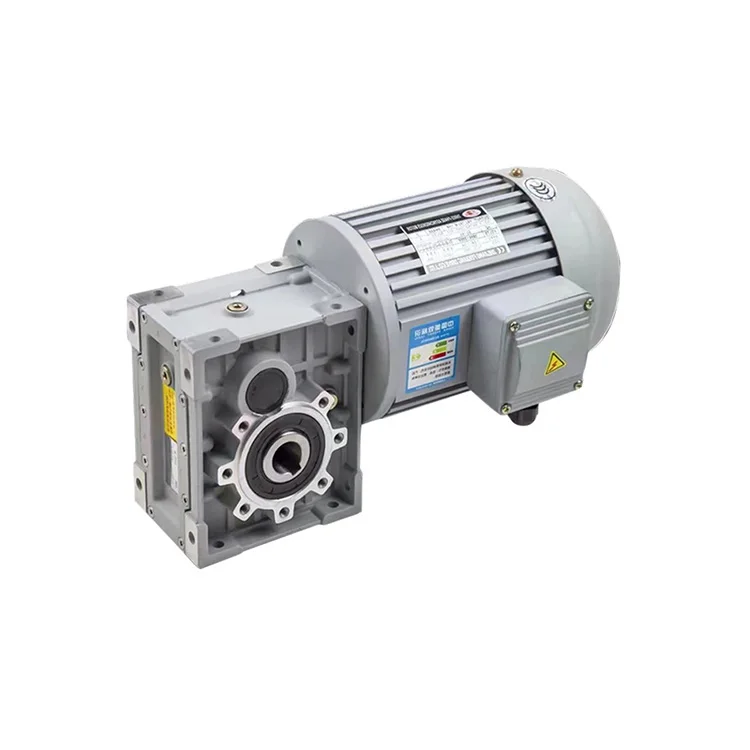

Input Configurations: | Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor), Hollow Shaft Input with IEC Flange (B5/B14) | Hollow Shaft Input with NEMA Flange Hollow Shaft Input with Servo Motor Flange Solid Shaft Input | |
Output Configurations: | Keyed Solid Shaft Output Keyed Hollow Shaft Output Hollow Shaft with Output Flange | ||
Options: | protection cover, torque arm, output flange, output shaft kit | ||
