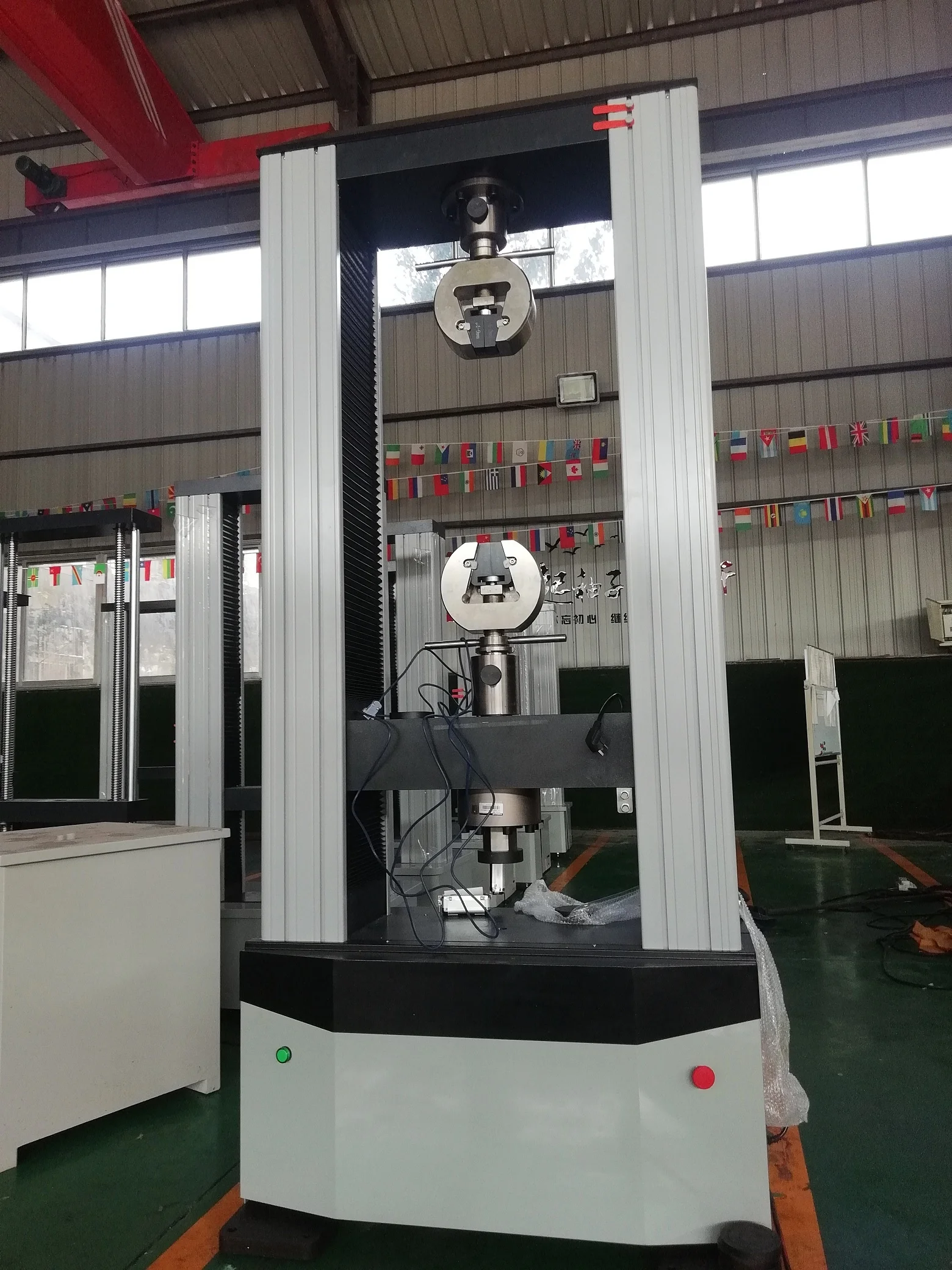

 computer control electronic universal testing machine



The Computer control  universal strength testing machine is suitable for metal materials, non-metal materials, composite materials, like metal wire, rebar, wood, cable, nylon, leather, tape, aluminum, alloy, paper, fiber, plastic, rubber, cardboard, yarn, spring etc..This Computer control electric loaing metal material yield strength testing machine can be equipped with different clamps, then it can test the tensile strength, compression strength, bending strength, bonding strength, tearing strength, breaking strength, yield strength, elongation rate, elastic modulus and so on.



 Character:

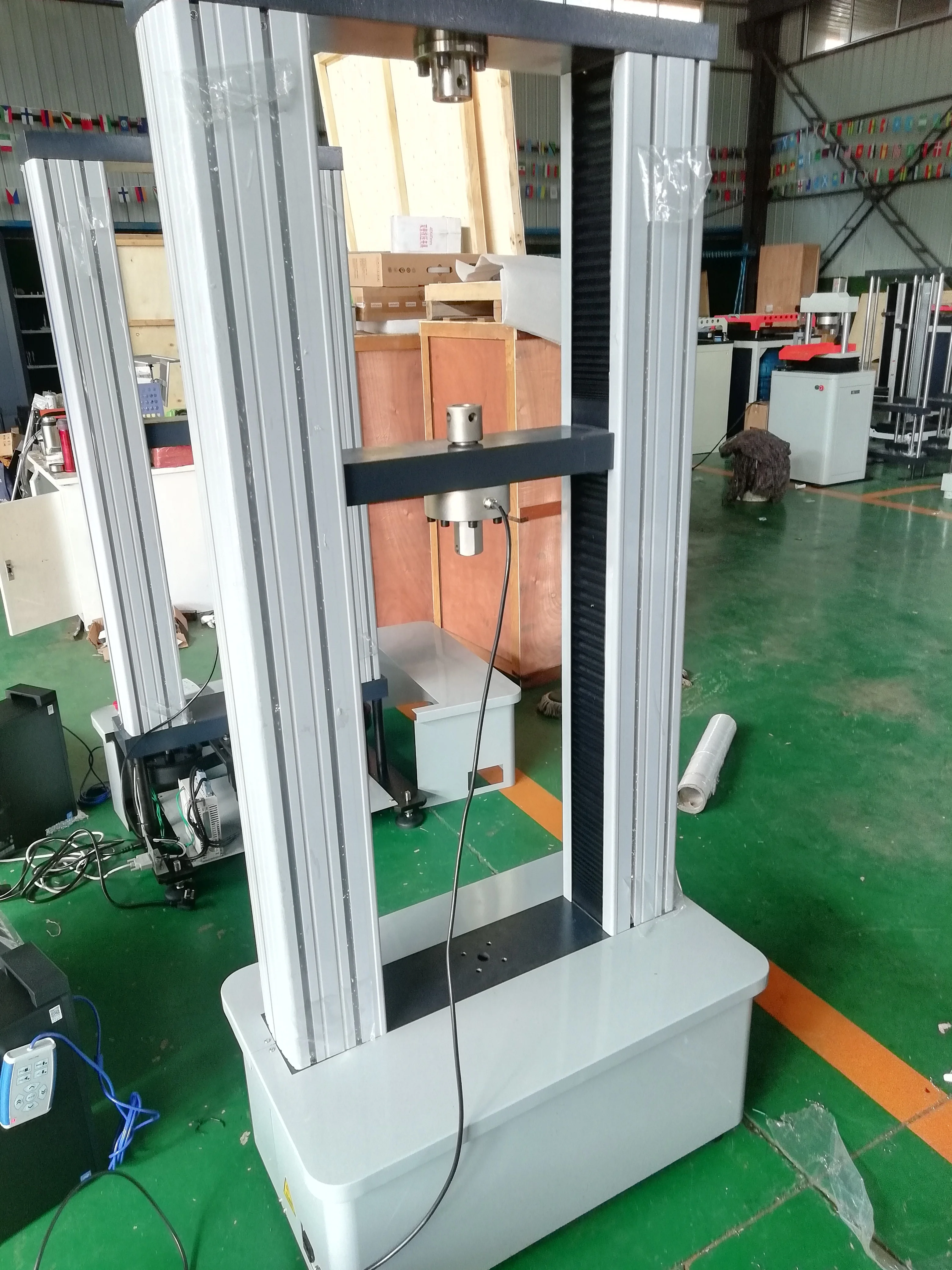

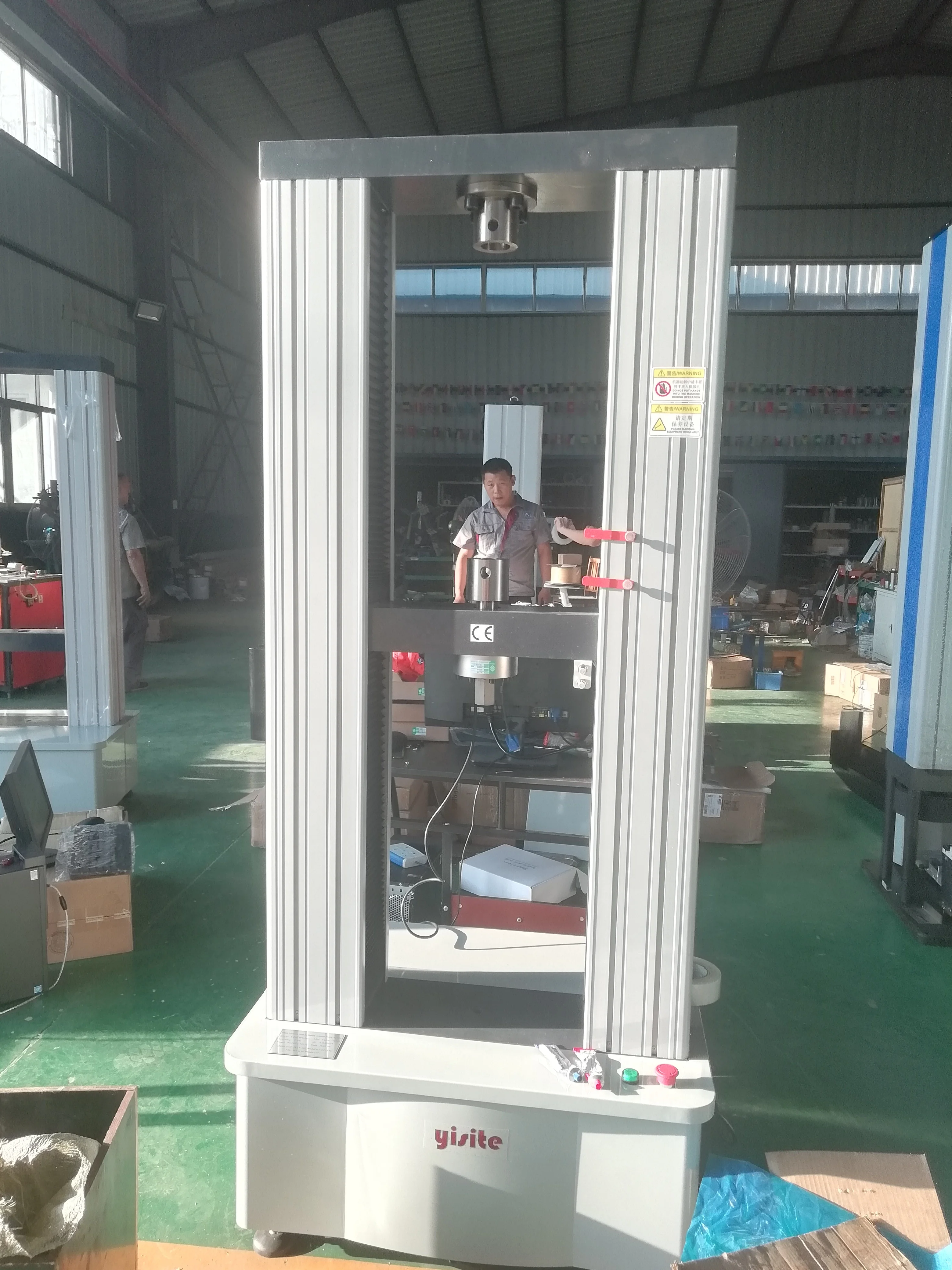

l  This Computer control metal material yield strength testing machine adopts double columns vertical structure, electronic loading, easy to move and clean.

l  The test process is controlled by computer software, it can realize the closed-loop control for test force, displacement, deformation, it can set up different load way, like constant displacement , constant stress, constant strain.

l  During the test process, the computer screen always displays the test data, like test force, peak value, test speed, displacement and test curve, like load-time curve, load-displacement curve, displacement-time curve, stress-strain curve etc.

l  You can save the test data and print the test report.



Security:

For security, we install the limit device and emergency stop button.

Besides when overload occurs, the testing machine will stop automatically.



Technical Parameter:

Range   Parameters	10KN	20KN	50KN	100KN	200KN	300KN
Maximum test force(KN)	10	20	50	100	200	300
Precision grade	1 or 0.5 grade
Test force resolution(KN)	0.001	0.001	0.001	0.01	0.01	0.01
Test force display value resolution	1/300000
Testing force measuring range	1-100%F.S
Deformation range	1-100%F.S
Displacement resolution	0.01mm
Effective tensile test space (mm)	650	650	650	650	620	620
Valid test width(mm)	400	400	400	400	600	600
Speed adjustment range	0.01-500mm/min     , 0.01-300mm/min
Power Supply(V/Hz)	single phase, AC220V, 50HZ
