Характеристики
Product Overview

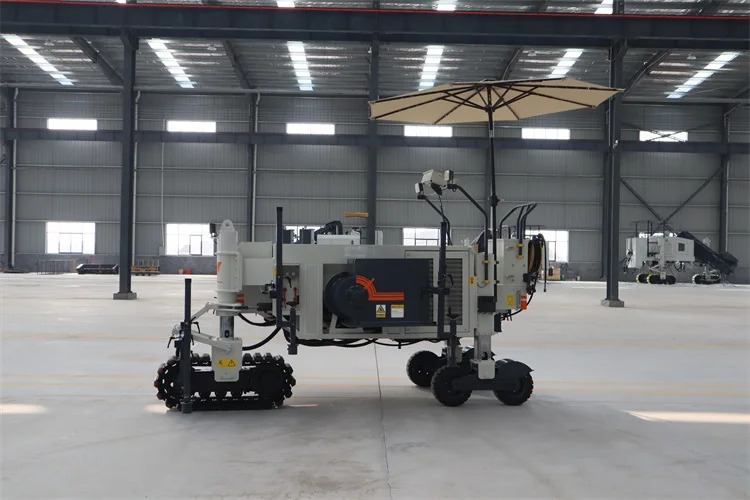

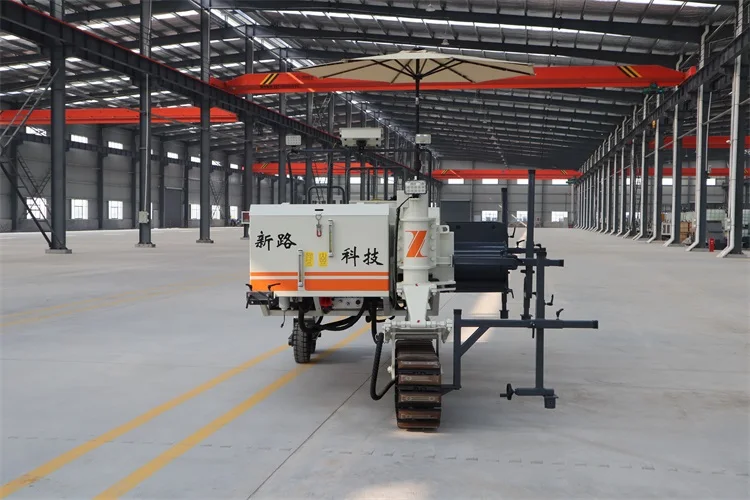

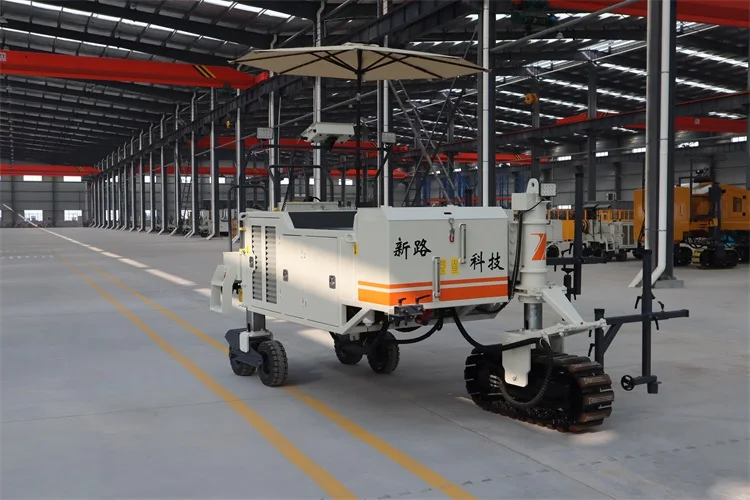

NC600 concrete slip form paver
NC600 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve a variety of mold configurations. It is widely used in the field of small road drainage ditches, drainage channels, curbs, shoulder stones and other cement concrete structures, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.
The machine has large power reserve, full electronic control, full hydraulic power drive, proportional control, single track walking, automatic steering and automatic leveling control system, and can complete the vibration, paving, extrusion molding and other technological processes of cement concrete structures at one time.
The machine has large power reserve, full electronic control, full hydraulic power drive, proportional control, single track walking, automatic steering and automatic leveling control system, and can complete the vibration, paving, extrusion molding and other technological processes of cement concrete structures at one time.
Product Specifications
No | Item | Item | Data | |
1 | Basic performance parameters | Maximum side paving height | 600mm | |
Maximum paving width | 600mm | |||
Paving speed | 0~15m/min | |||
Travel speed | 0~20m/min | |||
2 | Powertrain | Engine model | YCF3050-T302 (Yuchai) | |
Rated power/speed | 36.8kW/2400r/min | |||
Diesel tank capacity | 100L | |||
3 | Walking system | Front track drive travel (front track and rear four tires), hydraulic drive, proportional control two-speed motor, large speed ratio planetary gear reducer | ||
Track width | 300mm | |||
Track length | 1340mm | |||
Climbing capacity | ≥ 15% | |||
4 | Outrigger steering lifting device | Front track steering, precise proportional control; Outrigger lifting hydraulic proportional control | ||
Minimum turning radius | 3500mm | |||
Outrigger hydraulic lifting stroke | 430mm | |||
5 | Hydraulic system | Load sensitive pump hydraulic system, proportional control walking, outrigger turning and lifting, vibrating rod and auger feeding | ||
6 | Electrical control system | Humanized design of operation console, human-computer interactive control screen, clear graphical identification symbol, 12V voltage power supply system Configure two longitudinal slope sensors, one transverse slope sensor and one steering sensor Electronic automatic control is adopted for longitudinal slope, cross slope and steering | ||
7 | Auger conveyor | Twister speed | 0~65r/min | |
Size of auger feeding device | 1600mm long, 300mm diameter | |||
8 | Vibrating compaction system | Hydraulic vibrator interface | 2 | |
Vibrating rod frequency | 0~200Hz | |||
9 | High-pressure flushing device | Hydraulically driven high pressure ceramic plunger pump, equipped with coil device and high pressure washing water gun | ||
water tank capacity | 158L | |||
10 | Overall dimension and weight (transportation status) | Transport dimension (long × wide × High) | 4200×2500×2100mm | |
Operating Weight | 3200Kg | |||
Company Profile
Xuzhou Xinlu Intelligent Technology Co., Ltd.
Xuzhou Xinlu Intelligent Technology Co., Ltd. was established in 2019, and was awarded "National High-tech Enterprise" in 2022, which was supported by the Ministry of Communications of China as a key enterprise in the transportation industry.
The company has passed I S O 9 0 0 1 quality management system and I S O 1 8 0 0 1 occupational health and safety management system certification. The Construction Specification for Slip-form Paving of Multifunctional Curb Structures, which was formulated in the lead, was issued by China Construction Machinery Industry Association in April 2022 and implemented in July of the same year.
Now the company covers an area of 72,000 square meters, with standardized industrial workshops, R&D test centers and comprehensive office and living quarters, and has the production organization and processing and manufacturing capacity of more than 300 sets of high-end cement concrete slipform pavers per year.
The main products are N C series lateral cement concrete slipform paver, N R series middle cement coagulation slipform paver soil and supporting equipment, The products sell well all over the country, showing high attendance rate in high altitude, high temperature and high humidity areas, and are widely praised by customers. We will continue to uphold the core values of "Honesty is gold, service is heart", carry forward the enterprise spirit of "Innovation drives the future and strives to forge a new road".
Now the company covers an area of 72,000 square meters, with standardized industrial workshops, R&D test centers and comprehensive office and living quarters, and has the production organization and processing and manufacturing capacity of more than 300 sets of high-end cement concrete slipform pavers per year.
The main products are N C series lateral cement concrete slipform paver, N R series middle cement coagulation slipform paver soil and supporting equipment, The products sell well all over the country, showing high attendance rate in high altitude, high temperature and high humidity areas, and are widely praised by customers. We will continue to uphold the core values of "Honesty is gold, service is heart", carry forward the enterprise spirit of "Innovation drives the future and strives to forge a new road".
Company's Gate Office Building In the Foot of the Car
Workshop 1 Warehouse Workshop 2
Our Team
All Hands After-sales Service Department Production workers
Technology Department Sales Department R&D Department
Our Advantages
Performance characteristics
1. One machine can be used for multiple purposes. Through changing various molds and precise adjustment and control of vehicle status, the precise slipform paving of small drainage ditches, drainage channels, curbs, shoulder stones and other cement concrete structures can be achieved.
2. Front crawler travel, hydraulic drive, proportional control two-speed motor, large speed ratio planetary gear reducer, to ensure paving stability and improve slipform paving quality; Front track steering proportional control, accurate steering.
3. Powerful engine; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.
4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy.
5. The steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one transverse slope sensor and one steering sensor to improve the response speed and stability of the equipment and ensure accurate linear control.
6. The auger conveying device is applicable to various working conditions and can realize the secondary mixing of cement concrete.
2. Front crawler travel, hydraulic drive, proportional control two-speed motor, large speed ratio planetary gear reducer, to ensure paving stability and improve slipform paving quality; Front track steering proportional control, accurate steering.
3. Powerful engine; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.
4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy.
5. The steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one transverse slope sensor and one steering sensor to improve the response speed and stability of the equipment and ensure accurate linear control.
6. The auger conveying device is applicable to various working conditions and can realize the secondary mixing of cement concrete.
Certifications
Successful Project

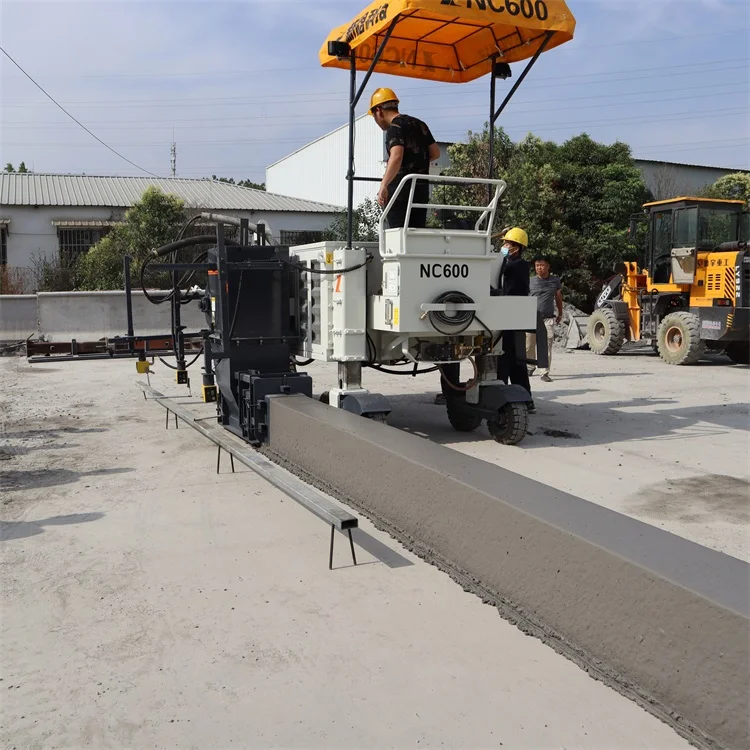

Slipform construction of curb Slipform construction of ditch New Jersey guardrail slipform
construction
Shoulder slipform construction Slipform construction of ditch New Jersey guardrail slipform
construction
Use Scenario
Expressway Bridge An uneven mountain road
Sales And Service Network
Similar Products
FAQ
Q1.What is the main function of slipform paver?
Ans.: It is applied to the construction fields of road drainage ditch, drain channel, curbstone, shoulder stone, concrete
guardrail, cement concrete structure, farmland water conservancy channel, etc。
Ans.: It is applied to the construction fields of road drainage ditch, drain channel, curbstone, shoulder stone, concrete
guardrail, cement concrete structure, farmland water conservancy channel, etc。
Q2.What is the warranty of our machine?
Ans.:
Product warranty form
1. Engine: 12 months, according to the three-guarantee instructions of the engine manufacturer;
2. Electrical control system: six months; Except for force damage
3. Electrical circuit: six months
4. Electrical accessories (battery light horn, etc.): one month
5. Hydraulic pump: 12 months
6. Hydraulic valve block: 12 months
7. Hydraulic motor: 12 months
8. Hydraulic pipeline: six months
9. Water pump: six months
10. Structural parts: 12 months
Vulnerable parts:
1. Stir up the bearing: three months, normal wear is not subject to three guarantees
2. Mixing blade: three months
3. Vibrating rod: six months
Q3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3-7 days, and we send the machine by sea.
Q4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
Ans.:
Product warranty form
1. Engine: 12 months, according to the three-guarantee instructions of the engine manufacturer;
2. Electrical control system: six months; Except for force damage
3. Electrical circuit: six months
4. Electrical accessories (battery light horn, etc.): one month
5. Hydraulic pump: 12 months
6. Hydraulic valve block: 12 months
7. Hydraulic motor: 12 months
8. Hydraulic pipeline: six months
9. Water pump: six months
10. Structural parts: 12 months
Vulnerable parts:
1. Stir up the bearing: three months, normal wear is not subject to three guarantees
2. Mixing blade: three months
3. Vibrating rod: six months
Q3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3-7 days, and we send the machine by sea.
Q4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
