Новый Регулируемый DKD ONE-LIN/CAN-BUS с помощью которого можно связи электрический скутер ЖК-дисплеем Спидометр дисплей для
- Категория: Motorcycle Meter >>>
- Поставщик: Wuxi,Yuma,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.39 $* | 0.18 $* |
| Aug-17-2025 | 0.67 $* | 0.70 $* |
| Jul-17-2025 | 0.82 $* | 0.53 $* |
| Jun-17-2025 | 0.99 $* | 0.36 $* |
| May-17-2025 | 0.10 $* | 0.84 $* |
| Apr-17-2025 | 0.91 $* | 0.41 $* |
| Mar-17-2025 | 0.79 $* | 0.99 $* |
| Feb-17-2025 | 0.69 $* | 0.39 $* |
| Jan-17-2025 | 0.69 $* | 0.91 $* |
Характеристики

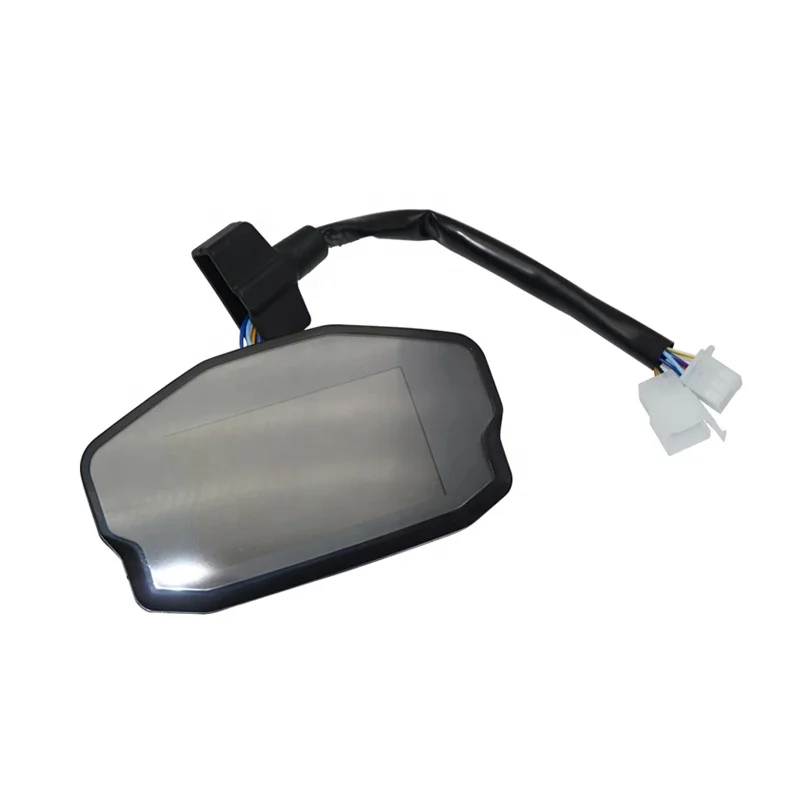

New Adjustable DKD ONE-LIN/CAN-BUS Communication Electric Scooter LCD Speedometer Display For Votol Controller
NOTICE:
This One-LIN type meter can be match with Votol Controller and FarDriver Controller. Other controller cannot match well, pls note.
This One-LIN type meter can be match with Votol Controller and FarDriver Controller. Other controller cannot match well, pls note.
Specification
Product | DKD ONE-LIN Display for electric bike scooter | ||||||
Background Color | Dark Green | ||||||
Working Voltage Range | 48v-84v | ||||||
Speed type | One-LIN | ||||||
Functions | voltage, motor pole pairs, tire perimeter, kmh/mph. This display has more complete functions and easier operation | ||||||
Function Settings
1) Press left button to adjust data, press right button to shift, long-press right button to exit
2) After power on, the self-test of the display is completed, then press and hold the left button for 10 seconds to enter the
background and enter the password
3) Password 153 set the perimeter, the number of pole pairs, the offset, the unit mm is CC 1413 (18inch tire perimeter) by
default, after the setting is completed, long press the right button to enter the number of pole pairs(PL 24-08, pole pair number 24 by default) and offset;
4) Password 256, high and low gear (E, S gear) and normal gear selection, -2 is high and low gear, -0 is normal gear display;
5) Password 372, clear ODO, limited to 3 times;
6) Password 856, select 48v, 60v, 72v, 84v voltage range;
7) Password 879, fixed voltage calibration, 48.0v, 60.0v, 72.0v, 84.0v, corresponding to the setting;
8) Password 824, self-input voltage calibration;
9) Password 974, kmh/mph switch setting;
10) Password 928, D gear light, N gear light off setting.
2) After power on, the self-test of the display is completed, then press and hold the left button for 10 seconds to enter the
background and enter the password
3) Password 153 set the perimeter, the number of pole pairs, the offset, the unit mm is CC 1413 (18inch tire perimeter) by
default, after the setting is completed, long press the right button to enter the number of pole pairs(PL 24-08, pole pair number 24 by default) and offset;
4) Password 256, high and low gear (E, S gear) and normal gear selection, -2 is high and low gear, -0 is normal gear display;
5) Password 372, clear ODO, limited to 3 times;
6) Password 856, select 48v, 60v, 72v, 84v voltage range;
7) Password 879, fixed voltage calibration, 48.0v, 60.0v, 72.0v, 84.0v, corresponding to the setting;
8) Password 824, self-input voltage calibration;
9) Password 974, kmh/mph switch setting;
10) Password 928, D gear light, N gear light off setting.

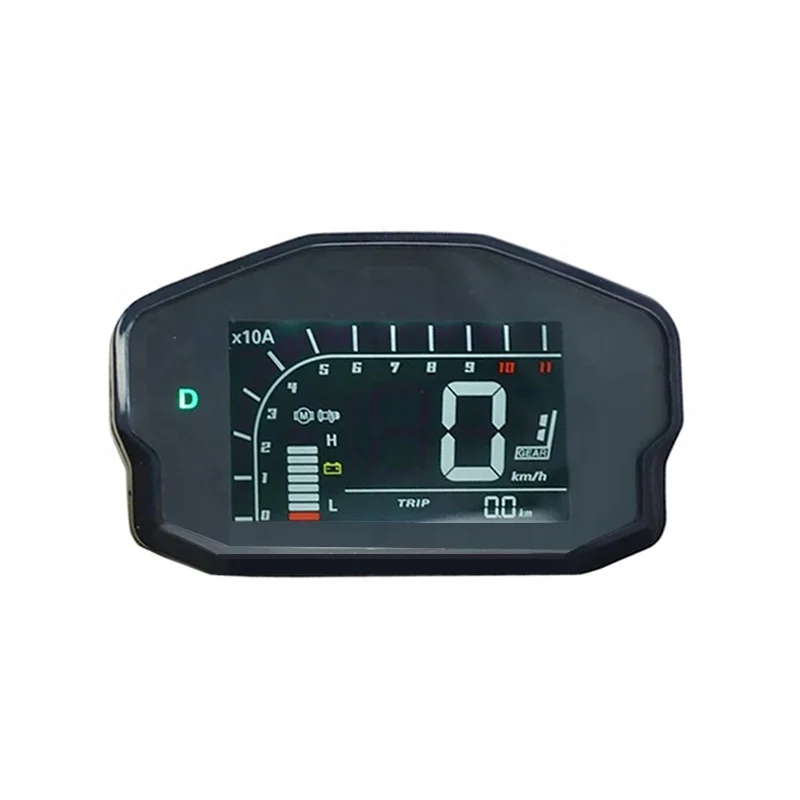

Function Lights Introduction
1: Left turn signal (green)
2: Current indicating unit: *5A or *10A is selected according to the model.
3: 4 indicator icons
Brake indicator light (exclamation mark): When the brake is mechanical or electronic, the indicator light is on
Controller failure (ECU): Controller failure, the indicator light is on.
Motor failure (M): When the Hall fault or the motor phase is missing, the indicator light is on.
Throttle failure: When the throttle is faulty or the anti-overrunning protection, the indicator light is on.
4: Power consumption indication.
5: Speed indicator bar
6: Right turn signal (green)
7: High beam (blue)
8: Reverse charging indication. When the vehicle brakes electronically, the indicator light is on when the generated energy is charged to the battery.
9: Gear position display: Signal: One-lin communication of the controller. 1st, 2nd, 3rd gear.
10: mph, km/h: speed unit, can be switched.
11: The mileage unit simultaneously displays the kmh and mph.
12: TRIP: Subtotal mileage. The minimum resolution is 0.1KM (0.1mile). ODO: total mileage sign.
13: Speed display: maximum display 199km/h or 199mph; minimum resolution 1km/h (1mph).
14: Voltage and power indication: 10 grid indication, the data comes from BMS.
2: Current indicating unit: *5A or *10A is selected according to the model.
3: 4 indicator icons
Brake indicator light (exclamation mark): When the brake is mechanical or electronic, the indicator light is on
Controller failure (ECU): Controller failure, the indicator light is on.
Motor failure (M): When the Hall fault or the motor phase is missing, the indicator light is on.
Throttle failure: When the throttle is faulty or the anti-overrunning protection, the indicator light is on.
4: Power consumption indication.
5: Speed indicator bar
6: Right turn signal (green)
7: High beam (blue)
8: Reverse charging indication. When the vehicle brakes electronically, the indicator light is on when the generated energy is charged to the battery.
9: Gear position display: Signal: One-lin communication of the controller. 1st, 2nd, 3rd gear.
10: mph, km/h: speed unit, can be switched.
11: The mileage unit simultaneously displays the kmh and mph.
12: TRIP: Subtotal mileage. The minimum resolution is 0.1KM (0.1mile). ODO: total mileage sign.
13: Speed display: maximum display 199km/h or 199mph; minimum resolution 1km/h (1mph).
14: Voltage and power indication: 10 grid indication, the data comes from BMS.
Drawing
Wiring Definition
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
