Прайс-лист подшипник NJ 2320 ECM C3 NJ2320 цилиндрический

Прайс-лист подшипник NJ 2320 ECM C3 NJ2320 цилиндрический

Категория: Cylindrical Roller Bearings >>>
Поставщик: Shandong,Bohong,Bearing,Co.,Ltd.

Цена:18,00 $ - 32,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	21.33 $*	22.66 $*
Aug-19-2025	21.41 $*	22.74 $*
Jul-19-2025	18.23 $*	19.54 $*
Jun-19-2025	21.82 $*	22.46 $*
May-19-2025	18.10 $*	19.11 $*
Apr-19-2025	21.78 $*	22.87 $*
Mar-19-2025	20.86 $*	21.42 $*
Feb-19-2025	20.55 $*	21.55 $*
Jan-19-2025	20.83 $*	21.62 $*

Характеристики

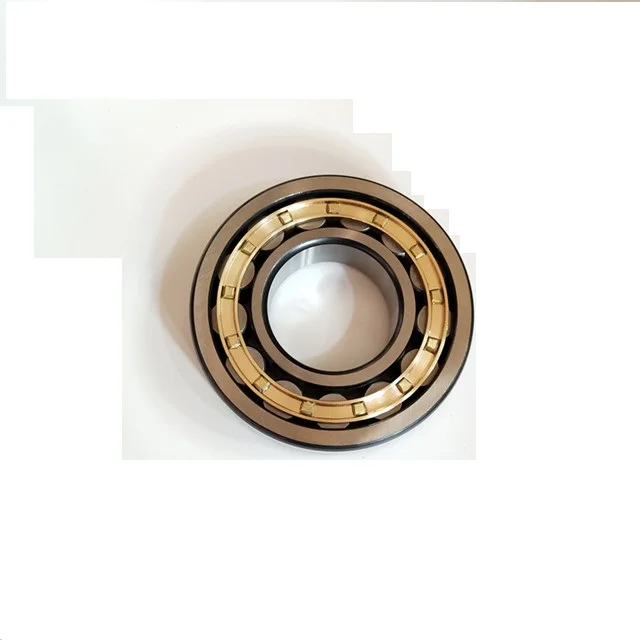

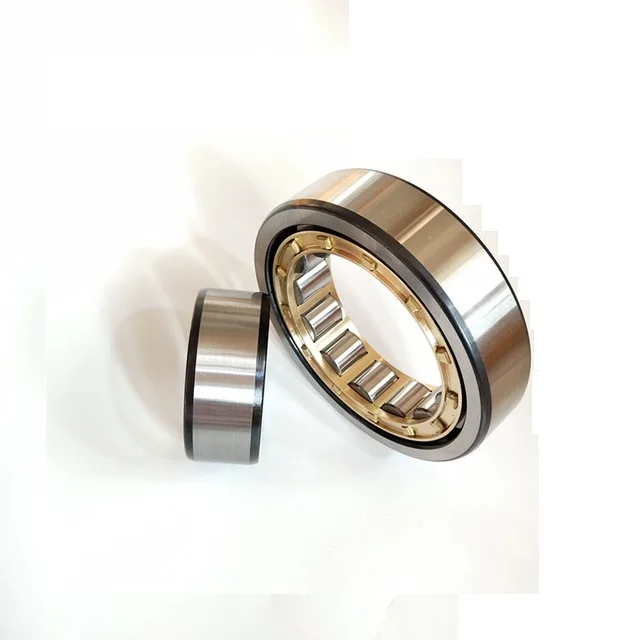

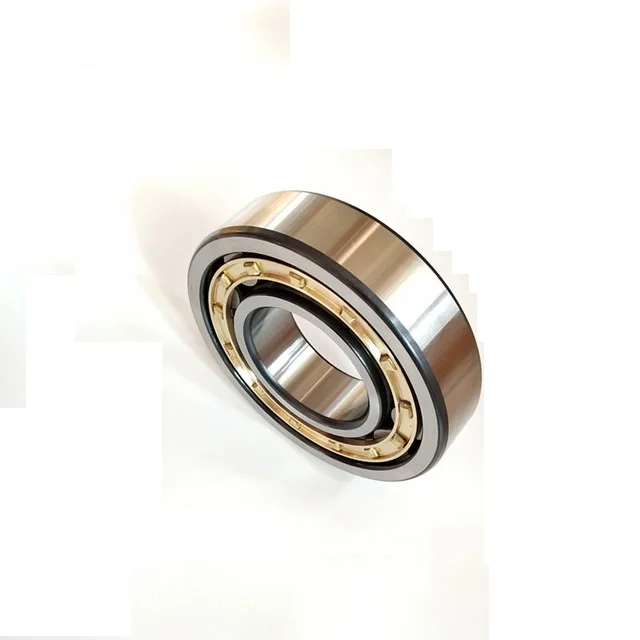

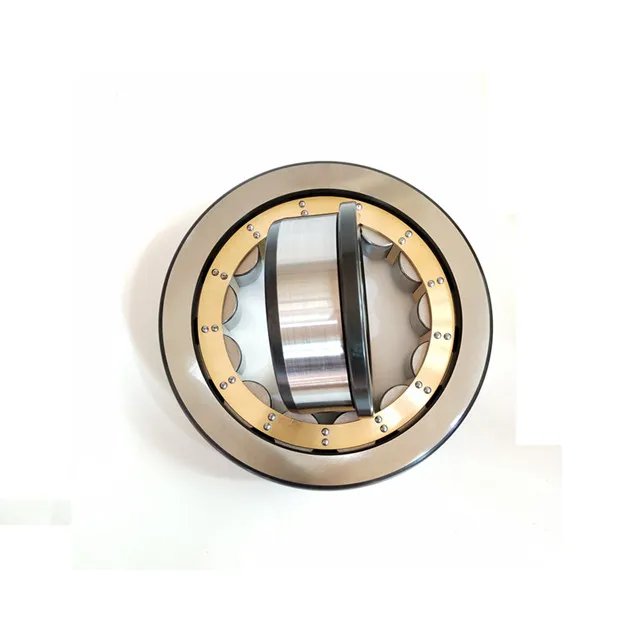

price list bearing NJ 2320 ECM C3 NJ2320 cylindrical roller bearing NU2320

Product Description

Cylindrical roller bearings, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.

There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).

Double row cylindrical roller bearings are available in several designs with a cylindrical or tapered bore. The standard assortment presented in this section includes:
NNU design bearings
NN design bearings
NNUP design bearings

Specifications: NU2320 cylindrical roller bearing NU 2320 ECML single row
Bore diameter	100mm
Outside diameter	215mm
Overall width	73mm
Cage material	M type brass cage
Maximum rpm	3800RPM
Dynamic load capacity	670 kN
Static load capacity	490 kN
Roller bearing types	cylindrical roller bearing
Bearing number of row	single row
Bearing series	nu bearing, nj bearing
Bearing material	Steel bearing
Internal clearance	C3 C0 C4 clearance bearing
Precision rate	grade p0 p4 p5 p6 abec5

Types of cylindrical roller bearing:
Single row cylindrical roller bearing: NU, NJ, NUP, NUB series
Double row cylindrical roller bearings:NNU series
Four row cylindrical roller bearing:FC series
Single row full complement cylindrical roller bearing:SL18 series, SL 19 series
Double row full complement cylindrical roller bearing: SL01 series, SL02 series, SL18 series.

cylindrical roller bearing catalogue:

Bearing Number	d/mm	D/mm	B/mm	weight/kg
N202	15	35	11	0.047
N203	17	40	12	0.067
N204	20	47	14	0.11
N205	25	52	15	0.13
N206	30	62	16	0.2
N207	35	72	17	0.29
N208	40	80	18	0.37
N209	45	85	19	0.423
N210	50	90	20	0.46
N211	55	100	21	0.626
N212	60	110	22	0.802
N213	65	120	23	1
N214	70	125	24	1.1
N215	75	130	25	1.21
N216	80	140	26	1.47
N217	85	150	28	1.83
N218	90	160	30	2.25
N219	95	170	32	2.72
N220	100	180	34	3.45
N221	105	190	36	4.33
N222	110	200	38	5.02
N224	120	215	40	6.11
N226	130	230	40	7.08
N228	140	250	42	9.14
N230	150	270	45	11.6
N232	160	290	48	14.3
N234	170	310	52	18.2
N236	180	320	52	19.7
N238	190	340	55	22.9
N240	200	360	58	26.8
N244	220	400	65	36.7
