Характеристики

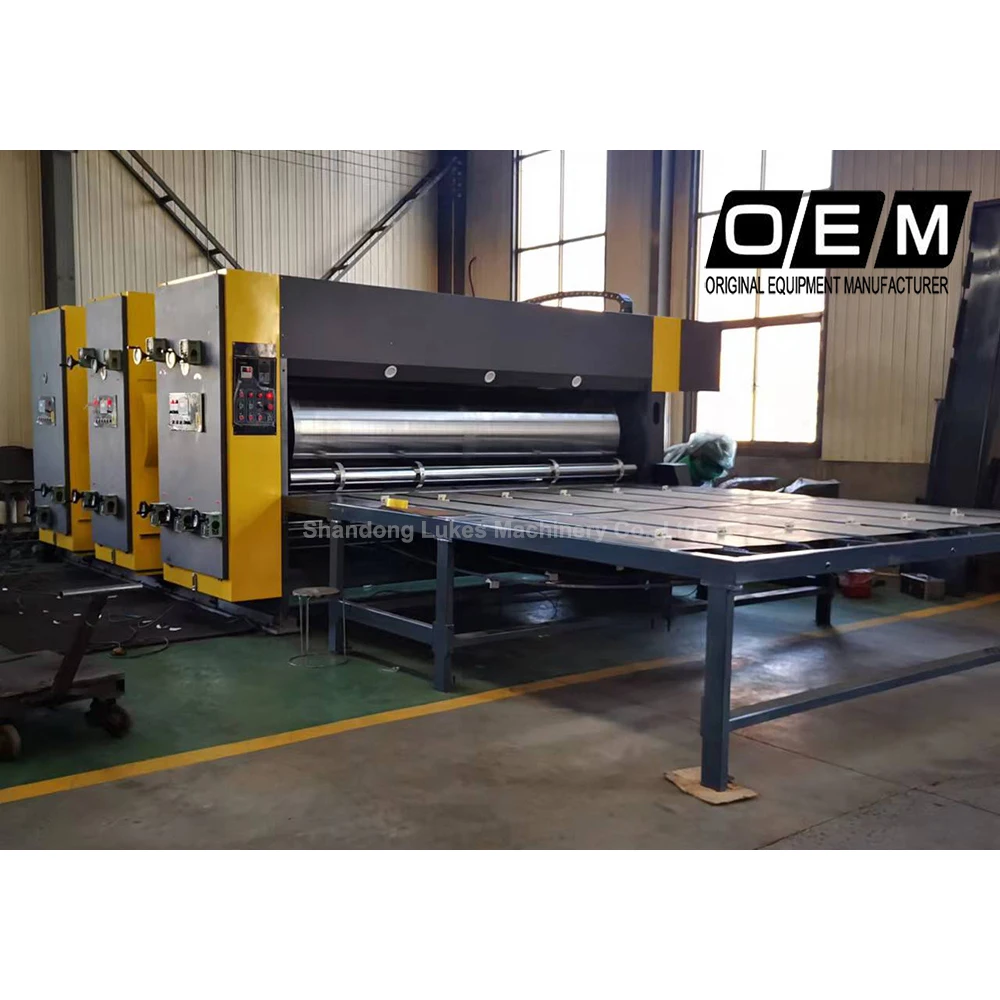

Factory Price 3 Color Flexo Printing Machine Price Digital Flexo Printing Machine Price Large Format Printing Machine
Printing Slotting Die Cutting Machine
The overall machine is designed and built with high precision, intelligence, and security. All transmission rolls are made of high-quality thick wall seamless steel, deep hole boring, surface grinding and hard chrome plating.
Model | LKSRY-920 | LKSRY-1224 | LKSRY-1228 | LKSRY-1628 | LKSRY-1632 | ||||
Max speed: | 180 | 160 | 140 | 120 | 100 | ||||
Max. sheet size (mm) | 900*2000 | 1200*2400 | 1200*2800 | 1600*2800 | 1600*3200 | ||||
Max. sheet size (mm) | 300*600 | 350*600 | 350*600 | 450*600 | 450*600 | ||||
Feed every other sheet(mm) | 1200*2000 | 1500*2400 | 1500*2900 | 2000*2800 | 2000*3200 | ||||
Max printing format(mm) | 900*1960 | 1200*2360 | 1200*2760 | 1600*2760 | 1600*3160 | ||||
Standard printing thickness | 7.2 mm | ||||||||
Min slotting (single axis interval) | 130*130*130*130 | ||||||||
230*65*320*65 | |||||||||
Min slotting (single axis interval) | 130*130*130*130 | ||||||||
230*65*320*65 | |||||||||
Max Groove Depth (mm) | 250 | 300 | 300 | 400 | 400 | ||||

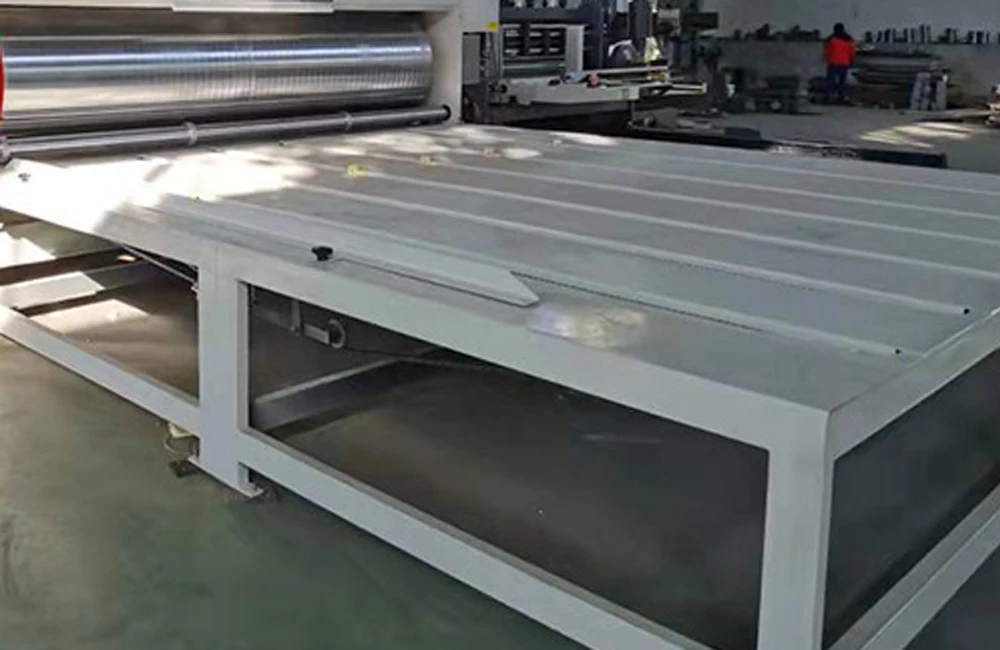

Feeding Unit
· Chain type feeder, increase fan flow, so that high speed and low speed feed paper more accurate.
· Manually adjust the feeding stroke to reduce the pressure of the paperboard pull roller.

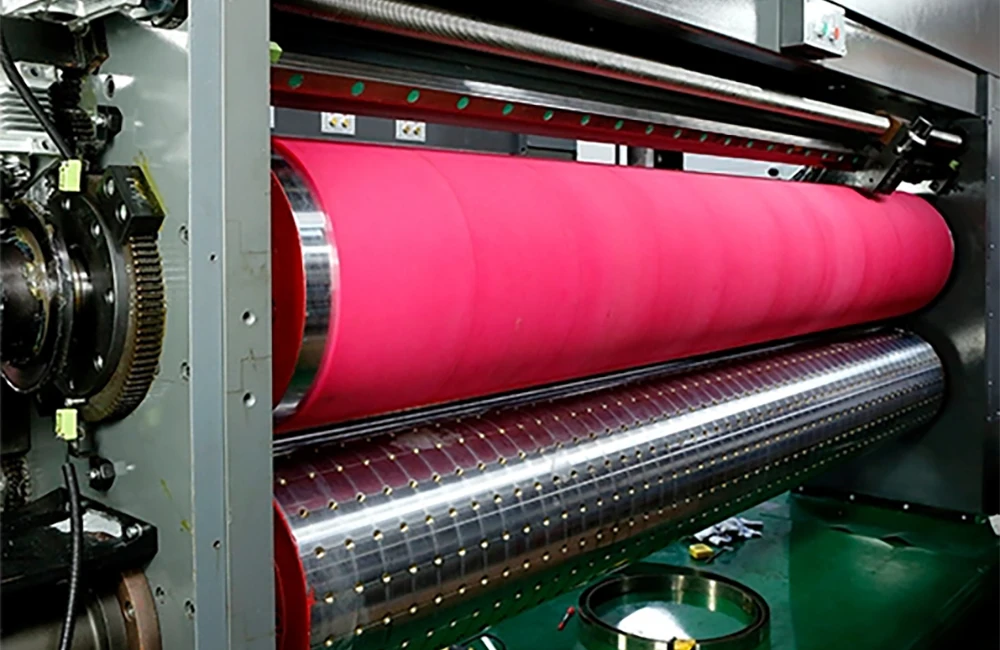

Printing Unit
Anilox roller is equipped with rubber roller, printing effect is much better.
The automatic distributing ink device, when machine stop, it automatically distribute ink to prevent ink drying affect printing
quality.
quality.

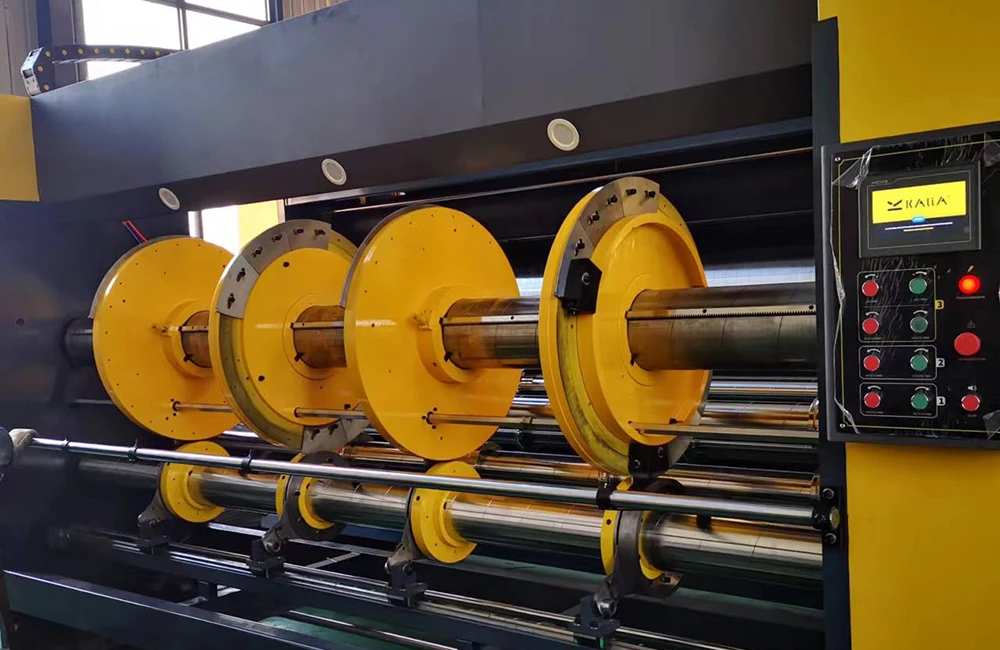

Slotting Unit
Slotting phase and carton box height adopt computer and electric digital control.
Elastic slicing corner structure, three layer, five layer corrugated paperboard without adjustment.
Die Cutting Unit
Cutter mould roller lateral movement adopts electric adjustment and the adjustment range is ± 10 mm.
The rubber roller speed adopts frequency control and independent motor drive.

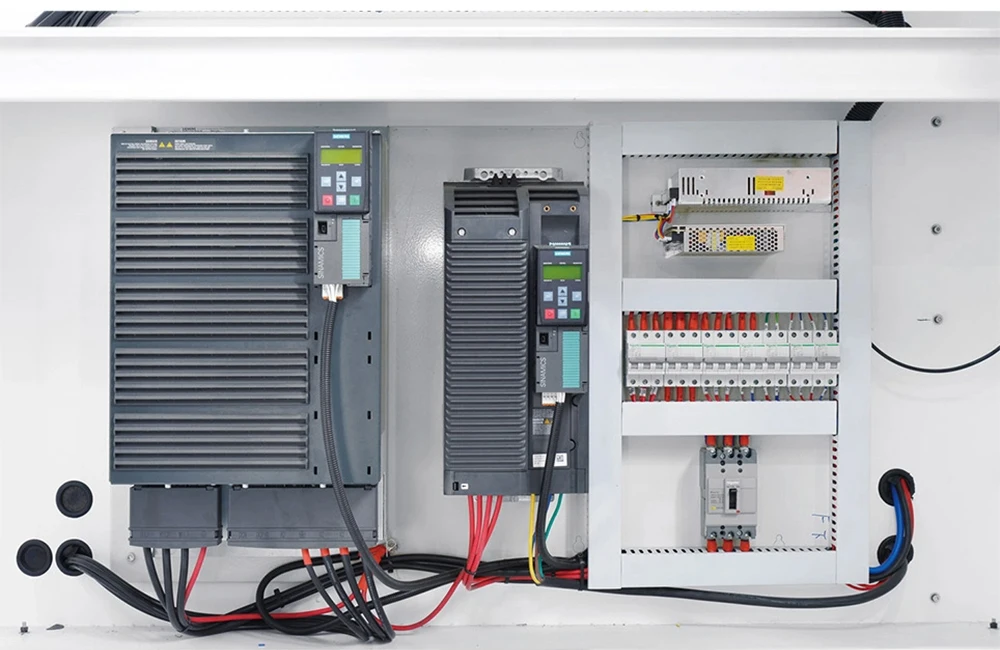

Electrical Unit
The Electrical components are used internationally famous brands.Mainly control is adopted US servo numerical control positioning technology. Feeding unit, printing unit, slotting unit, die cutting unit are equipped with colorful PLC touch screen, with
one-touch machining setting with zero function can be connected to ERP system.
one-touch machining setting with zero function can be connected to ERP system.
This kind of flexo printing machine for the corrugated cardboard carton box make, there can choose single color,double color, three color, four color and so on, According todifferent needs can be customized for customers.
