Характеристики

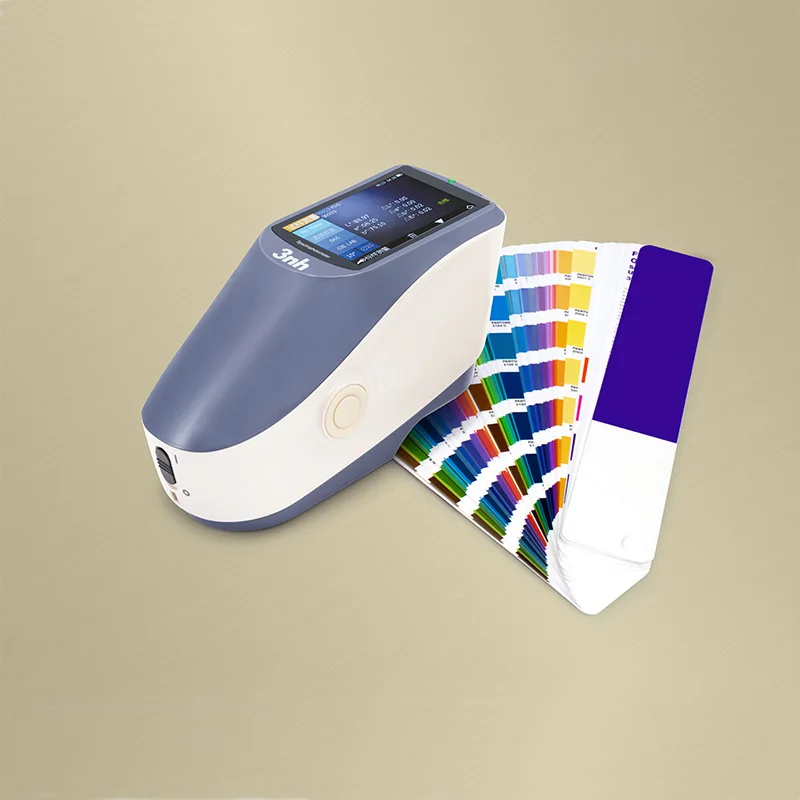

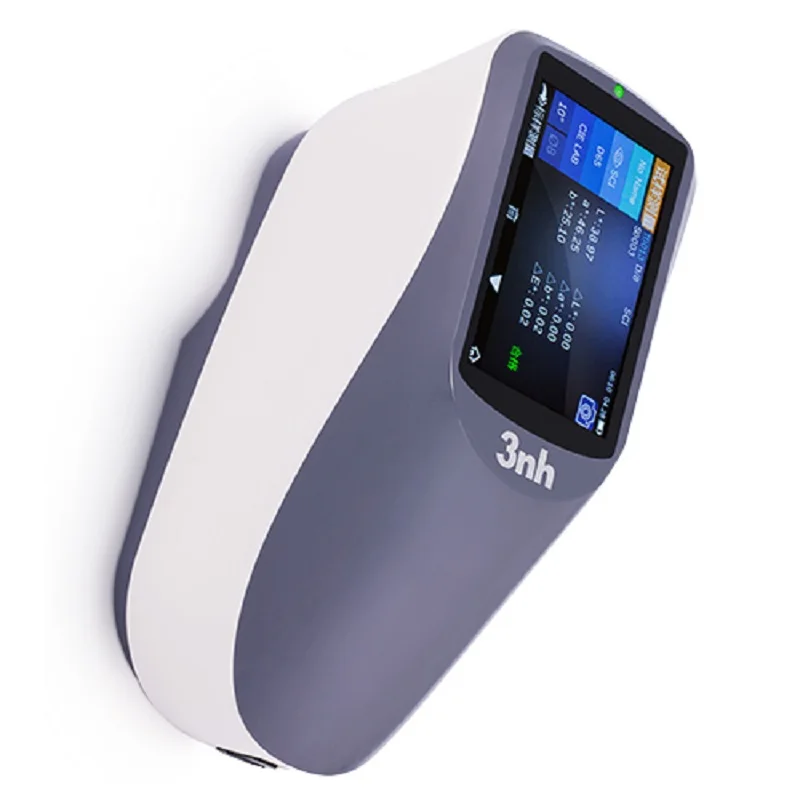

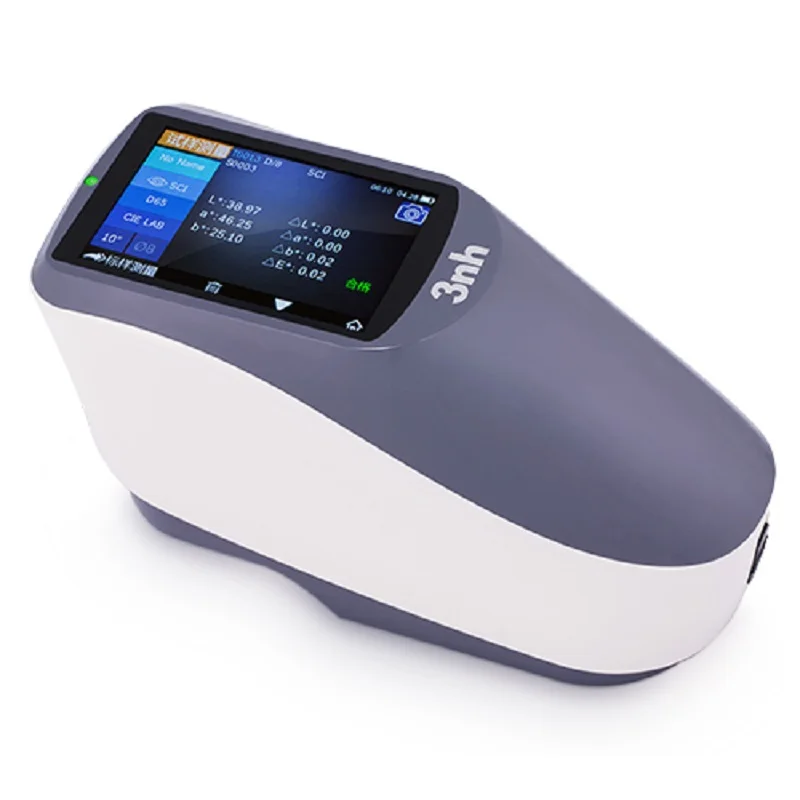

Products Display




Product Description


YS4510 standard spectrophotometer with 45/0 geometrical optics structure( 45 ring-shaped illumination ,vertical viewing), comply with C I E N o . 1 5. Adopting concave grating light splitting method. accurately measure the reflectivity and various chromaticity data of samples. users can customize the measurement aperture(Φ 8 / Φ 4 / Φ 2 m m) according to the sample measuring demands, meet the industry accurate color measurement and quality control.


Main Feature


1.Perfect combination of beautiful appearance and the human body mechanics structural design;
2.45/0 geometrical optics, conforms with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7，GB 2893、GB/T 18833;
3.Use long life and low power consumption combined LED light source;
4.Optional aperture2mm/4mm/8mm, support both SCI and SCE at the same time;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7.USB port, widely useful;
8.Super stain-resistant and stable standard white calibration plate;
9.Large capacity storage space, over 20,000 measurement data;
10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
11.PC software has a powerful function extension.
12.Built - in multi - description of standard samples and specific traffic sign color gamut, especially suitable for traffic sign brightness factor and color performance.


Technical Data


Model
YS4510 45/0 Spectrophotometer
Illumination/Observation system
45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features
Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing
and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size
Φ48mm
Light Source
Combined LED Light
Spectral separation device
Concave Grating
Detector
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400~700nm
Wavelength Pitch
10nm
Half Bandwidth
10nm
Reflectance Range
0~200%
Measuring Aperture
Customized One Aperture：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；SAV:Φ2mm/Φ3mm；
Color Space
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Other Colorimetric Index
WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Observer Angle
2°/10°
Illuminant
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data
Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time
About 1.5s
Repeatability
Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:MAV,within ΔE*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white
calibration)
Inter-instrument Error
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode
Single Measurement, Average Measurement(2-99)
Size(L*W*H)
184*77*105mm
Weight
About 600g
Power source
Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Interface
USB
Data memory
Standard 500 Pcs, Sample 20000 Pcs
Language
Chinese,English
Working Environment
Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment
Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory
Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration
Board, Protective Cover.
Optional Accessory
Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
