Цифровой тестер твердости для алюминия

Категория: Hardness Testers >>>
Поставщик: Decca,Precision,Measuring,Instrument,(shenzhen),Co.,Ltd.

Цена:325,00 $ - 370,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	413.82 $*	421.82 $*
Jul-19-2025	335.19 $*	342.73 $*
Jun-19-2025	406.12 $*	414.28 $*
May-19-2025	403.60 $*	411.10 $*
Apr-19-2025	322.27 $*	328.74 $*
Mar-19-2025	397.44 $*	405.65 $*
Feb-19-2025	393.34 $*	401.88 $*
Jan-19-2025	390.14 $*	398.91 $*

Характеристики

Product Description

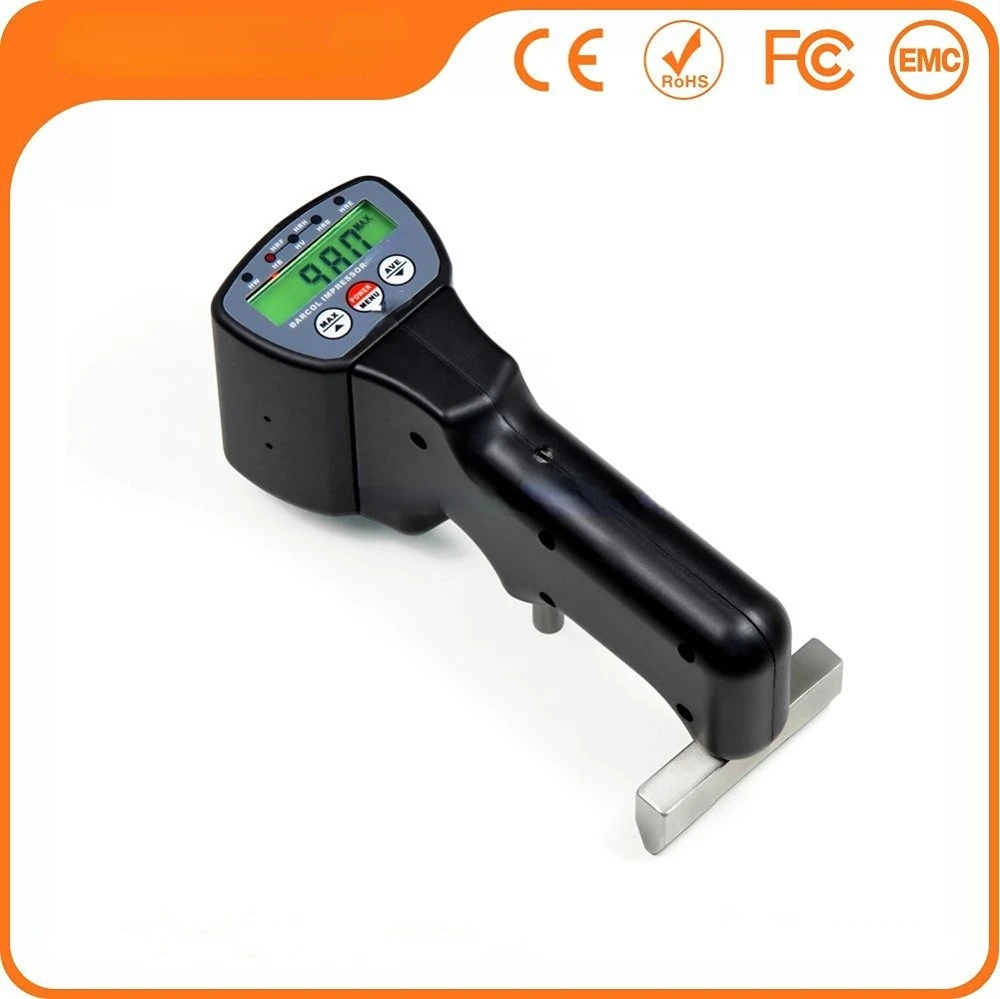

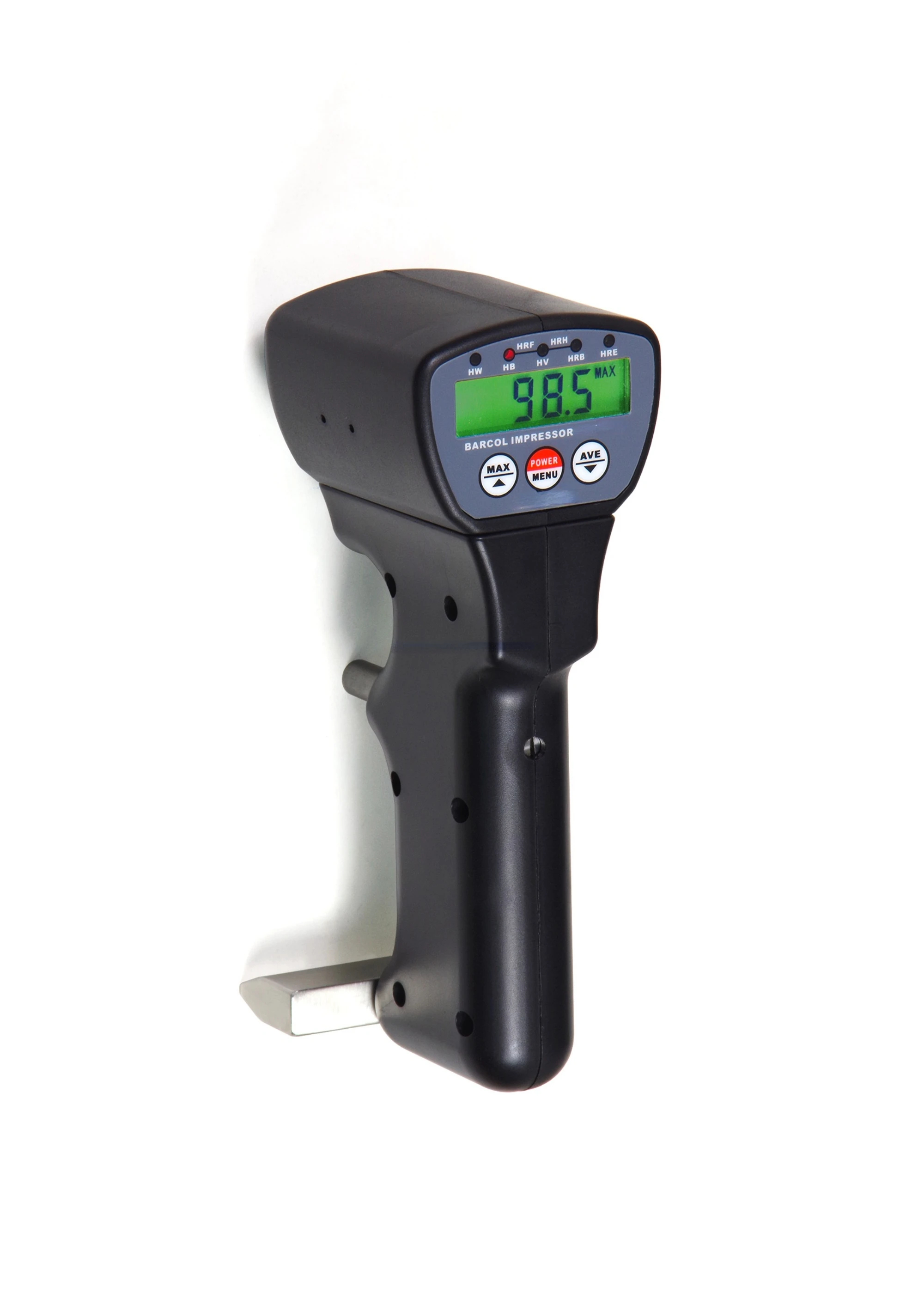

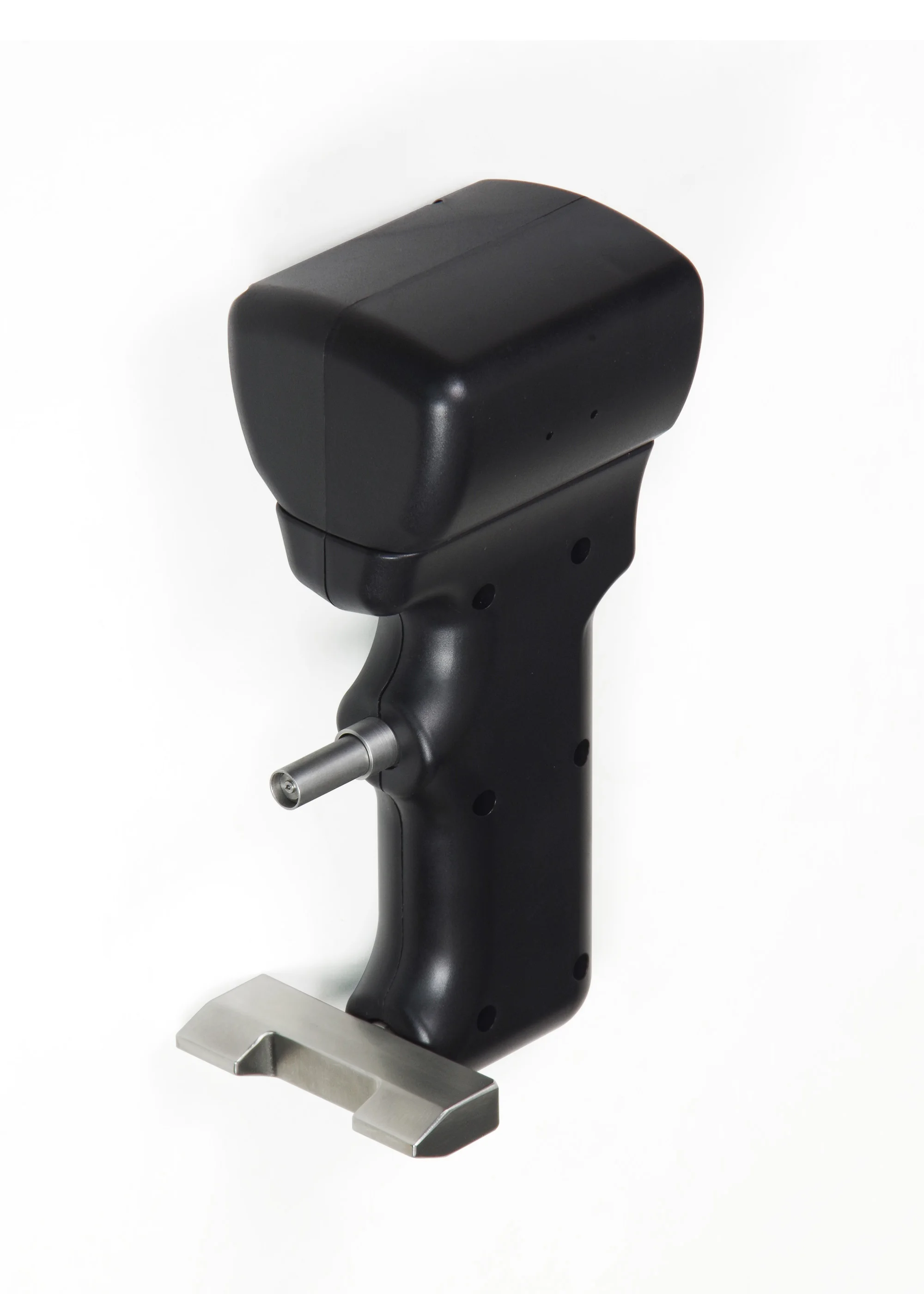

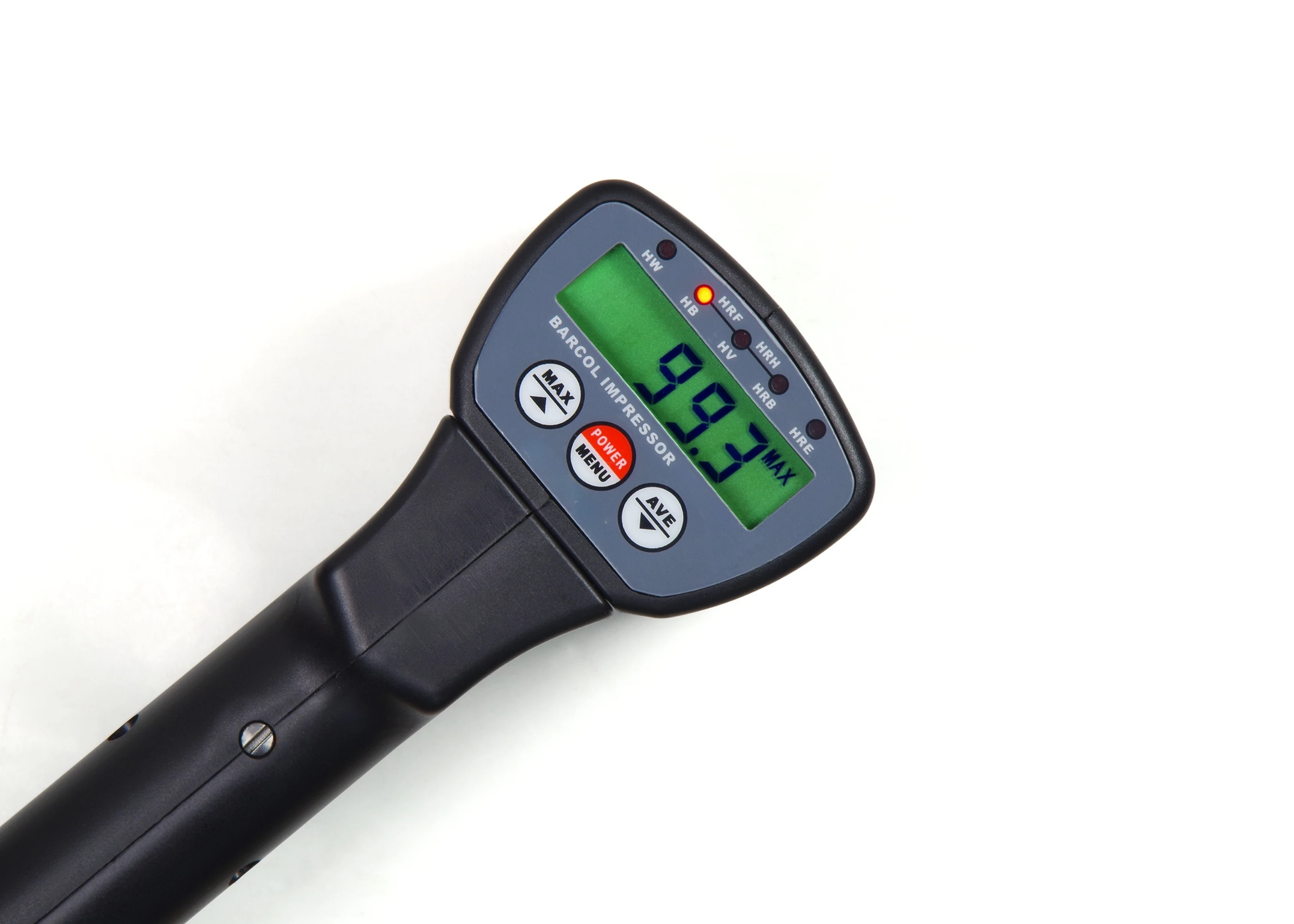

Digital Display Barcol Impressor

Spec: It is mainly used in aluminum processing industry. Also, it can be used for glass steel industry.

Applications:

The Digital Display Barcol Impressor DC-100 is the Hand-held portable Indentation hardness tester,which is the lastest research anddevelopment of our company.

Used for measuring the hardness of:

*aluminum, aluminum alloys, soft metals

*fiberglass and other materials.

Follow the standards:ASTM B648-00;ASTM HD2583-07;GB/T3854-2005.

Features:

* A digital indentation hardness tester, is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibrationand adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to theBrinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for thetest of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW),Rockwell Hardness (HRB/HRE/HRF/HRH).

* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.

* Provide BT data output choice.

Details:

\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

Range	0~100Hba,Amount to 25~135HBW
Resolution	0.1HBa
Indication Error	81~88Hba±1Hba
Indication Error	42~48Hba±2Hba
Repeatability Error	81~88Hba±1.5Hba
Repeatability Error	42~48Hba±2.5Hba
Brinell Hardness	√
Vickers Hardness	√
Wenster Hardness	√
Rockwell hardness	√
Maximum Hold	√
Average Calculation	√
Operating Condition	Temperature:0~50ºC Humidity:<80%RH

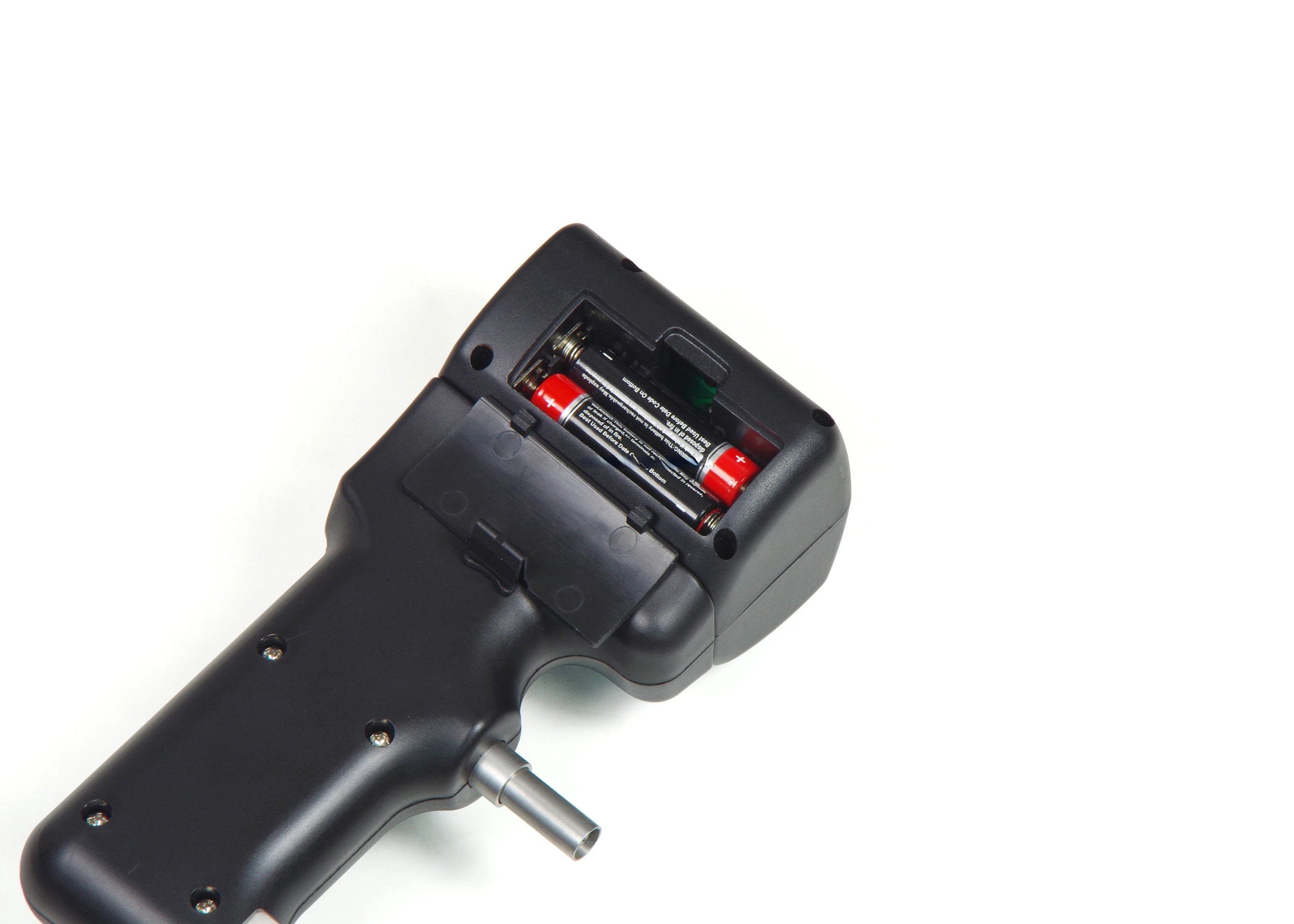

Power Supply	2x1.5V AAA(UM-4)Battery
Dimensions	170x63x82mm
Weight	390g(Not Including Batteries)
Standard	Main Unit
Accessories	2 Pins
	2 Standard Blocks
	Pin Length Calibration Block
	Screw Driver
	Spanner
	Carrying Case
	Operation Manual
Optional	BT Data Adapter with Software
