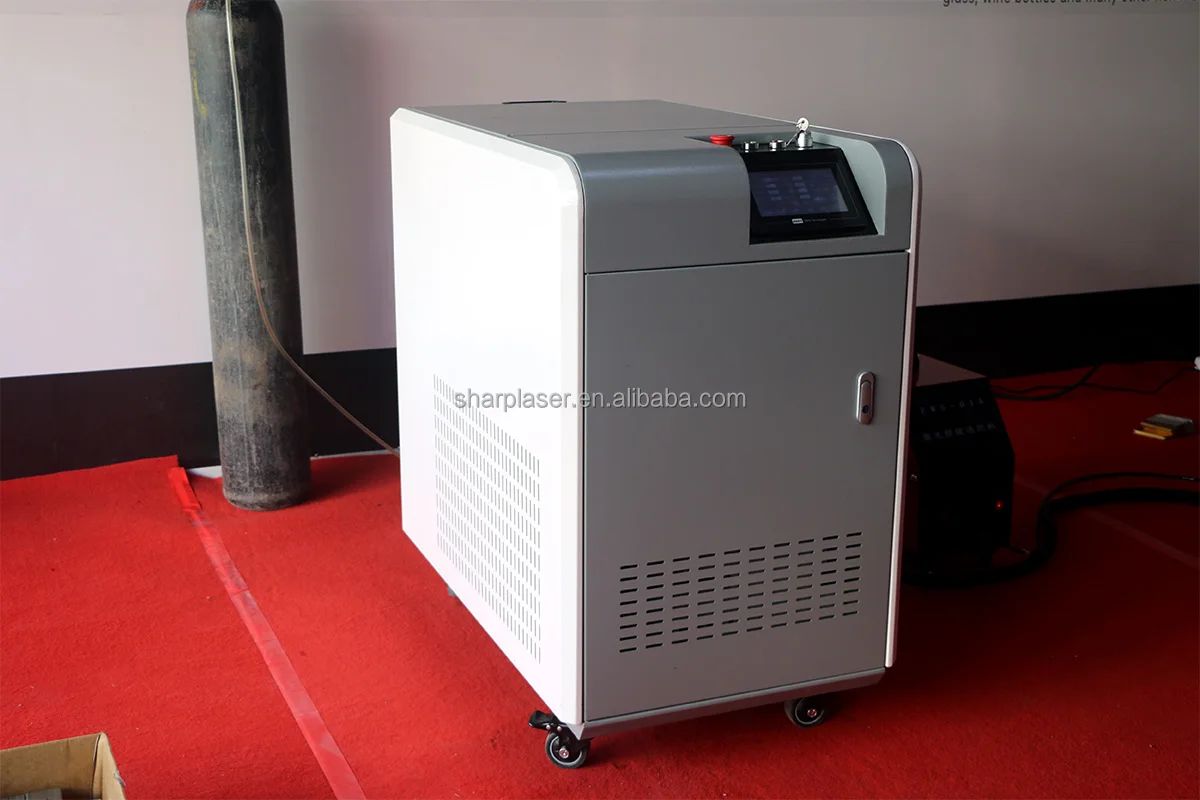

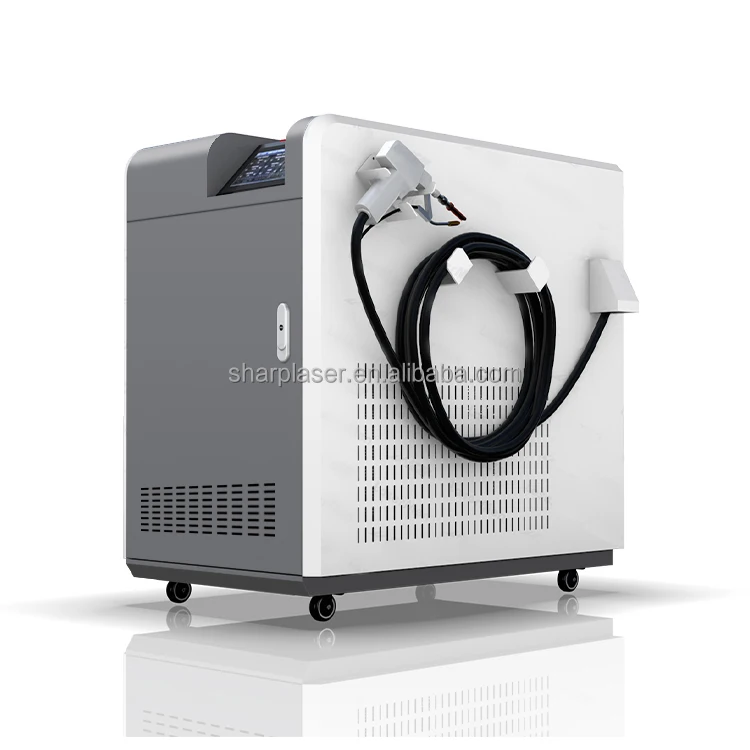

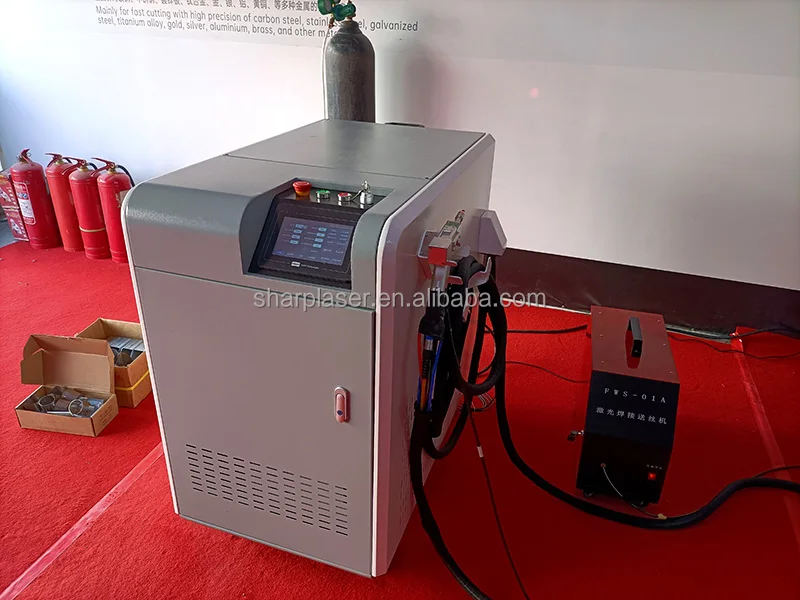

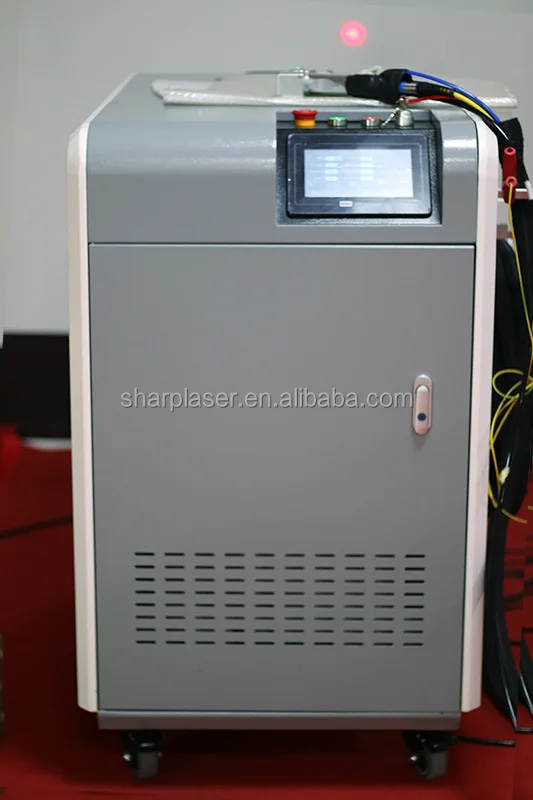

WF1000 handheld fiber laser welding machine

product details
1. The beam quality transmitted by the optical fiber is better, the solder joints are more uniform, and the penetration depth is better;

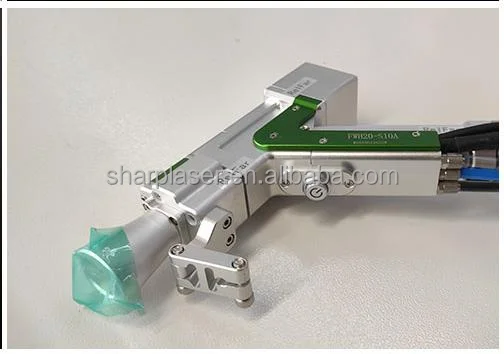

2. The small hand-held welding gun operation mode can weld any part of the workpiece at any angle, and has small restrictions on the space and the size of the workpiece;
3. It is suitable for spot welding and repair welding of various complex welding seams and various devices;
4. The five-meter-long high quality optical fiber is flexible and convenient, and can work in long-distance;
5. For irregular shapes of larger objects, good welding results can be achieved;
6. It is especially suitable for ultra-thin welding that cannot be welded by argon arc welding and has a good welding effect;

Machine Model	Handheld fiber laser welding machine
laser power	1000w / 1500w/2000w
laser wave length	1064-1080nm
Laser source	Yongli/Raycus

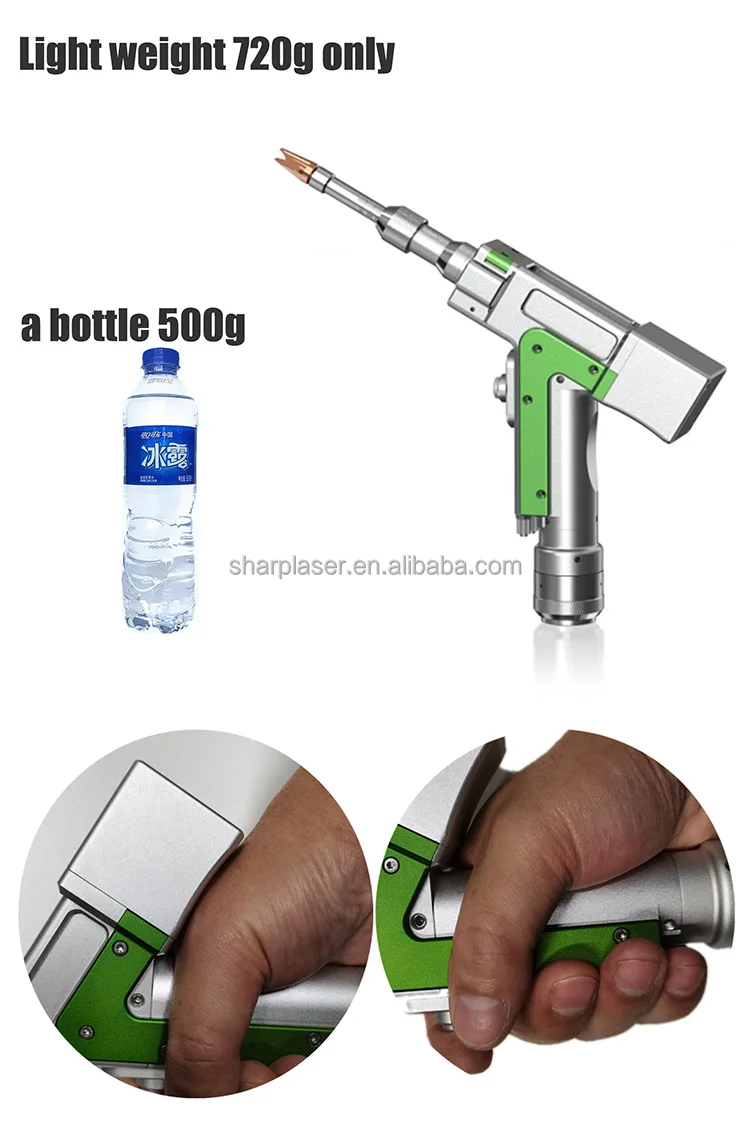

laser head weight	720g
Fiber laser cable length	10M
operate mode	continuous/ pulse
Gas assist	Nitrogen/argon 0.2Mpa
Welding width	0.2-5mm
laser beam diameter	0.02mm
Laser frequency	1-30000HZ
cooling chiller	Industrial water chiller
environment temperature	15~35 ℃
Humidity of environment	< 70%No condensation
Welding thickness	0.1-8mm
working voltage	1000w 5kw 50/60Hz 20A 220v 1500w 6kw 50/60Hz 15/30A 380v/220v 2000w 8kw 50/60Hz 15A 380v
Machine size	975*615*1150mm
machine weight	140-170kg
working model	laser Cleaning
cleaning width	80/150mm
focus	400 / 600 mm
cleaning frequency	10000 / 20000Hz
assistant gas	dry air 0.1Mpa
voltage and power	1000w-5kw 50/60Hz 20A 220v 1500w-6kw 50/60Hz 15/30A 380v/220v 2000w-7kw 50/60Hz 15A 380v

Sample display
It can weld a variety of metal plates and pipes. Mainly suitable for welding stainless steel, gold, silver, copper, galvanized sheet, aluminum sheet, various alloy sheets, rare metals and other materials

Advantage introduction
1. High H-D-W ratio, small welding width, small heat-affected zone, small deformation and fast welding speed;
2. The welding seam is smooth and beautiful, no need to deal with after welding or only simple processing procedure;
3. Fiber laser has high electro-optical conversion efficiency and low energy consumption;
4. The optical device has a long service life and maintenance free;
5. Small dimension and highly integrated.
