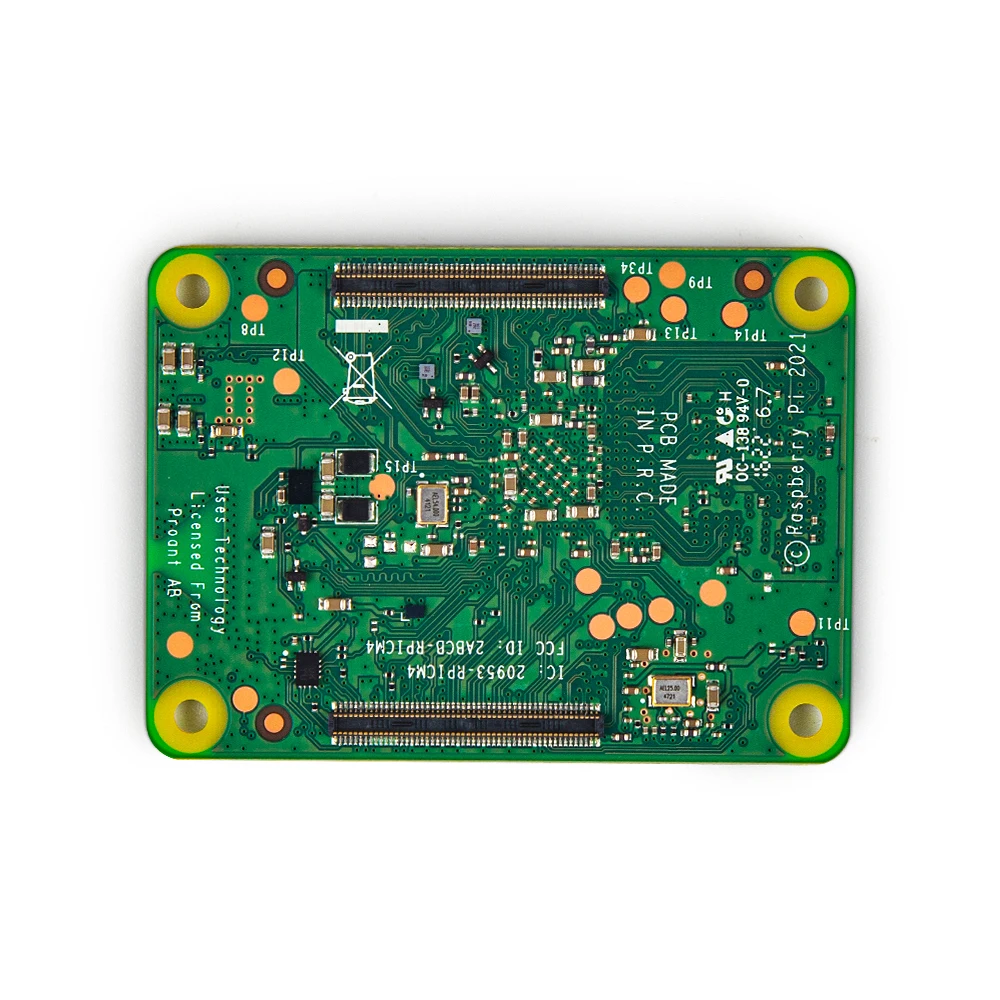

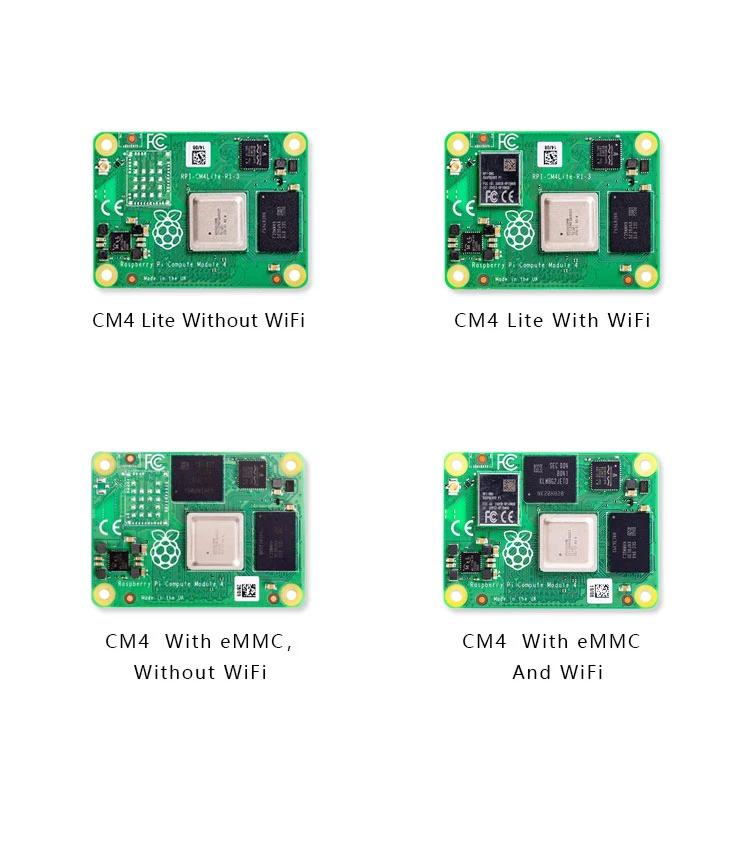

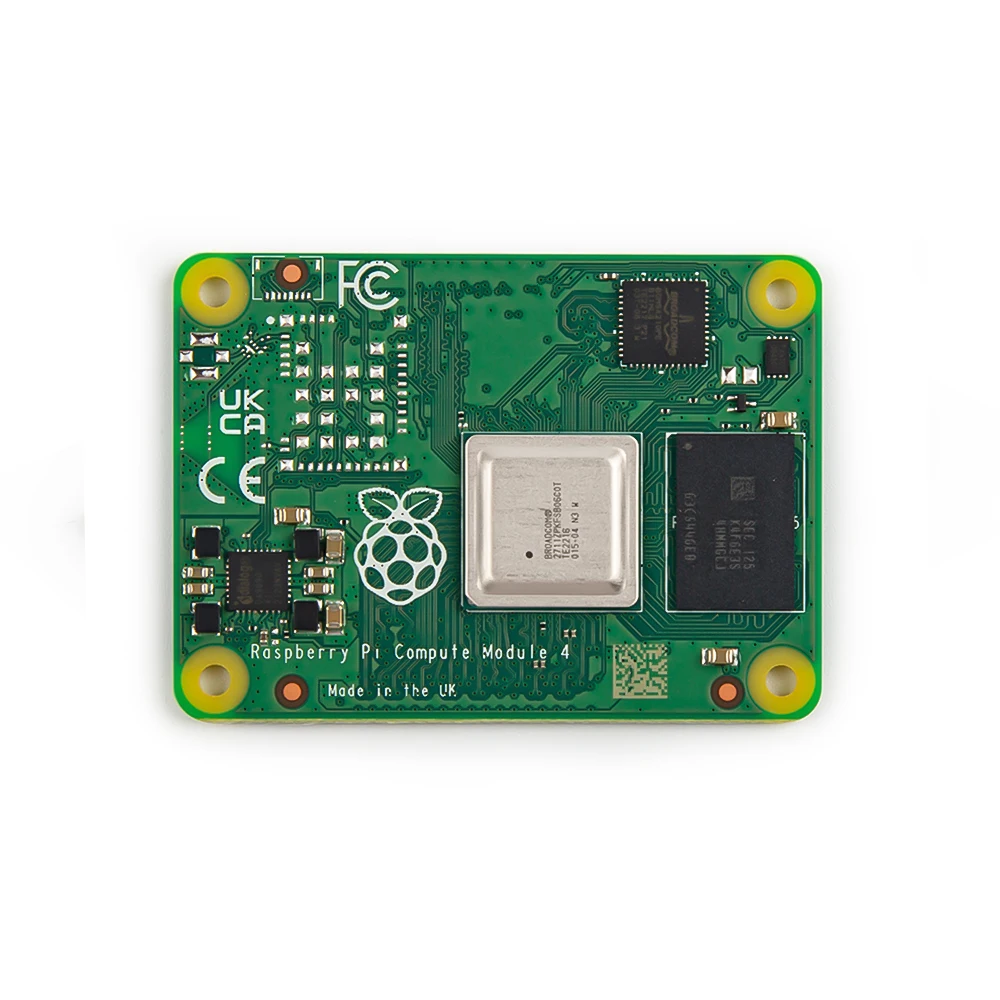

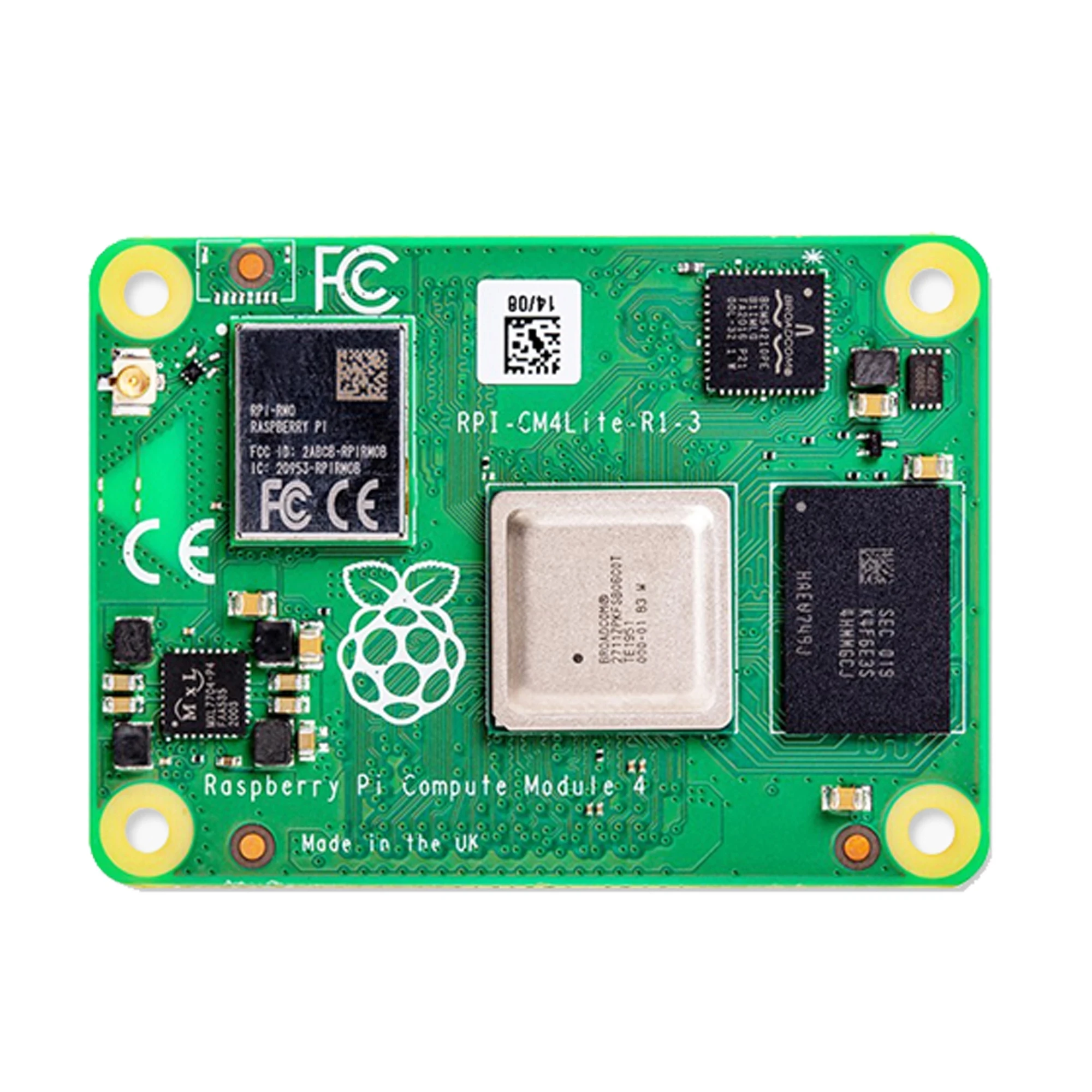

Печатная плата textolite up2stream SMT pcb PCBA Заводская сборка приемника для дрона контроллер беговой дорожки PCB player raspberry
- Категория: PCB & PCBA >>>
- Поставщик: King,Field,Electronic,Co.,Ltd.(Shenzhen)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.87 $* | 0.30 $* |
| Aug-18-2025 | 0.35 $* | 0.28 $* |
| Jul-18-2025 | 0.52 $* | 0.92 $* |
| Jun-18-2025 | 0.98 $* | 0.33 $* |
| May-18-2025 | 0.86 $* | 0.86 $* |
| Apr-18-2025 | 0.38 $* | 0.72 $* |
| Mar-18-2025 | 0.25 $* | 0.57 $* |
| Feb-18-2025 | 0.90 $* | 0.79 $* |
| Jan-18-2025 | 0.29 $* | 0.27 $* |
Характеристики
Video Description
Company introduction
King Field has the capability to manufacture pcb ranging from basic single sided boards up to forty layers, and provide one stop turnkey services, including pcb manufacture, assembly, components sourcing and function testing.With one-stop solution, high-end product structure, professional product development and manufacturing technology, stable quality performance and well management system,
King Field has established long-term and stable cooperate relations with the world's leading communication equipment , aerospace electronics and medical equipment manufacturers.
Details Images
SMT Manufacturing Capability
SMT Manufacturing Capability | ||||||
Item | Manufacturing Capability in process | Manufacturing Method | ||||
Production size(Min/Max) | 50×50mm / 500×500mm | |||||
Production board thickness | 0.2 ～ 4mm | |||||
Printing solder paste | Support method | Magnetism fixture, vacuo platform | ||||
Sticking up by vacuo, clamping on both sides ,flexible clamping with sheet, flexible clamping with thick board | ||||||
Cleaning Method of printing solder paste | Dry method+ wetting method+ Vacuo method | |||||
Accuracy of printing | ±0.025mm | |||||
SPI | Repeated accuracy of volume | <1% at 3σ | ||||
Mounting component | Components size | 0603(Option) L75mm Connector | ||||
Pitch | 0.15mm | |||||
Repeated accuracy | ±0.01mm | |||||
AOI | FOV size | 61×45mm | ||||
Test speed | 9150mm²/Sec | |||||
3D X-ray | Shootingangle | 0-45 | ||||
