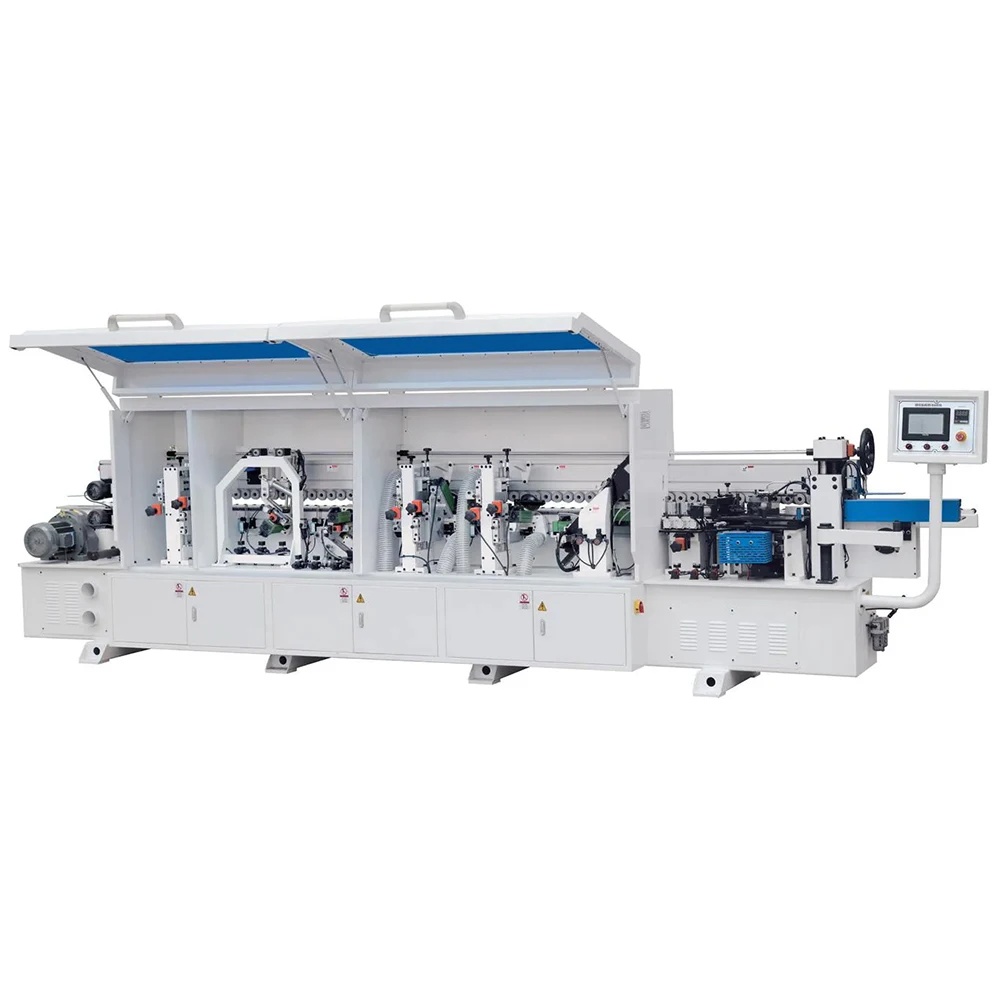

High efficiency fully automatic edge banding machine  for PVC

1.special and advanced PUR gluing device with high quality and better gluing performance.

2.With functions Gluing ,End cutting ,Rough trimming Fine trimming ,Scraping ,Buffing .

3.With touch screen control panel ,making it more convenient and direct while running.

4.Any errors will displayed on the screen ,make it easier to repair .

5.The fine trimming unit with high speed motor, ensure the high quality trimming performance.

6.High Quality electrical components, make sure the stable performance.

1.The full automatic edge banding machine can polish the edge banding board , so that the color and smoothness of the edge banding board can be better

2.The full automatic edge banding machine can also scrape the ripple marks generated in the process of curve edge banding to ensure the smoothness of plate edge banding and surrounding parts .

3.The full automatic edge banding machine can apply glue on both side of the processed workpiece and edge banding strip through special setting and structure ,so as to make the adhesion between edge banding strip and plate more firm

Model	Edge banding machine
Feeding Speed	18-22m/min
Edge Thickness	0.4-3mm
Panel Thickness	10-60mm
Panel length	≥120mm
Panel Width	≥60mm
Work Pressure	0.6Mps
Min Panel Size	300(L)x60(W)mm 150(L)x150(W)mm
Motor Power	11kw
Machine size	4500x900x1560mm

Select edge banding machines with different length functions according to different production requirements. Support customizationOEM&ODM.

Gluepot

requires only 15 minutes to reach operating temperature. The tool free quick change system guarantees quick cleaning and change over times when changing the glue or colour. The synchronised, fine adjustable glue roller ensures the right application amount of glue.

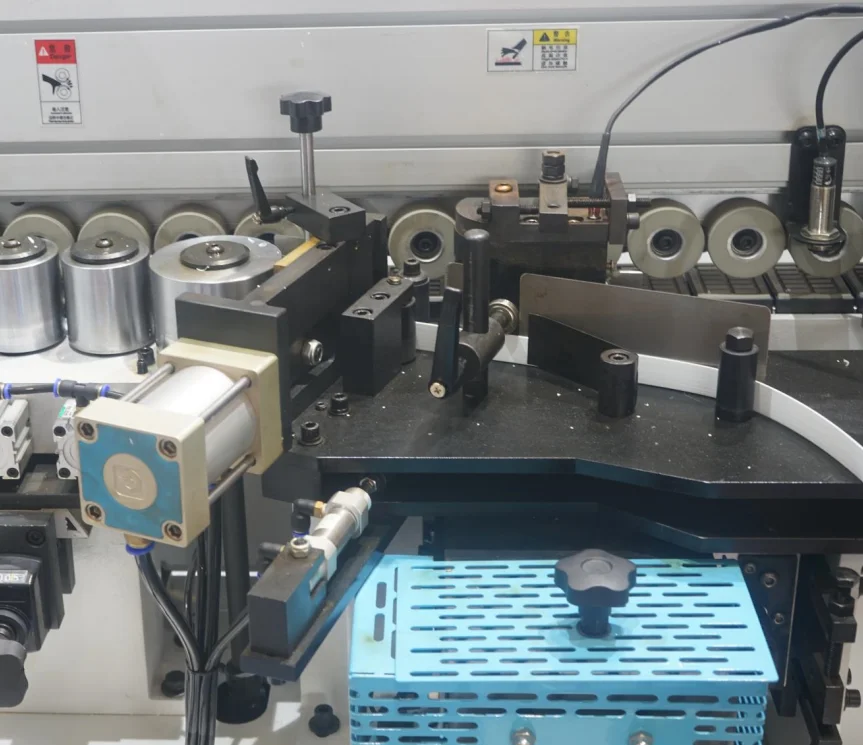

End cut

Through the precise linear guide rail movement, the automatic tracking by the die and high frequency high-speed motor cutting structure are adopted to ensure smooth and smooth cutting surface.

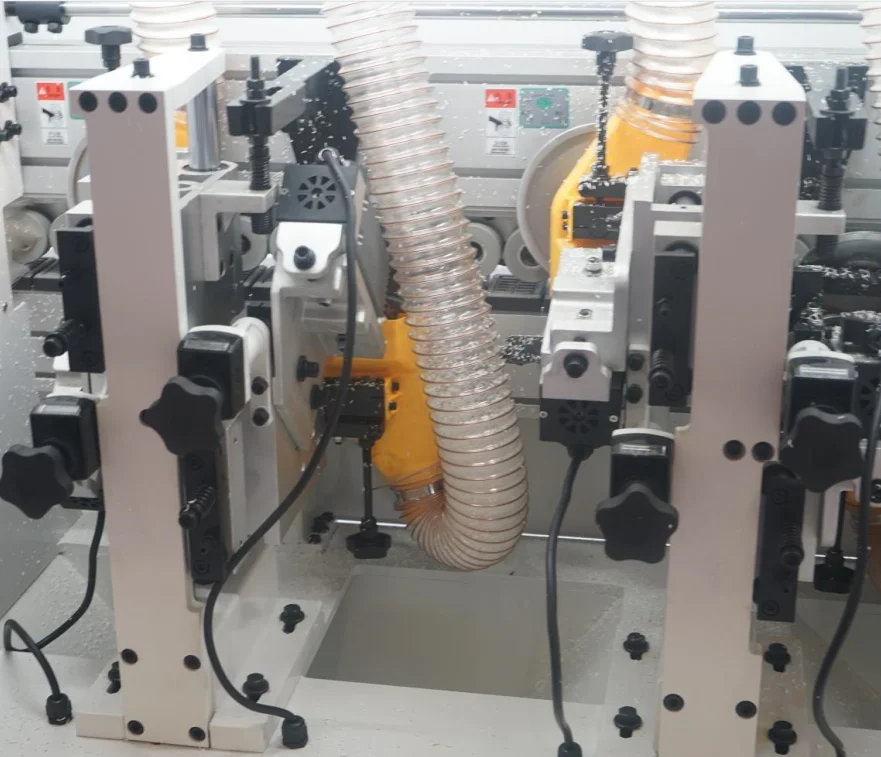

Fine trimming system

2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters. The manual 2-axis position control of both height and depth ensures 100% repeatability. Edge belt thickness change by manual.

Delta touch screen

The machine is with 6 functions as follows gluing ,end trimming ,rough trimming fine trimming scraping,buffing .And since it isphysical scraping ,therefore there are five functions on the screen , so scraping function is not shown on the screen.

Q:Can I vlslt your company?

A:You can come here whenever you want, we'l introduce our factory and product to you, if we've alreadyfrequently cooperated for a long time, we'll take care of your airfare and accommodation.

Q:How long ls your dellvery tlme?
A:Generally, it takes 2-7 days for sample order, maximum 40 days for bulk orderSpecific production time
according to the quantity you required.
Q:Can you send the goods to my warehouse In China?

A:Yes, we can deliver the goods to wherever you want, but we are only bear the freight cost that shows inthe contract that we should responsible for.
Q:What ls your term of payment?
A: T/T, L/C,PayPal, Western Union, Alibaba and other payment terms which is convenient for you
Q:Wlll you reply me in tlme even in your holldays?

A:Yes, we are online 24 hours in a day, 7 days in a week and 365 days in a year. Whenever you have enquiry
or questions,please don't hesitate to contact us.
Q:Can I be your dlstrlbutor in our country?
A:Yes, we welcome you to be our distributor, and we have favorable terms for the you. Please contact us to
talk about details.
