Product Description

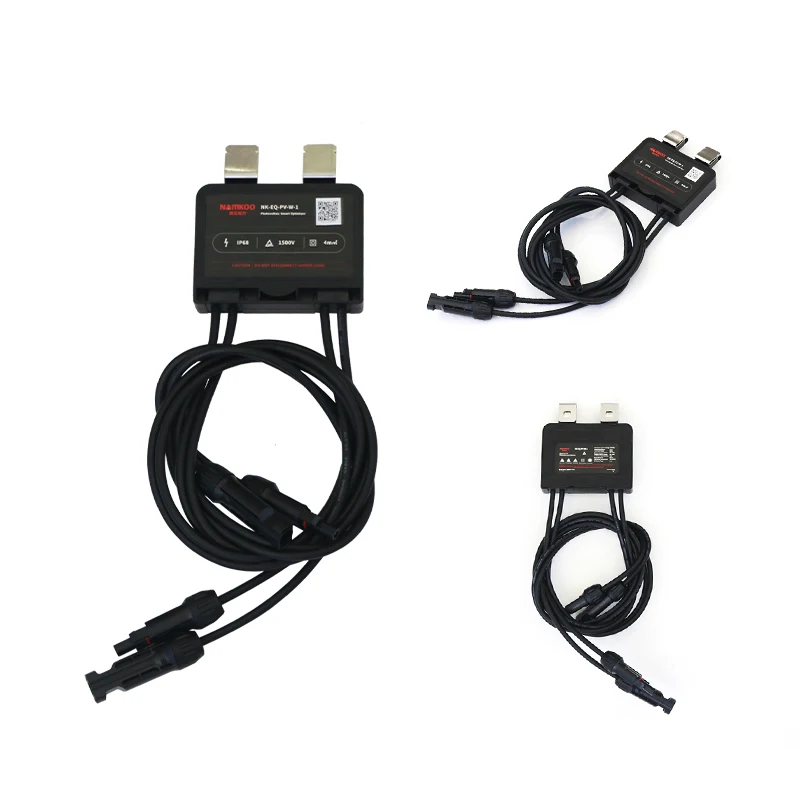

PV Module Optimizer:
PV module optimizer is advanced plug-in PV module optimizer on solutions, suitable for upgrading old PV system and increase new PV system power output . The product has three major functions: monitoring, safety shutdown and power optimization. It can improve the power generation and yield rate by upgrading the PV system with poor performance or adding intelligent functions to the new PV system .
The PV Optimizer are compatible with all the modules below 600W and can be selected according to the PV system mismatch ratio.
The PV Optimizer are compatible with all the modules below 600W and can be selected according to the PV system mismatch ratio.
Optimizer
Easy Installation:
Snap to standard module frame or remove snap for rack mounting fix by screws
Not need to debug:
Can be installed directly without software debugging
Why Do We Need Optimizer?
Increase PV energy
Electrical safety-shutdown
Remote monitoring
①Solar panels are installed on several sides of the roof and at different angles.Electrical safety-shutdown
Remote monitoring
②Panels are partially or fully shaded at certain times.
③Leaves, twigs or dust may get on the roof.

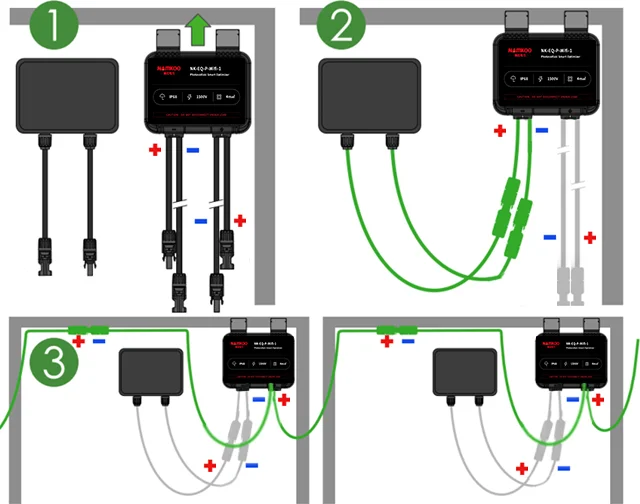

Optimizer Installation:
Input of the efficiency and safety booster:
+positive terminal connected to the +positive terminal of the PV module
-negative terminal connected to the -negative terminal of the PV module.
Output of the efficiency and safety booster:
in series with the output of the efficiency and safety booster installed on the other modules.
+positive terminal connected to the +positive terminal of the PV module
-negative terminal connected to the -negative terminal of the PV module.
Output of the efficiency and safety booster:
in series with the output of the efficiency and safety booster installed on the other modules.
Testing Cases-Mitigates Hot Spot Effect Effectively
No Optimizer:
Shading Part 54℃, no shading part 45.3℃, gap is 8.7℃
After Adding Optimizer:
Shading Part 47.1℃, no shading part 45.4℃, gap is 1.7℃
Conclusion: Optimizer has impact on the shading situation-it narrows the panel temperature gap then mitigates hot spot.
How Does Optimizer Work?
Optimizer adjusts output voltage ↓ (from 28V to 21.3V) & current ↑ (from 6A to 8A) of the blocked module to maximize its power output.
Specification
model | NK-EQ-P-NC-1 | |
Input parameters | Maximum input power | 600 W |
Operating voltage range | 10~ 70 V | |
MPPT voltage range | 10~ 70 V | |
Maximum input current | 15 A | Scalable | |
Over current protection | 18 A | |
Over temperature protection | 160 °C | |
Output parameters | Maximum output current | 17 A |
Theoretical maximum output voltage | 65 V | |
Output voltage limit | 42 V Adjustable On Demand | |
System voltage | 1500 V | |
Max Module quantity in SERIES@1500V | 36pcs | |
Max Module quantity in SERIES@1100V | 26pcs | |
Max Module quantity in SERIES@1000V | 24pcs | |
Installation specifications | Size | 105*105*20 mm |
Weight | 500 g | |
Cable | 4.0 mm2 Input 50 cm*2 |

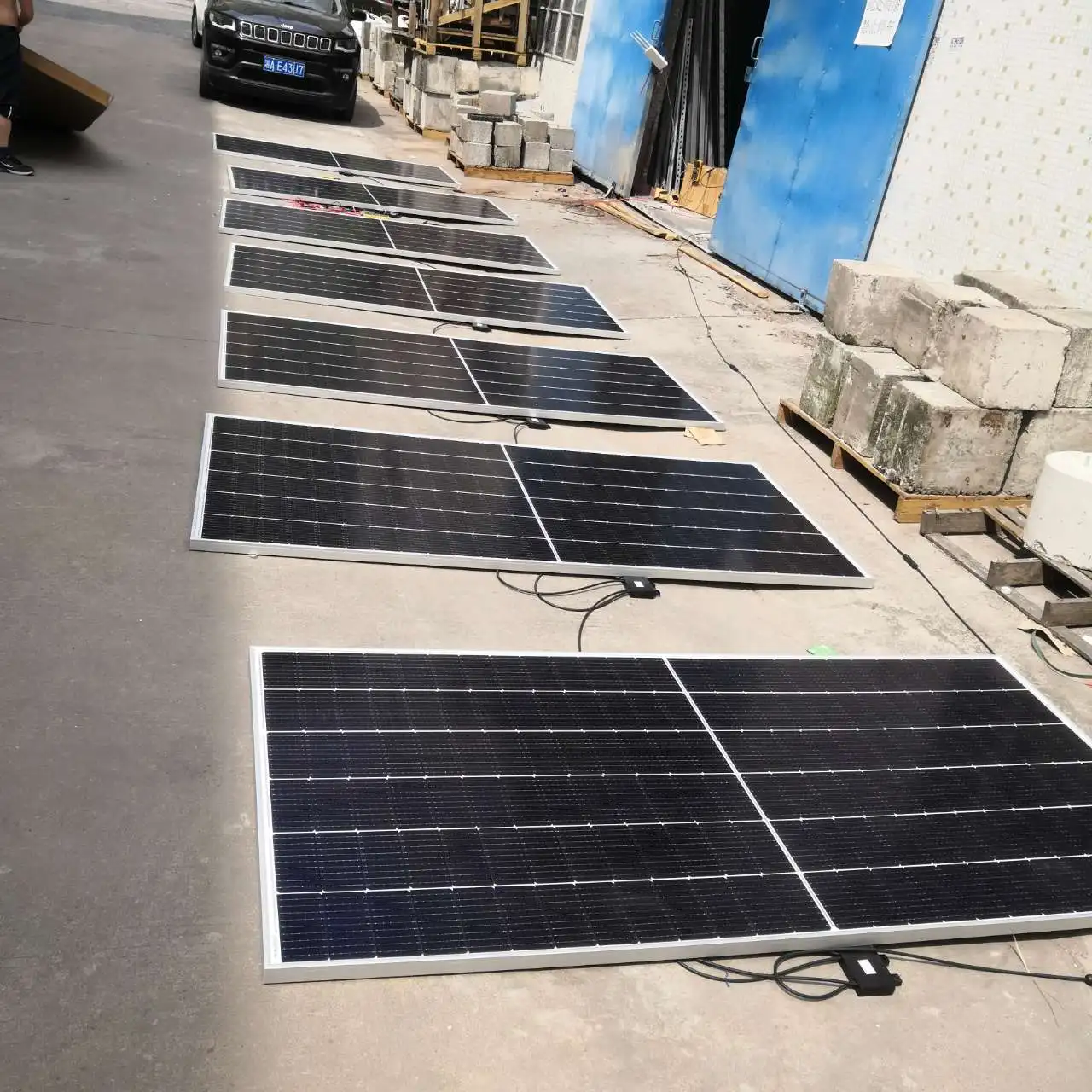

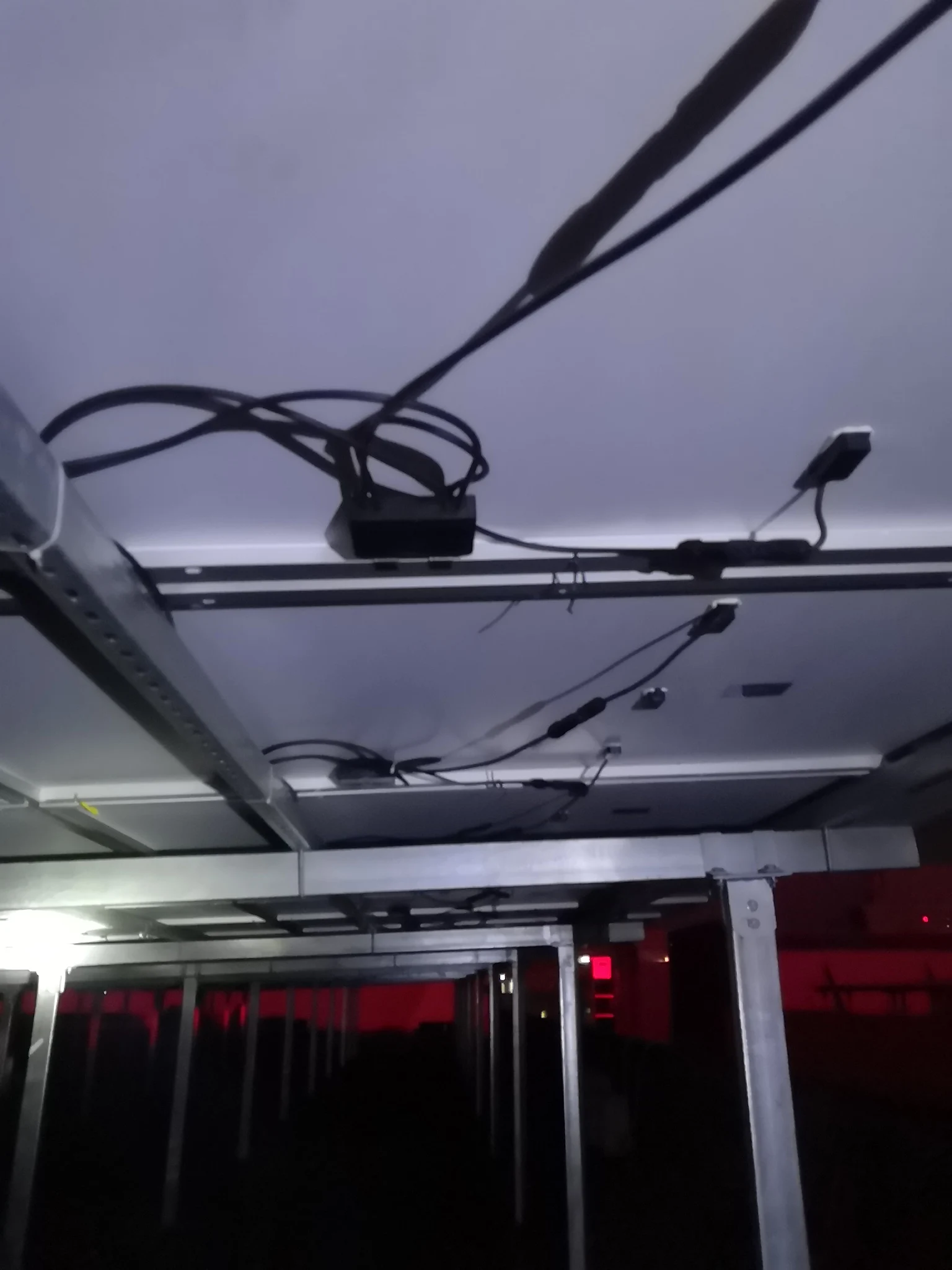

On-site Testing
