Products Description
Dc-5100 ultrasonic thickness gauge ut thickness gauge digital pipe thickness gauge price
Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness
of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
of any material in which ultrasonic wave can be transmitted and reflected back from the other face.
The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree during using. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
\t\t\t Display: \t\t\t | \t\t\t 128*64 LCD with LED backlight \t\t\t |
\t\t\t Measuring Range: \t\t\t | \t\t\t (0.75~600)mm(Steel) \t\t\t |
\t\t\t Velocity Range: \t\t\t | \t\t\t (1000~9999) m/s \t\t\t |
\t\t\t Resolution: \t\t\t | \t\t\t 0.01mm \t\t\t |
\t\t\t Measuring accuracy: \t\t\t | \t\t\t ±(0.5%H+0.04mm);H is thickness value \t\t\t |
\t\t\t Measurement cycle: \t\t\t | \t\t\t Single point measurement 6 times/per \t\t\t |
\t\t\t Storage: \t\t\t | \t\t\t 40 values of saved data \t\t\t |
\t\t\t Power Source: \t\t\t | \t\t\t 2pcs 1.5V AA size \t\t\t |
\t\t\t Working Time: \t\t\t | \t\t\t more than 50 hours (LED backlight off) \t\t\t |
\t\t\t Outline Dimensions: \t\t\t | \t\t\t 145mm*74mm*32 mm \t\t\t |
\t\t\t Weight: \t\t\t | \t\t\t 245g \t\t\t |
\t\t\t \t\t\t No. \t\t\t \t\t\t | \t\t\t \t\t\t Name \t\t\t \t\t\t | \t\t\t \t\t\t QTY \t\t\t \t\t\t |
\t\t\t \t\t\t 1 \t\t\t \t\t\t | \t\t\t \t\t\t Main Body \t\t\t \t\t\t | \t\t\t \t\t\t 1 set \t\t\t \t\t\t |
\t\t\t \t\t\t 2 \t\t\t \t\t\t | \t\t\t \t\t\t Standard Probe（5MHz,D10mm） \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |
\t\t\t \t\t\t 3 \t\t\t \t\t\t | \t\t\t \t\t\t Couplant \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |

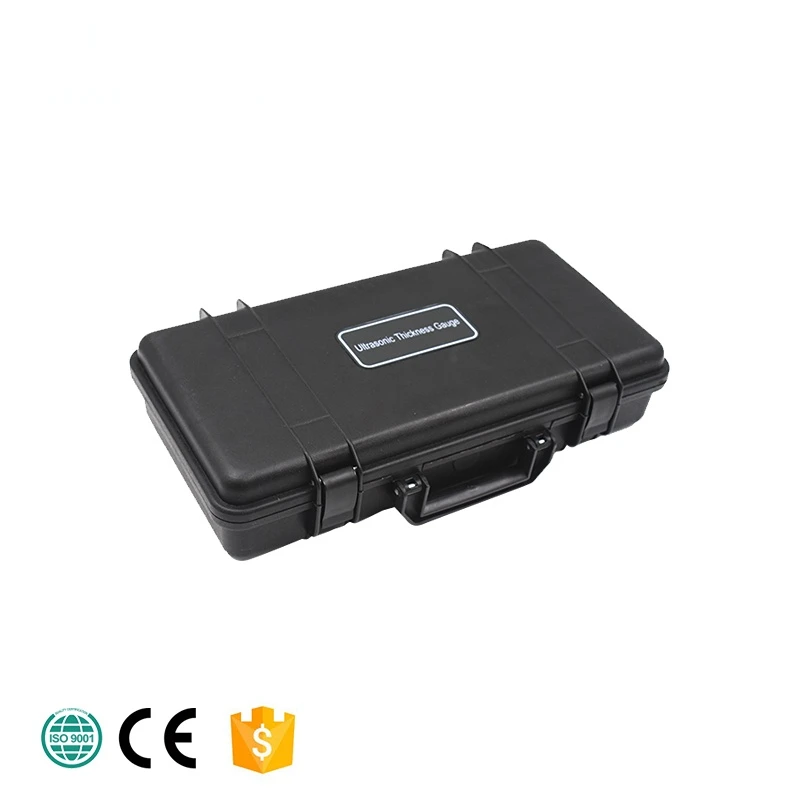

\t\t\t \t\t\t 4 \t\t\t \t\t\t | \t\t\t \t\t\t ABS Case \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |
\t\t\t \t\t\t 5 \t\t\t \t\t\t | \t\t\t \t\t\t Product Certificate \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |
\t\t\t \t\t\t 6 \t\t\t \t\t\t | \t\t\t \t\t\t Warranty Card \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |
\t\t\t \t\t\t 7 \t\t\t \t\t\t | \t\t\t \t\t\t Manual \t\t\t \t\t\t | \t\t\t \t\t\t 1 pc \t\t\t \t\t\t |
\t\t\t \t\t\t 8 \t\t\t \t\t\t | \t\t\t \t\t\t 1.5V AA size battery \t\t\t \t\t\t | \t\t\t \t\t\t 2 pcs \t\t\t \t\t\t |
Certifications
Why Choose Us
Shipping
FAQ
1.Are you a trading company or a factory? we are a manufacturer, and have our own factory. The NDT tesing technologyis our core, and we have the professional R&D department.
2.What is the payment method? We can accept all kinds of payment terms, as our customers like
3.What products do you make? Our mainly products includes:ultrasonic flaw detector, ultrasonic thickness gauge, steel wire rope flaw detector, leeb hardness tester, coating thickness gauge,surface roughness tester and other non-destructive instruments
4. How about your delivery time? Generally speaking, it takes about 3-10 working days after we receive your confirmed order and payment. Specific delivery time depends on the number of your orders, please contact with us.
5.Are you checking all your goods before delivery? Yes, every component of the instruments must be checked strictly before they leave the factory.
6.How do you make our business a long, good relationship? We maintain good quality and competitive price to ensure our customers biggest interests.
2.What is the payment method? We can accept all kinds of payment terms, as our customers like
3.What products do you make? Our mainly products includes:ultrasonic flaw detector, ultrasonic thickness gauge, steel wire rope flaw detector, leeb hardness tester, coating thickness gauge,surface roughness tester and other non-destructive instruments
4. How about your delivery time? Generally speaking, it takes about 3-10 working days after we receive your confirmed order and payment. Specific delivery time depends on the number of your orders, please contact with us.
5.Are you checking all your goods before delivery? Yes, every component of the instruments must be checked strictly before they leave the factory.
6.How do you make our business a long, good relationship? We maintain good quality and competitive price to ensure our customers biggest interests.
