ELM327 VC310 V310 OBD2 OBDII EOBD CAN Автомобильный сканер считыватель кодов очиститель автомобильный диагностический инструмент

Описание и отзывы

Трекер стоимости

Характеристики

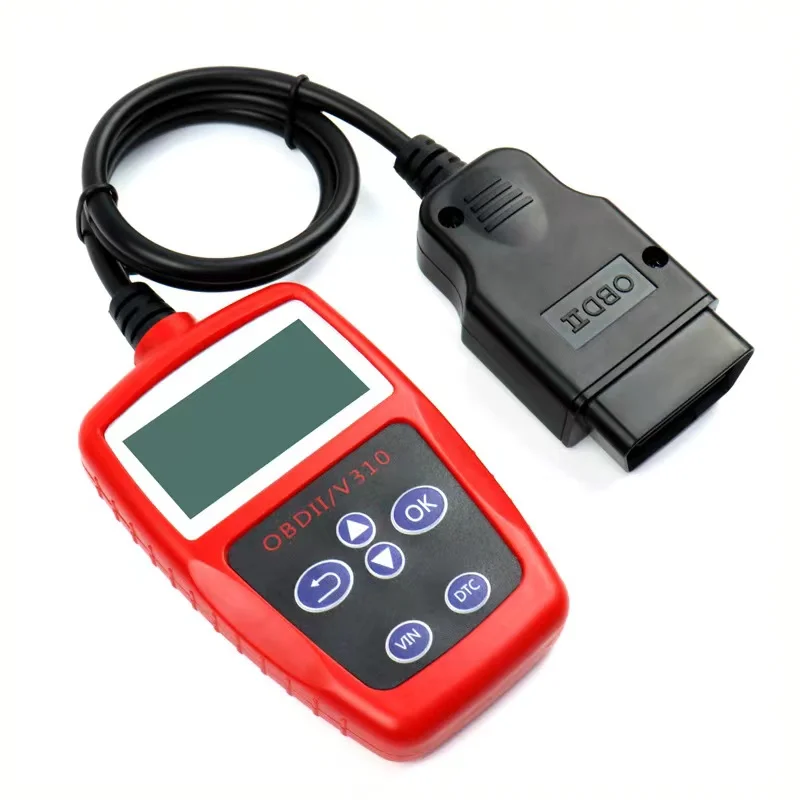

                         V310 Code Reader

The MaxiScan V310 CAN OBDII/EOBD code reader provides DIYers easy and quick access to diagnostic trouble codes and their
definitions on all OBDII compliant vehicles sold worldwide since 1996. Though small in size, it is powerful enough to retrieve the
same information as large expensive scanners. It is the best solution to diagnose all 1996 and newer OBDII compliant vehicles!


Features

· Works with all 1996 and later OBDII compliant US, European and Asian vehicles
· Display DTC definitions on unit screen
· Easily determines the cause of the “Check Engine Light (MIL)”
· Turns off Check Engine Light (MIL), clears codes and resets monitors
· Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
· Views freeze frame data
· Display monitor and I/M readiness status (emissions)
· Retrieves vehicle information (VIN, CIN and CVN)
· Supports CAN (Controller Area Network) and all other current OBD-II protocols
· Language: English, Spanish, French, German, Dutch
· Easy to use and highly reliable

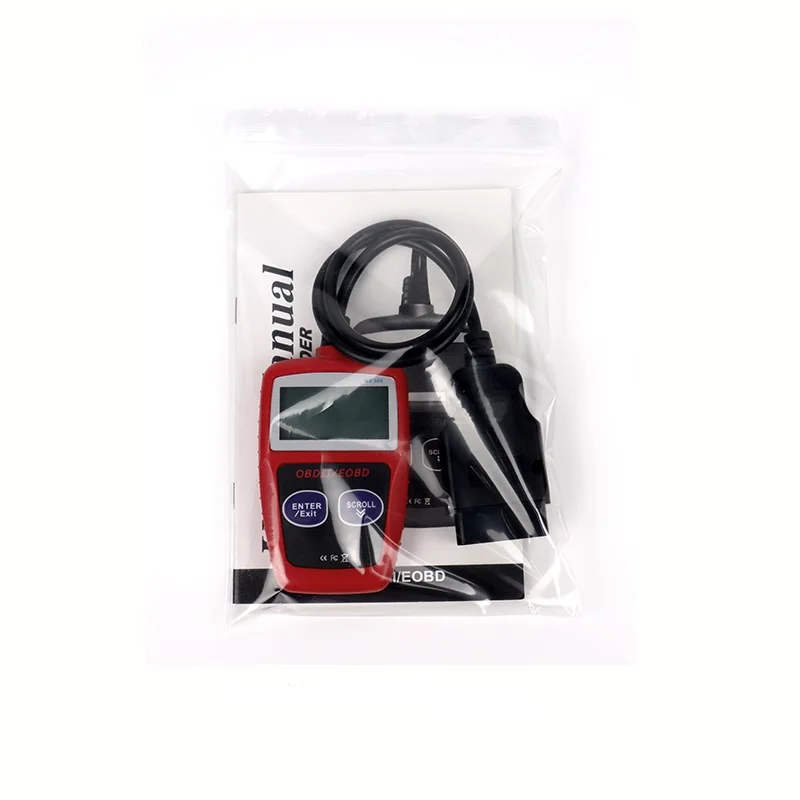

One Set Included

· 1 x310 Car Code Reader
· 1 x Manual

 1) OBD-II standard is supported by the vehicles:
U.S. since 1996
European since 2003 (diesel since 2004)
Japanese since 2005
Unfortunately, other cars are not complied with the OBD-II standard. But, you may see some hints that may help to

 identify your car.
2) Software included in CD for Smartphone(Android, Symbian), PC(Windows XP, Windows 7 and Windows 8).
OBD-II Software for ELM327 ble is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
3)The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.



Product Parameters

Operating Voltage:12V
Operating Temperature:40℃~65℃

Operating humidity:<60%
Operating current:45mA

Warranty:1 year

Chip:Single chip

Product Detail
The program lets you perform the following operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...

Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Compatible software:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, OBD Car Doctor, DashCommand, EOBD;
Symbian version: OBDScope.
ios version:Mini obdii

Support System: Windows XP, Windows 7/8, Android, Symbian.IOS
