TIANMA 5 5-дюймовый 54-контактный TFT ЖК-экран Женская поддержка разрешения 3 5x320 QVGA SPI RGB FPC
- Категория: Electronic Components, Accessories & Telecommunications >>>
- Поставщик: Hangzhou,Leehon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.50 $* | 11.33 $* |
| Aug-17-2025 | 9.40 $* | 9.76 $* |
| Jul-17-2025 | 8.65 $* | 8.83 $* |
| Jun-17-2025 | 9.74 $* | 9.37 $* |
| May-17-2025 | 8.94 $* | 8.86 $* |
| Apr-17-2025 | 9.31 $* | 9.41 $* |
| Mar-17-2025 | 9.60 $* | 9.18 $* |
| Feb-17-2025 | 9.97 $* | 9.20 $* |
| Jan-17-2025 | 9.96 $* | 9.82 $* |
Характеристики
Product Description
Specification

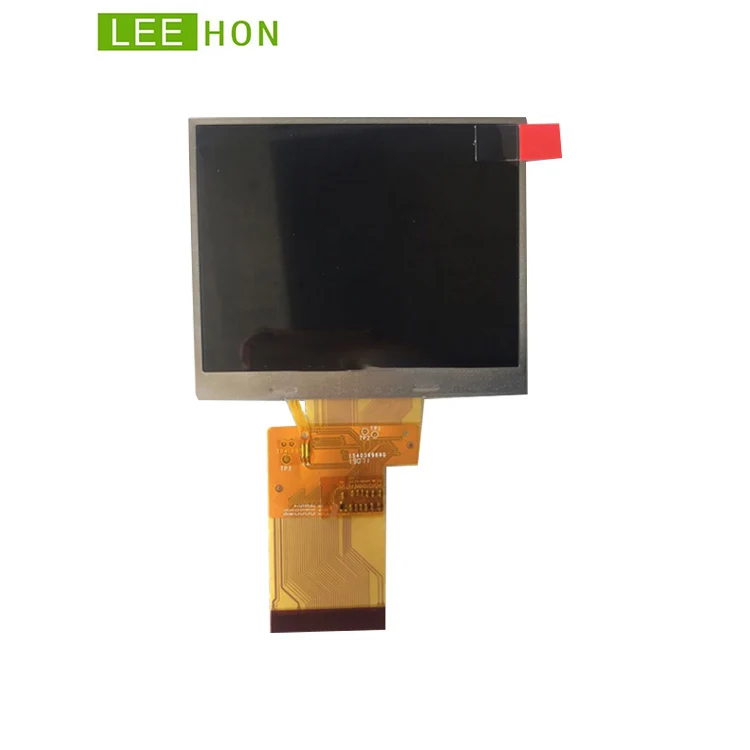

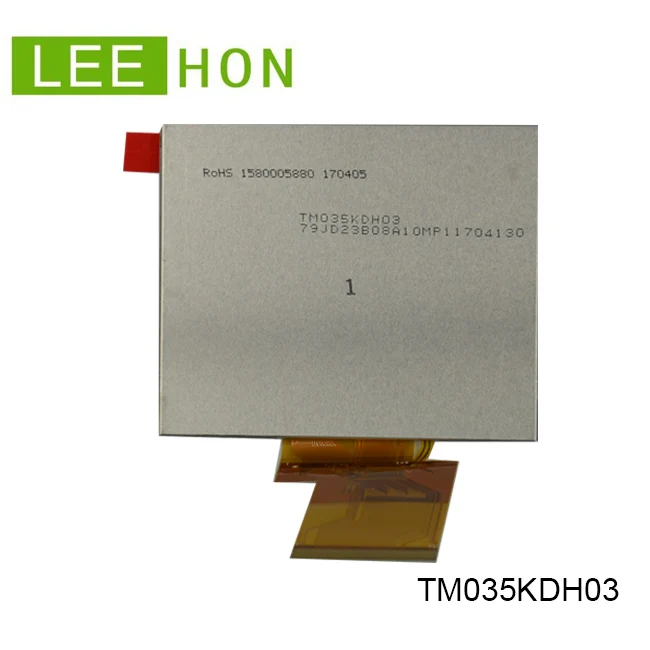

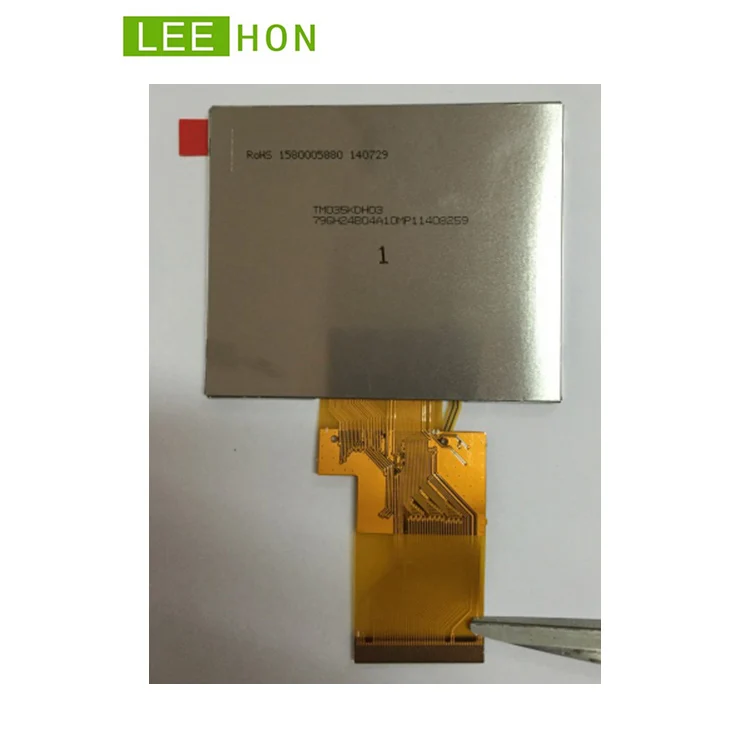

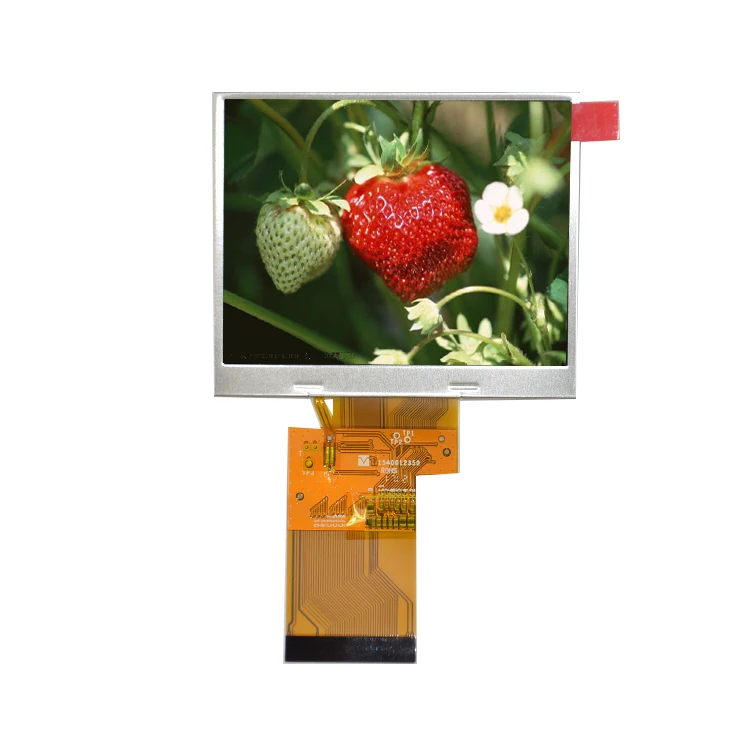

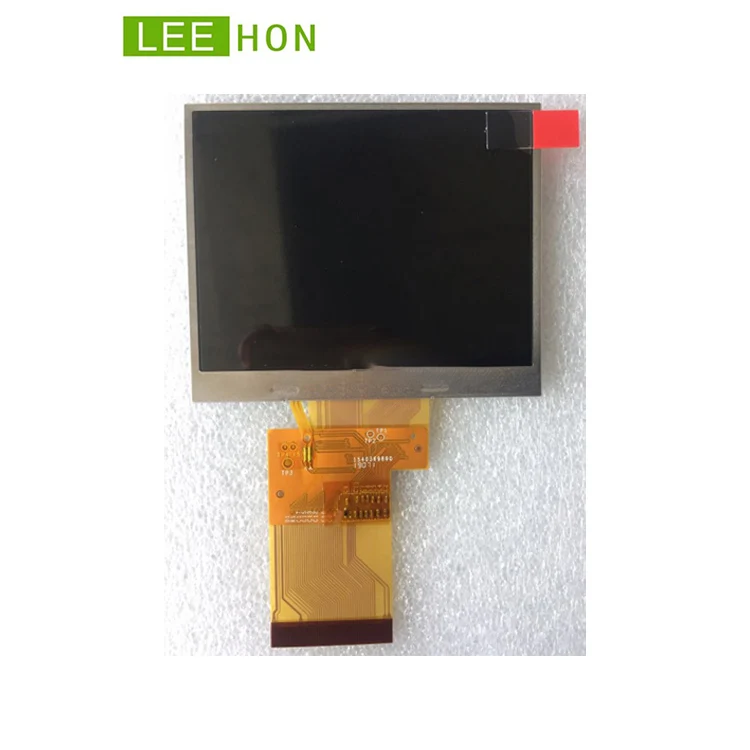

TIANMA 3.5 inch 54 Pin TFT LCD Screen TM035KDH03-79 Support 320x240 QVGA Resolution, SPI RGB FPC LCM
item | value |
Type | TFT |
Display Size | 3.5 inch |
Supplier Type | Agent |
Place of Origin | China |
Shanghai | |
Brand Name | Tianma |
Size | 3.5 inch |
Resolution | 320(RGB)x240 , QVGA |
Active Area | 70.08(H) x 52.56(V) mm |
Outline LCM | 76.9(W) x 63.9(H) x 3.15(D) mm |
Arrangement | R.G.B. Vertical Stripe |
Treatment | Clear Type. 3H |
Supply Voltage VDD | +3.3 V |
Support color | 16.7M , 50% NTSC |
Viewing Angle | 70/70/60/70 (Typ.) |
Brightness | 300 cd/m² |
Contrast Ratio | 500:1 |
Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins |
Light Source | WLED , 20k hours , without driver |
Temperature range | -20 ~ +70 (°C) |
Storage temp. | -30 ~ +80 (°C) |
Response time | 25ms |
Weight | 30g |
Display mode | TN , Normally white |
Width:Height | 4:3 |
Company Profile
Applications
We can supply total set of display solution :

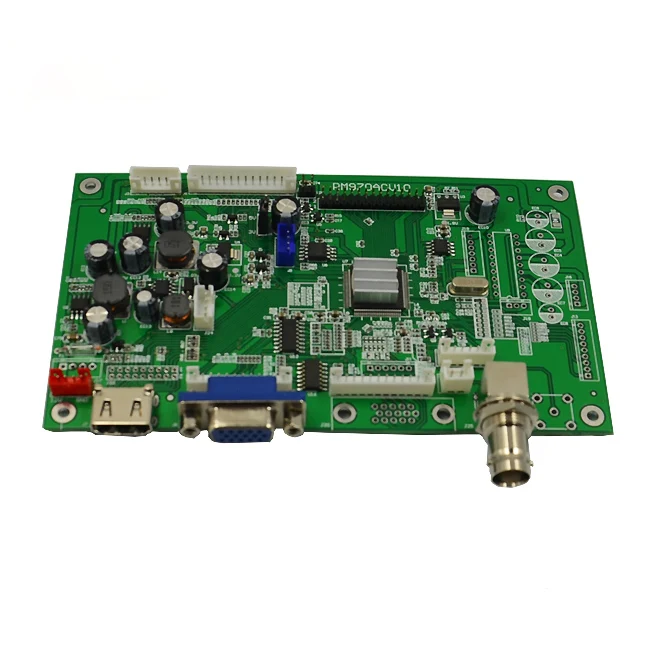

TFT LCD screen + touch screen + controller board + cables + open frame
Why Choose Us
Customer Reviews
Packing & Delivery
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),South America(5.00%),Northern Europe(5.00%),Mid East(4.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LCD Displays,Touch panels,LCD controller board,LCD panel,Touch screen
4. why should you buy from us not from other suppliers?
Hangzhou Leehon Technology Co., Ltd is a main distributor of AUO/ BOE/ Kyocera /Innolux TFT-LCD modules in China mainland, founded in 2009, the products vary from 2.2 to 43 inches, which include GD(Industrial grade), AV(car class), PID(General Application)
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2009,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),South America(5.00%),Northern Europe(5.00%),Mid East(4.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LCD Displays,Touch panels,LCD controller board,LCD panel,Touch screen
4. why should you buy from us not from other suppliers?
Hangzhou Leehon Technology Co., Ltd is a main distributor of AUO/ BOE/ Kyocera /Innolux TFT-LCD modules in China mainland, founded in 2009, the products vary from 2.2 to 43 inches, which include GD(Industrial grade), AV(car class), PID(General Application)
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
