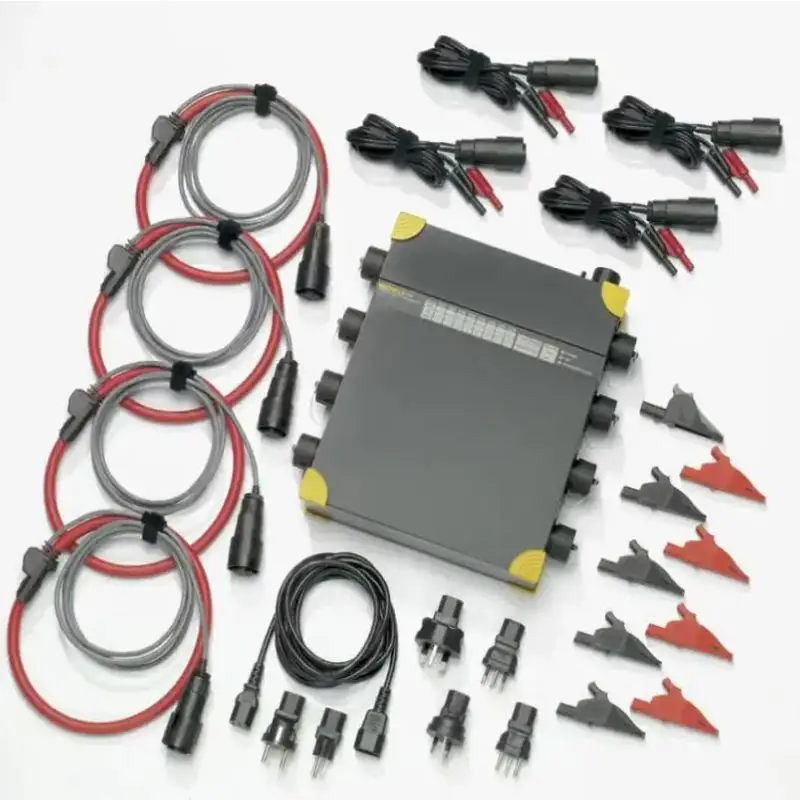

Трехфазный комплект рекордера качества мощности Fluke 1760
- Категория: Energy Meters >>>
- Поставщик: Shenzhen,Mepco,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 36321.59 $* | 37047.19 $* |
| Jul-19-2025 | 29457.81 $* | 30046.24 $* |
| Jun-19-2025 | 35749.97 $* | 36464.32 $* |
| May-19-2025 | 35463.23 $* | 36172.38 $* |
| Apr-19-2025 | 28313.0 $* | 28879.83 $* |
| Mar-19-2025 | 34891.88 $* | 35589.38 $* |
| Feb-19-2025 | 34605.85 $* | 35297.66 $* |
| Jan-19-2025 | 34319.56 $* | 35005.70 $* |
Характеристики
Product Description

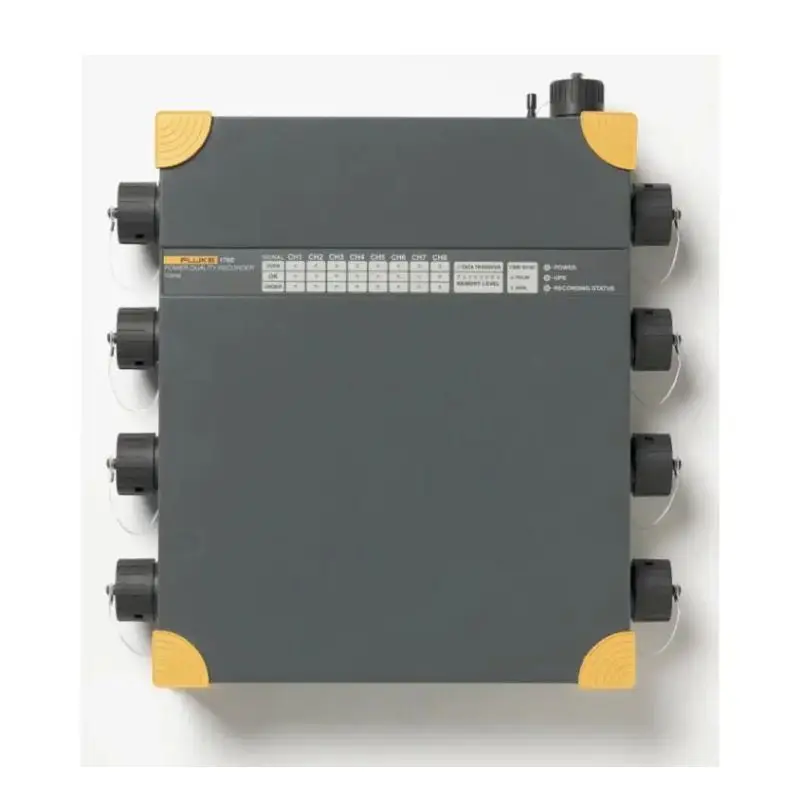

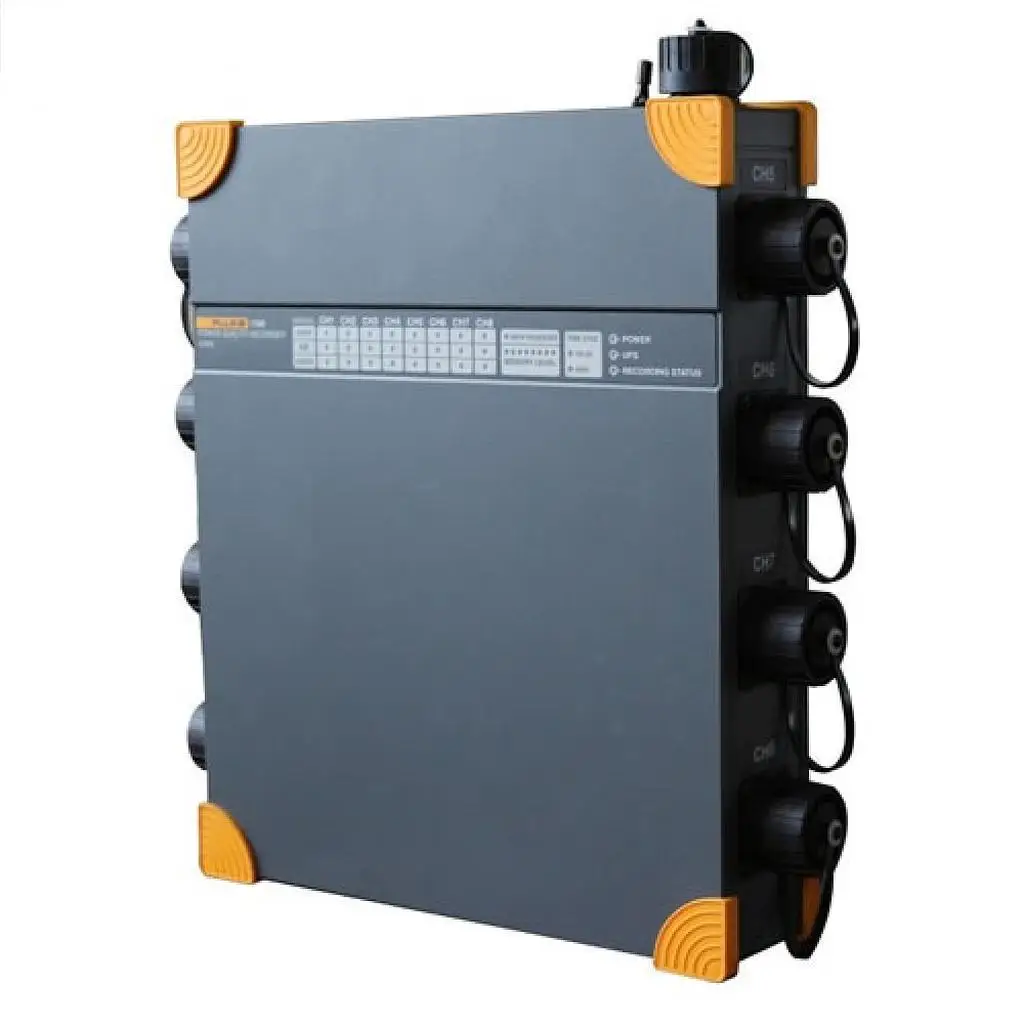

Fluke 1760US
Flexible and versatile, this three-phase power quality recorder captures the most comprehensive details on user-selected
parameters and provides the ability to customize thresholds, algorithms, and measurement selections.
Features
* Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
* GPS time synchronization: Correlate data with events or datasets from other instruments with precision
* Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances
* Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and
outages to help determine the cause
* 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
* Comprehensive software included: Provides trend diagrams for root cause analysis, statistical summaries, report writing and
real-time data monitoring in the online mode
* Plug and play: Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for
batteries
* Rugged field design: Insulated housing and a solid state design with no rotating components enable reliable testing undernearly any conditions
Applications
* Detailed disturbance analysis
* Class-A quality-of-service compliance
* Event correlation at multiple locations
* Galvanic separation and DC coupling
* Power quality and power load studies
Flexible and versatile, this three-phase power quality recorder captures the most comprehensive details on user-selected
parameters and provides the ability to customize thresholds, algorithms, and measurement selections.
Features
* Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
* GPS time synchronization: Correlate data with events or datasets from other instruments with precision
* Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances
* Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and
outages to help determine the cause
* 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
* Comprehensive software included: Provides trend diagrams for root cause analysis, statistical summaries, report writing and
real-time data monitoring in the online mode
* Plug and play: Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for
batteries
* Rugged field design: Insulated housing and a solid state design with no rotating components enable reliable testing undernearly any conditions
Applications
* Detailed disturbance analysis
* Class-A quality-of-service compliance
* Event correlation at multiple locations
* Galvanic separation and DC coupling
* Power quality and power load studies
Specification
Measurement Inputs | ||
Number of Inputs | 8 galvanically isolated inputs for voltage and current measurements | |
Sensor Category Rating | Up to 600 V CAT IV depending on sensor | |
Nominal Voltage (RMS) | 100 mV | |
Overload Capacity (RMS) | 1000 V, continuously | |
Power Supply | ||
Range | AC: 83 to 264 V; 45 to 65 Hz DC: 100 to 375 V | |
Power Consumption | NIMH, 7.2 V, 2.7 Ah | |
In case of a power supply failure an internal battery maintains the supply for up to 40 minutes. Afterwards, or in case of discharged battery the Fluke 1760 is turned off and continues the measurements with the latest settings as soon as the supply voltage returns. The battery can be replaced by the user. | ||
General Specifications | ||
Warranty | Two years | |
Data Memory | 2 GB flash memory | |
Interfaces | Ethernet (100 MB/s), RS 232, external modem via RS 232 | |
Dimensions | 2.8 x 11.8 x 2.6" (325 x 300 x 65 mm) | |
Weight | Approx. 10.8 lb (4.9 kg) | |
