Подшипник ступицы заднего колеса 3DACF026F-24HS-AM осевой подшипник и втулка в сборе 42410-52070 42450-52060 для TOYOTA VIOS NCP93 YARIS
- Категория: Universal Parts >>>
- Поставщик: Jinan,Yuebang,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 24.35 $* | 25.84 $* |
| Aug-15-2025 | 24.46 $* | 25.63 $* |
| Jul-15-2025 | 20.50 $* | 21.4 $* |
| Jun-15-2025 | 23.97 $* | 24.0 $* |
| May-15-2025 | 20.14 $* | 21.17 $* |
| Apr-15-2025 | 23.51 $* | 24.15 $* |
| Mar-15-2025 | 23.67 $* | 24.3 $* |
| Feb-15-2025 | 22.66 $* | 23.25 $* |
| Jan-15-2025 | 22.52 $* | 23.24 $* |
Характеристики
Rear Wheel Hub Bearing 3DACF026F-24HS-AM Axle Bearing and Hub Assembly 42410-52070 42450-52060 for TOYOTA VIOS NCP93 YARIS PRIUS
Wheel hub bearing is applied to automobile axle to load and provide accurate guide components for the rotation of the wheel hub, both bearing axial load and radial load. It has good performance to installing , omitted clearance, light weight, compact structure, large load capacity, for the sealed bearing prior to loading, ellipsis external wheel grease seal and from maintenance etc. And wheel bearing has been widely used in cars, in trucks also has a tendency to gradually expand the application.
Auto wheel bearing is the main purpose of bearing and to provide accurate guide to the rotation of the wheel hub, it is under axial load and radial load, is a very important component. It is developed on the basis of standarded angular contact ballbearings and tapered roller bearings.
Product Description
- Model Number: Koyo 3DACF026F-24HS SKF VKBA6828 Timken 512370 Toyota 42450-52060
- Application: DAIHATSU Charade 2011-2013, TOYOTA Prius C 2012-2014, TOYOTA Vitz 2005-2014, TOYOTA Yaris 2005-2014, rear wheel with ABS
- Interchange: FAG 713618990, Koyo 3DACF026F-24HS, SKF VKBA6828, SNR R169.76, Timken 512370, Timken HA590170, Toyota 42450-52060, Toyota 42450-0D050
- Brand: OEM brand For TOYOTA, NISSAN, HONDA Volkswagen, SUBARU,SUZUKI, FROD, MITSUBISHI…… SKF, FAG, KOYO, NSK, NTN, NACHI, TIMKEN, IKO, RHP, KBC,SNR……
- Material: Chrome steel, GCR15
- Service: Any brand or OEM Service
| Product name | Rear Wheel Hub Bearing 3DACF026F-24HS-AM Axle Bearing and Hub Assembly 42410-52070 42450-52060 for TOYOTA VIOS NCP93 YARIS PRIUS | Model | 3DACF026F-24HS-AM 42410-52070 42450-52060 |
| Brand | GMB SWA ILJIN WTRD SKF KOYO FAG | Size | Contact for details |
| Materials | chrome steel GCR15 | Weight | 4.8 kg |
| Warranty | 12 month or 50000km | Seal Type | open / rubber / ABS |
Other brand OE numbers
| TOYOTA | 42450-52060 42450-0D050 |
| TOYOTA | 89544-52040 |
| SKF | VKBA6828 |
| KOYO | 3DACF026F-24HS |
| TIMKEN | 512370 HA590170 |
| SNR | R169.76 |
| FAG | 713618990 |

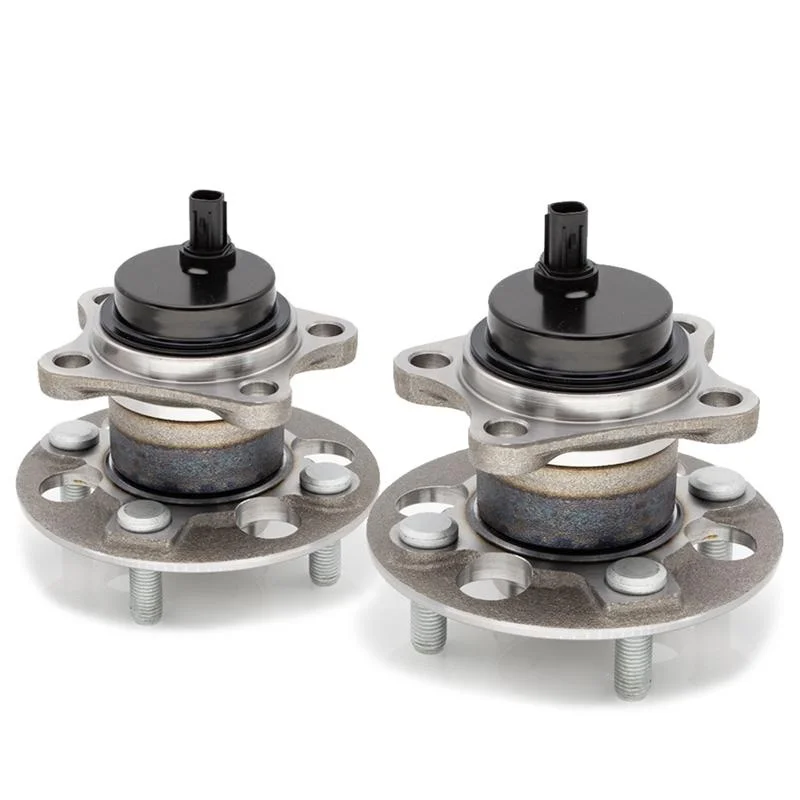

Bearings real photos
Part Fitment
Other related models
Click here to get our dac wheel bearings cataloge
Basic Installation Specifications | |||||||
wheel hub unit No. | A: Unit Width | Vehicle-side Installation Dimensions | Wheel-side Installation Dimensions | ||||
D: Installation Hole P.C.D. | E: Spigot Outer Diameter | G: No. of bolts | H: Hub Bolt P.C.D. | I: Spigot Outer Diameter | J: Flange Outer Diameter | ||
3DACF032D-1 | 59.4 | 92 | 63 | 4 | 100 | 61 | 136 |
3DACF035D-4 | 38.4 | 93 | 70 | 4 | 100 | 60 | 120 |
3DACF037D-14 | 60 | 95 | 74 | 5 | 100 | 55 | 135 |
3DACF037D-2 | 72 | 110 | 84 | 5 | 114.3 | 62 | 152 |
3DACF037D-4 | 60 | 95 | 74 | 4 | 100 | 55 | 135 |
3DACF037D-8 | 69 | 110 | 84 | 5 | 114.3 | 62 | 152 |
3DACF037D-9 | 66 | 95 | 74 | 5 | 100 | 55 | 135 |
3DACF038D-1 | 69 | 106 | 84 | 5 | 114.3 | 62 | 152 |
3DACF038D-15 | 47 | 109 | 84 | 5 | 100 | 55 | 125 |
3DACF038D-33 | 43.2 | 115.5 | 79.4 | 5 | 100 | 55 | 125 |
3DACF038DB-2 | 42 | 103 | 78 | 5 | 100 | 55 | 125 |
3DACF041D-3 | 47.5 | 114 | 90 | 5 | 114.3 | 62 | 139 |
3DACF041D-6 | 65 | 110 | 87 | 5 | 114.3 | 62 | 152 |
3DACF044D-10 | 47.5 | 114 | 90 | 5 | 114.3 | 62 | 139 |
3DACF044D-14 | 68.9 | 112.5 | 87.4 | 5 | 120 | 62 | 158 |
3DACF044D-16 | 67.5 | 109.8 | 84 | 5 | 114.3 | 62 | 154 |
3DACF044D-9 | 67.5 | 109.8 | 84 | 5 | 114.3 | 62 | 154 |
3DACF044DC | 67.5 | 112 | 84 | 5 | 114.3 | 62 | 154 |
3DACF022F-1 | 52.5 | 82 | 56 | 4 | 100 | 55 | 133 |
3DACF023F-2 | 55.5 | 92 | 67 | 4 | 100 | 55 | 135 |
3DACF026F-15 | 74.5 | 99 | 74 | 5 | 114.3 | 62 | 152 |
3DACF026F-16 | 74.5 | 99 | 74 | 5 | 114.3 | 62 | 152 |
3DACF026F-17 | 69 | 106 | 84 | 5 | 114.3 | 62 | 152 |
3DACF026F-20 | 54.5 | 93 | 74 | 4 | 100 | 55 | 135 |
3DACF026F-23 | 54.5 | 92 | 67 | 4 | 100 | 55 | 135 |
3DACF026F-23 | 54.5 | 92 | 67 | 4 | 100 | 55 | 135 |
3DACF026F-24 | 60 | 95 | 74 | 4 | 100 | 55 | 135 |
3DACF026F-37 | 60 | 95 | 74 | 5 | 100 | 55 | 135 |
3DACF026F-39 | 60 | 95 | 74 | 4 | 100 | 55 | 135 |
3DACF026F-47 | 60 | 95 | 74 | 5 | 100 | 55 | 135 |
3DACF026F-52 | 60 | 95 | 74 | 4 | 100 | 55 | 135 |
3DACF026F-6 | 55.5 | 92 | 67 | 4 | 100 | 55 | 125 |
3DACF026F-7 | 54.5 | 93 | 74 | 4 | 100 | 55 | 135 |
3DACF027F-10 | 54.5 | 93 | 74 | 5 | 100 | 55 | 135 |
3DACF027F-11 | 60 | 95 | 74 | 5 | 114.3 | 62 | 152 |
3DACF027F-12 | 60 | 97 | 76 | 5 | 114.3 | 62 | 152 |
3DACF027F-13 | 60 | 99 | 74 | 5 | 100 | 55 | 135 |
3DACF027F-14 | 65 | 112 | 74 | 5 | 114.3 | 62 | 150 |
3DACF027F-15 | 65 | 112 | 74 | 5 | 114.3 | 62 | 150 |
3DACF027F-19 | 64 | 95 | 74 | 5 | 114.3 | 62 | 152 |
3DACF027F-26 | 57 | 102 | 74 | 5 | 114.3 | 62 | 140 |
3DACF027F-28 | 60 | 97 | 76 | 5 | 100 | 55 | 135 |
3DACF027F-29 | 74.5 | 99 | 74 | 5 | 114.3 | 62 | 152 |
3DACF027F-30 | 67.5 | 99 | 74 | 5 | 114.3 | 62 | 152 |
3DACF027F-8 | 55 | 112 | 74 | 5 | 114.3 | 62 | 140 |
3DACF031F-1 | 42 | 110 | 78 | 5 | 120 | 62 | 158 |
3DACF033F-7 | 65 | 110 | 87 | 5 | 114.3 | 62 | 152 |
Our Bearing FEATURES
1.High speed Turn fast
2.High temperature resistance
3.No abnormal noise
4.High quality grease Anti-fracture, ABS anti-5.lock Tightly sealed, anti-corrosion
How to extend the bearings life ?
1). Don't allow strong impact, such as hammer striking, transfer roller pressure
2). Use the accurate installation tool, avoid to use cloth kind and short fibers
3). Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
4). General inspection, such as the surrounding temperature, vibrate, noise inspection
5). Keep bearing cleaning from dirt, dust, pollutant, moisture.
6). Bearing should not be ultra cooled.
Click here to get our dac wheel bearings cataloge
Company Information
Contact us
FAQ
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in
different brands, we also customize packaging box as per your requirements.
Q:Do you offer free samples?
A: Yes we offer free small samples to distributors and wholesalers, pls note,if your bearings are bigger,we will send you same
materials/same brands as for sample.however customers should bear freight.
We DO NOT offer free samples to end users.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance.
Q:How long is the lead time?
A: Normally lead time is about 3-7days,if it is customized order ,the lead time will be reconfirmed, about 10-15days.
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in
different brands, we also customize packaging box as per your requirements.
Q:Do you offer free samples?
A: Yes we offer free small samples to distributors and wholesalers, pls note,if your bearings are bigger,we will send you same
materials/same brands as for sample.however customers should bear freight.
We DO NOT offer free samples to end users.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance.
Q:How long is the lead time?
A: Normally lead time is about 3-7days,if it is customized order ,the lead time will be reconfirmed, about 10-15days.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
