Машина для прокатки листового металла
US $10000
Комбинированная двухслойная металлическая кровельная машина для производства строительных материалов стальная черепица кровельный лист
- Категория: Tile Making Machinery >>>
- Поставщик: Zhengzhou,Hokang,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7854.72 $* | 8247.8 $* |
| Aug-18-2025 | 7788.52 $* | 8177.29 $* |
| Jul-18-2025 | 6534.57 $* | 6861.8 $* |
| Jun-18-2025 | 7656.47 $* | 8039.5 $* |
| May-18-2025 | 6666.63 $* | 6999.58 $* |
| Apr-18-2025 | 7524.57 $* | 7900.33 $* |
| Mar-18-2025 | 7458.83 $* | 7831.64 $* |
| Feb-18-2025 | 7392.95 $* | 7762.63 $* |
| Jan-18-2025 | 7326.21 $* | 7692.36 $* |
Характеристики
Noted: There are two types of roll forming machines: standard type and customized type. If you need to customize, please send us the design drawing,feeding width, thickness and raw materials, so that we can customize according to your requirements, which is very important for us!!!
Products Overview

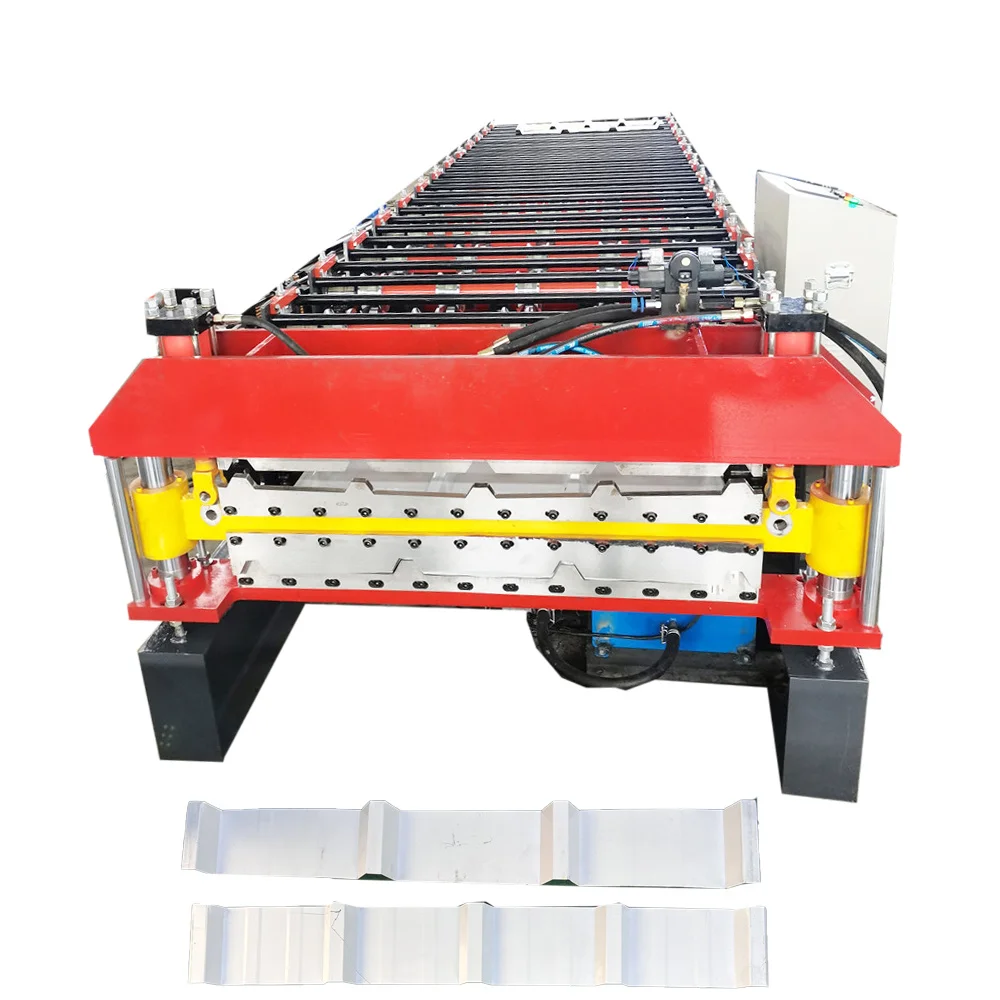

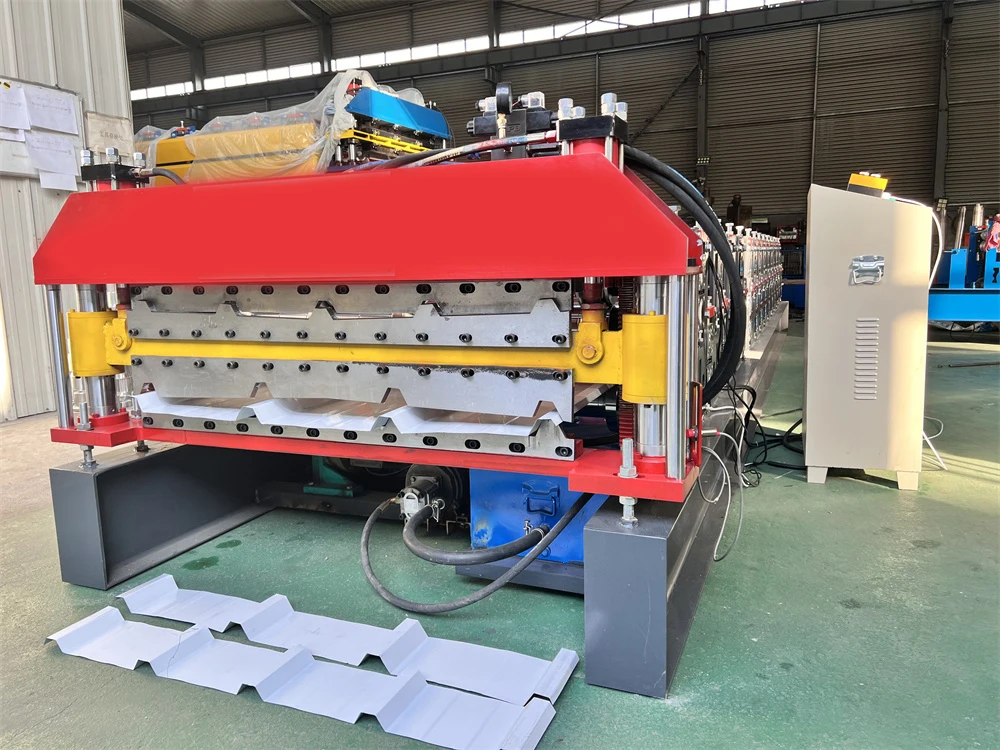

Double Layer Roll Forming Machine
Roll forming machine is a machine composed of feeding, forming and post-forming cutting. Its color plate appearance is smooth and beautiful, uniform paint pattern, high strength and durable. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, stadiums, exhibition halls, theaters and other rooms and walls.
Roof wall steel sheet roll forming machine steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied.
Roof wall steel sheet roll forming machine steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc., has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied.
Specification
Item | Description |
Applicable materials | Colored glazed steel |
Feeding width | 1000-1200mm |
Effective width | 800-1000mm |
Material thickness | 0.3-0.8mm |
Number of rollers | 13rows/9 roller |
Frame size | 350H section steel (national standard) |
Middle plate thickness | 16mm |
Roller material | 45 # steel |
Roller diameter | Roller diameter |
Drive servo motor | 5.5KW |
Oil pump power | 4KW(Large box + cooling air box) |
Tool material | Cr12 |
Voltage | 380v，50hz，3 phase |
Cutting accuracy | ±2 mm |
PLC panel | touch screen electric control cabinet |
Outside dimension | L*W*H=6500mm*1500mm*150mm |
Forming speed | Glazed tile 2m/min Common 10-15m/min |
Details Images
Cutting Blade Of Roll Forming Machine

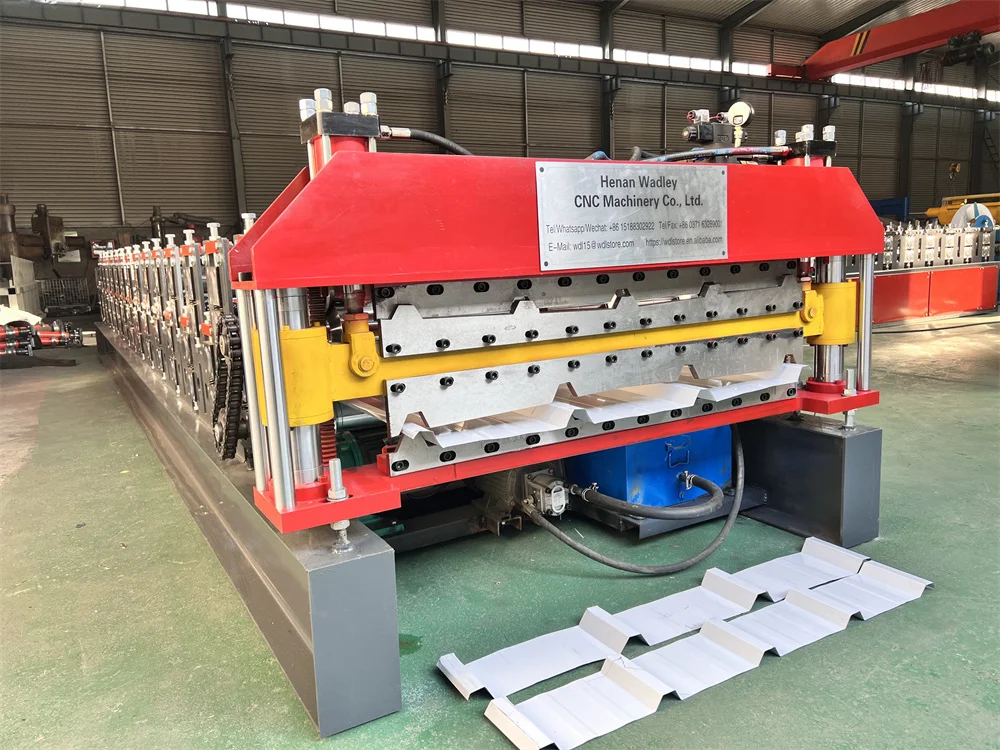

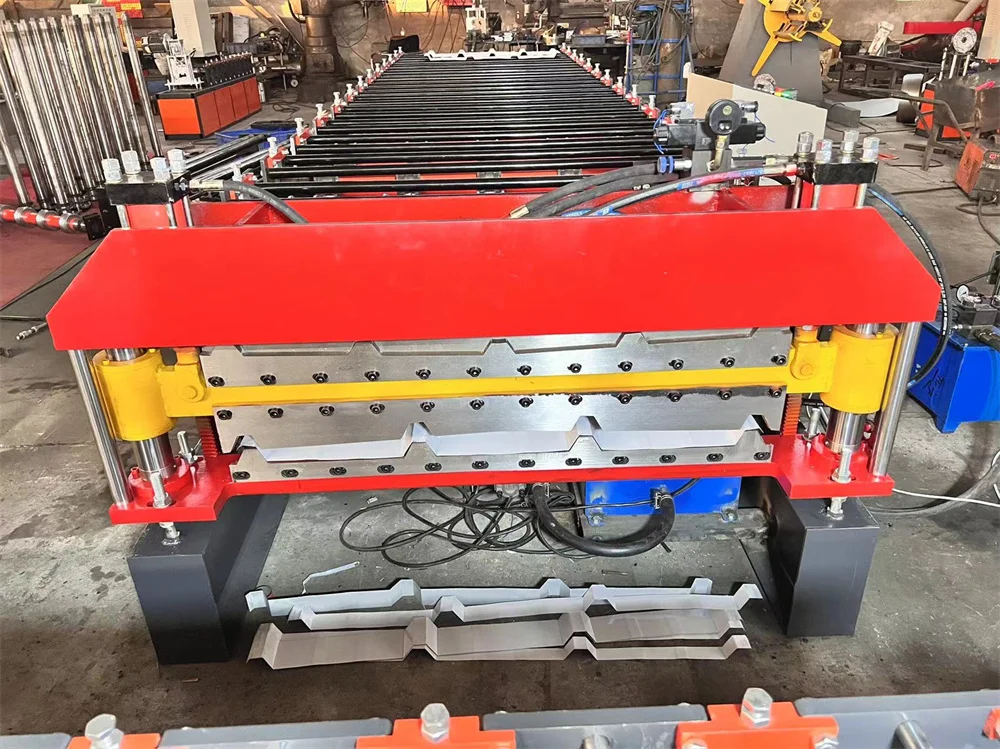

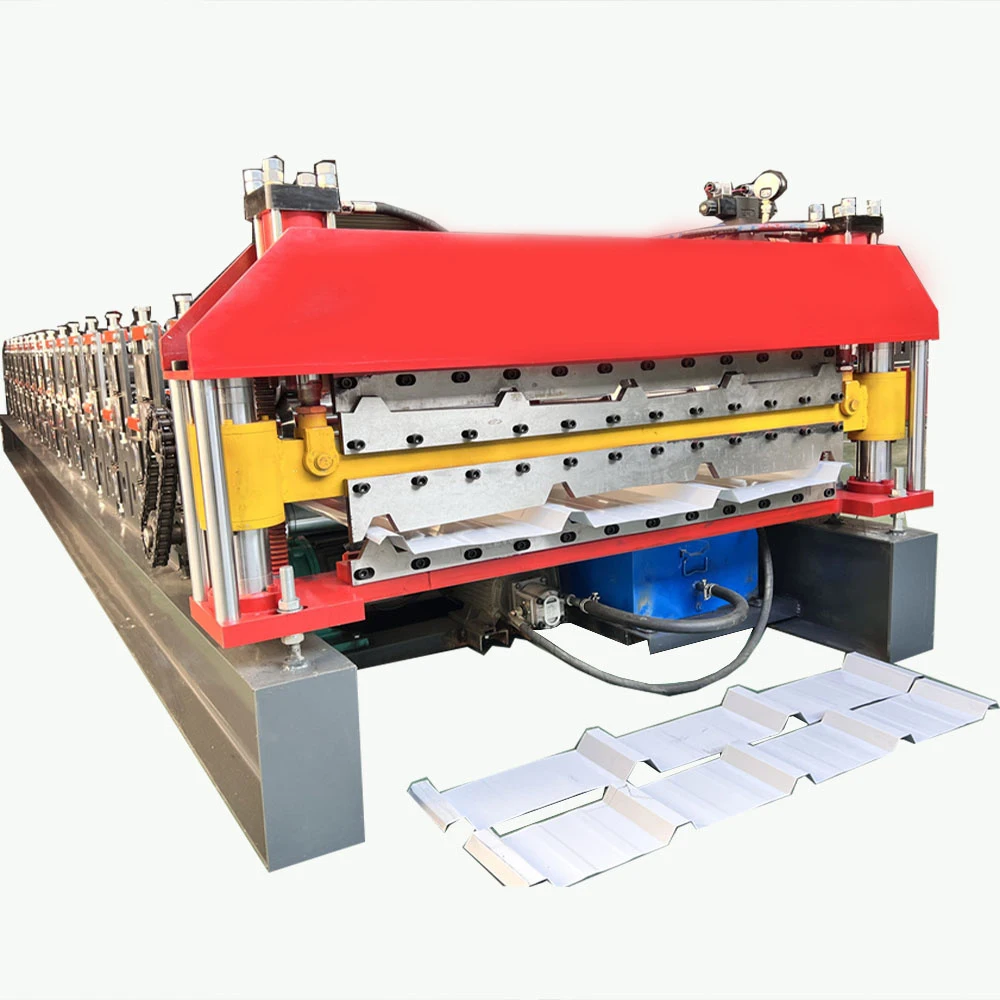

Tile Roll Forming machine
PLC Control System Of Roll Forming Machine
The control system adopts the combination of touch screen and button to control, which is more convenient. All controls are controlled through the control panel. It is easy to touch the screen and operate simply. At the same time, the control panel is small in size, reducing space occupation, and the independent support extension design is far away from the machine, ensuring safety.
Forming Roller Of Roll Forming Machine
Decoiler of roll forming machine
Why Choose Us
Customer Feedback
Other designs
Customizable

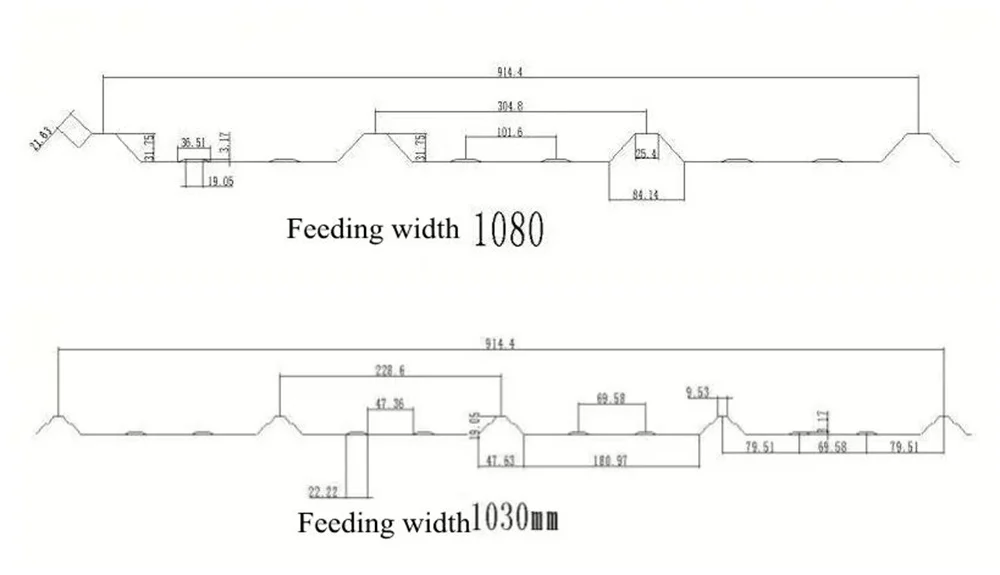

Our roll forming machine can be customized, if you need other shapes of roll forming machine, you can send us the relevant size and shape as shown in the picture above.
Product Application
Roll forming machine manufacturers is mainly producing steel roof/ wall sheet .The final products have too many types,corrugated sheet and trapezoidal sheet.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
Company Profile
Zhengzhou Hokang Machinery Co., Ltd..
Zhengzhou Hokang Machinery Co., Ltd. is a manufacture specializing in custom cold roll forming equipment and automatic production lines,we can manufacture hundred types roll forming machines and all kinds of architecture profliles.Engineers and technicians are rich in experience of designing developing and manufacturing of machines to provied customers with customized designs.Our products and sold to many countries and regions around the world.and we have established long-term cooperative relationships with customers.
Main products: the company operates various types of products with various specifications, including cold bending forming equipment and other mechanical equipment, such as tile pressing machine, machine tool, tapping machine, slotting machine, boring machine, air hammer, gear hobbing machine, nail making machine, marking machine, etc. Wide range of products, welcome to buy.
