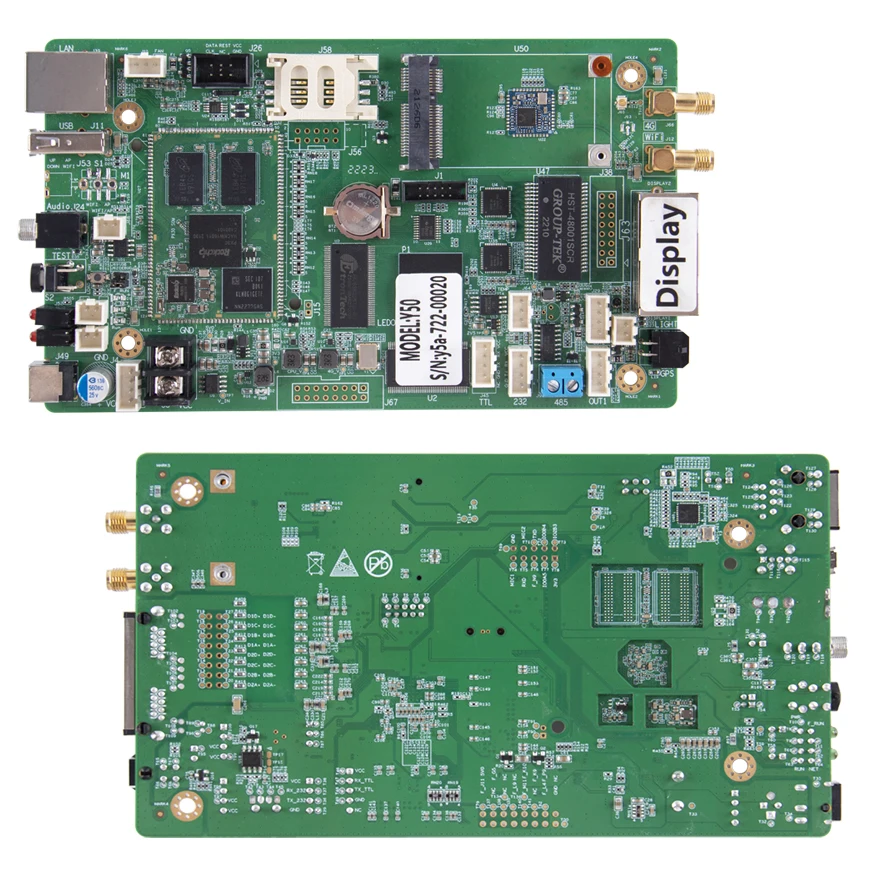

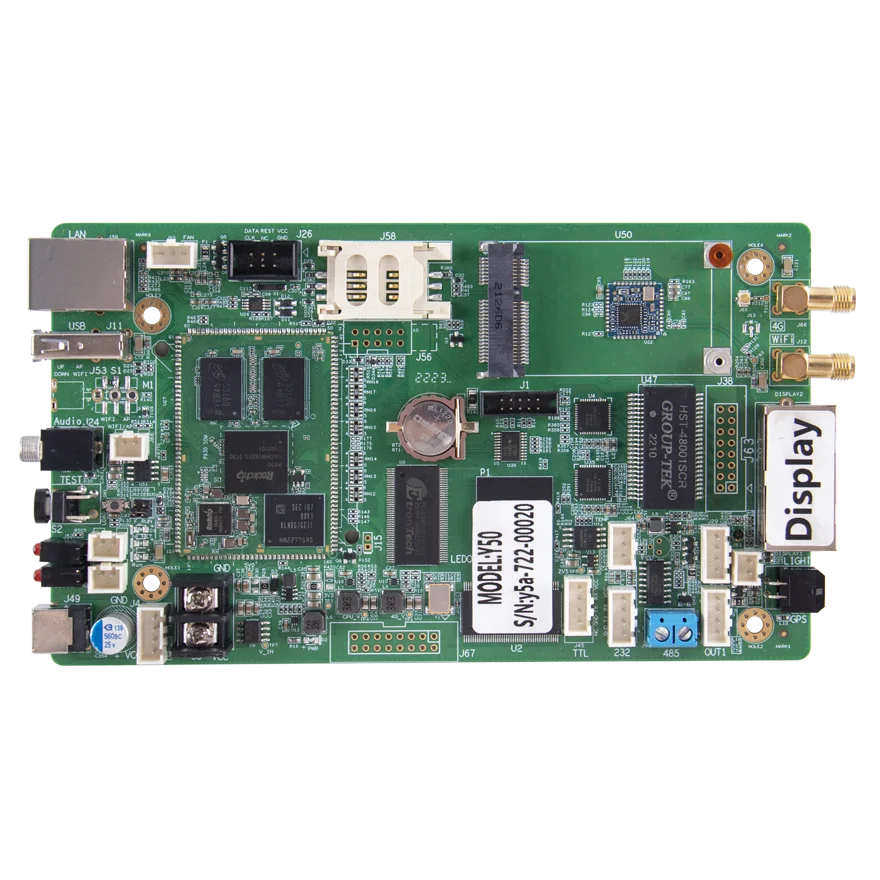

Product introduction

Xixun Y50 supports operation from - 40 ℃ to 95 ℃, and gigabit dual network ports support network backup; Support the release of access cloud platform, and easily realize the remote cluster control of display screen; The hardware and software design fully considers user deployment, operation and maintenance scenarios to make deployment easier, operation more stable and maintenance more efficient; With safe and stable function design, it can save space and reduce wiring for users, and can be used in small load scenes such as car screen, small traffic screen, community screen, lamp pole screen, etc.

Y50 series adopts industrial quad-core processor, integrated with four Cortex-A35, dual-core Mali-G31 GPU, quad-core main frequency of 1.5GHz, stable operation under 90 ℃ high temperature, memory support 1GB+8GB (compatible with 2GB+16GB) LPDDR3. The chip can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other systems. It is a highly integrated product.



Functional characteristics

1. The information release platform has passed the third-level filing certificate of information system security of the Ministry of Public Security, with copies and seals provided;

2. The materials of the Xinfa platform have passed the filing certificate of the permit for information network transmission of audio-visual programs, and the copy and seal shall be provided;

3. The certificate of stable and qualified products passing the national quality inspection shall be provided with copies and seals;

4. Dual gigabit network port output can be used as backup all the way to ensure the stability of picture transmission;

5. It supports the external connection of 8-element environment sensor R68 through 485 interface to display environment information without secondary development;

6. Support external Lora synchronization module to ensure the synchronization of multi-screen screen playback;

7. Support two-way remote power off, one way to control the screen switch and one way to control the street lamp switch;

8. Support the optional 4G module. The module model is different in different countries. Please provide the country of use for shipment;

9. Support FCC and CE certification;

10. Lora wireless timing multi-screen synchronization;

11. On-board WiFi module to realize wireless communication;

12. Support AP mode and Station mode;

13. Support secondary development and remote cluster control of cloud platform;

14. Built-in Web sever, support local web page production, support PC, mobile phone, Pad and other user terminal program release and display control, cluster remote program release and display control, cluster remote monitoring screen status;

15. Strong processing performance, 4-core processor, main frequency 1.5GHz, support 1080P video hard decoding, 1GB running memory;

16. 8GB internal storage space, 4GB available to users;

17. The user terminal connects to the WiFi hotspot provided by Y50. The default SSID is "SN number" and the default password is "12345678";

18. Support GPS timing/timing;

19. Dual network ports with super load capacity, resolution 1280 * 720

20. The brightness of the display screen can be adjusted automatically, and the supporting brightness sensor is required;

21. Support to broadcast programs according to program list;

22. The management system can centrally set the timing switch, volume and brightness;

23. Support USB camera;

24. Support NTP precise automatic timing;

25. Supporting software: AIPS4.0 cloud release platform, PC software LedOK Express, mobile app: LedOK Kit









Q1:How to choose a proper led screen for your need?



A:You just need to think of 3 simple questions when you choose a led screen by yourself.

1.Will you use it indoor or outdoor?

2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in

one place forever)?

3.what is the appoximate size of the led screen you would like to purchase?



Q2:Which pixel pitch should i choose?



 A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used

for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).

Q3:Which control system should i choose?



A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than

20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate

is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.



Q4:How to order from you compamy?



A:You can both place order to us by alibaba online or to our company directly offline, before place order welcome to contact us

for confirmation.



Q5:How to pay?



A:We accept payment online through alibaba , or offline to our company account by T/T bank, or paypal or westerunion.



Q6:How to ship?

A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL(Fedex,UPS etc) internation express

company, or by sea according to your goods weight and volume and the delivery time you need.



Q7:How to install it after i received it?



A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo

or send our engineer fly to you for help if needed.
