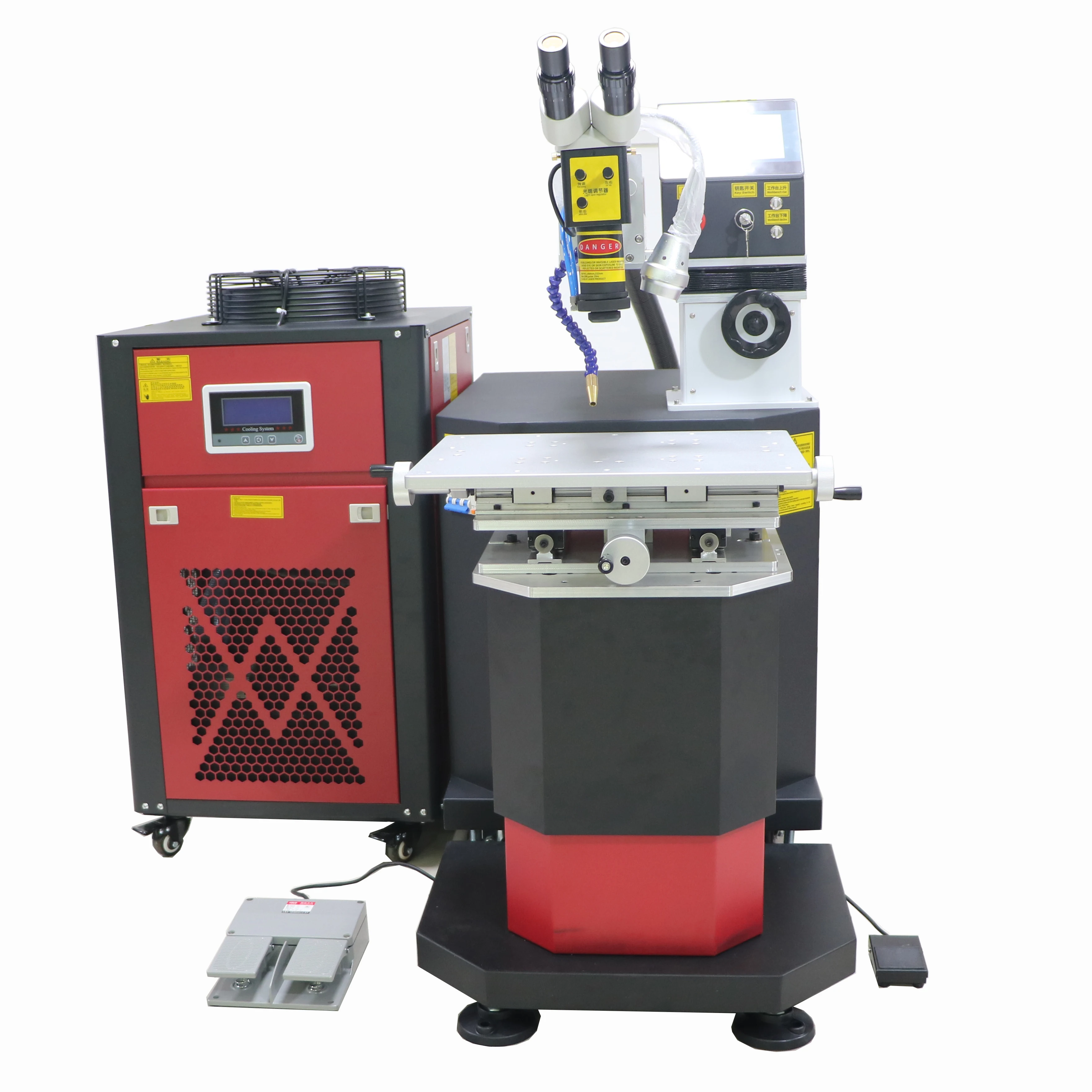

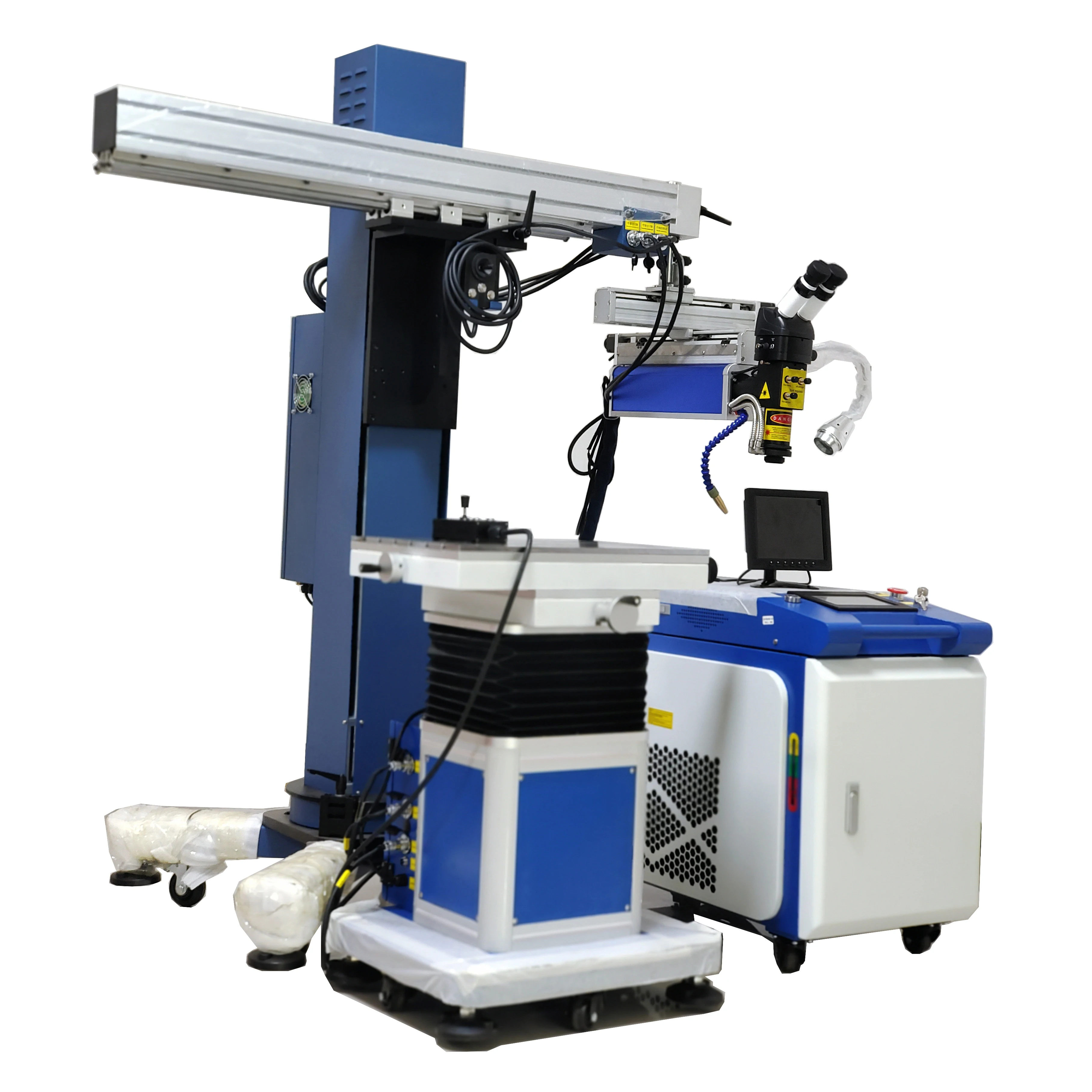

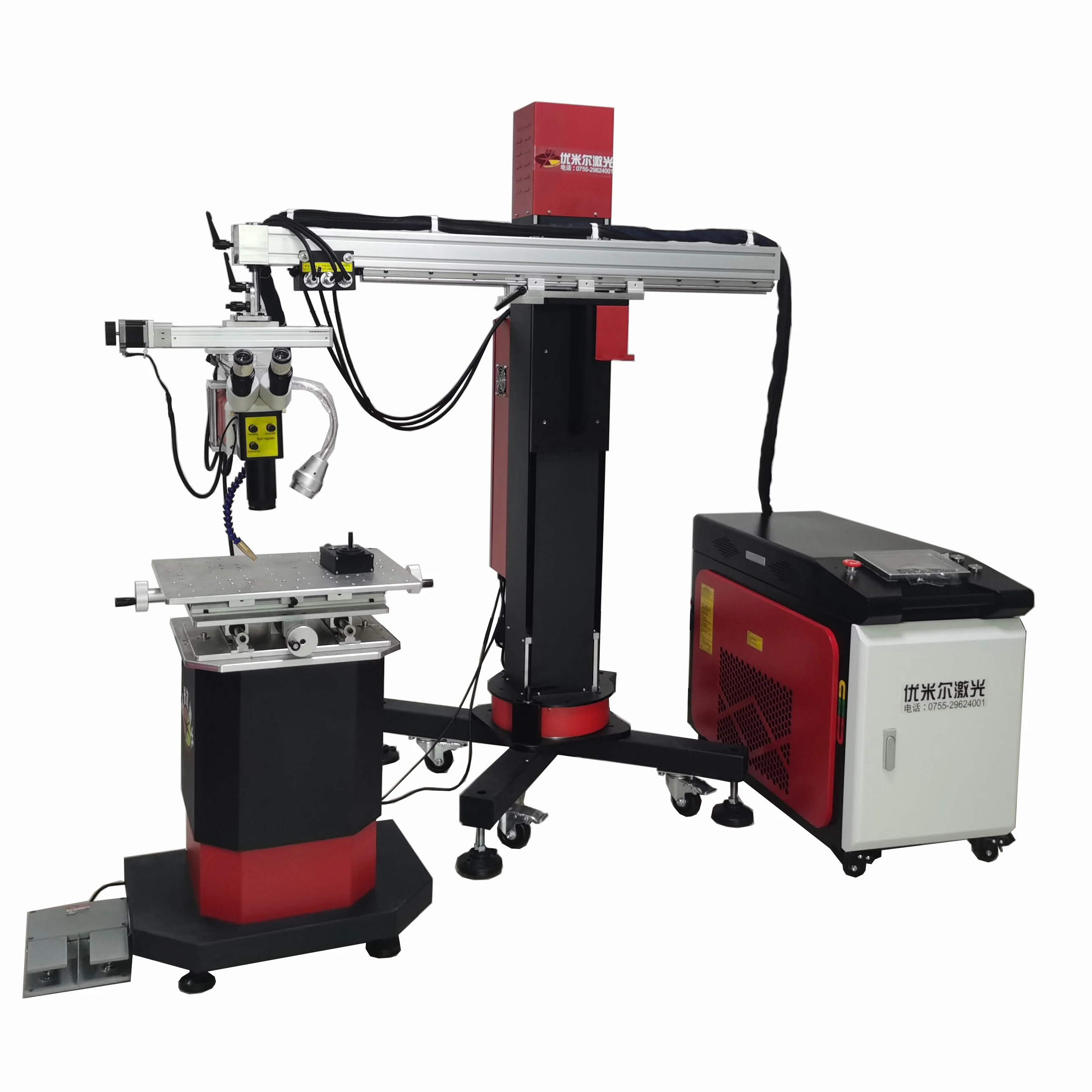

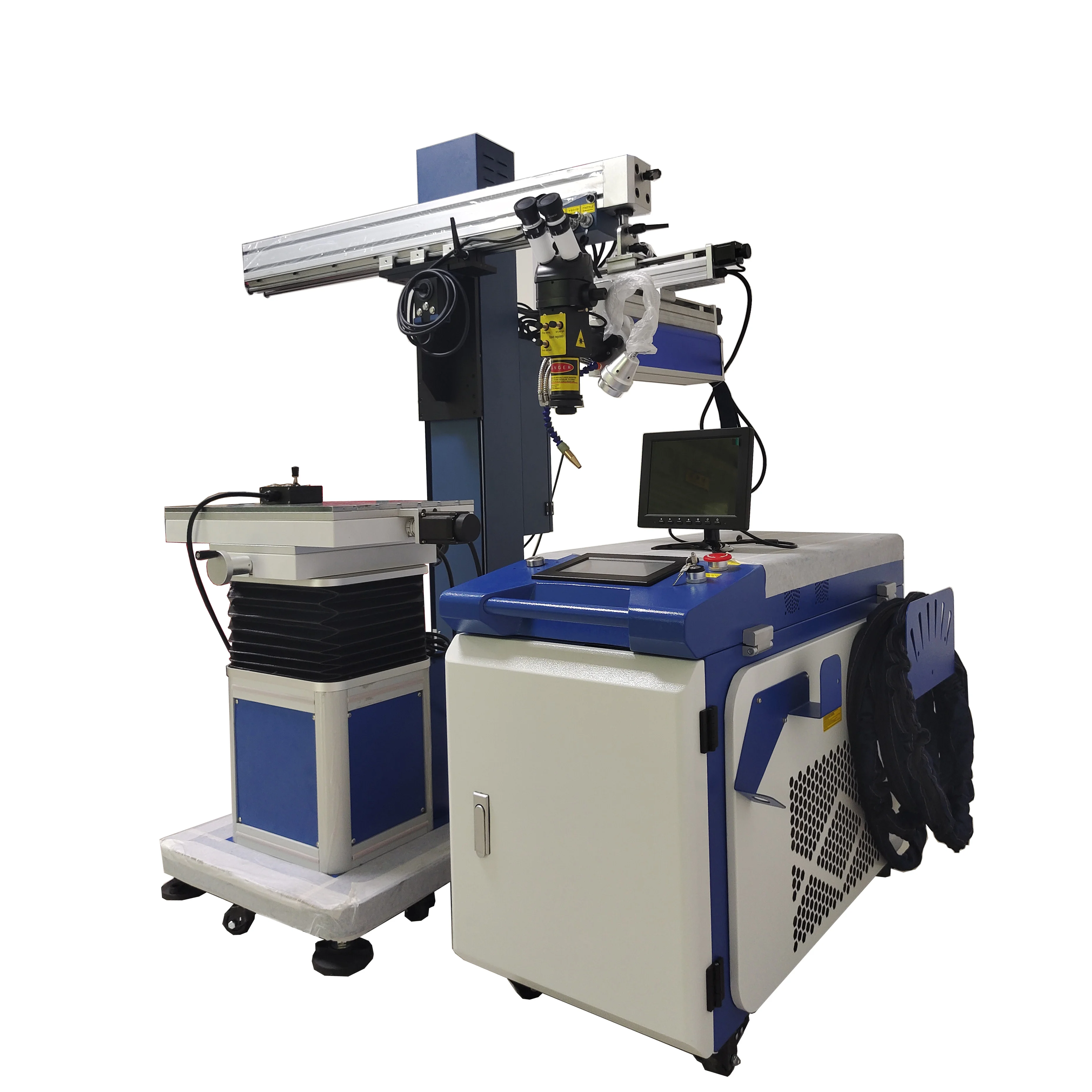

Хорошая цена портативный волоконно-лазерный сварочный аппарат мощностью 1000 Вт 1500 2000 для ремонта пресс-форм ручной лазерный металлического лазерного
- Категория: Laser Welders >>>
- Поставщик: Youmir,Laser,Technology,Co.,Ltd.Youmir,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 1329656.98 $* | 1356249.59 $* |
| Jul-20-2025 | 1078382.59 $* | 1099950.33 $* |
| Jun-20-2025 | 1308716.76 $* | 1334890.38 $* |
| May-20-2025 | 1298247.6 $* | 1324212.12 $* |
| Apr-20-2025 | 1036503.3 $* | 1057233.99 $* |
| Mar-20-2025 | 1277307.55 $* | 1302853.10 $* |
| Feb-20-2025 | 1266837.87 $* | 1292174.58 $* |
| Jan-20-2025 | 1256368.99 $* | 1281495.48 $* |
Характеристики
Product Paramenters
Product description
1. Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2, equipped with 1.5P special chiller, can meet the long-term, high-power welding stability; remarks: 400W with 3P chiller
3, equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high-precision straight guide rails are light and flexible, accurate positioning, bearing capacity up to 200 kg;

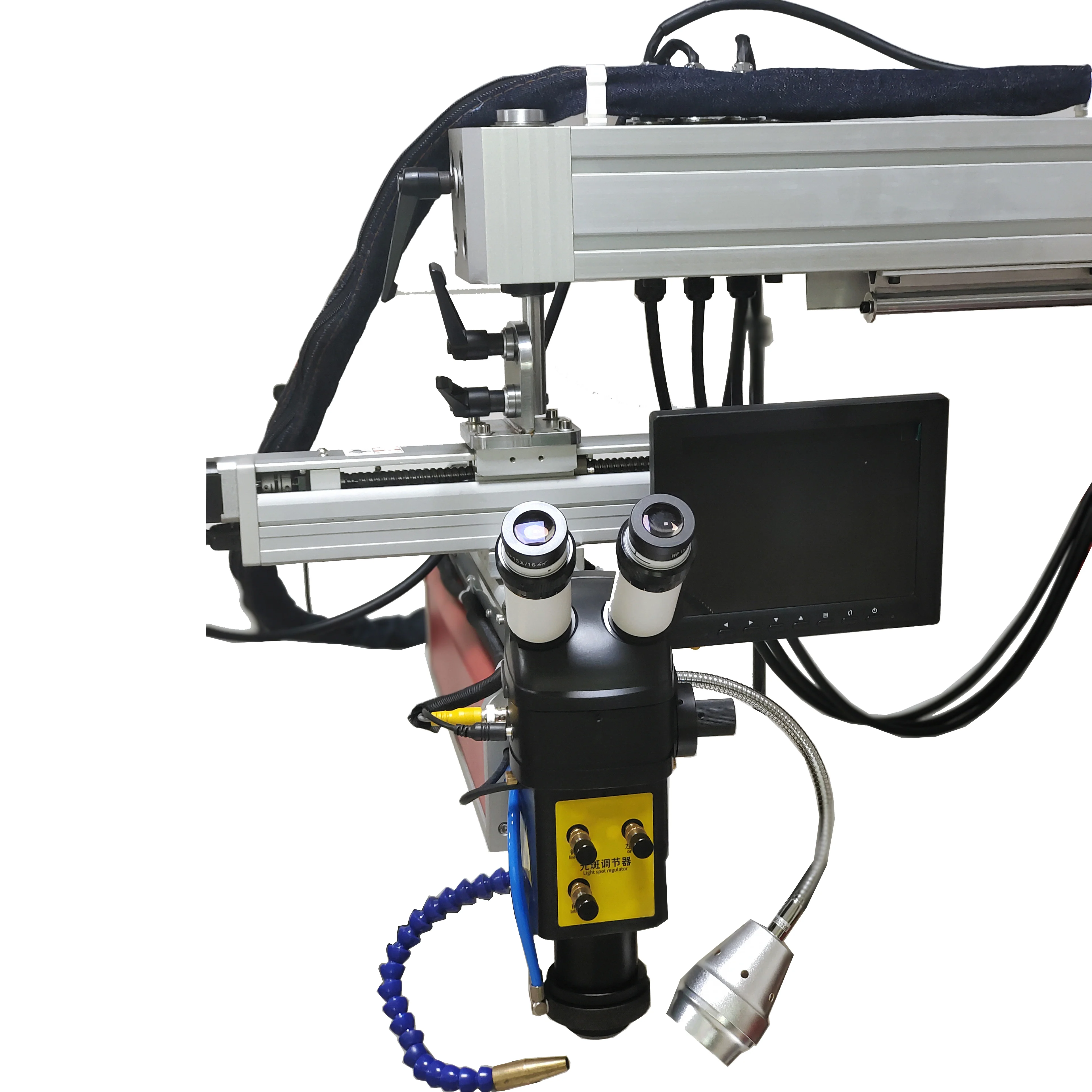

4, the laser head can slide back and forth, manual lifting, the laser head can be easily rotated 180 degrees, convenient to repair any side;
5. Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process, and maintain the natural color of the product to ensure the welding quality.
2, equipped with 1.5P special chiller, can meet the long-term, high-power welding stability; remarks: 400W with 3P chiller
3, equipped with three-dimensional load-bearing base for electric lifting, the table moves using precision ball screw and high-precision straight guide rails are light and flexible, accurate positioning, bearing capacity up to 200 kg;
4, the laser head can slide back and forth, manual lifting, the laser head can be easily rotated 180 degrees, convenient to repair any side;
5. Equipped with gas protection system to effectively protect the product from argon gas protection during the welding process, and maintain the natural color of the product to ensure the welding quality.
Fiber Laser Scource
Adopting famous brands (Raycus, JPT, MAX, IPG and other brands), the photoelectric conversion rate is greatly improved, laser
power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet
customer needs.
power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet
customer needs.
Autonomous welding system
Own intellectual property rights of laser power system ,many years of development and upgrad ,Chinese/English interface ,simple operation
Lifting table
Bearring table base electric lifting ,table
movement using precision ball screw and
high-precision straight guide rail light Step and flexible,accurate positioning ,bearing
up to 200kg.
movement using precision ball screw and
high-precision straight guide rail light Step and flexible,accurate positioning ,bearing
up to 200kg.
Mold welding, without worktable, you can choose any worktable you need.
Blue mold welding, electric workbench and color can be customized according to your needs.
400W mold welding with 3P chiller.
Device parameters
Device parameters | ||||
Unit type | YME-1000W-MJ | |||
Maximum laser power | 1000W/1500W/2000W | |||
The laser wavelength | 1064nm | |||
Condenser reflector | Imported ceramic condenser | |||
The laser frequency | 1-30Hz | |||
The pulse width | 0.1-10Ms | |||
Spot adjustment range | 0.3-2mm | |||
Aimed at positioning | Microscope (optional camera system) | |||
cooling-water machine refrigerating power | 1.5P | |||
Rated power | 8KW | 12KW | ||
380V±5V 50Hz/40A /220V±5V 50Hz/60A | ||||
Three dimensional bearing table bearing | 125×100×300mm | 150kg | ||
External dimensions/net weight | Host computer: 1000×550×1150mm | 103kg | ||
1.5P cooling-water machine: 550×550×850mm | 80kg | |||
3P cooling-water machine: 800×640×1200mm | 127kg | |||
Three dimensional load-bearing table: 550×400×700mm | 57kg | |||
Sample Display
Product packaging
Our Services
Other Product Recomm
Welcome To Visit Our Factory
Certifications
Company Information
Shenzhen Youmir Technology Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service, providing a complete set of laser application solutions and related supporting equipment for domestic and foreign customers.
The company was established in 2012 and is located in Songgang Street, Bao'an District, Shenzhen, adjacent to Songgang Wuzhihake Scenic Spot. In 2017, Zhongshan branch was established. In 2018, Hunan Youmir Laser Technology Co., Ltd. was established to provide services for foreign customers.
At present, the company's main products are: laser welding machine series, laser marking machine series, laser cleaning machine series, laser cutting machine series and many other series of industrial laser equipment.
Products are widely used in stainless metals, steel metallurgy, non-ferrous metals, jewelry, batteries, automobiles and parts, aerospace, military electronics, precision instruments, machinery manufacturing, molds, hardware tools, integrated circuits, semiconductor manufacturing, solar energy, education , Communications and measurement, packaging, shoe materials and leather, plastics and rubber, jewelry, craft gifts and other industries.
The company pays attention to humanistic care, comfortable office environment, relaxed working atmosphere, let everyone feel the warmth of home!
The company was established in 2012 and is located in Songgang Street, Bao'an District, Shenzhen, adjacent to Songgang Wuzhihake Scenic Spot. In 2017, Zhongshan branch was established. In 2018, Hunan Youmir Laser Technology Co., Ltd. was established to provide services for foreign customers.
At present, the company's main products are: laser welding machine series, laser marking machine series, laser cleaning machine series, laser cutting machine series and many other series of industrial laser equipment.
Products are widely used in stainless metals, steel metallurgy, non-ferrous metals, jewelry, batteries, automobiles and parts, aerospace, military electronics, precision instruments, machinery manufacturing, molds, hardware tools, integrated circuits, semiconductor manufacturing, solar energy, education , Communications and measurement, packaging, shoe materials and leather, plastics and rubber, jewelry, craft gifts and other industries.
The company pays attention to humanistic care, comfortable office environment, relaxed working atmosphere, let everyone feel the warmth of home!
FAQ
How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
I don’t know which machine is suitable for me ?
A2:Please tell me what material and thickness do you want to weld
Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Delivery time
General configuration:7 days. Customized:7-10 working days.
Can I get the sample to check the quality or machine?
Of course, we can help make welding samples with free, please send us your product to our company
Can you arrange the shipment for me?
A: Sure, we can arrange the shipment for our clients accordingly by sea and air or by courier. Trading terms FOB, CIF, EXW etc. are available.
What's the package?
A: All of machines we will packed with standar wooden box
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. We can customized machines according your product requriements.
What's your payment terms? MOQ?
We can accept Alibaba trade assurance T/T. Usually we do 30% as deposit, balance paid before shipment. MOQ 1 set.
What to do if the machine has problem?
A: If it is with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
I don’t know which machine is suitable for me ?
A2:Please tell me what material and thickness do you want to weld
Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Delivery time
General configuration:7 days. Customized:7-10 working days.
Can I get the sample to check the quality or machine?
Of course, we can help make welding samples with free, please send us your product to our company
Can you arrange the shipment for me?
A: Sure, we can arrange the shipment for our clients accordingly by sea and air or by courier. Trading terms FOB, CIF, EXW etc. are available.
What's the package?
A: All of machines we will packed with standar wooden box
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. We can customized machines according your product requriements.
What's your payment terms? MOQ?
We can accept Alibaba trade assurance T/T. Usually we do 30% as deposit, balance paid before shipment. MOQ 1 set.
What to do if the machine has problem?
A: If it is with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.How about warranty?
A1: 2 years warranty for laser source, 1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
