Металлический нефритовый латунный гравировальный станок с программным обеспечением высокой точности
- Категория: Metal Engraving Machinery >>>
- Поставщик: Phoenix,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1904.11 $* | 1999.26 $* |
| Aug-20-2025 | 1888.0 $* | 1982.94 $* |
| Jul-20-2025 | 1584.27 $* | 1663.83 $* |
| Jun-20-2025 | 1856.15 $* | 1949.40 $* |
| May-20-2025 | 1616.18 $* | 1697.32 $* |
| Apr-20-2025 | 1824.89 $* | 1915.10 $* |
| Mar-20-2025 | 1808.69 $* | 1898.39 $* |
| Feb-20-2025 | 1792.94 $* | 1882.2 $* |
| Jan-20-2025 | 1776.34 $* | 1865.44 $* |
Характеристики

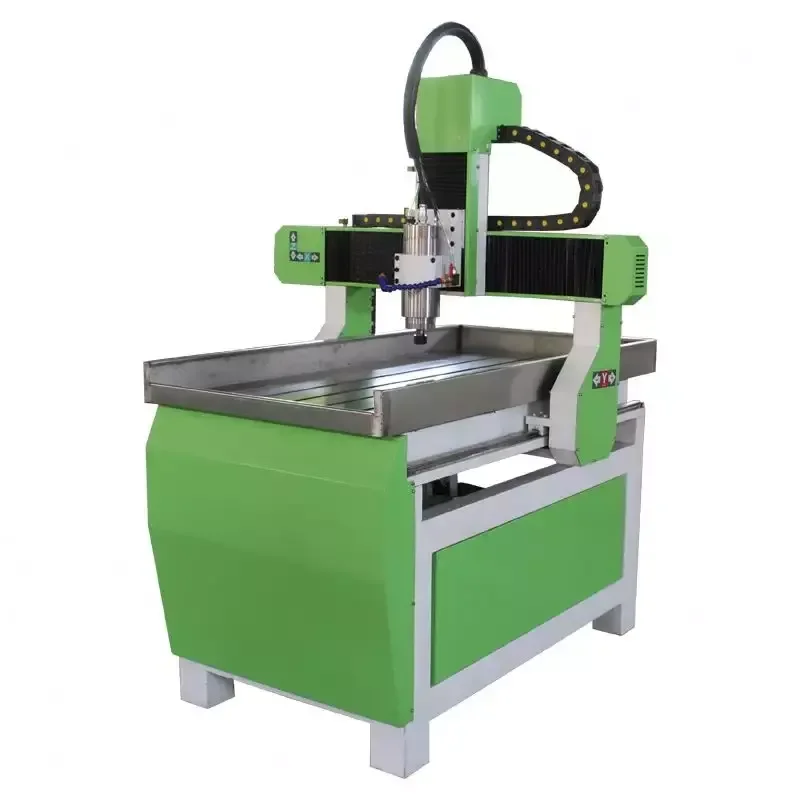

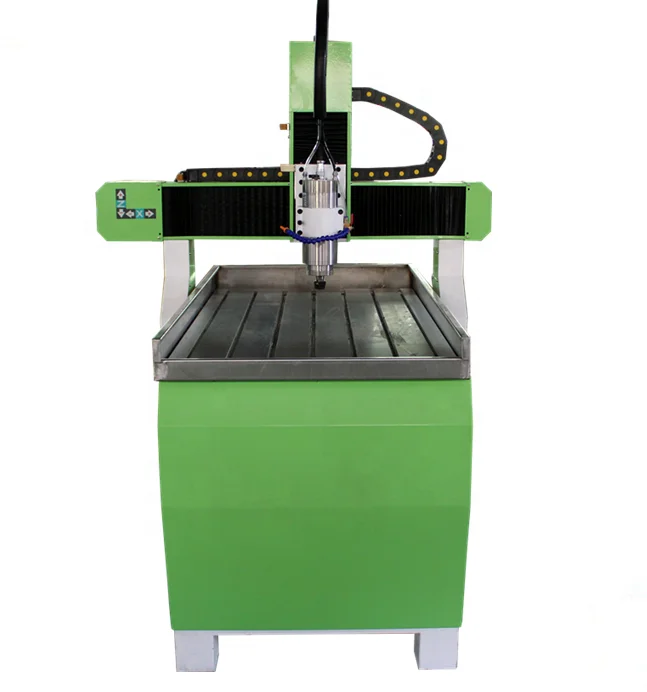

Metal jade brass seal engraving machine with high precision software 6090 cnc engraving machine
1. Superior high power water-cooling spindle could keep working at low noise level, safeguarding stability for long-time operation.
1. Break-point memory function enables the machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
1. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, UCANCAM, etc.
4. CNC controller enables easy and convenient operation, which makes end users to be familiar with the operation of the machine quickly.
Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Items |
| Parameters | Option |
Working Area | XYZ | 600*900*120mm | ≤200mm |
Table Type |
| T-Slot aluminum | Vacuum table |
Accuracy | Working Accuracy | ±0.03/300mm |
|
| Repositioning Accuracy | ±0.03/300mm |
|
Drive system | X,Y with Rack and Pinion Z with lead screw |
| |
Speed | MAX Traveling Speed | 32000mm/min |
|
| MAX Working Speed | 15000mm/min |
|
Spindle | Spindle Power | 1.5KW water cooling spindle |
|
| Spindle Speed | 0-24000r/min Stepper | Servo |
Drive and Motor |
|
|
|
Working Voltage |
| AC380V/50Hz | AC220V/60Hz |
Operating System |
| NC Studio |
|
Net Weight/Gross Weight |
| 200KG/300 KG |
|
Product Description

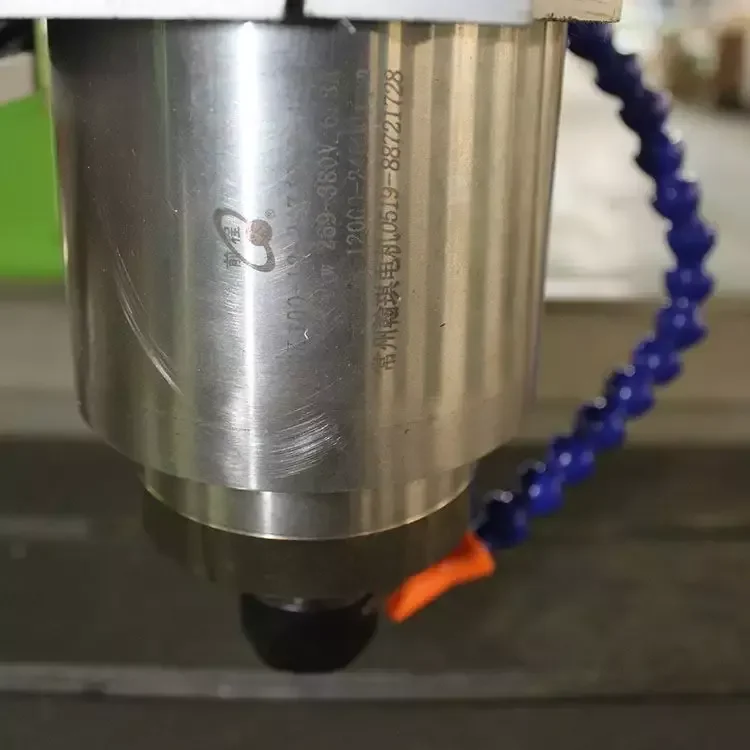

1. We can use water cooling spindle 1.5/2.2/3.2kw with Water Chiller option .
We also use HQD Air Cooling Spindle 2.2/3.5KW 18000RPM Option , Less Noise , Fast Speed.
2, This machine can use DSP Control system with USB File Transfer .
We also can use NCSTUDIO PC Control , Customer can check the File Simulation before working.
3, This machine with Big Control Box besides Machine .
4, we also can make control box in machine body to Save Space .
5, 4th Axis Rotary (Optional as required)
6,OME&ODM customization and color customization are supported.
Our Services
Company Information
FAQ
Q:Can I vlslt your company?
A:You can come here whenever you want, we'l introduce our factory and product to you, if we've alreadyfrequently cooperated for a long time, we'll take care of your airfare and accommodation.
Q:How long ls your dellvery tlme?
A:Generally, it takes 2-7 days for sample order, maximum 40 days for bulk orderSpecific production time
according to the quantity you required.
Q:Can you send the goods to my warehouse In China?
A:Yes, we can deliver the goods to wherever you want, but we are only bear the freight cost that shows inthe contract that we should responsible for.
Q:What ls your term of payment?
A: T/T, L/C,PayPal, Western Union, Alibaba and other payment terms which is convenient for you
Q:Wlll you reply me in tlme even in your holldays?
A:Yes, we are online 24 hours in a day, 7 days in a week and 365 days in a year. Whenever you have enquiry
or questions,please don't hesitate to contact us.
Q:Can I be your dlstrlbutor in our country?
A:Yes, we welcome you to be our distributor, and we have favorable terms for the you. Please contact us to
talk about details.
