Прямая продажа с завода высококачественные детали для ультразвукового очистителя пьезоэлектрический Вибрационный преобразователь 40 кГц 28 ультразвуковой
- Категория: >>>
- Поставщик: Shantou,Chuangxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 9.15 $* | 9.85 $* |
| Jul-18-2025 | 7.86 $* | 7.50 $* |
| Jun-18-2025 | 9.76 $* | 9.54 $* |
| May-18-2025 | 9.97 $* | 9.51 $* |
| Apr-18-2025 | 7.46 $* | 7.52 $* |
| Mar-18-2025 | 9.84 $* | 9.33 $* |
| Feb-18-2025 | 8.30 $* | 8.29 $* |
| Jan-18-2025 | 8.91 $* | 8.8 $* |
Характеристики

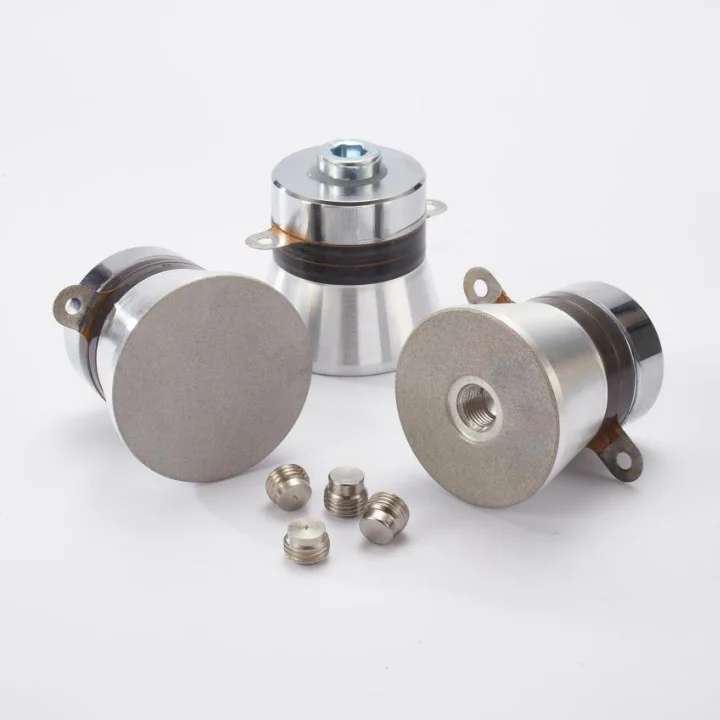

40KHz 28KHz Ultrasonic Piezoelectric Transducer for Commercial Ultrasonic Cleaner is a component that utilize the piezoelectricity for actualize electro-acoustic conversion.SL's langevin-type transducer are used where powerful ultrasonic wave must be generated, such as in Cleaning equipment and easy to install.These transducers are mounted into a structure that can be bolted almost anythere.
Model | Resonant frequency | Resonant impedance | Capacity | Insulation resistance | Weight | Power |
CL-50T | 28±0.5 | ≤15 | 9000±5% | 5000 | 730 | 100 |
CL-38T(A) | 28±0.5 | ≤15 | 5500±5% | 5000 | 450 | 60 |
CL-38T(B) | 40±0.5 | ≤15 | 5500±5% | 5000 | 240 | 60 |
CL-35T(B) | 40±0.5 | ≤15 | 4500±5% | 5000 | 240 | 50 |
Product Characteristic
- High Mechanical Quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.
- Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.
- Having steady output amplitude even the load markedly changed.
- Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.
- Bolt-on mounting gives the fasteasy installation and high reliability.
We can customize all specifications of Non-standard Ultrasonic Transducer according to your requirement.
Company Information
SHANTOU CHUANGXIN TECHNOLOGY CO., LTD. is a professional manufacturer specializing in piezoelectric ceramics, ultrasonic components, ultrasonic consumer electronics and ultrasonic equipment. Located in the main manufacturing city of Shantou, we have built up a professional team engaged in the research, manufacture and sale of ultrasonic products. We operate in strict conformity with the ISO9001: 2008 standard and have introduced specialized manufacturing equipment and advanced testing equipment from such countries as the USA, Germany and Japan. Until now, we have developed three main product categories. They are Piezoelectric Ceramic and Ultrasonic Transducers, Industry-use Ultrasonic Equipment and Ultrasonic Household Appliances.
1. Piezoelectric Ceramic Element Series:
A. Powerful Transmission Element Series
B. High-Sensitivity Transceiving Element Series
C. High Resolving Power Transceiving Element Series
2. Ultrasonic Transducer series:
A. Ultrasonic Transducers for Beauty Series
B. Ultrasonic Transducers for atomizing Series
C. Ultrasonic Transducers for Welding Series
D. Ultrasonic Transducers for Cleaning Series
E. Ultrasonic Transducers for Nondestructive Testing Series
F. Ultrasonic Transducers for Medical Diagnosis Series
3. Ultrasonic Appliance Series:
A. Ultrasonic Cleaner Series
B. Ultrasonic Beauty Device Series
C. Ultrasonic Humidifier Series
D. Ultrasonic Transmitter Series
E. Ultrasonic Welding Machine Series
F. Ultrasonic Environment Protected series
G. Ultrasonic Household Appliance series
In addition, we supply the perfect after-sales service and also provide customizing service for the non-standard Ultrasonic Products.
Based on our technical innovation, high quality and excellent services, we have won a good reputation among customers around the world. We sincerely welcome all interested companies to cooperate with us!
