Внутренняя стеновая панель из сосновой древесины
US $2.71-$2.73
Алюминиевая пластина и XPS пенопластовая Композитная Панель PU сэндвич-панели для стен кровельного
- Категория: Building Boards >>>
- Поставщик: Yangzhou,Wansheng,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.13 $* | 0.37 $* |
| Aug-19-2025 | 0.99 $* | 0.68 $* |
| Jul-19-2025 | 0.85 $* | 0.62 $* |
| Jun-19-2025 | 0.75 $* | 0.4 $* |
| May-19-2025 | 0.21 $* | 0.71 $* |
| Apr-19-2025 | 0.53 $* | 0.21 $* |
| Mar-19-2025 | 0.70 $* | 0.25 $* |
| Feb-19-2025 | 0.29 $* | 0.59 $* |
| Jan-19-2025 | 0.3 $* | 0.71 $* |
Характеристики
Products Description

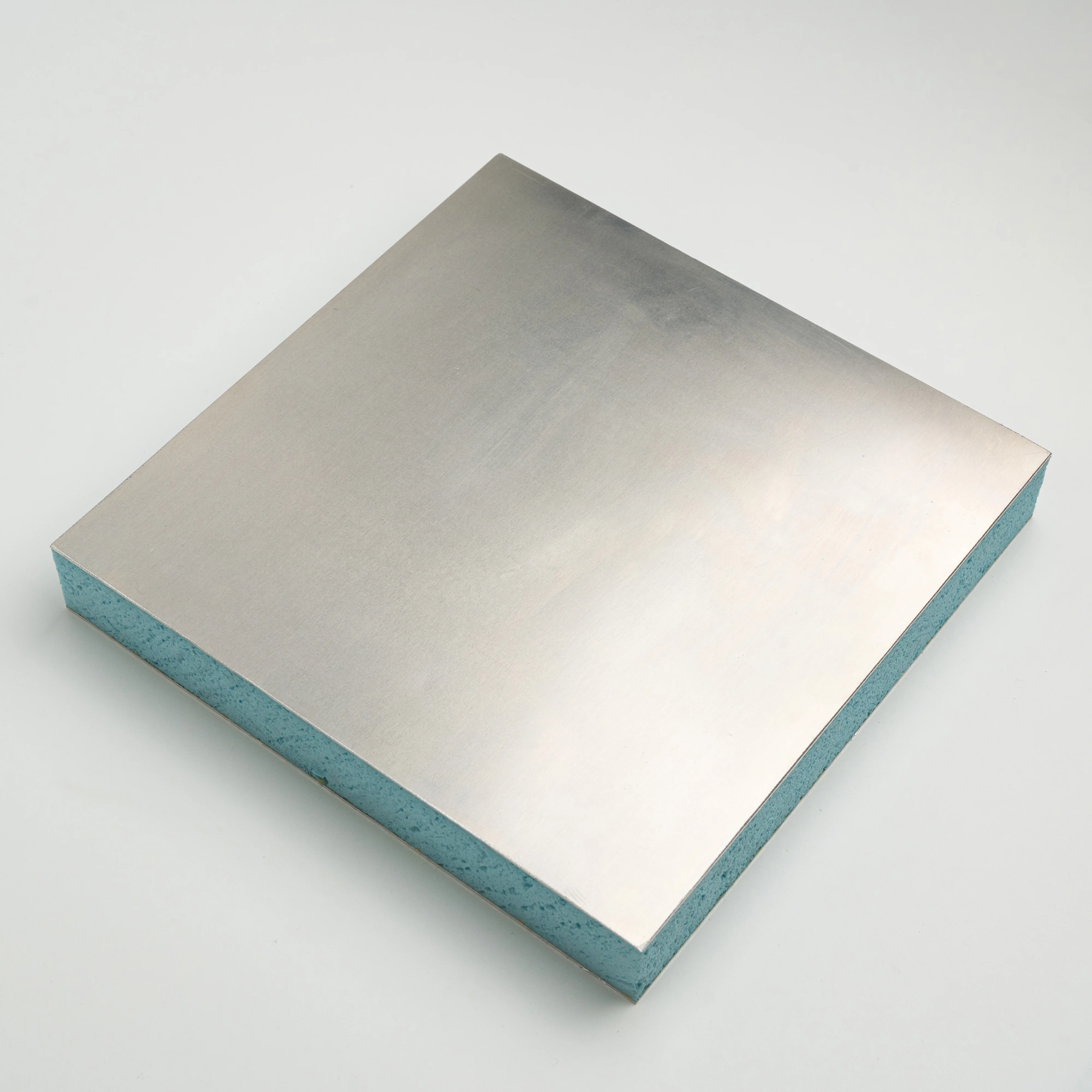

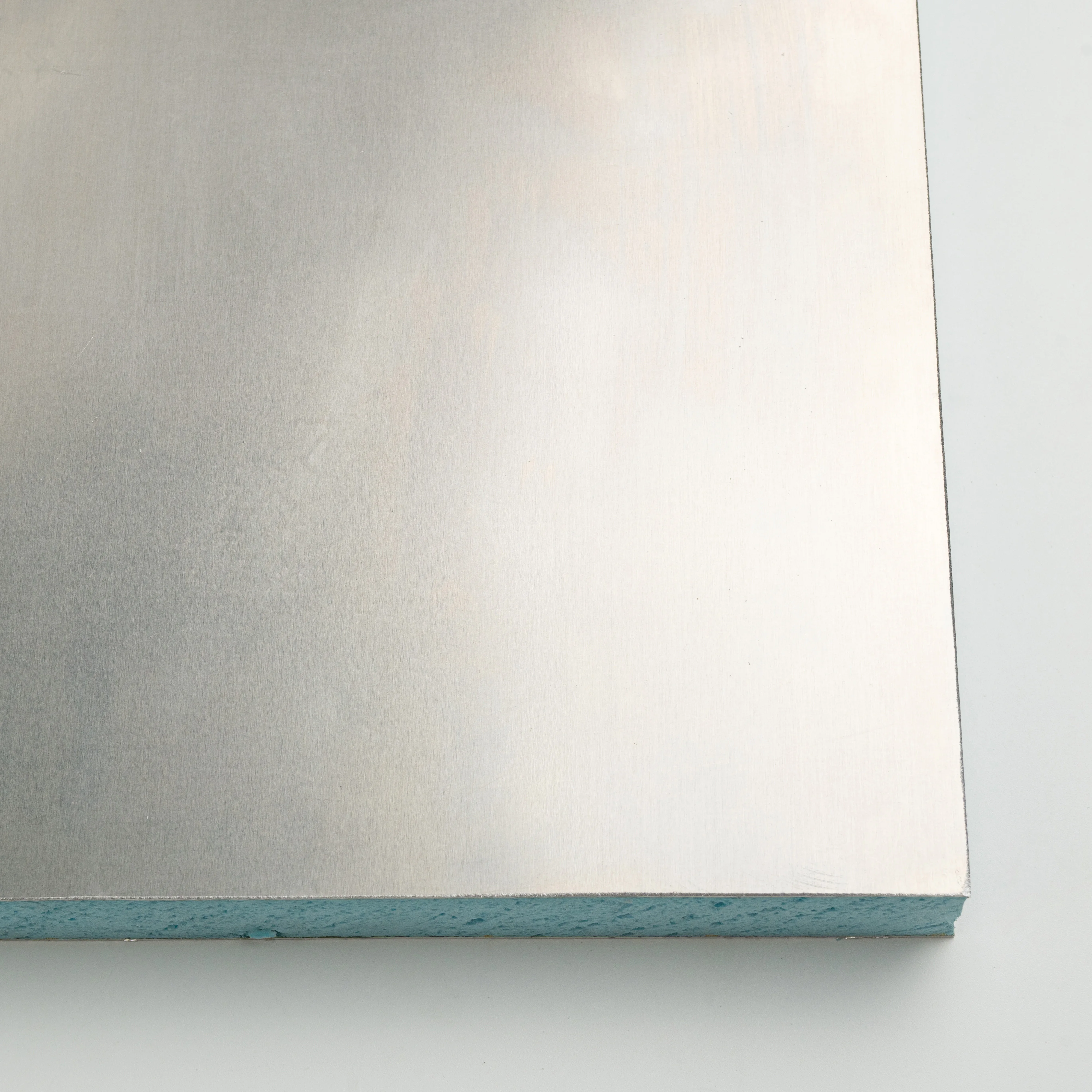

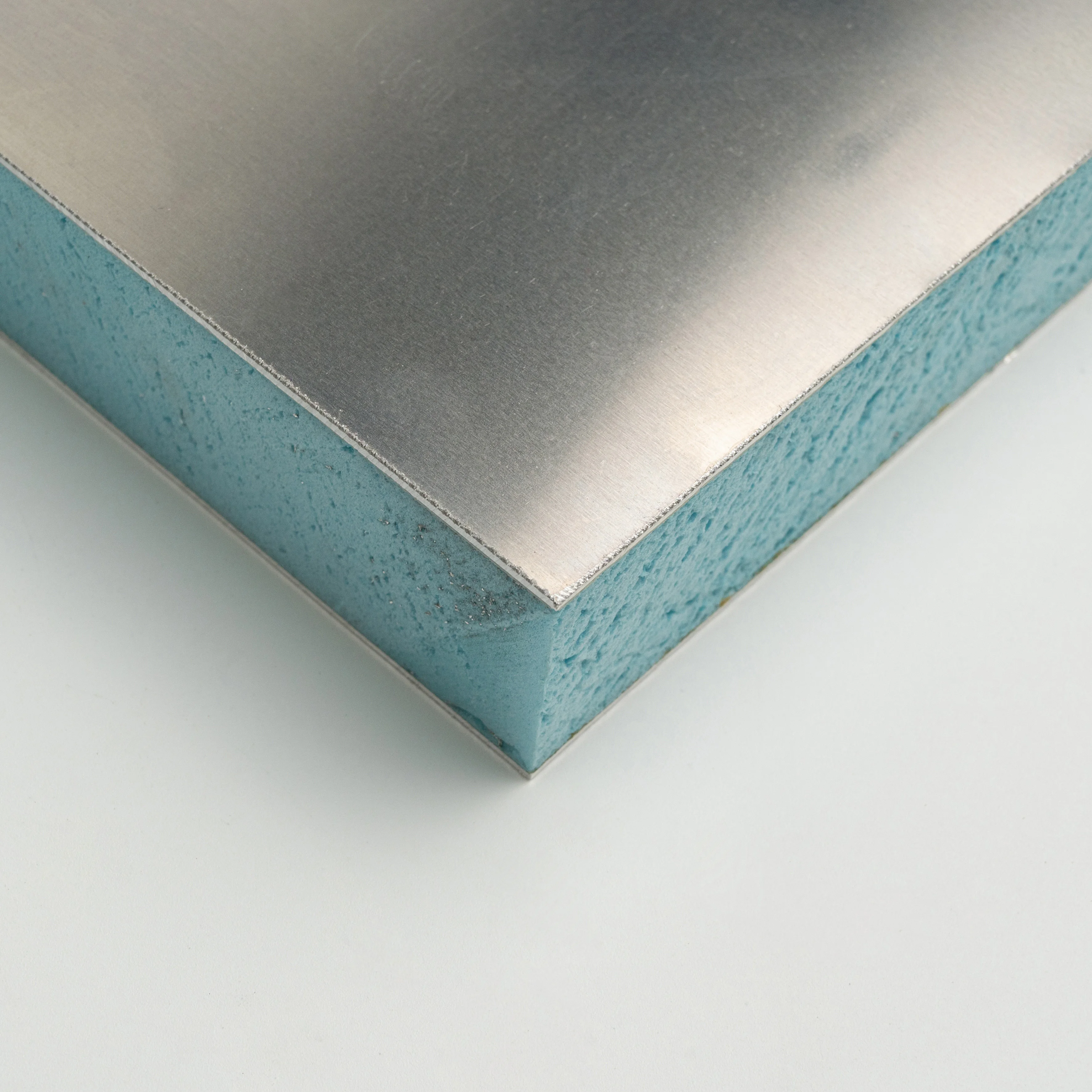

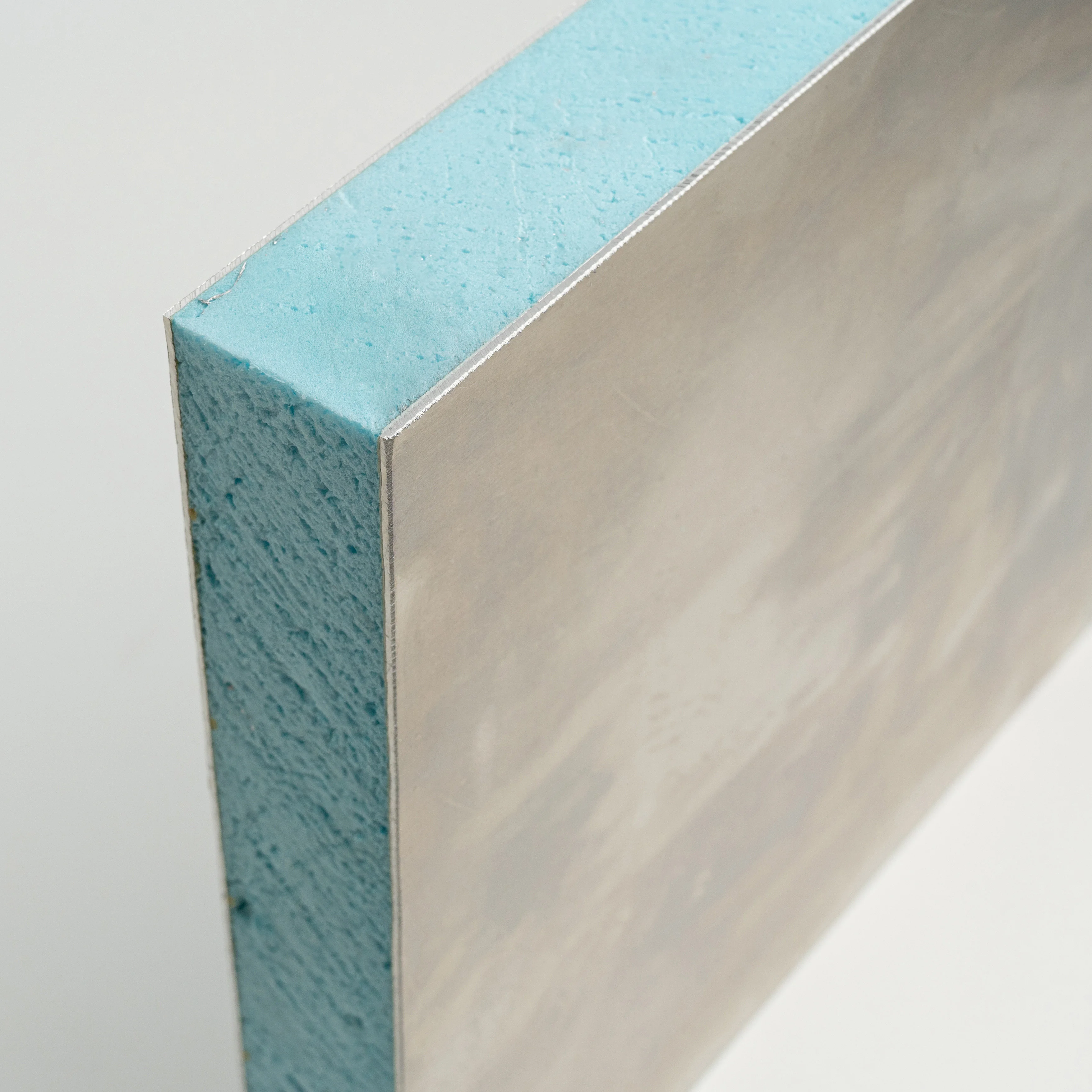

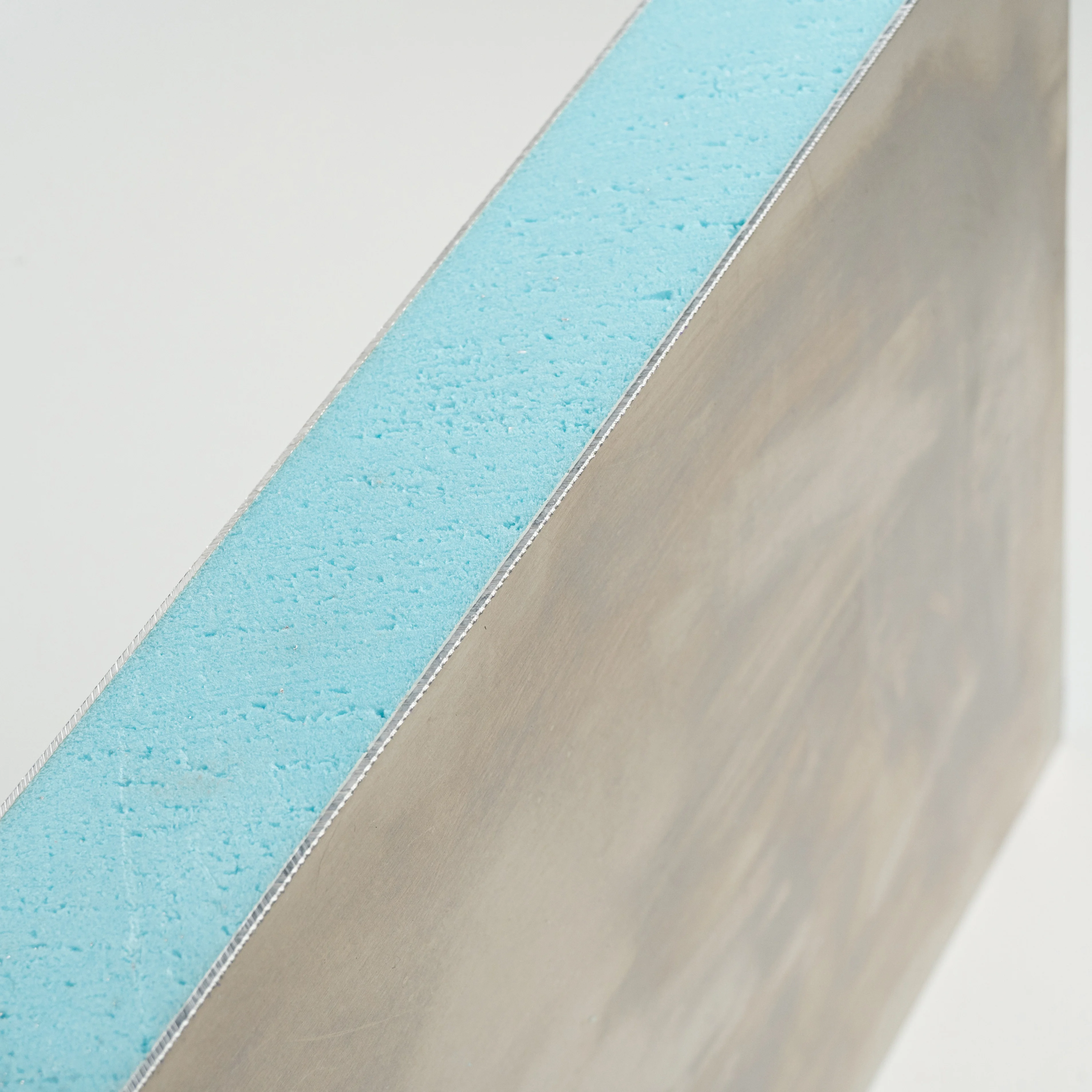

The surface and back are 0.8-1.0mm aluminum for high strength. Aluminum plate surface can be painted. The color can be customized according to the RAL color card.
The foam core material has the function of heat insulation and light weight.
Item | Dimensions | ||
RV composite panels | Length | Max 9000mm | |
Width | Max 2800mm | ||
Thickness | Max 100mm | ||
Refrigerated Truck panels | Length | Max 16500mm | |
Width | Max 3200mm | ||
Thickness | Max 200mm | ||
Dry cargo truck panels | Length | Max 16500mm | |
Width | Max 3200mm | ||
Thickness | Max 100mm | ||
Advantage of FRP composite panels
* Light weight * High impact resistance and strength
* Corrosion resistance and chemical resistance
* Smooth and glossy surface, easy to repair,
* UV and weather resistance, long time using
* Good insulation
Product display
The composite panels has a smooth and beautiful appearance and good load-bearing, impact resistance and thermal insulation performance. As a new type of material to replace traditional materials, It can realize the lightweight of the truck, while ensuring the strength and durability. It also can reduce costs.
FRP composite panels Application

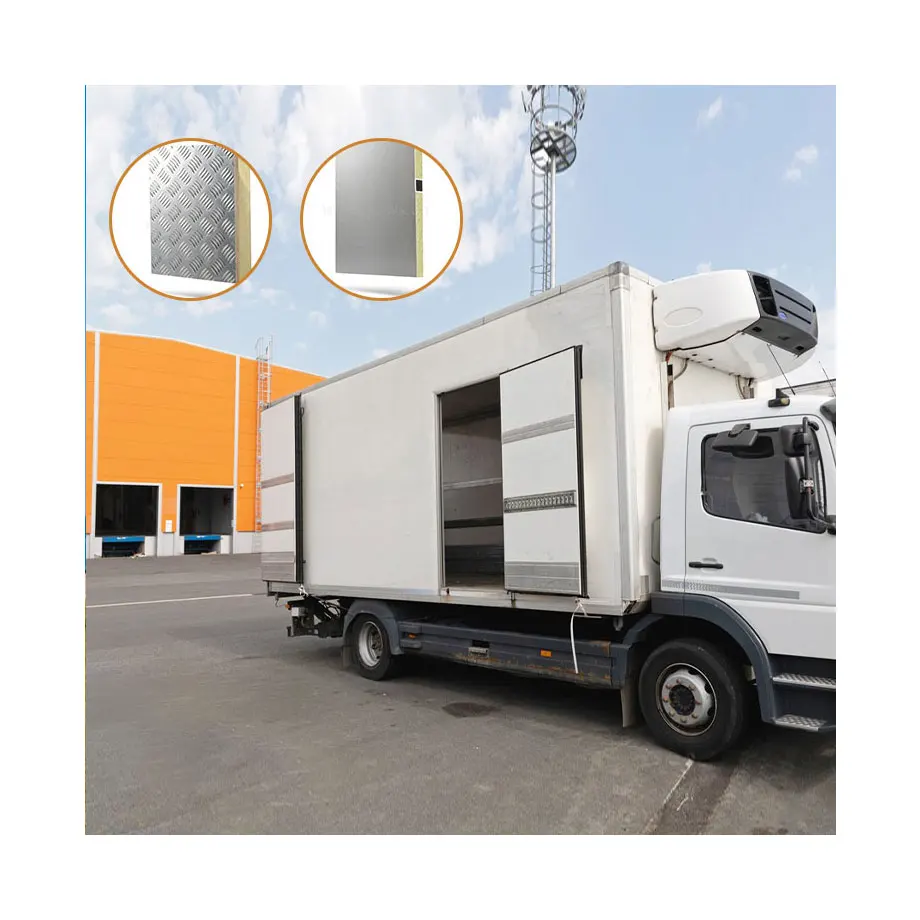

Mainly used in RV, Refrigerated truck, Dry cargo truck.
FRP composite panels are widely used in the interior and exterior walls/floor/roof for motor homes and refrigerated truck. By combining different materials and dimensions, we can made various composite panels meet the diverse needs of customers.
FRP composite panels are widely used in the interior and exterior walls/floor/roof for motor homes and refrigerated truck. By combining different materials and dimensions, we can made various composite panels meet the diverse needs of customers.
The different products and services we can offer:
* FRP plate in rolls or sheets
* FRP Composite panels of various materials and dimensions
* Whole truck boxes or caravan bodies
* Truck body Panels and accessories in CKD form
FRP Composite Panels Type
Item | FRP PU composite panel |
Core Material | PU Foam,Polyurethane Foam |
FRP skin | 1.0-3.0MM |
Core | 10-150MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
30 | 10.5 |
45 | 11 |
70 | 12.5 |
105 | 13.5 |
130 | 15 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Flat compressive strength | ≥0.18MPa | GB/T1453 | |||
2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 | |||
3 | Tensile strength | ≥0.85MPa | GB/T1452 | |||
4 | Barcol hardness | ≥42 | GB/T3854 | |||
5 | Thermal conductivity | ≤0.025W/m.k | GB/T10295 | |||
Note:FRP I beam is used in panels for tensile strength test while no I beams in panels in compressive strength tests.Test conditions of termal conductivity:25℃ average temperature and 15℃ temperature difference. | ||||||
Item | FRP XPS composite panel |
Core Material | XPS foam,Extrude Polystyrene |
FRP skin | 1.0-3.0MM |
Core | 10-150MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
50 | 8.35 |
60 | 8.7 |
70 | 9.05 |
80 | 9.4 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Flat compressive strength | ≥0.25MPa | GB/T1453 | |||
2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 | |||
3 | Tensile strength | ≥0.75MPa | GB/T1452 | |||
4 | Barcol hardness | ≥42 | GB/T3854 | |||
5 | Thermal conductivity | ≤0.03W/m.k | GB/T10295 | |||
Item | FRP PP composite panel |
Core Material | PP Honeycomb |
FRP skin | 1.0-3.0MM |
Core | 10-100MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
15 | 7.5 |
18 | 8 |
21 | 8.5 |
Main Performance data | ||||||
No | Item | Test results | Test method | |||
1 | Static strength | ≥25MPa | GB/T17657 | |||
2 | Elastic modulus | ≥2000MPa | ||||
3 | Flat compressive strength | ≥1.2MPa | GB/T1453 | |||
4 | Edgewise compressive strength | ≥10.5MPa | GB/T1454 | |||
5 | Tensile strength | ≥0.5MPa | GB/T1452 | |||
6 | Barcol hardness | ≥42 | GB/T3854 | |||
Item | FRP Plywood composite panel |
Core Material | Plywood |
FRP skin | 1.0-3.0MM |
Core | 10-100MM |
Witdth | Max 3200MM |
Length | Max 16500MM |
Color | White/colored |
Thickness (mm) | Weight(kg/㎡) |
15 | 12 |
18 | 14 |
21 | 16 |
Main Performance data | ||||||||
No | Item | Test results | Test method | |||||
1 | Static strength | Along wood grain | ≥60MPa | GB/T17657 | ||||
Cross wood grain | ≥50MPa | |||||||
2 | Elastic modulus | Along wood grain | ≥6000MPa | |||||
Cross wood grain | ≥4800MPa | |||||||
3 | Edgewise compressive strength | ≥35MPa | GB/T1454 | |||||
4 | Flat tension strength | ≥1.2MPa | GB/T1452 | |||||
5 | Barcol hardness | ≥42 | GB/T3854 | |||||
6 | Water boiling Test | No delamination in 72-hour water boiling | GB/T17567 | |||||
Yangzhou Wansheng Industry Co.,Ltd. established in 2000. We have more than 20 years working experience in FRP products. The company has a registered capital of 214.18 million Yuan,an area of 4,000 square meters, a total assets of about 120 million Yuan and more than 400 employees.
