Products Description

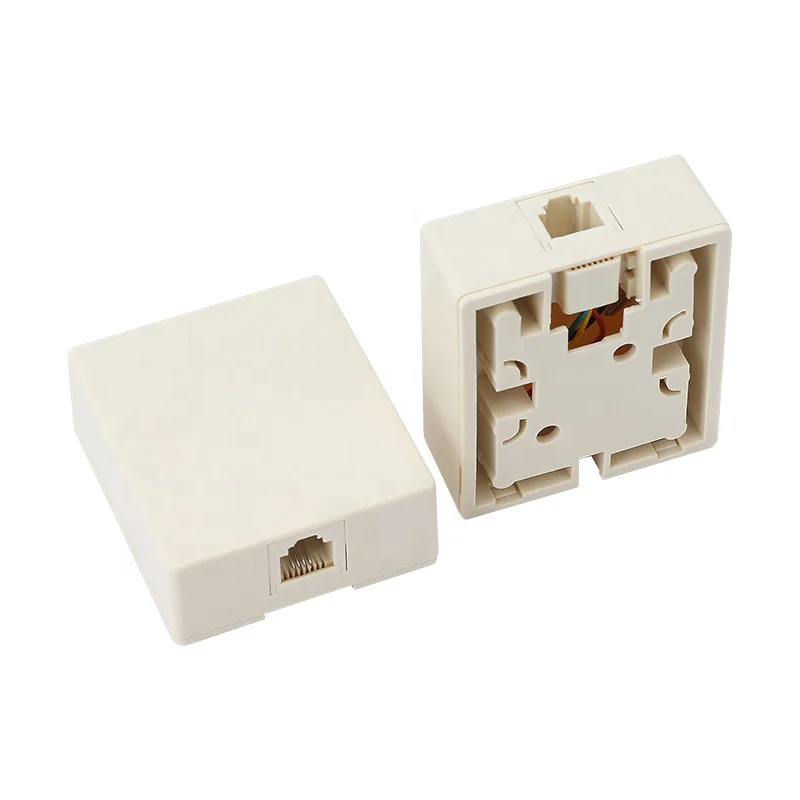

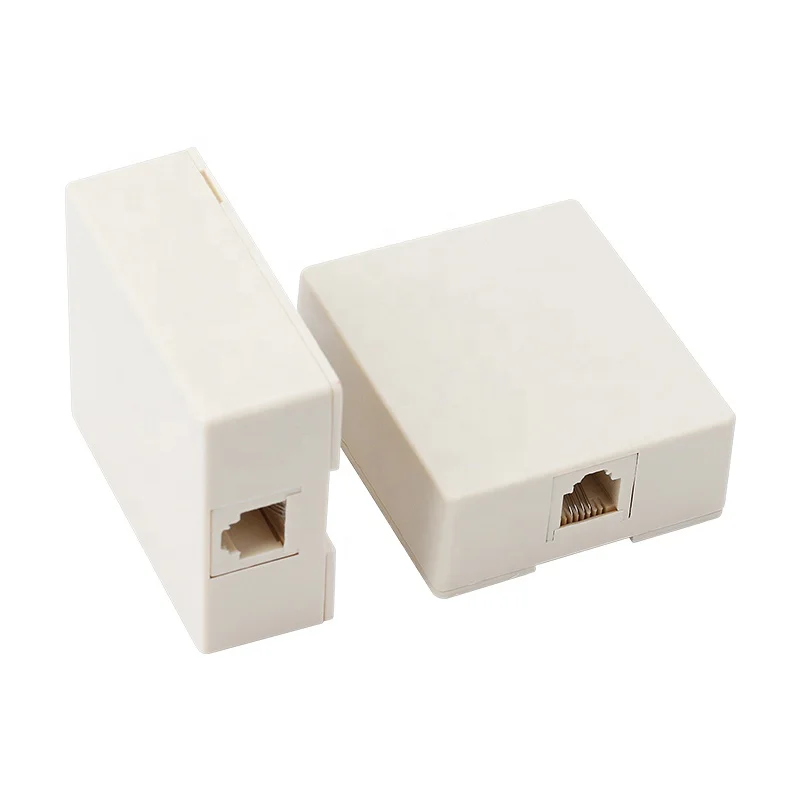

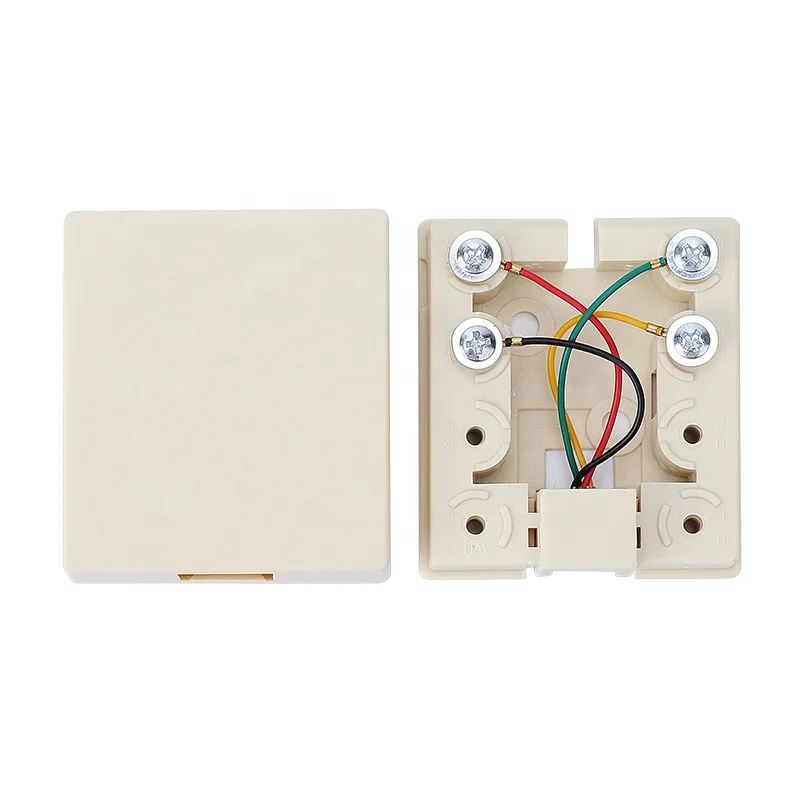

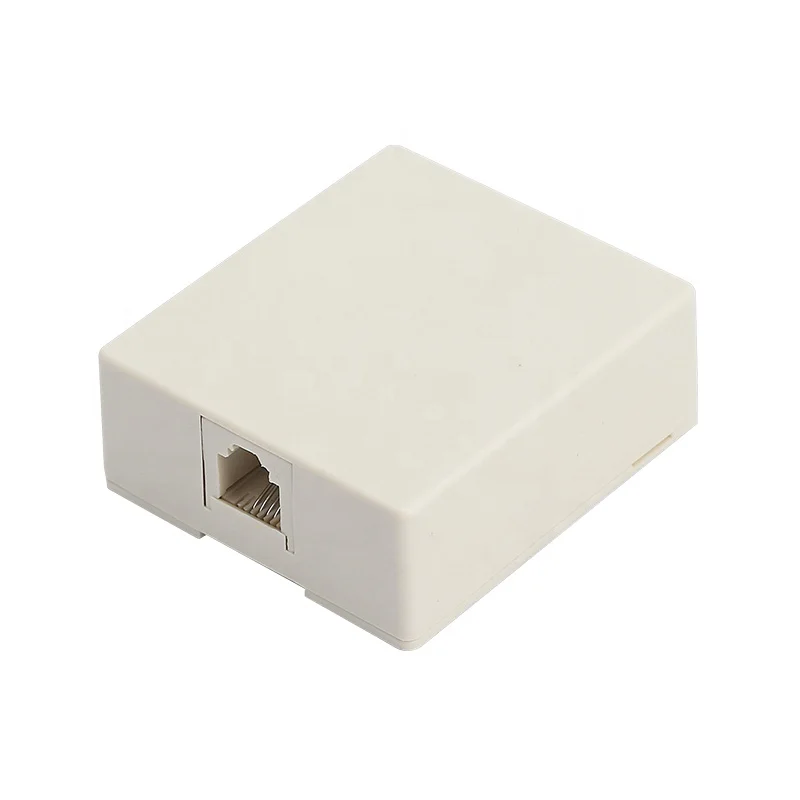

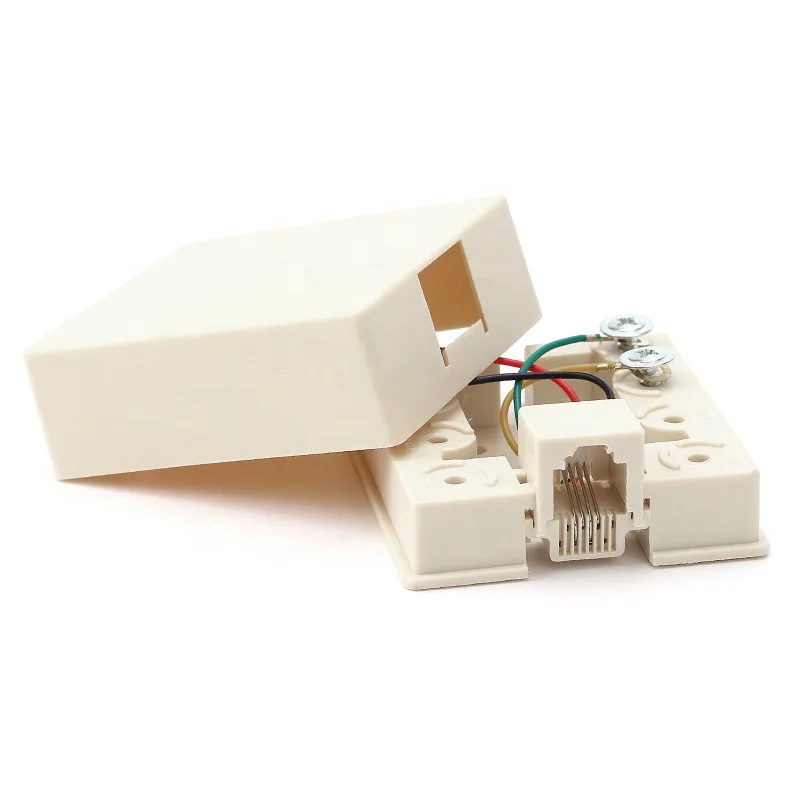

Surface Mounting Telephone Box
1.Model Number:LK0FPU3016601.
2.Single port RJ11/6P6C jack.
3.With gel including contact and conductor.
4.Waterproof,Tooless type.
1.Specifications
1).Gel filled inside
2).Dimension:55×50×22mm.
2. Mechanical Performance
1).Socket Material:PC(UL94V-0).
2).Box Material:ABS.
3).Oxygen Number:30%.
4).Chemical Resistance Corrosion:Corrosion Test is in compliance with IEC-60068-2-11 standard,contact resistance,
following completion of the test,not increase for more than1 Milliohm with regard to the initial contact resistance quantity.
5).Finishing:6u",15u",30u",50u".
6).Contact Pressure(plug termination side):4.5-5.5N/sp.M.
Treatment Porosity:Fill with gel.
Male Plug Introduction:RJ11 6P2C.
Shocks Resistance:55-64N/sp.M.
Free Drop Test:1.5m Height.
Insertion Force:20-50N.
3.Electrical Performance
Insulation Resistance:R≥ 1000M Ohm.
High Current Holding:8/20us Wave(10KV).
Contact Resistance:R≤ 5m ohm.
Dielectric Strength:1000V DC 60s can't spark over and haven't fly arc.
4.Environment Characteristic
Storage Temperature Range:-40+90ºC.
Operating Temperature Range:-30+80ºC.
Relative Humidity:<95%(at20).
Atmospheric:Pressure:70KPa106KPa.
Packing
Plastic bag+Carton Box or Special packing are available.
