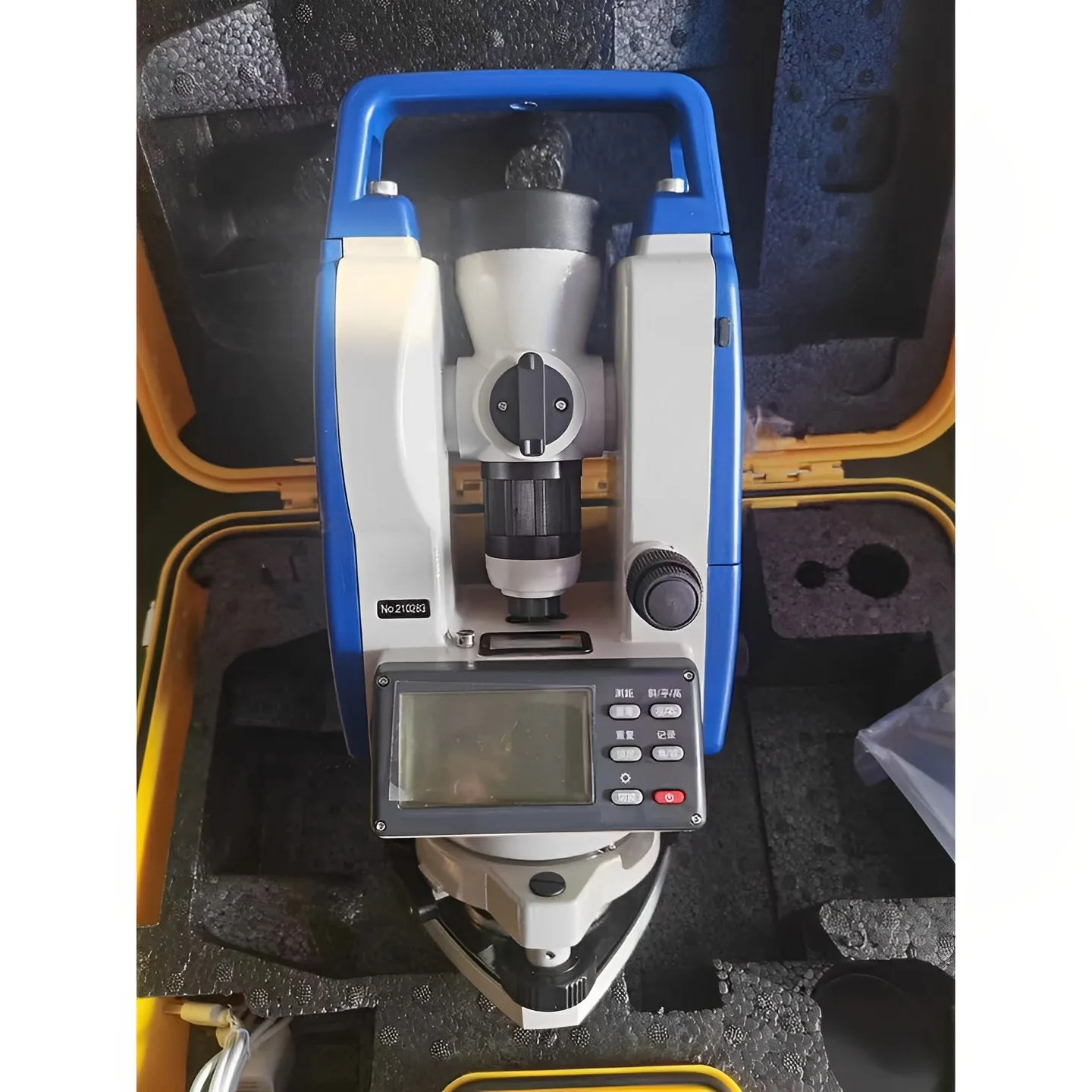

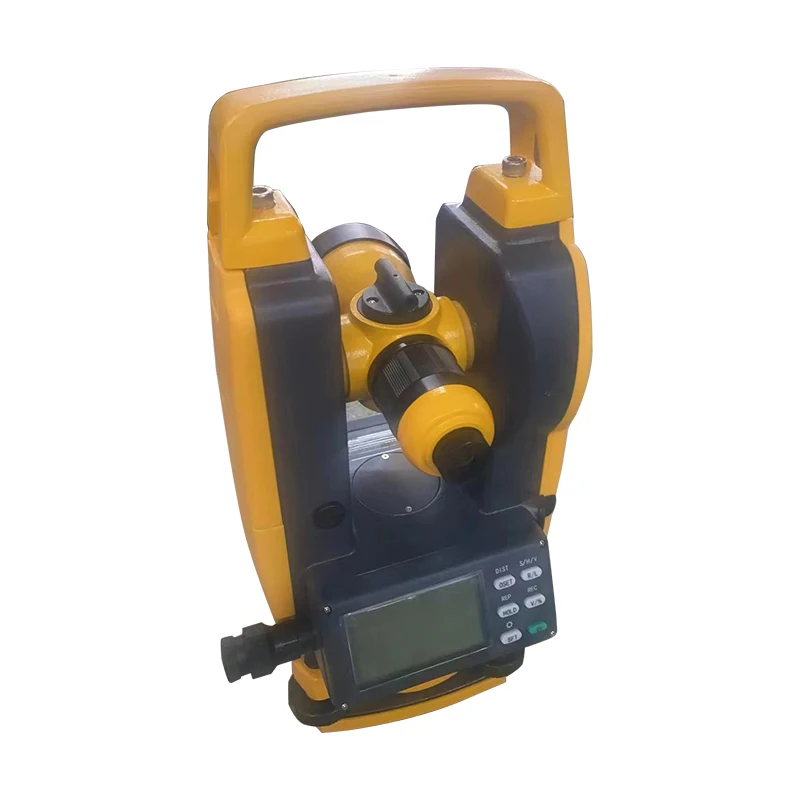

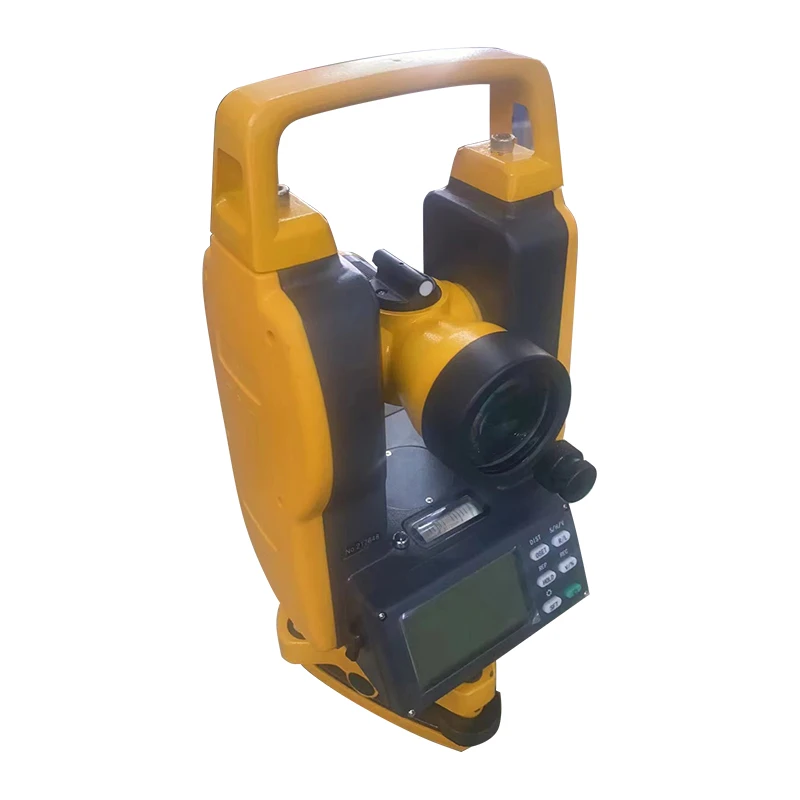

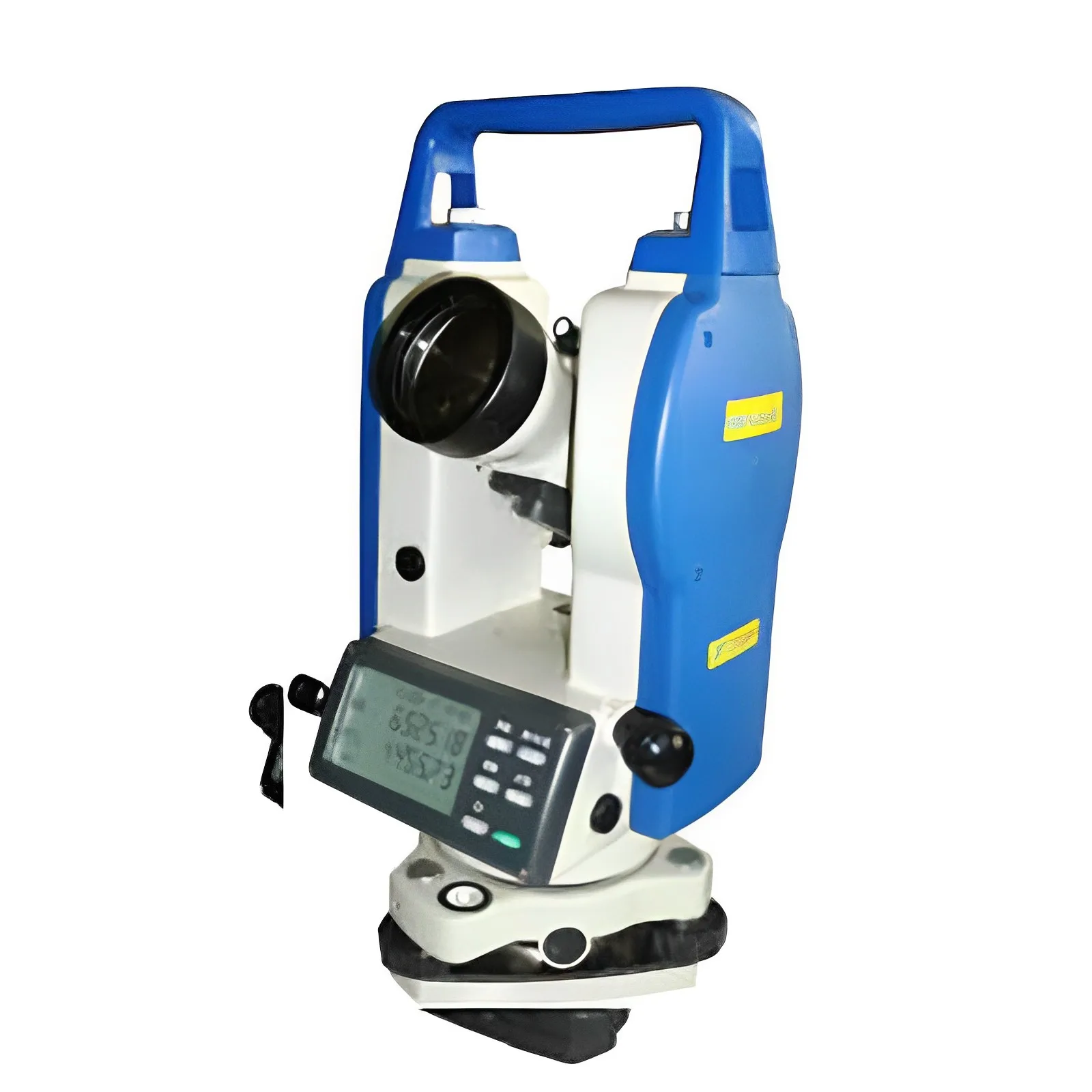

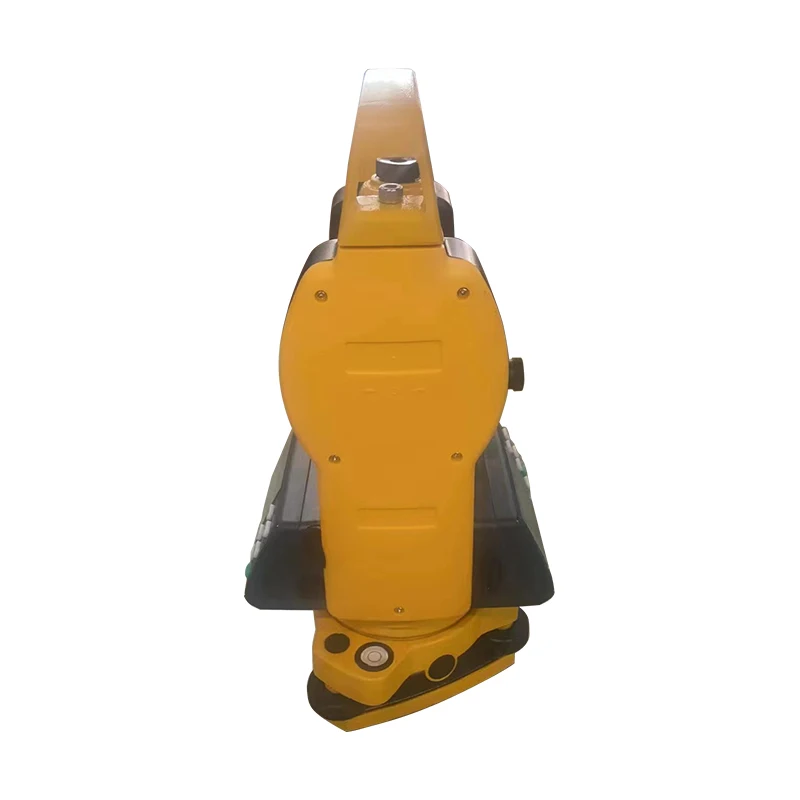

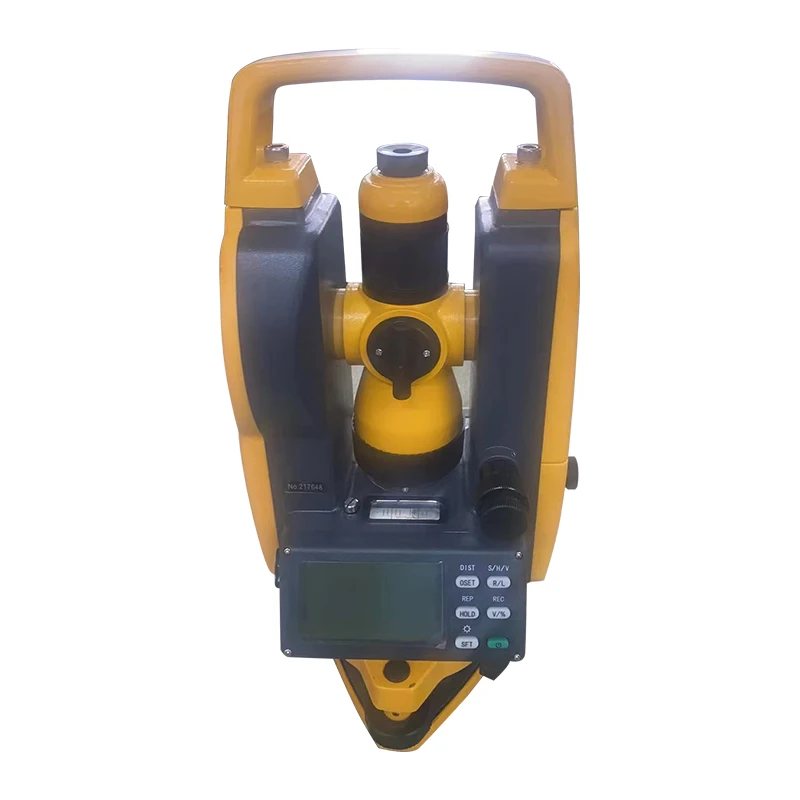

Высокоточный лазерный теодолит цифровой электронный

Цена:325,00 $ - 375,00 $*

Количество:

Products Description

Product Paramenters

Model	FDT2CAM
Telescope
Barrel length	156mm
Imaging	Front view
Objective lens aperture	45mm
Magnification	30X
Resolution	3.5''
Field of view	1°30''
Minimum Distance of View	1.3m
Distance multiplied by a constant	100
Sight distance plus constant	0
Goniometric section
Measurement method	Absolute code
Reading method	Horizontal dial: opposite diameter Vertical dial: single sided
Reading method
Minimum reading	1"/5"
Accuracy	2"
Display screen	Double-sided display
Compensator
Tilt sensor	Available
Compensation range	±3'
Communication port
Communication standards	RS232C
EDM communication interface	Yes
Data output interface	Yes
Memory points	500 points
Counterpoint
Imaging	Positive Image
Magnification	3X
Field of view	5°
Focusing range	0.5~
Spotter accuracy	±1mm
Base
Base Type	Removable base
Power supply
Battery	Rechargeable / AA alkaline batteries 4 pcs
Operating time	Approx. 20 hours
New features	Laser Vision Built-in battery
New features	Laser Vision Built-in battery
Other
Operating temperature	-20°C~+50°C
Net weight of the instrument	4.8kg
