ISO2531 EN545 EN598 DCI трубы хорошей прочности с цементной подкладкой Tyton Socket Spigot из ковкого
- Категория: Iron >>>
- Поставщик: Syi,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 928.10 $* | 974.69 $* |
| Aug-18-2025 | 920.14 $* | 966.78 $* |
| Jul-18-2025 | 772.64 $* | 811.21 $* |
| Jun-18-2025 | 905.84 $* | 950.80 $* |
| May-18-2025 | 788.21 $* | 827.5 $* |
| Apr-18-2025 | 889.48 $* | 933.20 $* |
| Mar-18-2025 | 881.25 $* | 925.33 $* |
| Feb-18-2025 | 874.21 $* | 918.72 $* |
| Jan-18-2025 | 866.68 $* | 909.89 $* |
Характеристики

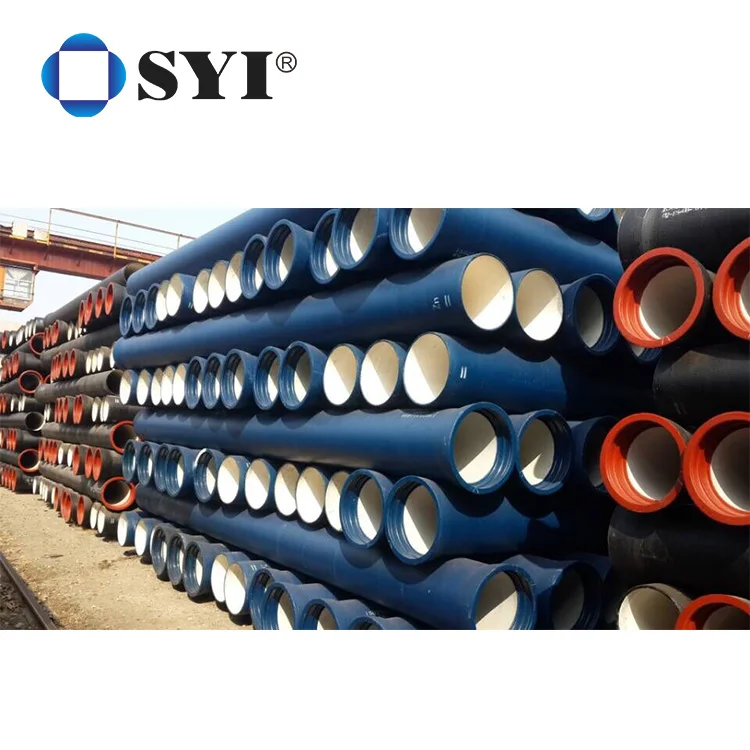

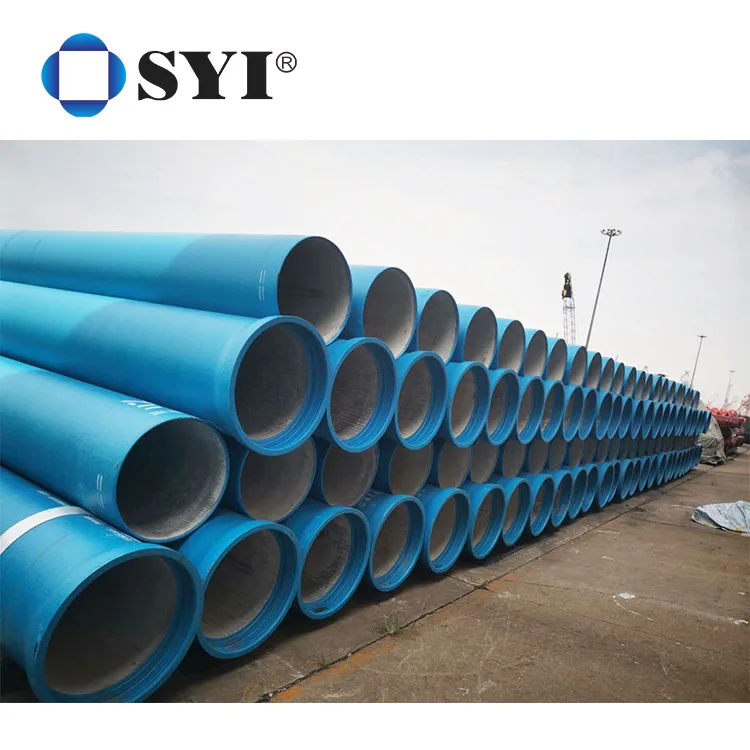

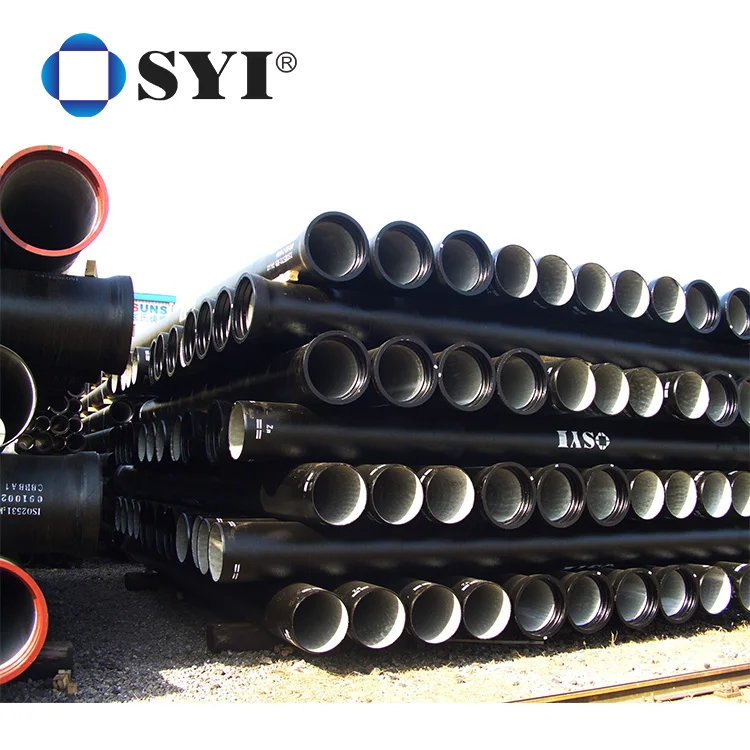

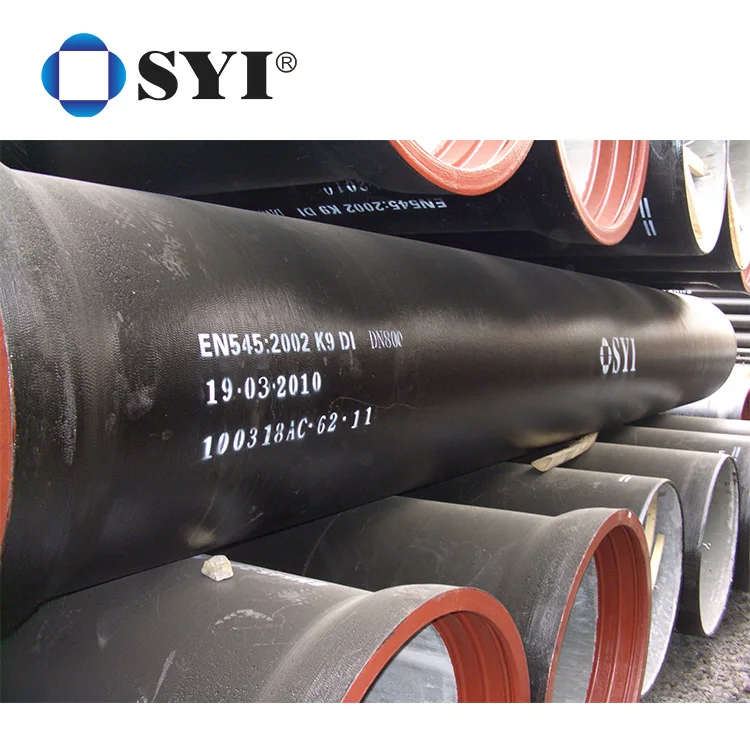

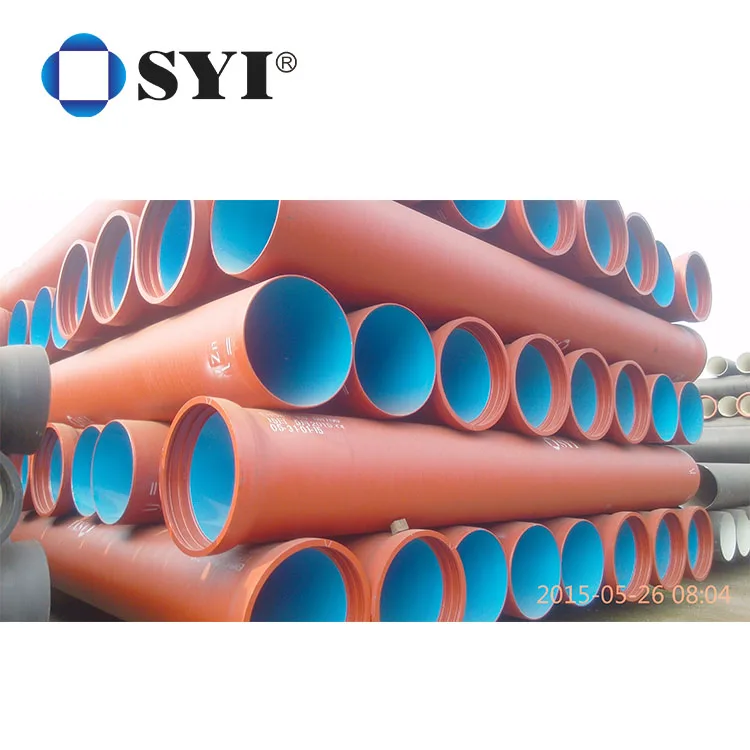

ISO 2531 EN 545 EN598 Centrifugally Cast Ductile Iron Tyton Push-in Joint Socket and Spigot Pipe
Product Description
SYI can supply the Centrifugally Cast Ductile Iron Tyton Push-in Joint Socket and Spigot Pipe according to ISO2531, EN545, EN598,from DN80 to DN2000, including K7, K8, K9, K10,K12, K14, C20, C25, C30, C40, C50, C64, C100, with the coating of Metallic Zinc (130-400g/m2), Zn-Al Alloy 85/15, Black Bitumen coating, Red/Blue Epoxy coating, Cement lining or PU (polyurethane) coating.
Centrifugally Cast Ductile Iron Pipe is a kind of pipe made from spherical graphite cast iron by centrifugal spinning process. The pipes, which can convey many fluid media such as water, oil and gas, are widely used in various
pipeline projects for metallurgy, mine, water conservancy, petroleum and urban public service utility.
Possessing high strength, good toughness as steel and better corrosion resistance than steel, the ductile iron pipe is the ideal substitute for gray cast iron pipe and common steel pipe. In addition, the DI pipes are produced with good straightness, even wall thickness, high dimension accuracy, smooth surface finishing and remarkable mechanical properties, plus with firmly sticking internal & external coating layer. Flexible Push-in joint and rubber gasket are used resulting in convenient installation of pipelines.
By combining amazing ductility and high tensile strength to the well established corrosion resistance qualities of ductile iron,this easily handled pipe can be readily tapped, drilled or welded. Ductile Iron Pipes offer unsurpassed benefits for applications in water supply, sewerage and gas mains by their reputation by actual performance!
Push-in Flexible Joint (Tyton) can be assembled by pushing the spigot through the gasket in the socket of the mating component, and permits significant angular deflextion both during and after installation and which can accept a light offset of the centreline.
pipeline projects for metallurgy, mine, water conservancy, petroleum and urban public service utility.
Possessing high strength, good toughness as steel and better corrosion resistance than steel, the ductile iron pipe is the ideal substitute for gray cast iron pipe and common steel pipe. In addition, the DI pipes are produced with good straightness, even wall thickness, high dimension accuracy, smooth surface finishing and remarkable mechanical properties, plus with firmly sticking internal & external coating layer. Flexible Push-in joint and rubber gasket are used resulting in convenient installation of pipelines.
By combining amazing ductility and high tensile strength to the well established corrosion resistance qualities of ductile iron,this easily handled pipe can be readily tapped, drilled or welded. Ductile Iron Pipes offer unsurpassed benefits for applications in water supply, sewerage and gas mains by their reputation by actual performance!
Push-in Flexible Joint (Tyton) can be assembled by pushing the spigot through the gasket in the socket of the mating component, and permits significant angular deflextion both during and after installation and which can accept a light offset of the centreline.
Own the advanced and competed set of equipments, such as the medium frequency induction furnace, high-speed centrifugal casting machine, gas-cooling annealing, and automatic zinc spraying, hydraulic pressure testing, and lining with cement lines, SYI has an annual production capacity of 200000 tons since DN80 to DN2000, and it is still developing all the time.
Strict process and operating regulations together with perfect quality assurance system making every production step under control. All the products are subject to tests and inspections including composition analysis, metallographic examination, dimension & surface finish inspection, ring test, tensile test, hardness test, hydrostatic test, lining and coating test to be sure that the products meet the requirements of the standards.
Strict process and operating regulations together with perfect quality assurance system making every production step under control. All the products are subject to tests and inspections including composition analysis, metallographic examination, dimension & surface finish inspection, ring test, tensile test, hardness test, hydrostatic test, lining and coating test to be sure that the products meet the requirements of the standards.
Tyton Push-in Joint Socket and Spigot Pipe Class 20-100 | ||||||||||||||||||
DN | DE | Iron Wall Thickness | ||||||||||||||||
Nominal | Limit Deviations | Class 20 | Class 25 | Class 30 | Class 40 | Class 50 | Class 64 | Class 100 | ||||||||||
40 | 56 | -0.833333333 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
50 | 66 | -0.833333333 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
60 | 77 | -0.833333333 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
65 | 82 | -0.833333333 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
80 | 98 | -0.37037037 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
100 | 118 | -0.357142857 | 3 | 3.5 | 4 | 4.7 | ||||||||||||
125 | 144 | -0.357142857 | 3 | 3.5 | 4 | 5 | ||||||||||||
150 | 170 | -0.344827586 | 3 | 3.5 | 4 | 5.9 | ||||||||||||
200 | 222 | -0.333333333 | 3.1 | 3.9 | 5 | 7.7 | ||||||||||||
250 | 274 | -0.322580645 | 3.9 | 4.8 | 6.1 | 9.5 | ||||||||||||
300 | 326 | -0.303030303 | 4.6 | 5.7 | 7.3 | 11.2 | ||||||||||||
350 | 378 | -0.294117647 | 4.7 | 5.3 | 6.6 | 8.5 | 13 | |||||||||||
400 | 429 | -0.285714286 | 4.8 | 6 | 7.5 | 9.6 | 14.8 | |||||||||||
450 | 480 | -0.277777778 | 5.1 | 6.8 | 8.4 | 10.7 | 16.6 | |||||||||||
500 | 532 | -0.263157895 | 5.6 | 7.5 | 9.3 | 11.9 | 18.3 | |||||||||||
600 | 635 | -0.25 | 6.7 | 8.9 | 11.1 | 14.2 | 21.9 | |||||||||||
700 | 738 | -0.23255814 | 6.8 | 7.8 | 10.4 | 13 | 16.5 | |||||||||||
800 | 842 | -0.222222222 | 7.5 | 8.9 | 11.9 | 14.8 | 18.8 | |||||||||||
900 | 945 | -0.208333333 | 8.4 | 10 | 13.3 | 16.6 | ||||||||||||
1000 | 1048 | -0.2 | 9.3 | 11.1 | 14.8 | 18.4 | ||||||||||||
1100 | 1152 | -0.166666667 | 8.2 | 10.2 | 12.2 | 16.2 | 20.2 | |||||||||||
1200 | 1255 | -0.172413793 | 8.9 | 11.1 | 13.3 | 17.7 | 22 | |||||||||||
1400 | 1462 | -0.151515152 | 10.4 | 12.9 | 15.5 | |||||||||||||
1500 | 1565 | -0.142857143 | 11.1 | 13.9 | 16.6 | |||||||||||||
1600 | 1668 | -0.135135135 | 11.9 | 14.8 | 17.7 | |||||||||||||
1800 | 1875 | -0.12195122 | 13.3 | 16.6 | 19.9 | |||||||||||||
2000 | 2082 | -0.111111111 | 14.8 | 18.4 | 22.1 | |||||||||||||
NOTE1: The bold figures indicate the standard products which are suitable for most applications. The boxes without figures represent products which are outside the scope of this standard.
NOTE 2: For smaller DN, the minimum pipe wall thickness is governed by a combination of manufacturing constraints, structural performance and installation and handing requirements.
NOTE 3: The minimum thickness is given for non-restrained joints(see 4.2).
NOTE 4: Pressure classes between 50 and 100 may be supplied by interpolation on request.
NOTE 2: For smaller DN, the minimum pipe wall thickness is governed by a combination of manufacturing constraints, structural performance and installation and handing requirements.
NOTE 3: The minimum thickness is given for non-restrained joints(see 4.2).
NOTE 4: Pressure classes between 50 and 100 may be supplied by interpolation on request.
Transportation
Transporting:
■ DN80-DN300: Usually by bundles;
■ DN350-DN2000: Usually by bulk;
■ During transportation, the pipes are fixed by timbers, blocks, nails & steel ropes with cushions at the side in possible moving directions;
■ Bulk or containers for shipment, and trucks or train for inland transport.
Project
SYI Pipeline Project in Mongolia
SYI Pipeline Project in Uganda
SYI Pipeline Project in Costa Rica
SYI Pipeline Project in Uganda
SYI Pipeline Project in Cyprus
SYI Pipeline Project in MADAGASCAR
Government Audits
Company Profile
SYI Pipeline Corporation - a Proud Member of SYI Group - manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Restrained Adaptors, Dismantling Joints, Clamps, Valves, Fire Hydrants and etc.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of
accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
Since 2009, SYI Pipeline has developed from a single pipes & fittings seller to a professional project solution provider,
including One-Stop Shop of pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, water meters and all kinds of
accessories.
SYI Pipeline has an annual supply capability of 200,000 tons, and it is still developing all the time.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier of many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Along with products themselves, SYI Pipeline also helps customers with products instructions and installation guide.
SYI products have served 116 countries worldwide up to now!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Most of these customers cooperated with SYI for more than 20 years!
We value long term cooperation relationship mostly!
Value Added Services
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
A dedicated Customer Service team with 50 staff covering Marketing, Sales, Technical, Production, Inspection, Logistics and Management.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
Free catalogues, certificates.
Individual QCP.
MTC with pictures and videos.
Free Extra Accessories and Repair Tools.
1 specialized Customer Service Staff to follow your each single project.
Professional Logistic Services.
Free Installation Instruction, Product Standards and Inspection Certificates.
