Характеристики

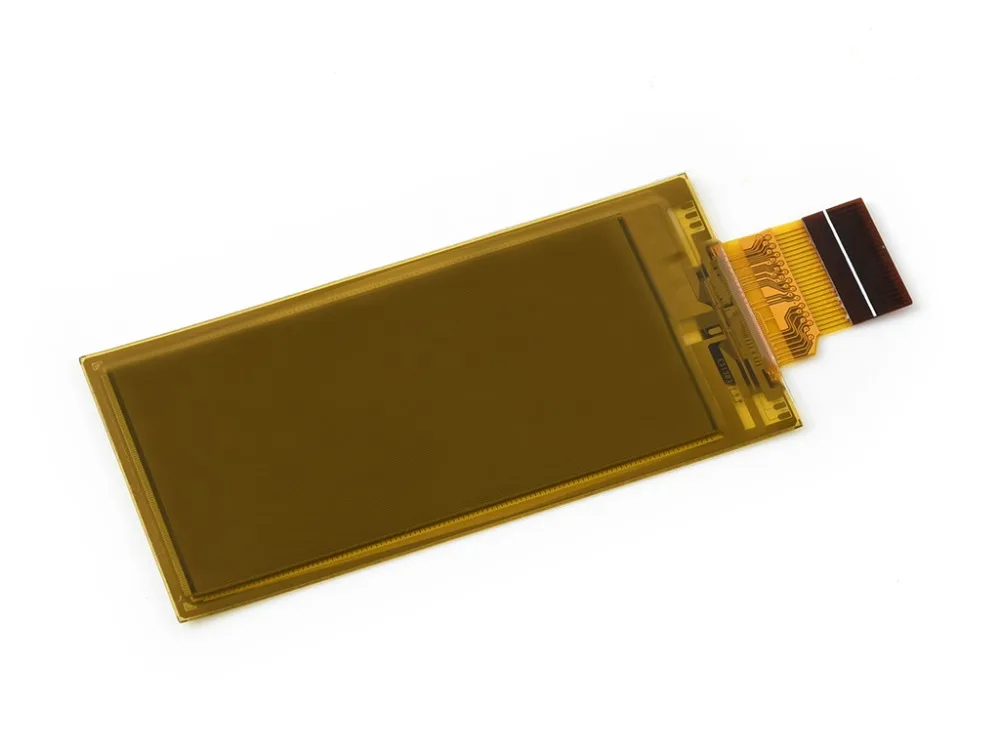

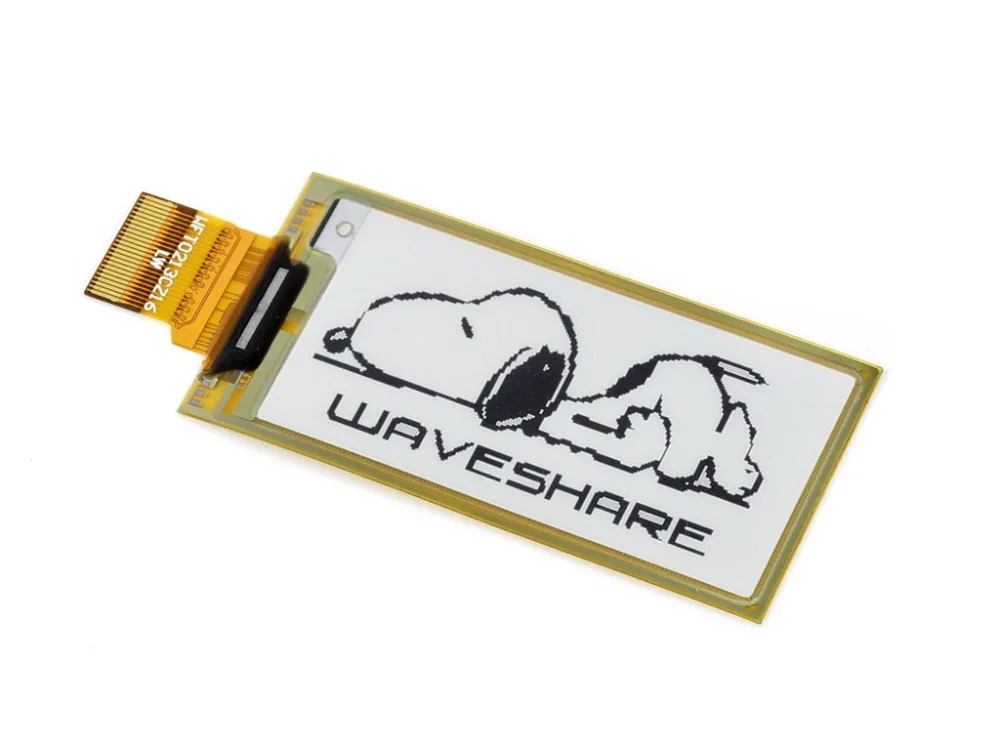

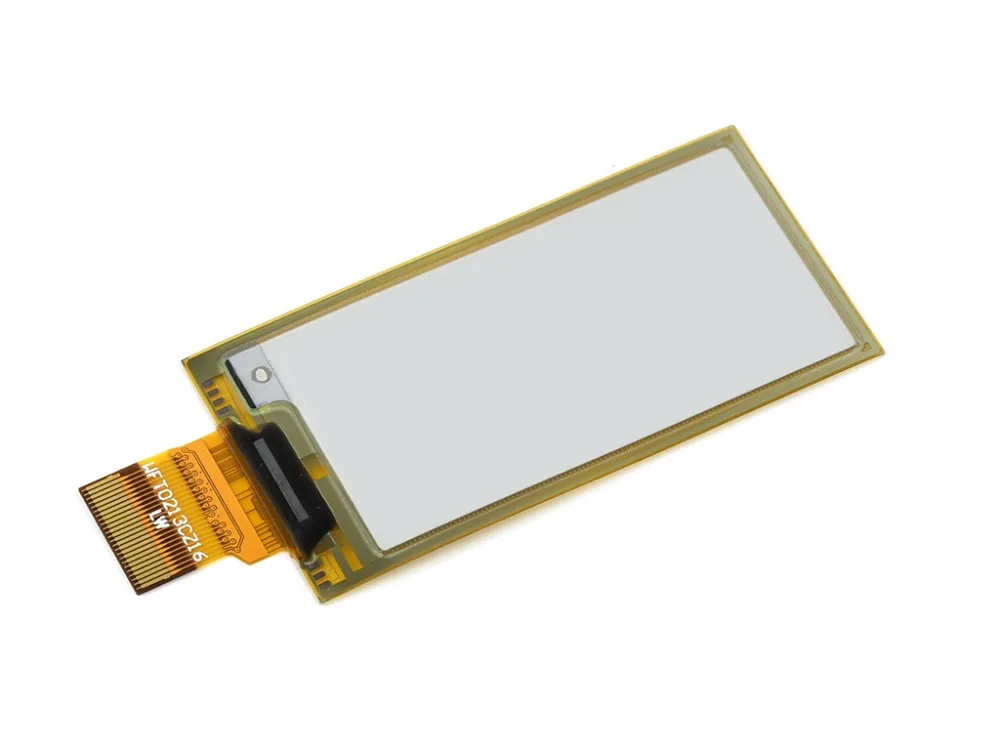

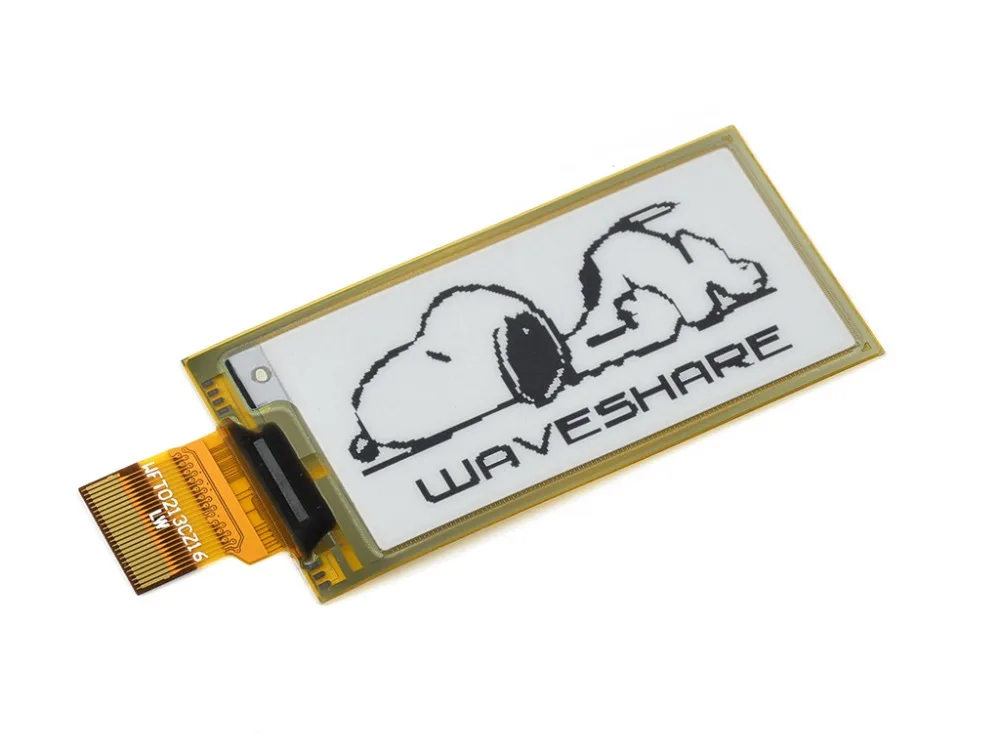

212x104, 2.13inch flexible E-Ink raw display, black/white dual-color, SPI interface, without PCB

Overview

This is a flexible E-Ink raw display, 2.13inch, 212x104 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

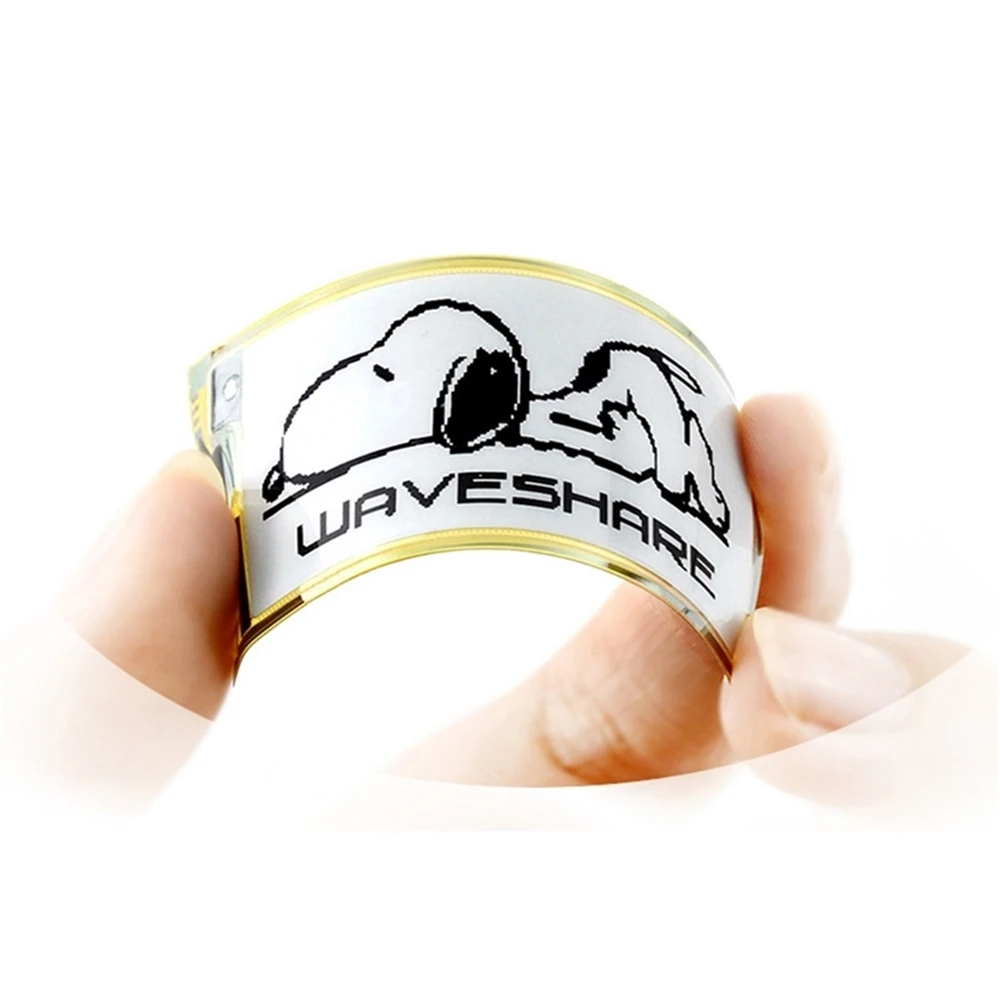

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.

Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.

Features

  • Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)

  • No backlight, keeps displaying last content for a long time even when power down

  • Ultra low power consumption, basically power is only required for refreshing

  • Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V

  • Interface: 3-wire SPI, 4-wire SPI

  • Outline dimension: 59.2mm 29.2mm 0.3mm

  • Display size: 23.71mm 48.55mm

  • Dot pitch: 0.229 0.228

  • Resolution: 212 104

  • Display color: black, white

  • Grey level: 2

  • Full refresh time: 2s

  • Refresh power: 26.4mW(typ.)

  • Standby power: <0.017mW

  • Viewing angle: >170°

Development Resources

Wiki :www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(D)

PACKAGE CONTENT

Weight:0.001 kg

  1. 2.13inch e-Paper (D) x1

1

Recommended

To fastly get started with this raw display, please consider the following driver boards:

  • e-Paper Driver HAT(Universal)

  • e-Paper Shield(Arduino/NUCLEO)

  • e-Paper ESP8266 Driver Board(WiFi)

  • e-Paper ESP32 Driver Board(WiFi / Bluetooth)

  • e-Paper NB-IoT/GPRS HAT(NB-IoT / eMTC / GPRS)

Selection Guide

PART NUMBER

COLORS

GREY SCALE

RESOLUTION

DISPLAY SIZE (MM)

OUTLINE DIMENSION (MM)

FULL REFRESH TIME (S)

PARTIAL REFRESH

INTERFACE

1.54inch e-Paper

black, white

2

200 200

27.60 27.60

31.8 37.3

2

SPI

1.54inch e-Paper (B)

red, black, white

2

200 200

27.60 27.60

31.8 37.3

8

SPI

1.54inch e-Paper (C)

yellow, black, white

2

152 152

27.51 27.51

31.8 37.3

27

SPI

2.13inch e-Paper

black, white

2

250 122

48.55 23.71

59.2 29.2

2

SPI

2.13inch e-Paper (B)

red, black, white

2

212 104

48.55 23.71

59.2 29.2

15

SPI

2.13inch e-Paper (C)

yellow, black, white

2

212 104

48.55 23.71

59.2 29.2

15

SPI

2.13inch e-Paper (D)

black, white

2

212 104

48.55 23.71

59.2 29.2

2

SPI

2.7inch e-Paper

black, white

2

264 176

57.29 38.19

70.4 45.8

6

SPI

2.7inch e-Paper (B)

red, black, white

2

264 176

57.29 38.19

70.4 45.8

15

SPI

2.9inch e-Paper

black, white

2

296 128

66.89 29.05

79.0 36.7

2

SPI

2.9inch e-Paper (B)

red, black, white

2

296 128

66.89 29.05

79.0 36.7

15

SPI

2.9inch e-Paper (C)

yellow, black, white

2

296 128

66.89 29.05

79.0 36.7

15

SPI

2.9inch e-Paper (D)

black, white

2

296 128

66.90 29.06

79.0 36.7

2

SPI

4.2inch e-Paper

black, white

2

400 300

84.80 63.60

90.1 77.0

4

SPI

4.2inch e-Paper (B)

red, black, white

2

400 300

84.80 63.60

90.1 77.0

15

SPI

4.2inch e-Paper (C)

yellow, black, white

2

400 300

84.80 63.60

90.1 77.0

15

SPI

5.83inch e-Paper

black, white

2

600 448

118.80 88.26

125.4 99.5

3.5

SPI

5.83inch e-Paper (B)

red, black, white

2

600 448

118.80 88.26

125.4 99.5

14

SPI

5.83inch e-Paper (C)

yellow, black, white

2

600 448

118.80 88.26

125.4 99.5

26

SPI

6inch e-Paper

black, white

16

800 600

122.40 90.60

138.4 101.8

<1

Parallel port

7.5inch e-Paper

black, white

2

800 480

163.20 97.92

170.2 111.2

5

SPI

7.5inch e-Paper (B)

red, black, white

2

640 384

163.20 97.92

170.2 111.2

16

SPI

7.5inch e-Paper (C)

yellow, black, white

2

640 384

163.20 97.92

170.2 111.2

16

SPI

7.8inch e-Paper

black, white

16

1872 1404

158.18 118.64

173.8 127.6

<1

Parallel port

9.7inch e-Paper

black, white

16

1200 825

202.8 139.43

218.8 156.43

<1

Parallel port

10.3inch e-Paper (D)

black, white

16

1872 1404

209.66 157.25

227.7 165.8

<1

Parallel port

12.48inch e-Paper

black, white

2

1304 984

252.98 190.90

261.5 211.0

<8

SPI

12.48inch e-Paper (B)

red, black, white

2

1304 984

252.98 190.90

261.5 211.0

<16

SPI




Please feel free to contact us if you have any problems.

If you need to adjust any information, pls contact us in advance. It's our pleasure to serve you! We appreciate your business!!O( _ )O~
