Электрический туристический автомобиль с поддержкой под заказ шина 72 В/96 в литий-ионный аккумулятор электрический
- Категория: Sightseeing Bus & Car >>>
- Поставщик: Wuxi,Yaxi,Electric,Vehicle,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7735.58 $* | 8122.38 $* |
| Aug-20-2025 | 7670.71 $* | 8054.1 $* |
| Jul-20-2025 | 6435.2 $* | 6757.85 $* |
| Jun-20-2025 | 7540.1 $* | 7917.43 $* |
| May-20-2025 | 6565.43 $* | 6893.9 $* |
| Apr-20-2025 | 7410.2 $* | 7781.16 $* |
| Mar-20-2025 | 7345.24 $* | 7712.26 $* |
| Feb-20-2025 | 7280.29 $* | 7644.22 $* |
| Jan-20-2025 | 7215.67 $* | 7576.58 $* |
Характеристики
New Arrivals
Coming Soon！
The latest style of customizable 72V lithium battery golf cart & hunting vehicle will be released in March this year! Welcome to send inquiries!
Product Description
Specification
item | value | |||||
Power | Electric | |||||
Place of Origin | China | |||||
Brand Name | Yaxi | |||||
Battery | 72V168Ah Li-ion battery | |||||
Color | Customized | |||||
Charger | On-board Input 110V-240V | |||||
Motor Power | 5kw Ac Motor | |||||
Driving mileage(km) | 100-120 KM | |||||
SPECIFICATIONS OF Lithium Battery Powered 8 Seats Electric Mini City Shuttle Bus | ||||||
Key Components | Controller | 72V/400A, APP adjusted | ||||
Motor | 5KW AC motor | |||||
Battery | 72V160AH Lithium Battery | |||||
Performance | Passenger Capacity | 8 | ||||
and | Range (Loaded) * | 100-120km | ||||
Dimensions | Max.speed | 32km/h | ||||
Min. Turning Radius | 4m | |||||
Max. Gradeability | 20%-25% | |||||
Max. Loading Weight | 640kgs | |||||
Net Weight | 970kgs | |||||
Overall Dimensions | 4250X1535X2070mm | |||||
Body and Frame | ||||||
Frame (Chassis) | Welded steel framework, with anti-rust treatment of sand blasting and painting | |||||
Body and Roof | FRP body, seat pot and roof | |||||
Windshield | Laminated glass, with wiper | |||||
Roof supports | Aluminum | |||||
Seat | High back seat with head rest for driver, bench seat for passengers | |||||
Floor | Anti-slip rubber floor mat | |||||
Dashboard | FRP, with F/R Switch, Emergency Stop Switch, Digital Meter | |||||
Side trim | Aluminum alloy | |||||
Sider mirror | 2pcs, one long arm, one small foldable one | |||||
Electric System | ||||||
Lighting system and horn | 2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, 1 reverse light, 1 rear fog light, with voltage reducer (converting from 48V to 12V), electric horn. | |||||
Digital Meter | With battery power meter, amperemeter, voltmeter, speedometer, odometer, time, F/R indicator, turn signal indicator | |||||
Audio system | CD player and radio, with 4 speakers | |||||
Combination switch | Light switch, wiper switch, horn switch | |||||
Backup Buzzer | 12V | |||||
Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 25A | |||||
Steering, Brake, Transmission and Suspension | ||||||
Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function, with EPS | |||||
Brake system | 4 wheel hydraulic drum brake with vacuum booster, hand park brake | |||||
Accelerator | Stepless speed change | |||||
Driving mode | Rear axle two stage deceleration, motor direct driving | |||||
Rear axle | Integrated | |||||
Suspension system | Front independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber | |||||
Wheel & Tyre | 4J*13 Steel rim & 165R13C 8PR Tire | |||||
Personalized private customization
We are a manufacturer specializing in personalized customization and modification, and we are the first manufacturer in the world to mass-produce 72V lithium battery golf carts. Our product prices range from 2,800 US dollars to 6,500 US dollars, and we can realize complete vehicle customization.
Details Images
Optional Accessories For Choose
As a factory with nearly 40 years of experience in car manufacturing, Yaxi has rich supply chain resources, can meet most of customers' customization needs, and has rich OEM experience.
Our Advantages

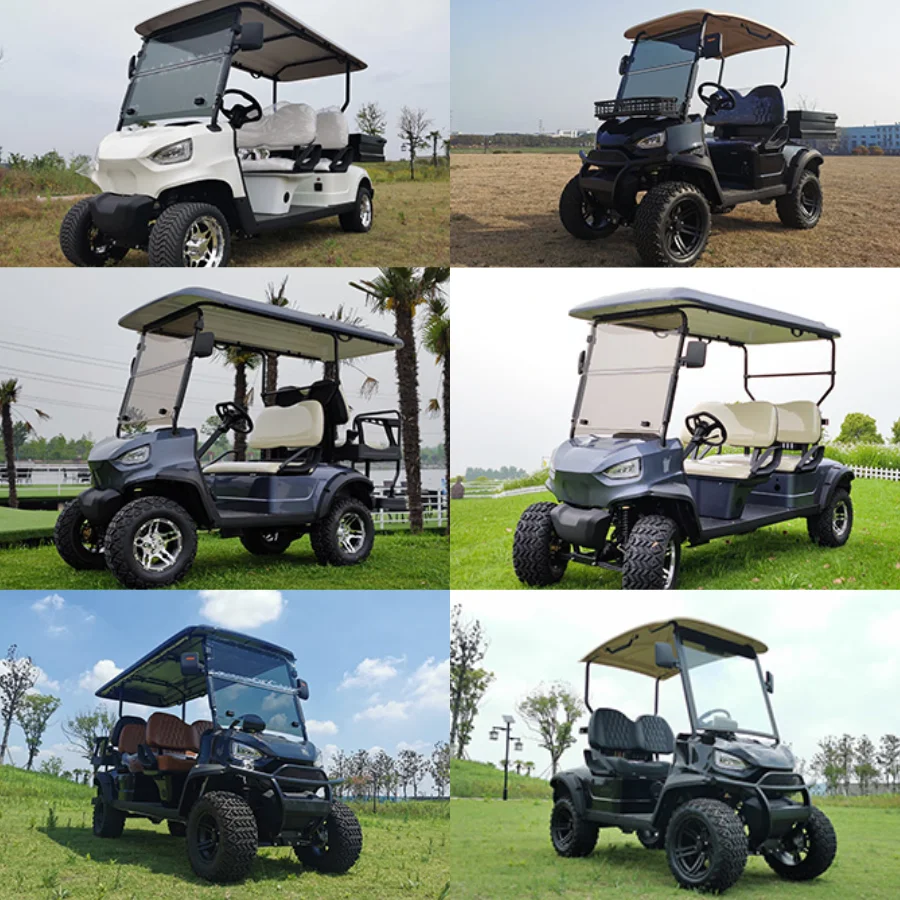

72V High Power Lithium Battery Golf Cart & Hunting Buggy
Lithium Battery Powered Electric Lifted Golf Cart, 72V AC system, 4KW/5KW/7KW AC motor, 115Ah Lithium Battery, front MacPherson Independent suspension, front disc brake, LED lights, digital meter, 12/14" aluminum rim with off road tire, sports steering wheel.
72V AC SME Controller
Compared with traditional 48V controllers, Yaxi uses Italy-made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.
High and Stable Quality, Powerful, Global 2 Years Warranty.
3 Years Warranty 72V Lithium Battery
LG/SK pouch cells made lithium-ion battery pack. 72V/115Ah capacity (OEM available), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to an App on the mobile phone for easy operation. 4000 times life cycles based on 99% DOD. 3 years warranty to be provided! Lower life cost, you are deserved to have!
72V 4KW, 5KW or 7.5KW AC Motor
Very Powerful and Maintenance Free AC motor. Motor power varies from 4KW, 5KW and 7.5KW. With 7.5KW motor, the climbing ability
can be 35%.The standard motor of Yaxi is an AC asynchronous motor, which has the advantage of no high-temperature demagnetization of permanent magnets, and can extend the working time of peak power, rated power and peak power. It has the ability to start high torque and high speed torque adjustment.
can be 35%.The standard motor of Yaxi is an AC asynchronous motor, which has the advantage of no high-temperature demagnetization of permanent magnets, and can extend the working time of peak power, rated power and peak power. It has the ability to start high torque and high speed torque adjustment.
Anti-rust Cart Body Structure
The Metal Structure Of The YAXI Body Has Undergone Three Processes Of Pickling, Galvanizing And Plastic Spraying To Ensure That The Vehicle Body Has Excellent Anti-Rust Ability.
12/14" Optional Wheels
Yaxi provides customers with standard versions of 12-inch and 14-inch optional wheels, and also supports custom wheels.
Independent Suspension
Automobile-level independent suspension, with front MacPherson Independent suspension, front disc brake, which brings better passability and driving feeling to the body.
Packing & Delivery
Packaging | ||||
Container Size | Disassembled (with top and front basket) | Disassembled(without top and front basket) | ||
20'ft Container | 6 | 6 | ||
40'GP Container | 12 | 14 | ||
40'HQ Container | 18 | 20 | ||
Packing Method | it's packed in steel crate as image shows above | |||
Company Profile
Wuxi Yaxi: A Professional Golf Cart Manufacturer with Nearly 40 Years of Production Experience.
Wuxi Yaxi brand, founded in 1984, is an earlier private motorcycle enterprise. Based on the tenet of “credibility first, serving the public”, the company’s business has gradually developed and grown, and it has become a well-known enterprise by the end of the 1980s. In 2001, the company transformed and upgraded to develop electric vehicles. At the same time, we established “Wuxi Yaxi Electric Vehicle Co., Ltd.”. We uphold the tradition, rely on profound technical accumulation, and believe in the business philosophy of “independent research and development, leading technology, first-class service, and integrity-based”. We have launched a series of electric special vehicles and obtained more than 30 patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.
Why Choose Us
One Year Warranty
Yaxi provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
18x7x360 Technical Support
Yaxi provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.
Life-time Spare Parts Supplies
In the lifetime of the vehicles or at maximum within 5 years we stop the production of any model, and we still supply the spare parts for after-service.
Flexible Payment Terms
Yaxi offer different payment terms to different customers according to customer's special request, in order to support your business.
Experiences Technicians
Every experienced engineer is the most valuable asset of our company. This is the reason why our factory has been able to maintain the most advanced technology in the industry.
Fair Prices
As an experienced factory, we always choose accessories with better quality. We will give you a more favorable price after keeping reasonable labor costs and enterprise profit.
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the
customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
