M16878/4 Тип E NEMA HP3 PTFE


Поделиться:


Цена:0,15 $ - 0,20 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.64 $* 0.66 $*
Aug-16-2025 0.71 $* 0.36 $*
Jul-16-2025 0.11 $* 0.50 $*
Jun-16-2025 0.50 $* 0.28 $*
May-16-2025 0.99 $* 0.4 $*
Apr-16-2025 0.47 $* 0.8 $*
Mar-16-2025 0.55 $* 0.88 $*
Feb-16-2025 0.74 $* 0.1 $*
Jan-16-2025 0.47 $* 0.69 $*

Характеристики



Product Description


Product Name

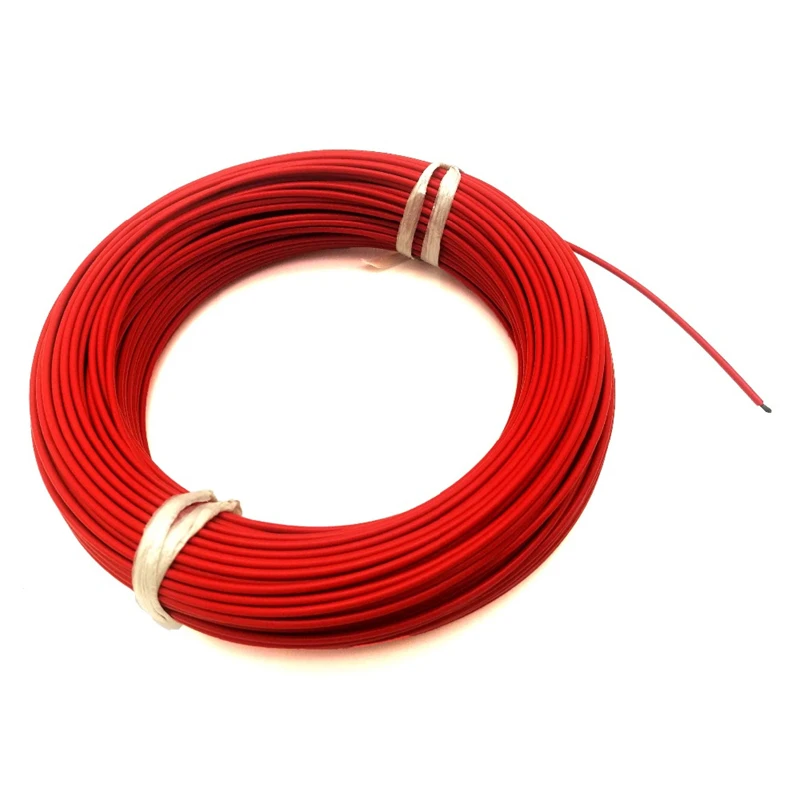

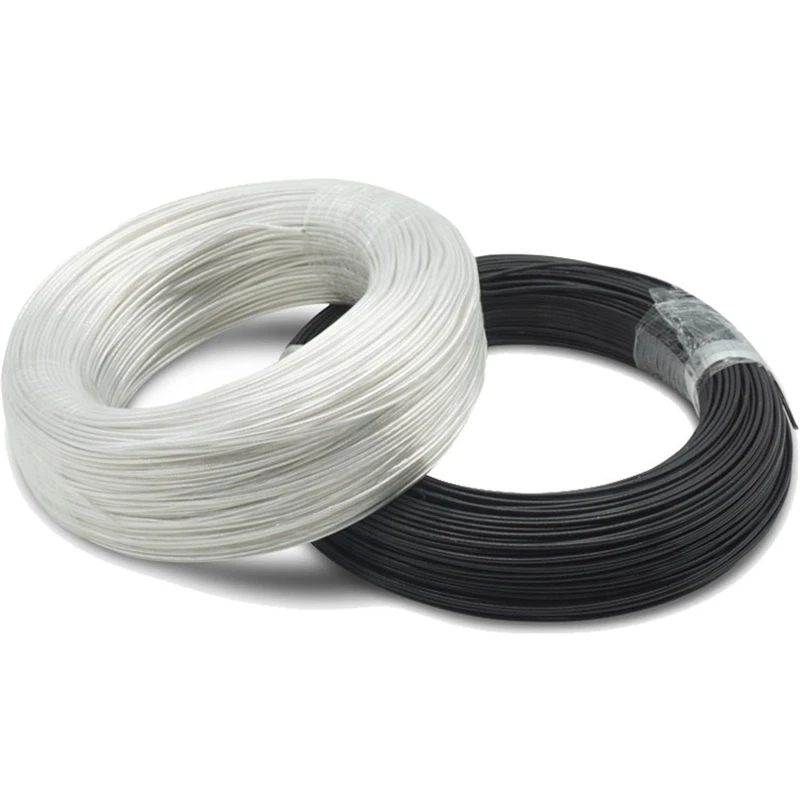

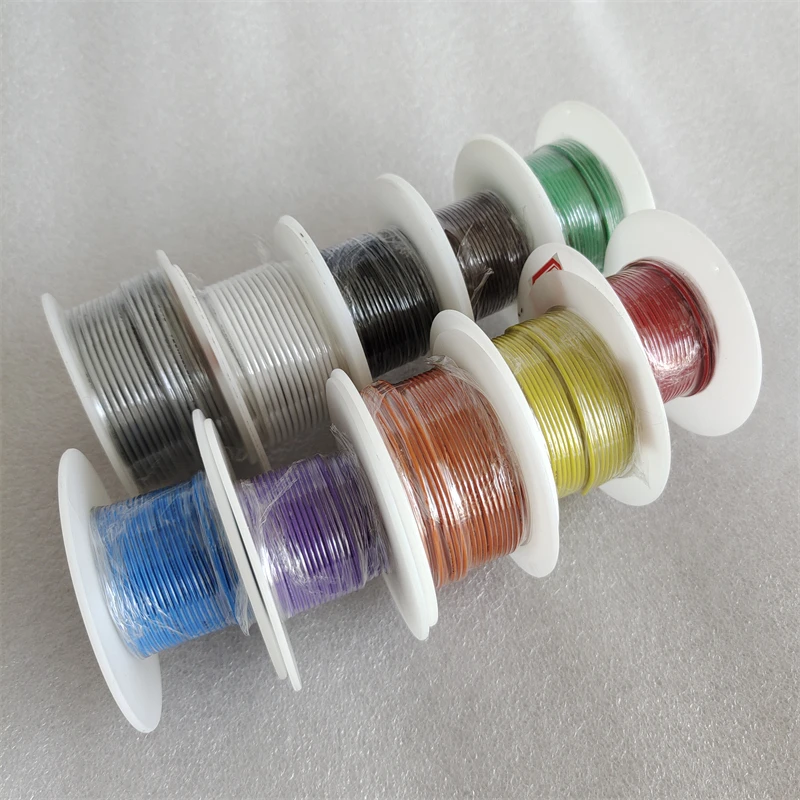

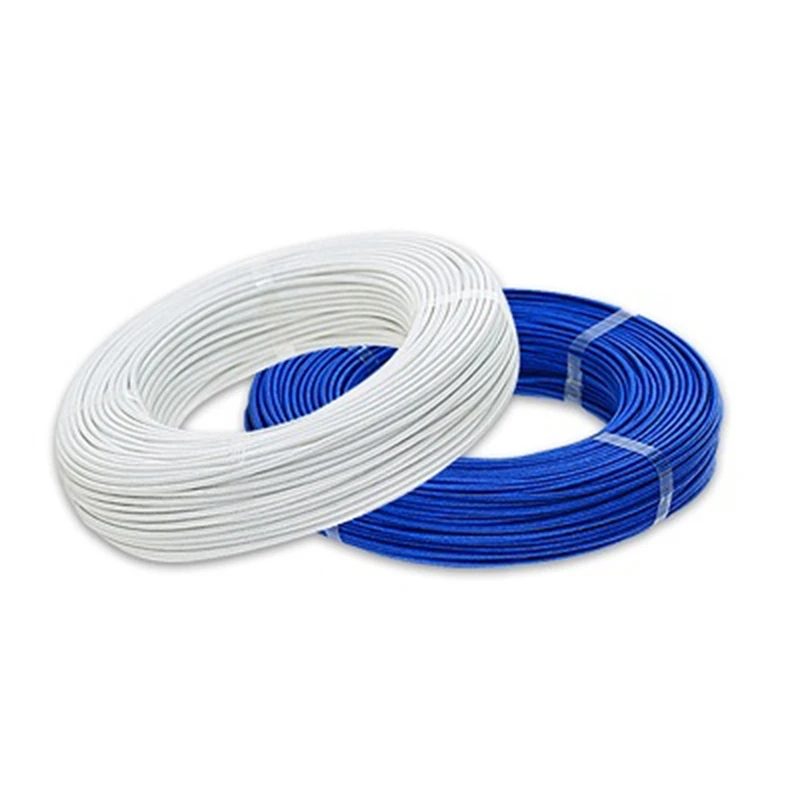

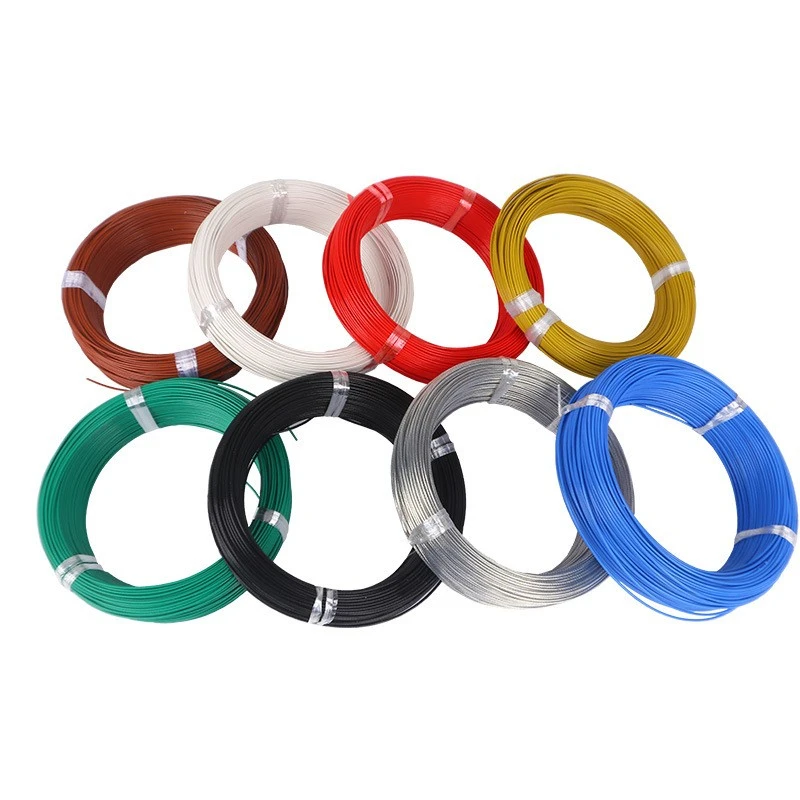

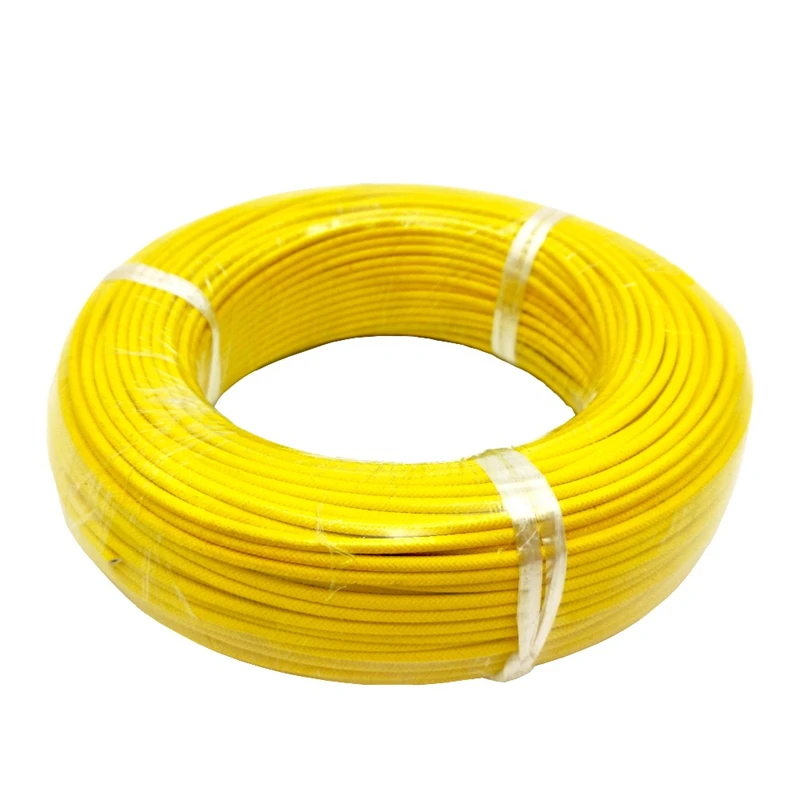

MIL-W-16878/4 Type E NEMA HP3 PTFE Wire
Conductor Material
Silver Coated Copper
Insulation
0.25mm/0.1inch PTFE
Conductor Size
30 ~ 10 AWG
Color
Red/Black/White/Blue etc.
Rated Temperature
-60 ~ 200℃
Rated Voltage
600V


M16878/4 Type E PTFE hook up wire is suitable for high temperature applications.
The medium wall PTFE insulation offers high reliablility and excellent thermal stability.
It resists chemicals, ultra-violet radiation and mold growth and is non-toxic and safe for the environment.
The PTFE insulation has a great flex-life and is suitable for a wide frequency range. PTFE saves space and weight and is easy to install.
Applications include military harnessing, power supply lead wire, appliance wiring and medical electronics.


铄义料号
Shoayer
Part Number
导体Conductor
绝缘Insulation
线号
AWG
导体结Composition
直径
Diameter
(mm)
M16878/4 600V
No.*AWG
No.* mm
绝缘厚度
Thickness
(mm)
完成外径
O.D.(mm)
千克/千米
kg/km
SYM16878/4-32-1-*
32
1/32
1/0.20
0.20
0.25
0.70
1.09
SYM16878/4-32-7-*
7/40
7/0.08
0.25
0.25
0.75
1.21
SYM16878/4-30-1-*
30
1/30
1/0.254
0.25
0.25
0.75
1.37
SYM16878/4-30-7-*
7/38
7/0.10
0.31
0.25
0.81
1.50
SYM16878/4-28-1-*
28
1/28
1/0.32
0.32
0.25
0.82
1.76
SYM16878/4-28-7-*
7/36
7/0.127
0.37
0.25
0.87
1.96
SYM16878/4-28-19-*
19/40
19/0.08
0.40
0.25
0.90
2.05
SYM16878/4-26-1-*
26
1/26
1/0.40
0.40
0.25
0.90
2.32
SYM16878/4-26-7-*
7/34
7/0.16
0.49
0.25
0.99
2.61
SYM16878/4-26-19-*
19/38
19/0.10
0.50
0.25
1.00
2.72
SYM16878/4-24-1-*
24
1/24
1/0.51
0.51
0.25
1.01
3.23
SYM16878/4-24-7-*
7/32
7/0.20
0.61
0.25
1.11
3.55
SYM16878/4-24-19-*
19/36
19/0.127
0.61
0.25
1.11
3.79
SYM16878/4-22-7-*
22
7/30
7/0.254
0.76
0.25
1.26
5.08
SYM16878/4-22-19-*
19/34
19/0.16
0.80
0.25
1.30
5.38
SYM16878/4-20-7-*
20
7/28
7/0.30
0.92
0.25
1.42
6.61
SYM16878/4-20-19-*
19/32
19/0.20
1.01
0.25
1.47
6.48
SYM16878/4-18-7-*
18
7/26
7/0.39
1.19
0.25
1.69
10.21
SYM16878/4-18-19-*
19/30
19/0.23
1.16
0.25
1.66
9.72
SYM16878/4-16-19-*
16
19/29
19/0.287
1.35
0.25
1.85
14.24
SYM16878/4-14-19-*
14
19/27
19/0.36
1.70
0.25
2.20
21.31
SYM16878/4-12-19-*
12
19/25
19/0.45
2.13
0.25
2.63
32.02
SYM16878/4-10-37-*
10
37/26
37/0.40
2.74
0.25
3.24
47.81
