Лидер продаж от производителя сертифицированный плоский Солнечный коллектор Keymark для домашней горячей
- Категория: >>>
- Поставщик: Jiangsu,Sunrain,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11586.63 $* | 12165.17 $* |
| Aug-19-2025 | 11488.55 $* | 12062.27 $* |
| Jul-19-2025 | 9639.68 $* | 10121.95 $* |
| Jun-19-2025 | 11294.50 $* | 11859.14 $* |
| May-19-2025 | 9833.0 $* | 10325.73 $* |
| Apr-19-2025 | 11099.35 $* | 11654.28 $* |
| Mar-19-2025 | 11002.85 $* | 11552.51 $* |
| Feb-19-2025 | 10904.24 $* | 11449.81 $* |
| Jan-19-2025 | 10807.92 $* | 11347.98 $* |
Характеристики
Production process

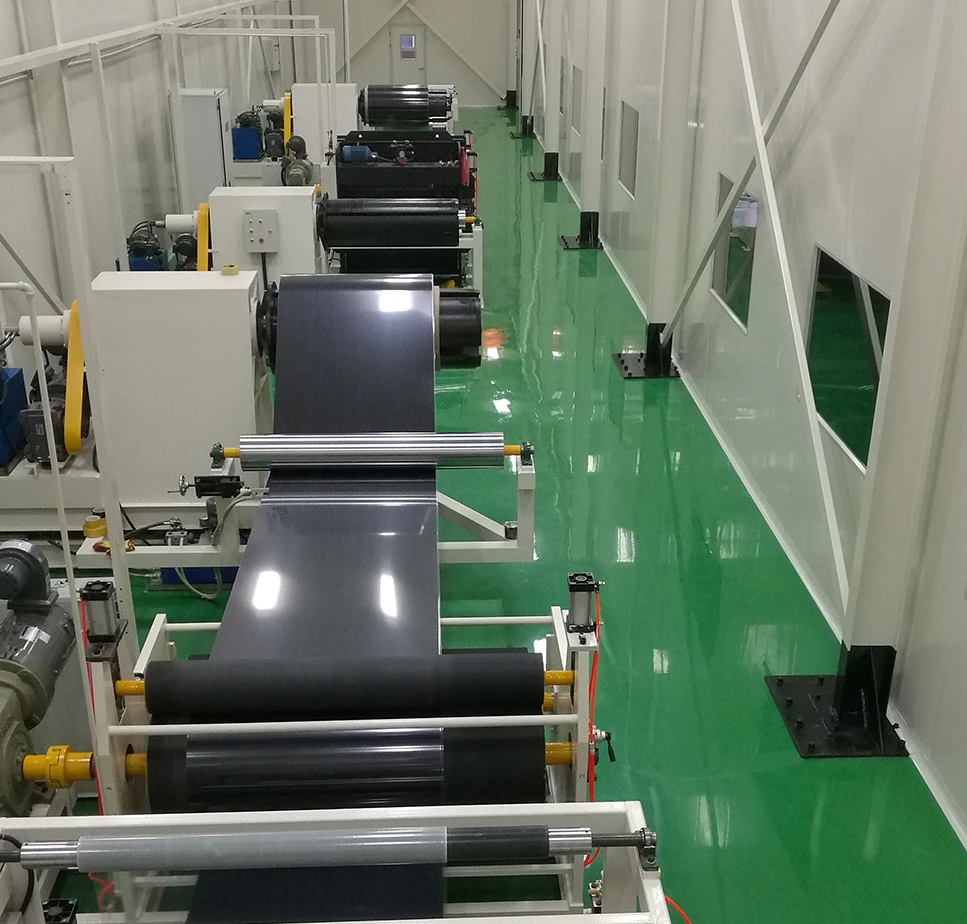

Sunrain as the top manufacture of flat panel in China, we can produce 600,000 sets per year;
The auto production lines for full ranges flat panels as below:
Product Description
Flat panel Working principle:
The selective absorber sheet absorb the solar radiation and transfer to heat energy, which to heat the water/liquid in the water flow/riser pipe and header pipe;
It can be widely used for domestic family, hotel, school and other commercial industrials.
Specification
Specification | FPC200P | FPC250P | FPC300P | ||
Dimensions (h*w*d) | 2000*1000*80 mm | 2000*1250*80 mm | 2000*1500*80 mm | ||
Header Pipe | TP2 copper φ22*0.75 mm | ||||
Flow Pipe | TP2 copper φ10*0.5 mm | ||||
Absorber | Made of Aluminum, with black film and 0.4mm thickness | ||||
Cover Material | Textured tempered glass | ||||
Cover Thickness | 3.25 mm | ||||
Insulation Material | Polyester filber | ||||
Frame | Aluminum alloy, 1mm thickness | ||||
Sealing Gasket | EPDM | ||||

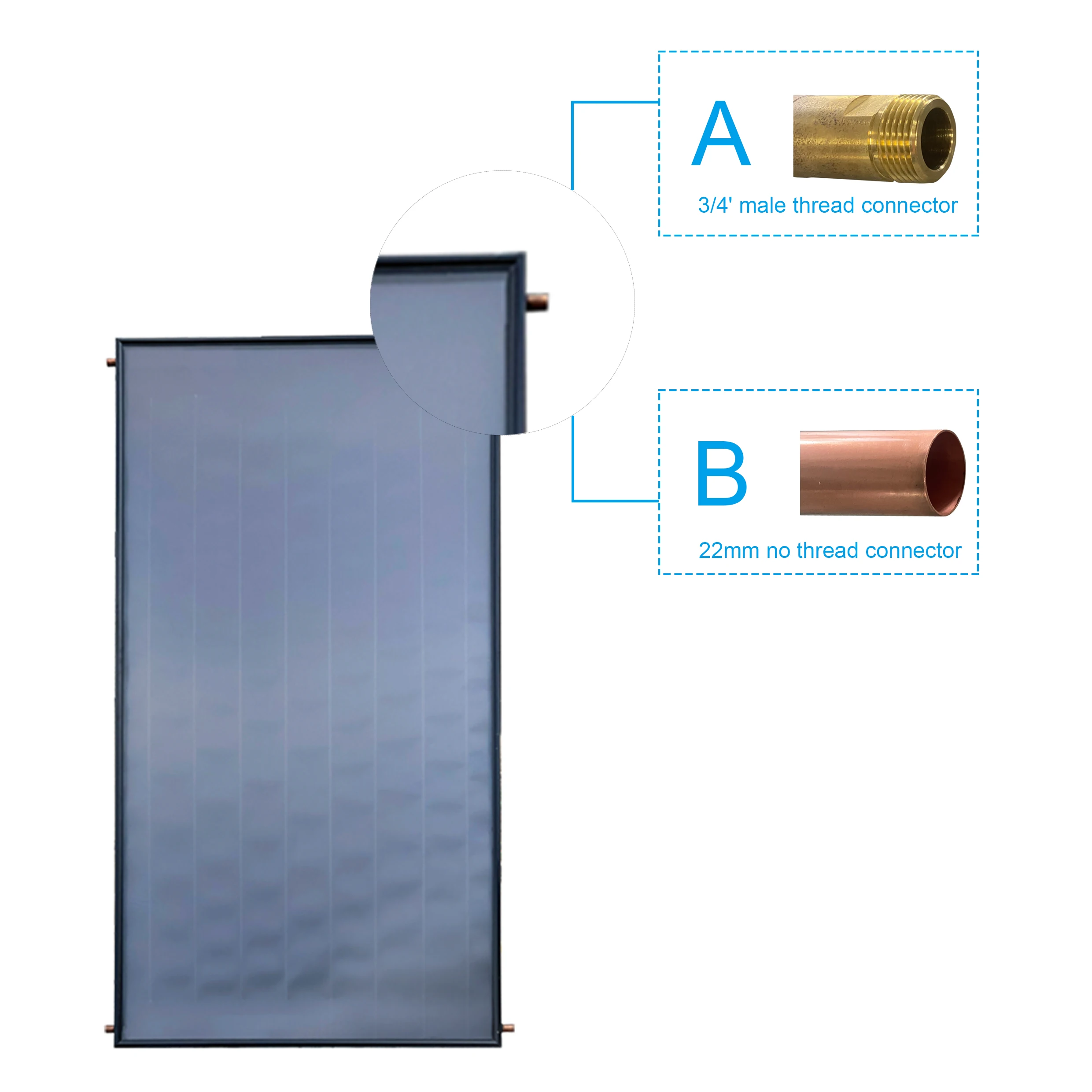

Connector Size | 22mm no thread, or 3/4inch male thread | ||||
Gross Area | 2.0 m² | 2.5 m² | 3.0 m² | ||
Aperture Area | 1.85 m² | 2.34 m² | 2.83 m² | ||
Solar Absorptance | 93% | ||||
Weight | 32 KG | 40 KG | 46 KG | ||
Fluid Contect | 1.66 L | 2.06 L | 2.47 L | ||
Max. Operation Temp. | 120 ℃ | ||||
Max. Operation Pressure | 1200 kPa (12MPa) | ||||
Guarantee | 5 years | ||||
Compare to competitors
Why will you choose Sunrain flat panel?
Following are main advantages of Sunrain flat panel:
Product applications
Flat panel can be widely used for household, school, hotel and other commercial installations;
Packing & Delivery
Package of Flat Panel: You can choose simple package or full package;
LCL shipping for Flat Panel: Carton box + Plywood case;
FCL shipping for Flat Panel: OEM branding Carton Box;
FAQ
1. Is your company a trading company or factory?
FCL shipping for Flat Panel: OEM branding Carton Box;
We are the top1 manufacture of flat panel in China, you are welcome to visit our factory.
2. What is your Delivery Time?
LCL order/Sample order for flat panel: 7days.
LCL order/Sample order for flat panel: 7days.
Full container order for flat panel: 10days.
3. Can you do make with my brand ?
Yes, OEM&ODM order for flat panel are both welcome and accept.
4. What is your MOQ?
No MOQ limited for flat panel order;
5. What is your Packing?
LCL shipping for Flat Panel: Carton box + Plywood case;FCL shipping for Flat Panel: OEM branding Carton Box;
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai , Lianyungang etc.
7. What is your daily Production Capacity?
600,000 sets per year
