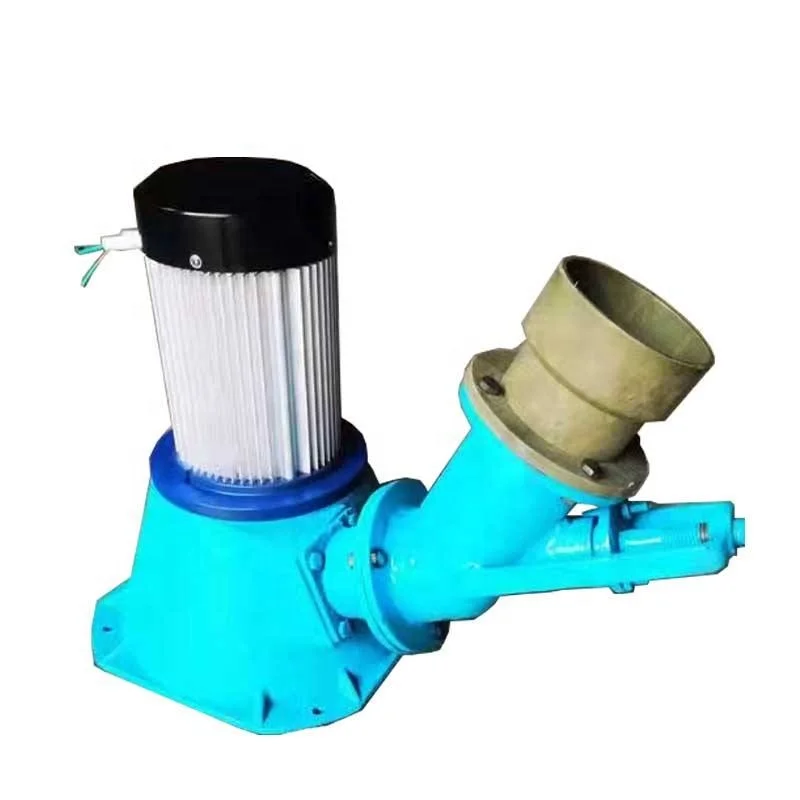

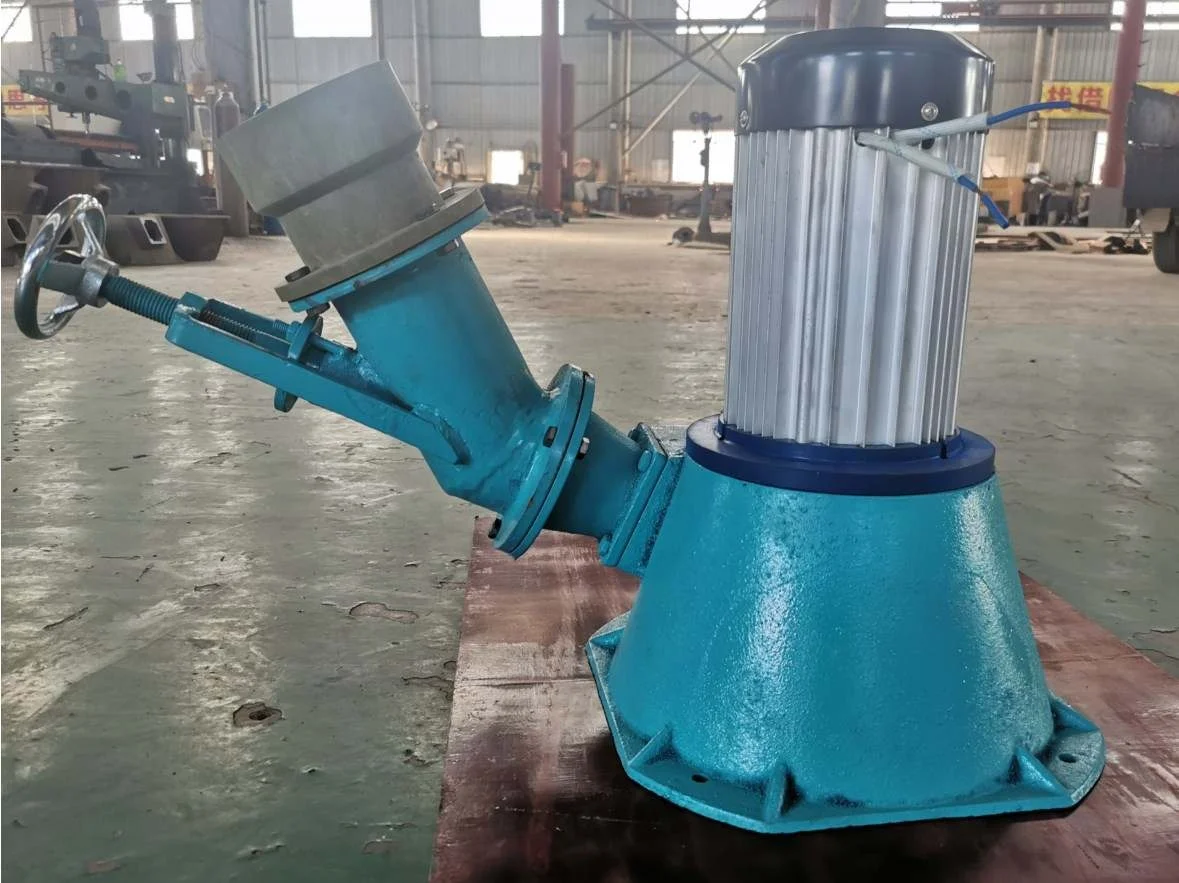

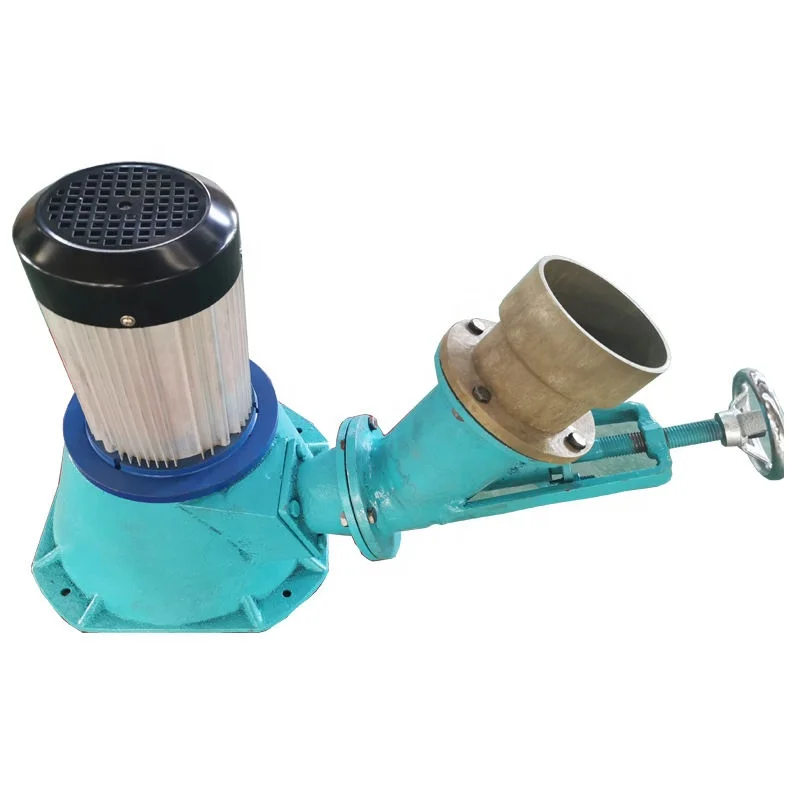

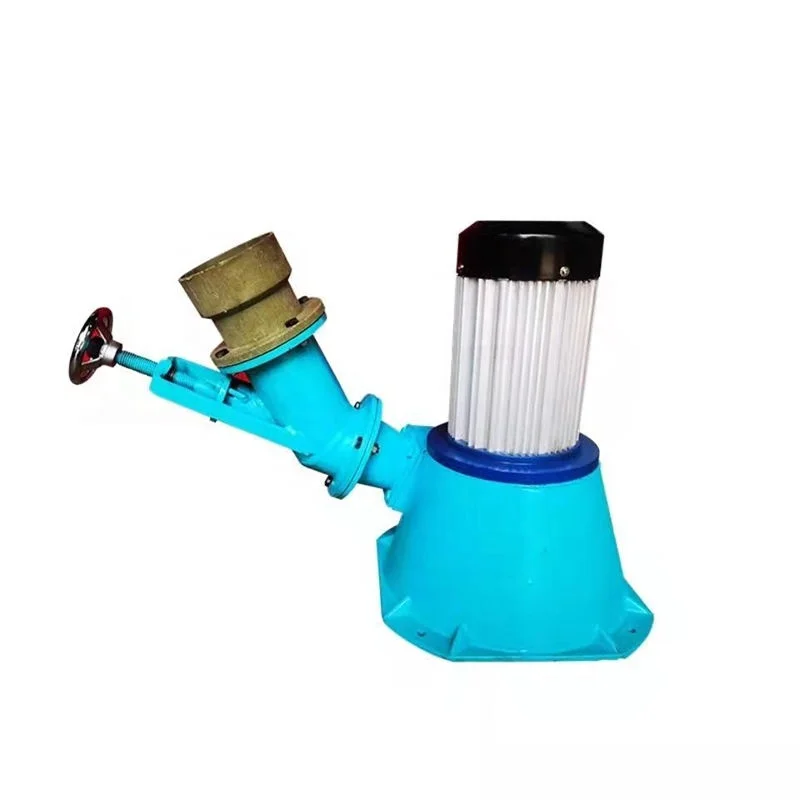

Supply water conservancy generator 3KW household electricity series small power generator





1, Axial / metal axial pressure - widely used in low-head high-flow rivers;

2, Francis - Francis turbine structure is compact, high efficiency, can adapt to a wide range of head, is widely used in the world one of the turbine type.

3, Tubular - structure similar to the axial flow;

4, Slanting - for high head and small flow of small power plants, compact, no draft tube, can reduce the plant's high head, while reducing the excavation depth to reduce plant construction costs.



The main features of the run-of-river hydroelectric generating set:



1.Pressure inlet, pressure outlet; pipe water, pipe water.

2.Turbine and generator separation, easy maintenance, replacement of wearing parts.

3.Turbine alone 2 bearings, generator 2 bearings, the structure is more reliable.

4.Hydraulic turbine bearings have an independent oil lubrication system, bearing life longer.

5.Hydraulic turbine has axial force balance device, can fully balance the axial force, bearing longer life



Model	Water head(m)	Flow rate(m^3/s)	Power(kw)	Speed(r/min)	Pipe diameter(mm)
XJ13-L-10/1*2	9-18	0.0079-0.012	0.6	500-1500	80
XJ13-L-12/1*2.8	10-25	0.009-0.015	1	500-1500	90
XJ13-L-12/1*2.8	12-28	0.01-0.018	1.5	500-1500	90
XJ13-L-13/1*2.8	15-30	0.0114-0.023	2	500-1500	100
XJ13-L-13/1*3	18-40	0.0124-0.0135	3	500-1500	100
XJ13-L-18/1*5	20-40	0.012-0.0156	5	500-1500	150
