Ручная машина для изготовления сотовых брикетов
US $60.00-$300.00
Машина для производства древесных чипсов арахисовых скорлупов древесного
- Категория: Energy Saving Equipment >>>
- Поставщик: HENAN,SUPERB,MACHINERY,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.7 $* | 0.79 $* |
| Aug-18-2025 | 0.25 $* | 0.67 $* |
| Jul-18-2025 | 0.99 $* | 0.26 $* |
| Jun-18-2025 | 0.68 $* | 0.55 $* |
| May-18-2025 | 0.15 $* | 0.65 $* |
| Apr-18-2025 | 0.57 $* | 0.91 $* |
| Mar-18-2025 | 0.47 $* | 0.56 $* |
| Feb-18-2025 | 0.1 $* | 0.22 $* |
| Jan-18-2025 | 0.90 $* | 0.94 $* |
Характеристики
Machine Display

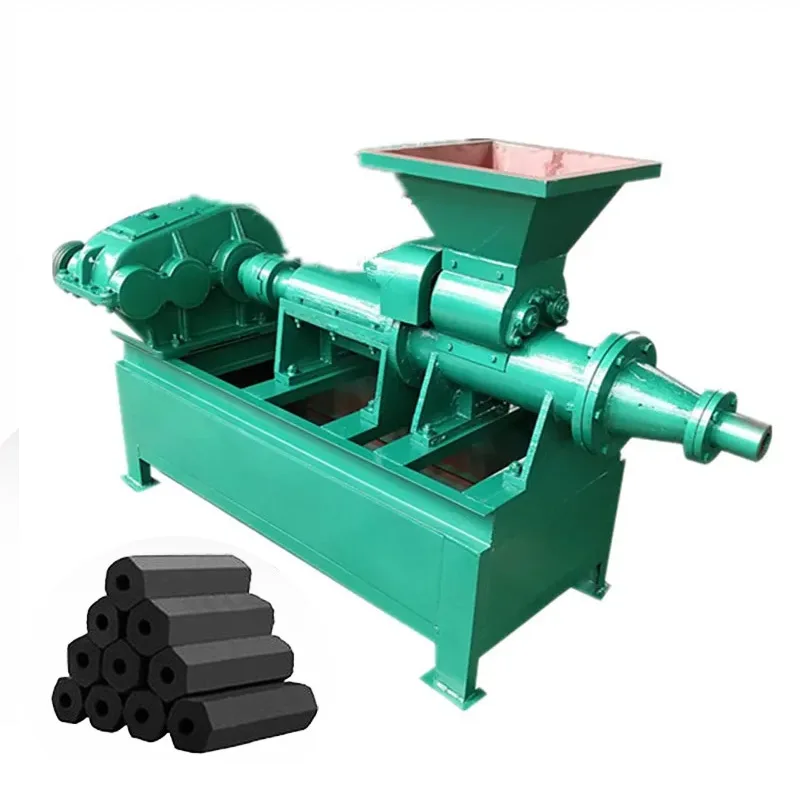

wood chips waste peanut palm shell charcoal briquette making machine
Charcoal extrude machine, which using the principle of screw extrusion to compress the coal powder into a predetermined shape with a certain intensity. After the coal powder poured into machine chamber, it bears tremendous pressure. With the help of all kinds of shaped molds, it will be shaped into different powder materials into briquettes, for example charcoal powder, coal powder, etc. It both can produce BBQ charcoal (cylinder shape, hexagonal shape, quadrangular shape), and shisha hookah charcoal (cubic shape, round strip shape, hexagonal strip shape). Specification below
Model | Power(kw) | Capacity(t/h) | Weight(t) | Dimension(mm) |
SJCJ140 | 7.5 | 1-2 | 0.85 | 1950*1100*1180 |
SJCJ180 | 22 | 2-3 | 1.2 | 2320*1580*890 |
Production Process
Carbonization furnace: used to carbonize biomass blocks into natural charcoal. You just need to put your materials into Inner pot of furnace. After 8~10hours, you will get biomass charcoal. This charrcoal can be used for bbq directly. If you want to produce different shapes, you need below machines.
Charcoal crusher: It is used to crush biomass charcoal into powder of less than 3mm.
Mixer: Mixer is the important machine of this production line, we mainly use this machine to stir charcoal powder and binder together. The materials processed by this machine is easy to shape.
Briquette machine: Briquette machine is most important machine in this production line.
It has 3 different kinds: Ball shape briquette machine, stick extruder machine, shisha charcoal briquette machine.
Mixer: Mixer is the important machine of this production line, we mainly use this machine to stir charcoal powder and binder together. The materials processed by this machine is easy to shape.
Briquette machine: Briquette machine is most important machine in this production line.
It has 3 different kinds: Ball shape briquette machine, stick extruder machine, shisha charcoal briquette machine.
Raw Material and Finished display
Raw Materials
♦The raw material can be coal powder, charcoal fines, coke powder, wooden charcoal, carbon block powder, fluorite powder, silicon powder, gypsum powder, sematite powder, quartz powder, charcoal coal powder, waste mineral powder, coconut charcoal powder, bamboo charcoal powder, corn cob charcoal powder, palme shell charcoal powder, sawdust charcoal powder, hard wood charcoal powder, etc
Finished Product
♦The final briquettes have a high density and fuel value which can keep long burning time.
♦BBQ charcoal: quincunx, cinquefoil, hexagonal shape, round shape, quadrangular shape, with hole in center or not, etc.
♦Shisha hookah charcoal: square shape, hexagon shape, triangle shape, Pentagon shape, cubescube, round, cubic shape, round shape,
etc.
♦Length: we can also install auto-cutter for you at the machine outlet, the finished product length can be adjusted.
♦BBQ charcoal: quincunx, cinquefoil, hexagonal shape, round shape, quadrangular shape, with hole in center or not, etc.
♦Shisha hookah charcoal: square shape, hexagon shape, triangle shape, Pentagon shape, cubescube, round, cubic shape, round shape,
etc.
♦Length: we can also install auto-cutter for you at the machine outlet, the finished product length can be adjusted.
Key Spare Parts
Feed system
When feeding, the mixture to be stirred shall be loaded into the hopper, the feeding system shall be started, and the hopper shall be pulled upward by steel wire rope. When climbing to a certain height, the hopper shall enter the feeding frame, the doumen shall be opened automatically, and the funnel shall be discharged into the mixing cylinder.
Mould
The biomass rod making machine can output many shapes of finished products by different shapes of sleeves, and the size of finished products can also be customized as your requirements, such as pattern, three edges, four edges and other shapes.
Reducer
Reducer is a kind of power transmission mechanism, using the gear speed converter the electric BW type foot plate type horizontal mounted double axis cycloidal pin gear reducer, the number of rotation deceleration to the desired number of rotation, and the obtain a larger torque mechanism.
Motor
The motor adopts major brand partners with stable performance, minimal failure rate and long service life. Of course, we can also purchase different brands of motors according to customer requirements.
