Характеристики
Product Description
Product features:
Turn on and instantly measure without lamp warm up time;
Full range of wavelength (200-800nm) with scan capability from 200-800nm within 5sec

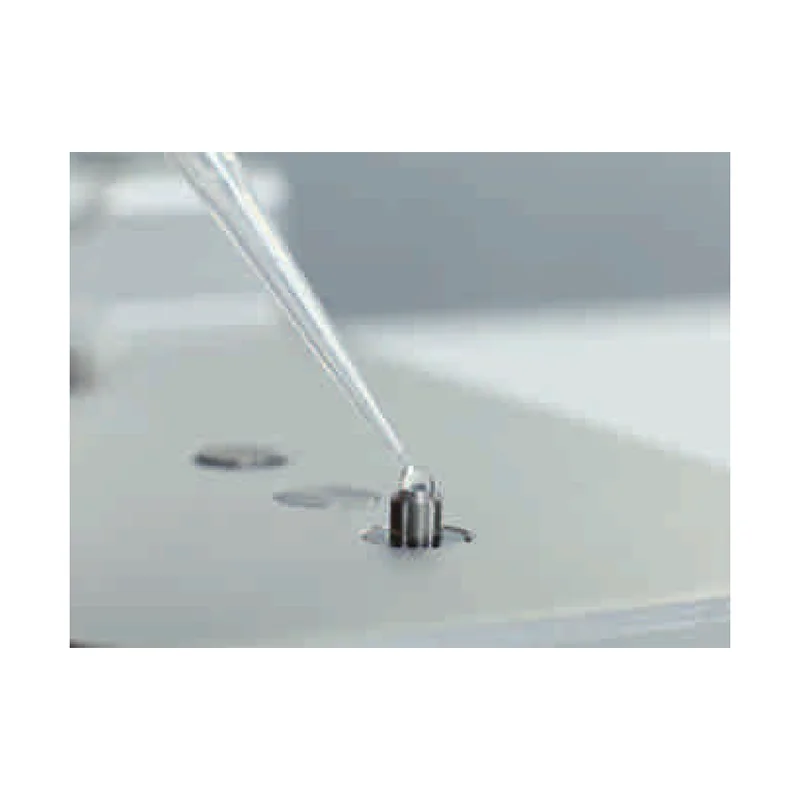

Simply pipette a sample onto the pedestal, measure, wipe the pedestal
Direct micro-volume measurement with only 0.5-2ul sample required to accurately determinate nucleic acids and protein
concentrations
Long life Xenon flash lamp, 10 flashes, up to 10 years
No cell or cuvette and expensive consumable required
Detects Nucleic Acids up to 4500ng/ul (dsDNA)
3864-Element linear silicon CCD array
Need to connect computer
Software compatibility: WinXP, Win7, Win8
Turn on and instantly measure without lamp warm up time;
Full range of wavelength (200-800nm) with scan capability from 200-800nm within 5sec
Simply pipette a sample onto the pedestal, measure, wipe the pedestal
Direct micro-volume measurement with only 0.5-2ul sample required to accurately determinate nucleic acids and protein
concentrations
Long life Xenon flash lamp, 10 flashes, up to 10 years
No cell or cuvette and expensive consumable required
Detects Nucleic Acids up to 4500ng/ul (dsDNA)
3864-Element linear silicon CCD array
Need to connect computer
Software compatibility: WinXP, Win7, Win8
Product Paramenters

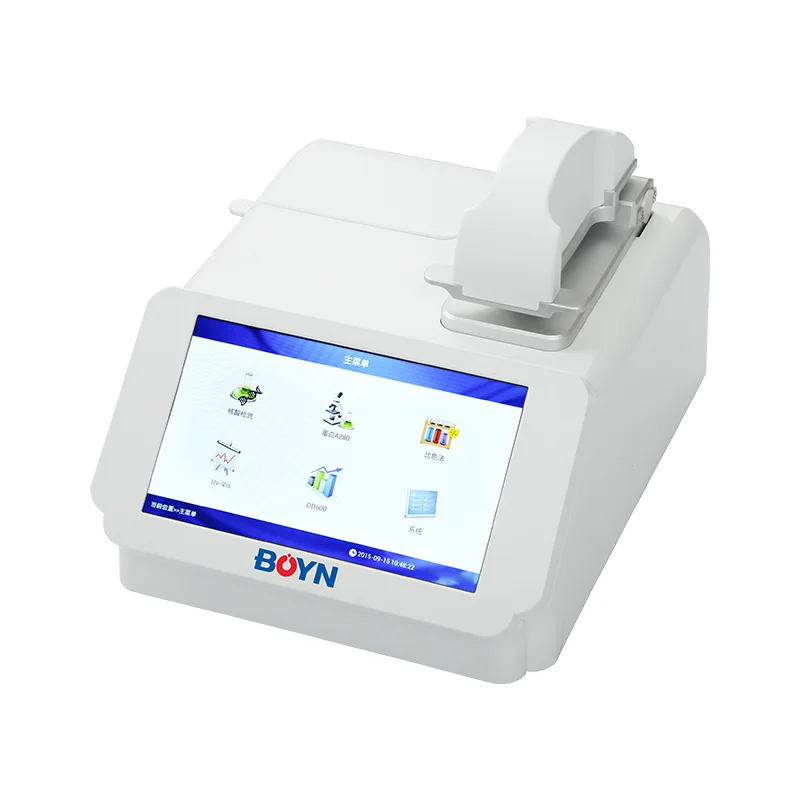

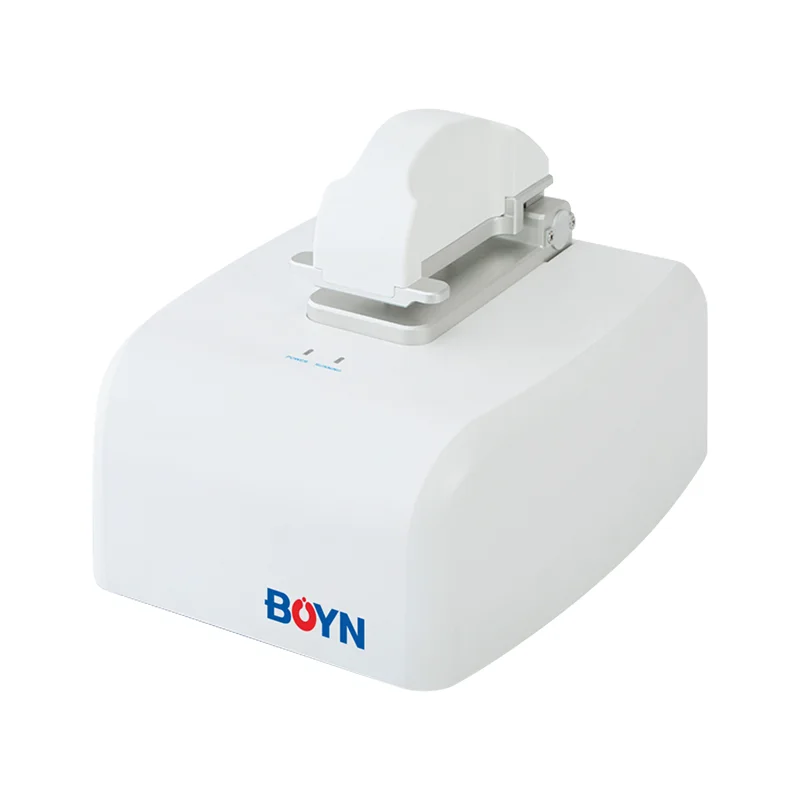

Model | BNMS-N100 |
Wavelength Range | 200-800nm |
Minimum Sample Volume | 0.5-2.0μl |
Light Path | 0.2mm |
1.0mm | |
Light Source | Xenon flash lamp |
Detector Type | 3864-Linear CCD array |
Wavelength Accuracy | 1nm |
Wavelength Resolution | ≤3nm (FWHM at Hg546nm) |
Absorbance Precision | 0.003Abs |
Absorbance Accuracy | 1% (7.332Abs at 260nm) |
Absorbance Range | 0.02 - 90A |
Nucleic Acid Measurement Range | 2-4500ng/ul (dsDNA） |
Measurement Time | <8S |
Output Interface | Connect PC |
Sample Pedestal Materia | Aluminum alloy and Quartz fiber |
Operating Voltage | 24V DC |
Operating Power | 20W |
Standby Power | 5W |
Dimension (W x D x H) | 200 x 250 x 166mm |
Weight | 2.6kg |
Software Compatibility | WinXP，Win7，Win8 |

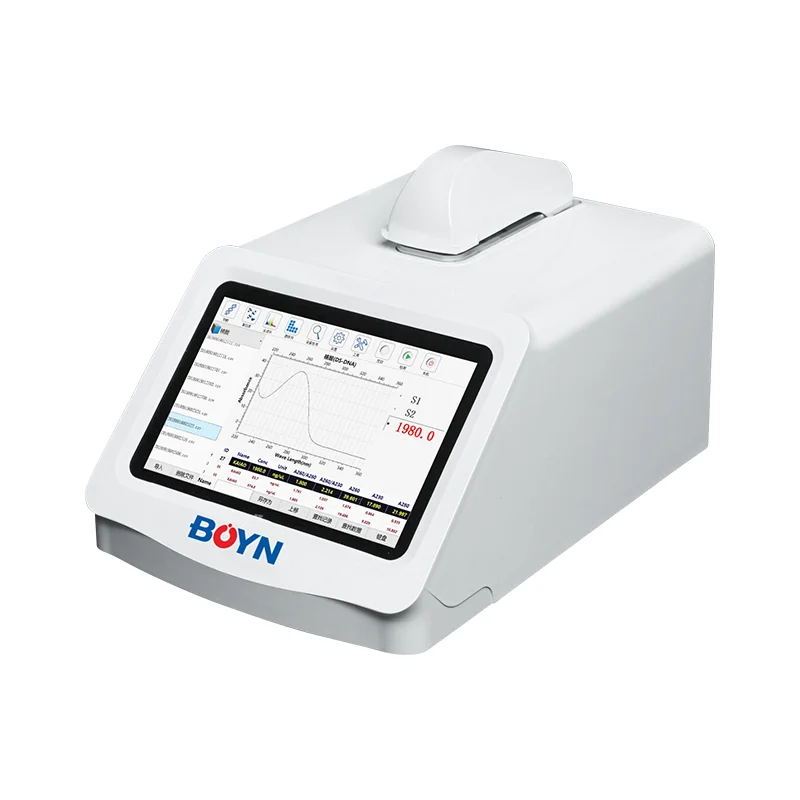

Model | BNMS-N200 | |
Wavelength Range | 200-800nm | |
Minimum Sample Volume | 0.5-2.0μl | |
Light Path | 0.2mm | |
1.0mm | ||
Light Source | Xenon flash lamp | |
Detector Type | 2048-Linear CCD array | |
Wavelength Accuracy | 1nm | |
Wavelength Resolution | ≤3nm (FWHM at Hg546nm) | |
Absorbance Precision | 0.003Abs | |
Absorbance Accuracy | 1% (7.332Abs at 260nm) | |
Absorbance Range | 0.02 - 100A | |
Nucleic Acid Measurement Range | 2-5000ng/ul (dsDNA) | |
Measurement Time | <5S | |
Output Interface | USB | |
Sample Pedestal Materia | Aluminum alloy and Quartz fiber | |
Operating Voltage | 24V DC | |
Operating Power | 25W | |
Standby Power | 5W | |
Dimension (W x D x H) | 210 x 268×181mm | |
Weight | 2.8kg | |
Operating System | Android | |
OD600nm Measurement | ||
Light Source | LED | |
Wavelength Range | 600±8nm | |
Absorbance Range | 0-4Abs | |

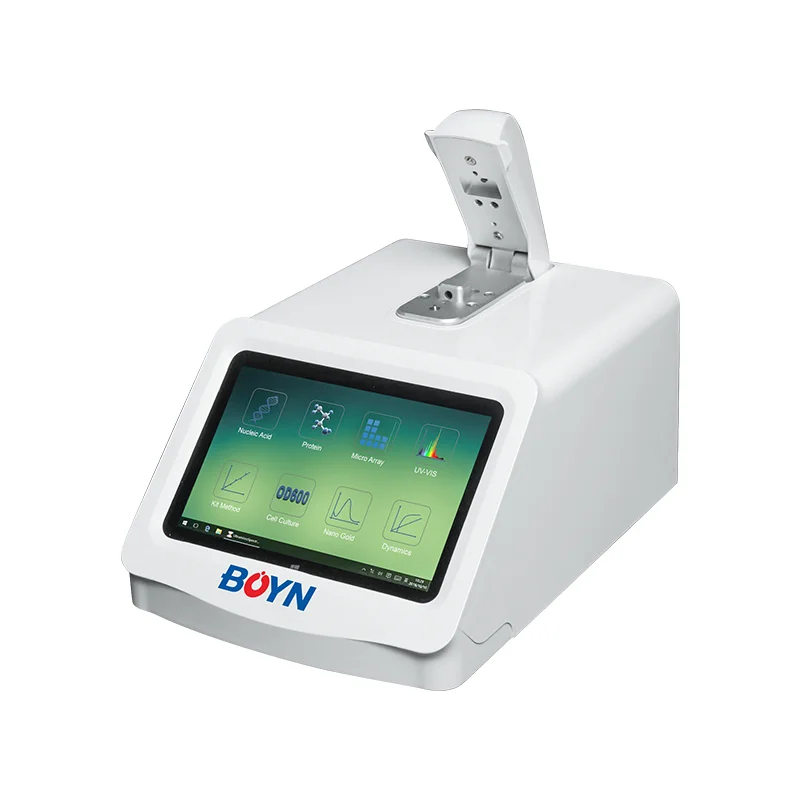

Model | BNMS-N300 |
Wavelength Range | 190-850nm |
Minimum Sample Volume | 0.3-2.0μl |
Light Path | 1.0mm |
Light Source | Xenon flash lamp |
Detector Type | 3864-Linear CCD array |
Wavelength Accuracy | ±1nm |
Wavelength Resolution | ≤2nm (FWHM at Hg546nm) |
Wavelength Repeatabbility | ±0.5nm |
Absorbance Precision | 0.002Abs |
Absorbance Accuracy | 1% (0.76Abs at 350nm) |
Absorbance Range | 0.002 - 15A (equivalent to 10mm optical path) |
Nucleic Acid Measurement Range | 2-750ng/ul (dsDNA） |
Detects Protein Measurement Range | 0.1-40mg/ml (BSA) |
Measurement Time | <5S |
Output Interface | 2×USB |

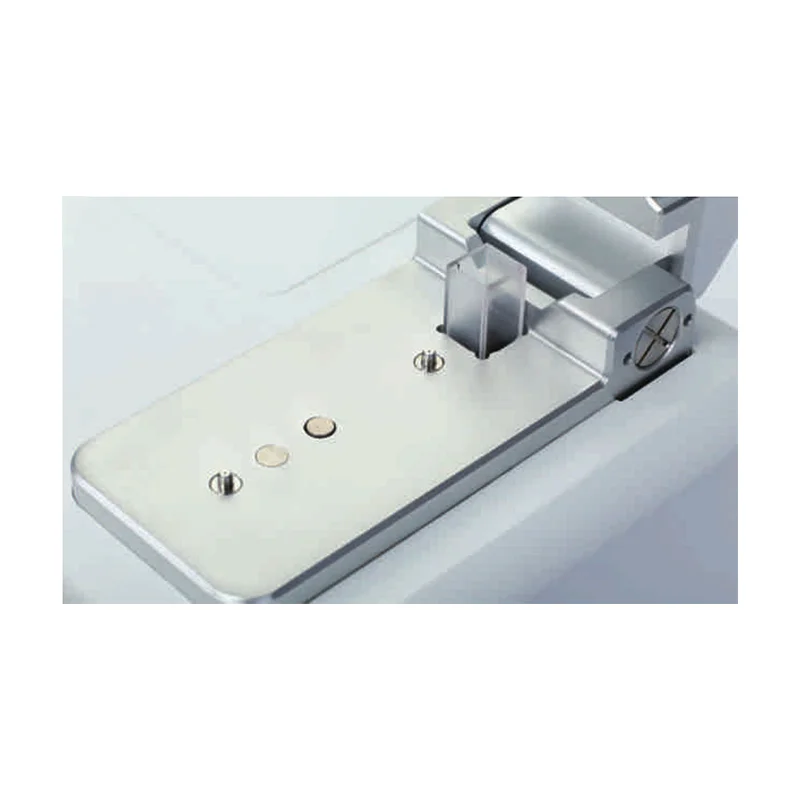

Sample Pedestal Materia | Stainless steel and Quartz fiber |
Display | 7 inch touch screen |
Operating Voltage | 12V DC |
Dimension (W x D x H) | 200 x 300×200mm |
Weight | 2.8kg |
Operating System | Win10 |
Cuvette model Measurement | N/A |
Model | BNMS-N400 | BNMS-N410 | ||
Wavelength Range | 190-850nm | 190-850nm | ||
Minimum Sample Volume | 0.3-2.0μl | 0.3-2.0μl | ||
Light Path | 0.05mm | 0.05mm | ||
0.5mm | 0.5mm | |||
1.0mm | 1.0mm | |||
Light Source | Xenon flash lamp | Xenon flash lamp | ||
Detector Type | 3864-Linear CCD array | 3864-Linear CCD array | ||
Wavelength Accuracy | ±1nm | ±1nm | ||
Wavelength Resolution | ≤2nm (FWHM at Hg546nm) | ≤2nm (FWHM at Hg546nm) | ||
Wavelength Repeatabbility | ±0.5nm | ±0.5nm | ||
Absorbance Precision | 0.002Abs | 0.002Abs | ||
Absorbance Accuracy | 1% (0.76Abs at 350nm) | 1% (0.76Abs at 350nm) | ||
Absorbance Range | 0.002 - 300A (equivalent to 10mm optical path) | 0.002 - 300A (equivalent to 10mm optical path) | ||
Nucleic Acid Measurement Range | 2-15000ng/ul (dsDNA) | 2-15000ng/ul (dsDNA) | ||
Detects Protein Measurement Range | 0.01-400mg/ml (BSA) | 0.01-400mg/ml (BSA) | ||
Measurement Time | <5S | <5S | ||
Output Interface | 2×USB | 2×USB | ||
Sample Pedestal Materia | Stainless steel and Quartz fiber | Stainless steel and Quartz fiber | ||
Display | 7 inch touch screen | 7 inch touch screen | ||
Operating Voltage | 12V DC | 12V DC | ||
Dimension (W x D x H) | 200 x 300×200mm | 200 x 300×200mm | ||
Weight | 3.5kg | 3.5kg | ||
Operating System | Win10 | Win10 | ||
Cuvette model Measurement | ||||
Optical Path of Cuvette | N/A | 1mm,2mm,5mm,10mm | ||
Temperature Range | N/A | N/A | ||
Minimum Sample Volume of Cuvette | N/A | 50ul | ||
Minimum height of sample in cuvette | N/A | 5mm | ||
