Прочный гусеничный бульдозер LD160 Lonking на гусеничном ходу 160 л.с. земляные бульдозеры с лезвием
- Категория: Bulldozers >>>
- Поставщик: Shanghai,Long,Fen,Machinery,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.82 $* | 0.58 $* |
| Aug-17-2025 | 0.51 $* | 0.24 $* |
| Jul-17-2025 | 0.31 $* | 0.19 $* |
| Jun-17-2025 | 0.10 $* | 0.4 $* |
| May-17-2025 | 0.39 $* | 0.55 $* |
| Apr-17-2025 | 0.14 $* | 0.1 $* |
| Mar-17-2025 | 0.98 $* | 0.28 $* |
| Feb-17-2025 | 0.15 $* | 0.21 $* |
| Jan-17-2025 | 0.59 $* | 0.14 $* |
Характеристики
Contact us
Lonking Brand bulldozer
p
Main Parameter
| Model | LG160(Standard Bulldozer) | ||
| Engine | Engine power | kw | 131kw |
| Engine brand | WeiChai Power | ||
| Engine model | WP10G178E355 | ||
| Rated engine speed | r/min | 1850r/min | |
| Maximum engine torque | N.m | 890N.m | |
| Engine type | lnline,direct injection,water cooling,four stroke,supercharged intercool,electronnically controlled high pressure common rail | ||
| Bulldozer shovel | Standard bulldozer type | straight Tilt Blage | |
| blade width | mm | straight:3460mm horn:3970 | |
| Bulldozer height | mm | straight:1310mm horn:1040 | |
| Dozing Capacity | m3 | 4.5m3 | |
| Number of teeth of scarifier | 3 | ||
| Transmission case | First gear forward speed | km/h | 3.33km/h |
| Second gear forward speed | km/h | 5.89km/h | |
| Third gear forward speed | km/h | 9.75km/h | |
| Reverse gear I speed | km/h | 4.33km/h | |
| Second gear reverse speed | km/h | 7.67km/h | |
| Reverse third gear speed | mm | 12.68km/h | |
| Track parameters | Track shoe width | mm | 510mm |
| Sprocket pitch | mm | 203mm | |
| track gauge | mm | 1880mm | |
| Number of carrier sprockets (each side) | 2 | ||
| Number of roller (each side) | 6 | ||
| Ground specific pressure | kpa | 67pa | |
| Minimum ground clearance | mm | 420mm | |
| Gradient | degree | 30 | |
| Vehicle parameters | Vehicle length | mm | 5040/6185mm with scarifier |
| Vehicle width | mm | 3460mm | |
| Vehicle height | mm | 3420mm | |
| Vehicle quality | kg | 17000kg | |
| Bulldozer shovel | ||||||
| Standard bulldozer type | Tilting shovel | Coal shovel | Tilting shovel | Sanitation shovel | Tilting shovel | Tilting shovel |
| Length * height(mm) | straight:3460×1310 | U:3556×1220 | 4230×1010 | 4230×1620 | 4230×1010 | 4230×1010 |
| horn:3970×1040 | U:3900×1200 | |||||
| Dozing Capacity(m³) | 4.5 | 5/6.04 | 3.8 | 8.3 | 3.8 | 3.8 |
| Lifting height(mm) | 1095 | 1095 | 1005 | 1005 | 1005 | 1005 |
| Depth of cut soil(mm) | 540 | 540 | 485 | 485 | 485 | 485 |
| Number of teeth of scarifier() | 3 | 3 | — | — | — | — |
| Track parameters | ||||||
| track width(mm) | 510 | 610 | 950/1100 | 950/1100 | 950/1100 | 950/1100 |
| Sprocket pitch(mm) | 203 | 203 | 203 | 203 | 203 | 203 |
| track gauge(mm) | 1880 | 1880 | 2300 | 2300 | 2300 | 2300 |
| Number of single side carrier sprockets() | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of single side roller() | 6 | 6 | 7 | 7 | 7 | 7 |
| Ground specific pressure(kpa) | 67 | 56 | 31/27 | 31/27 | 31/27 | 31/27 |
| Minimum ground clearance(mm) | 420 | 420 | 460 | 460 | 460 | 460 |
| Gradient(°) | 30 | 30 | 30 | 30 | 30 | 30 |
| Vehicle parameters | ||||||
| long(mm) | 5040/6185 | 5427/6665 | 5400 | 5400 | 5400 | 5400 |
| (Matching pine) | (Matching pine) | |||||
| wide(mm) | 3460 | 3556 | 4230 | 4230 | 4230 | 4230 |
| high(mm) | 3420 | 3420 | 3460 | 3460 | 3460 | 3460 |
| Vehicle quality(T) | 16.8 | 17.5 | 18.5 | 18.8 | 18 | 19.1 |
Size
(mm)

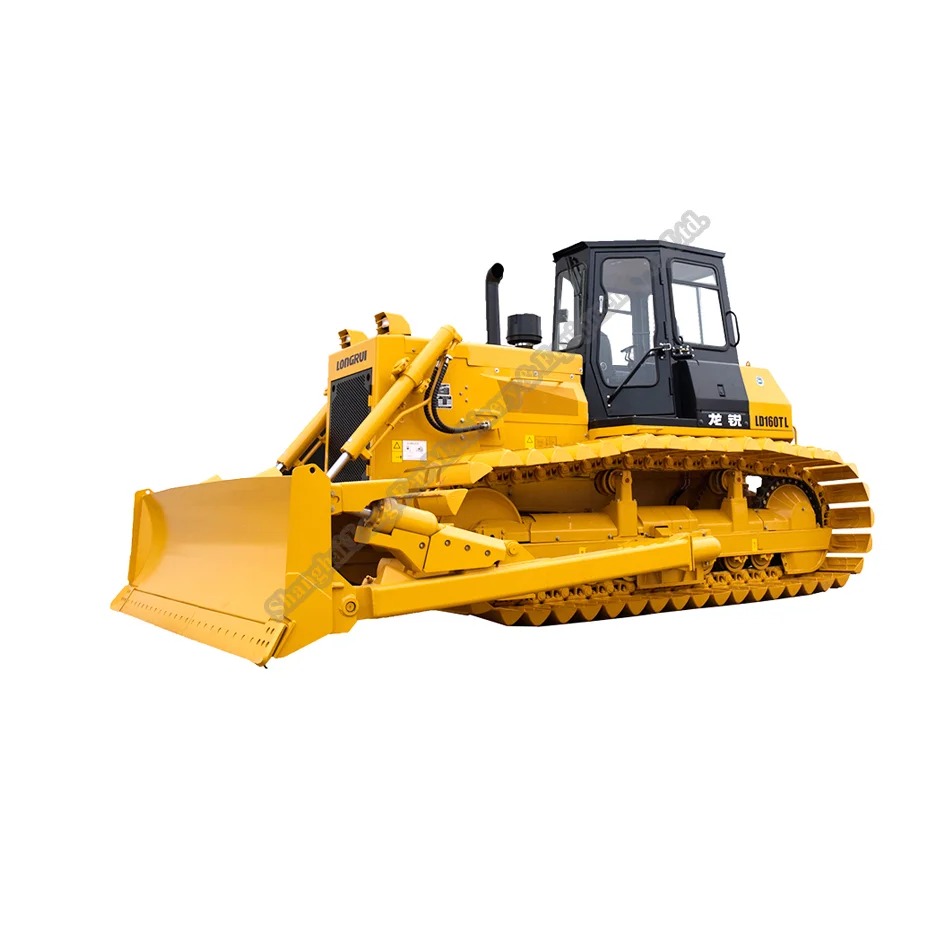

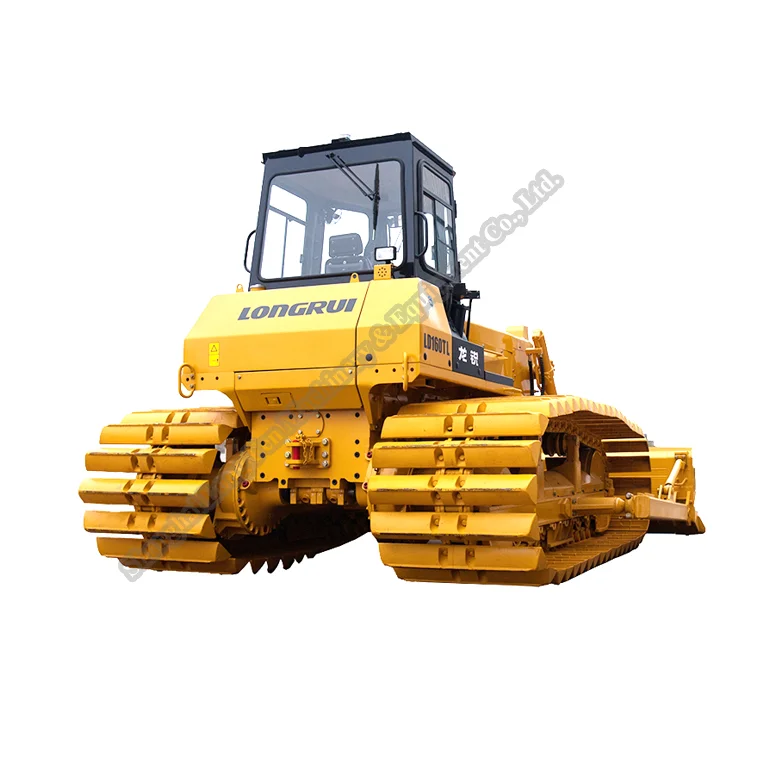

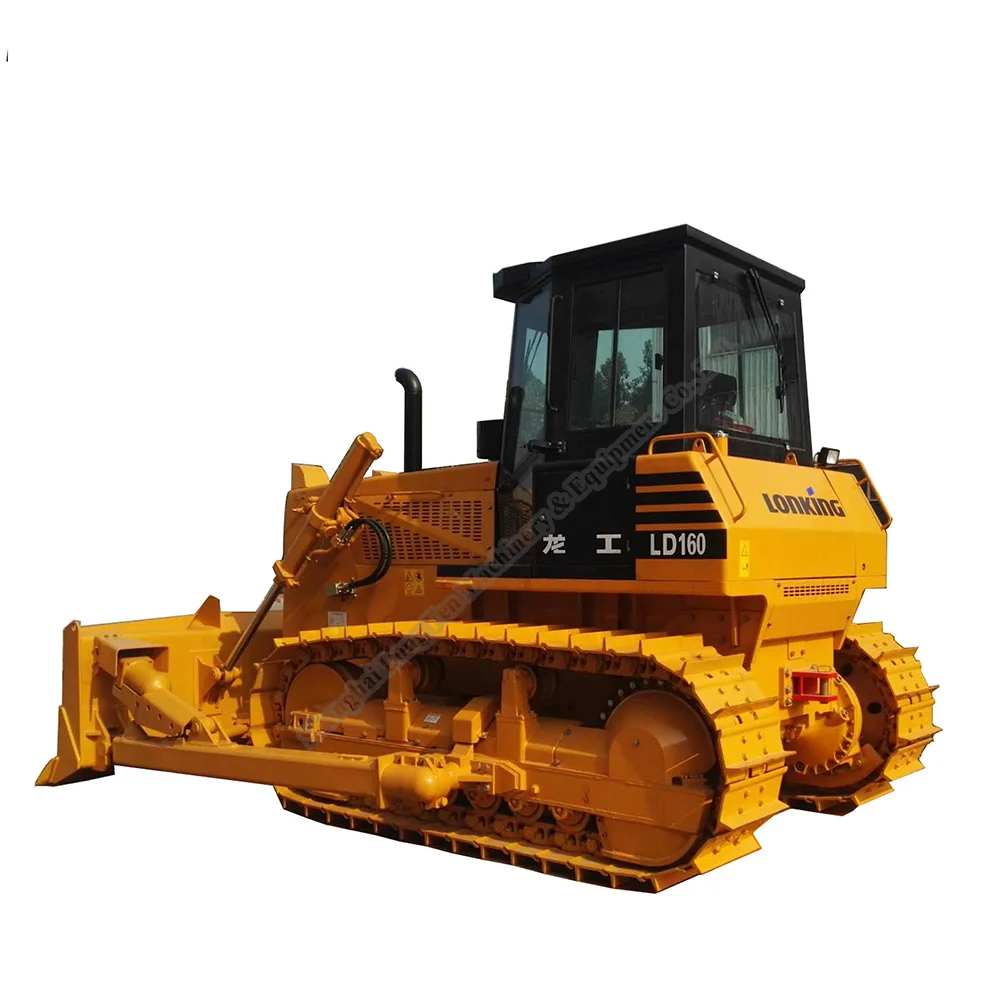

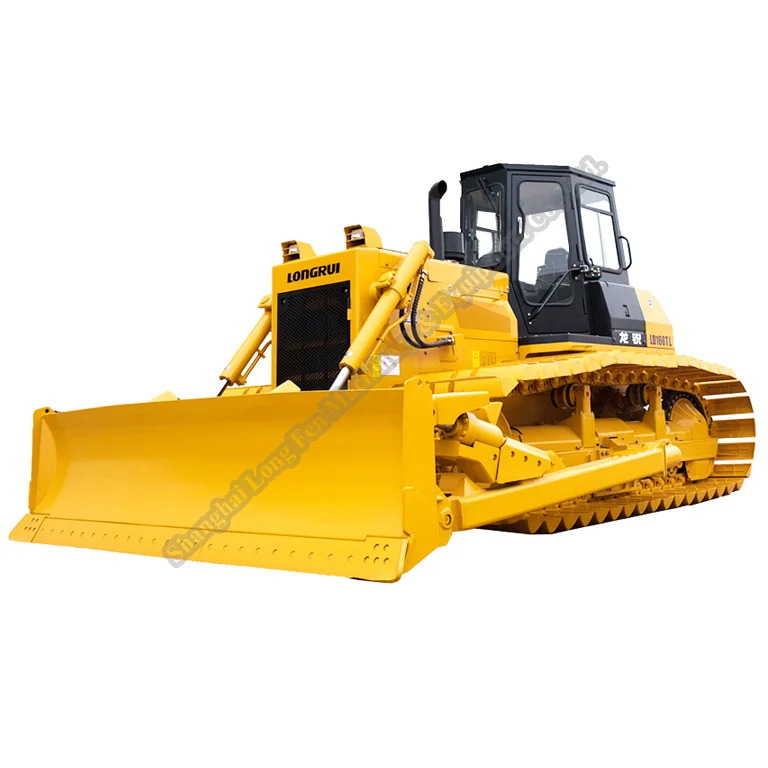

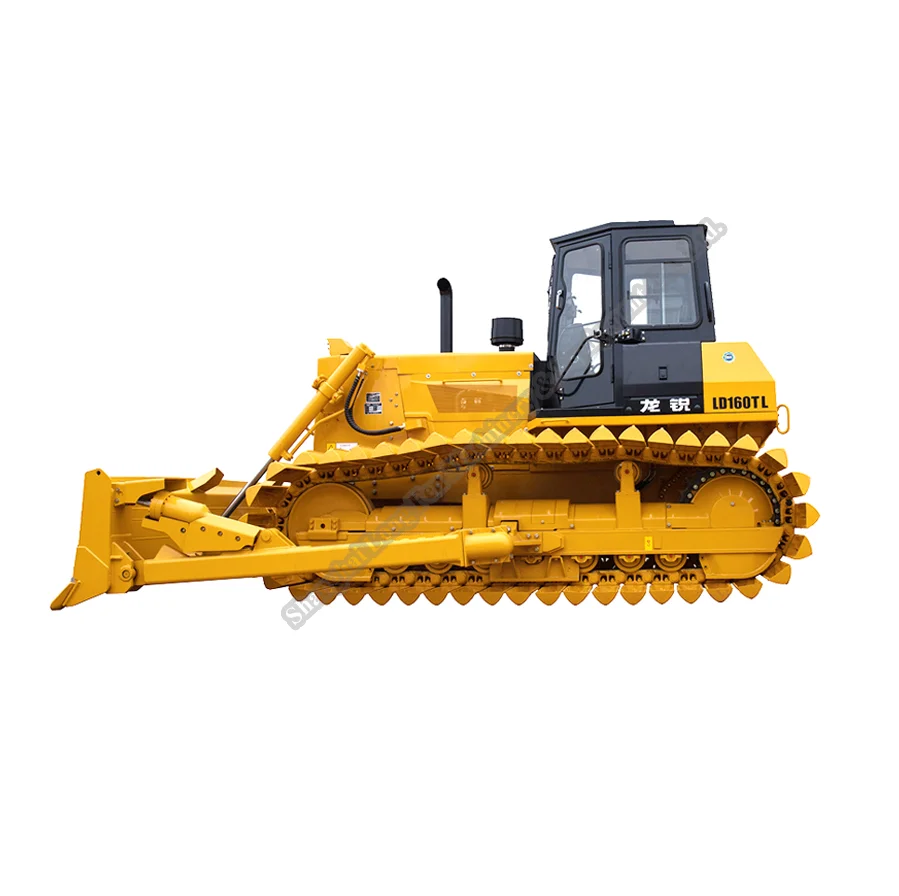

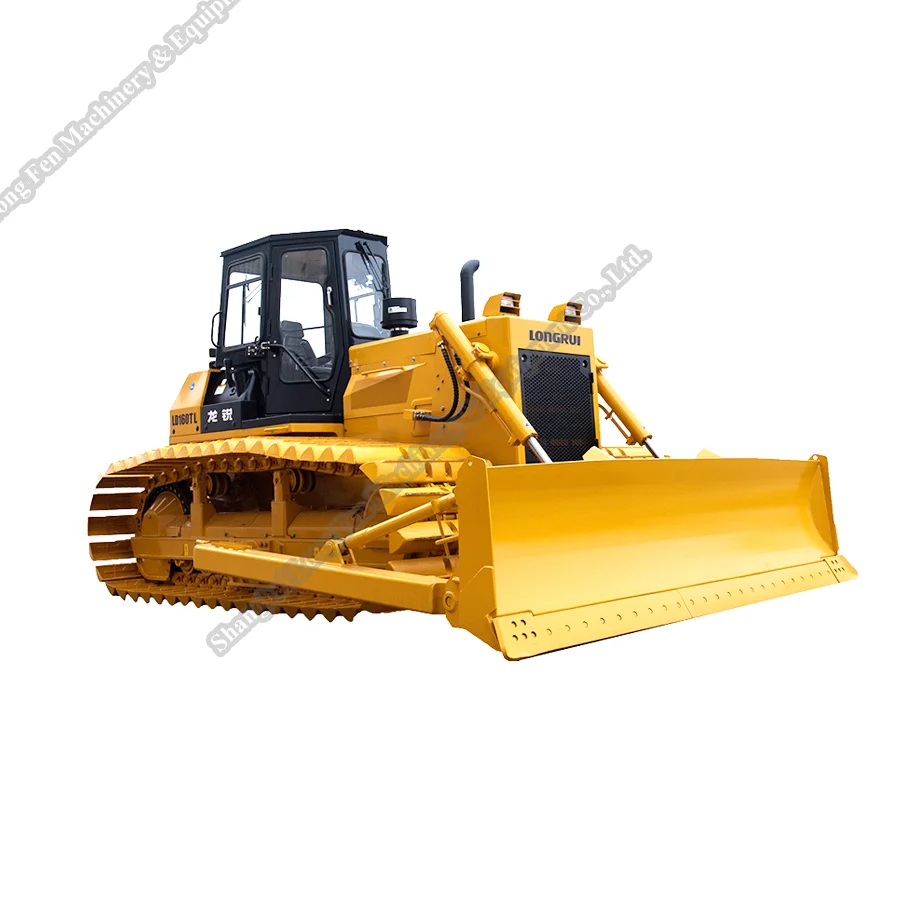

Product pictures
Company Profile
Found in 1993 , Lonking holding limited for short lonking is a large scale construction and logistic machinery company in longyan of Fujian Province, china it was established by Mr.Li San Yim deputy of the National People’s Congress, National Model worker, National Advanced individual of Glorious Cause. The company took the initiative to be listed in Hongkong(SEHK) among china’s construction machinery industries(stock code:03339) and was awarded the titles as Global Top 50 construction machinery manufacturer , china Top 100 Machinery manufacturer of core competitiveness and Top 100 enterprises Established by overseas Chinese.
Adhering to the principle of dealership model the company sells its products in over 50 countries and regions around the world and constantly enhance three major advantages of quality, service and cost performance . by doing this it has ensures the smoothness of sales channels and improved its after sale service ,thus wining customers’ trust.
The company attaches great importance to the corporate governance policy of being dependent on talents, management, quality, brand creativity ,trust and excellence as well as the product idea of putting people first and man-machine union, aided by lonking’ s 4 major bases,19 wholly – owned subsidiaries and over 1000 distributors both home and abroad . the company has acquires successful experience in researching, developing and manufacturing wheel loader, excavators, road rollers, forklifts, and relevant core parts and established an independent R&D center ,taking the purpose as high technology, high quality and high efficiency the company is committed to providing customs with earthmoving machine of high quality and cost performance and a complete whole solution to improve construction efficiency and generate more values.
