Характеристики
60t rebar mechanical tensile testing equipment servo hydraulic universal testing machine
Product Description
Computer Control Hydraulic Universal Tester is mainly used to do stretching, compression and bending testing for metal and nonmetals such as rebar,wire rope,anchor rod,bolt fastener,cable and so on.It is widely used in aerospace, petrochemical industry,wire and cable,machinery manufacturing,plastic, rubber,mining,ceramic building materials,machinery,high polymer mechanics and other industries,as well as colleges and universities,scientific research institutions,technical supervision,quality inspection station and other departments.
Technical Parameters : As for more accurate parameters and technical solution, please feel free to contact Ms. Nancy at anytime.
Model |
EWAW-W300 |
EWAW-W600 |
EWAW-W1000 |
Maximum test force | 300KN | 600KN | 1000KN |
Measuring range | 1 or 0.5 grade | ||
Test force resolution | 0.01KN | ||
Test force indication relative error | ≤±1% | ||
Deformation precision | |||
Piston stroke | 250mm | ||
Piston max movement speed | 80mm/min | ||
Stretch space(mm) | 700MM
| ||
Clamping Method | Manual/automatic clamping | ||
Round Sample Clamping Diameter(mm) | φ6-26 | φ13-40 | φ13-60 |
Flat Sample Clamping thickness | 0-15mm | ||
Max Clamping width of flat sample(mm) | 70 | 75 | 75 |
Pressure Plate Size | φ160(or 204*204) | ||
Max distance between bending fulcrum(mm) | 450 | 450 | 450 |
Stretch space two legs distance(mm) | 395 | 520 | 530 |
Oil pump motor power | 1.1Kw | 1.1Kw | 1.1Kw |
Net weight | 1900kg | 2100kg | 3200kg |

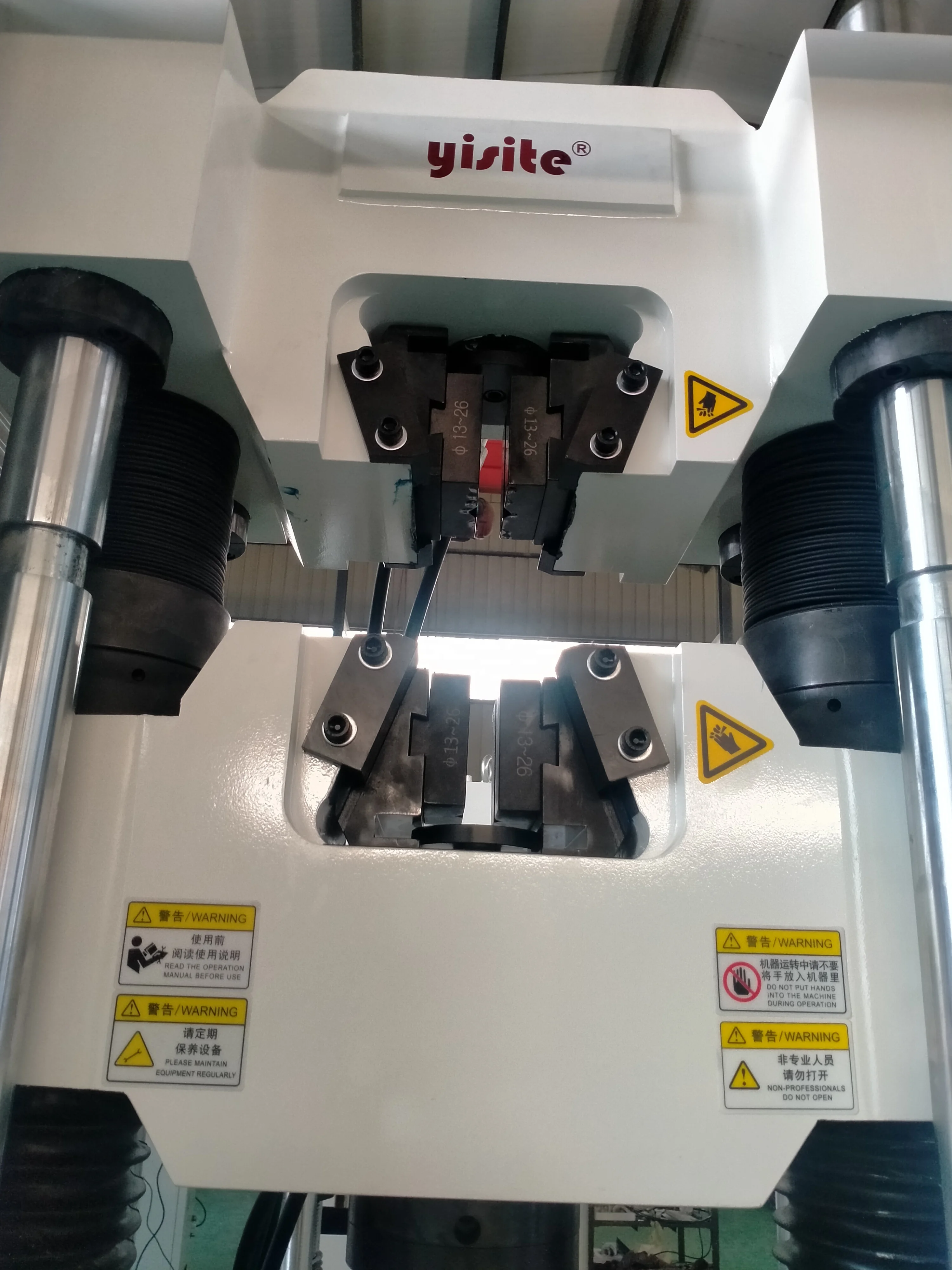

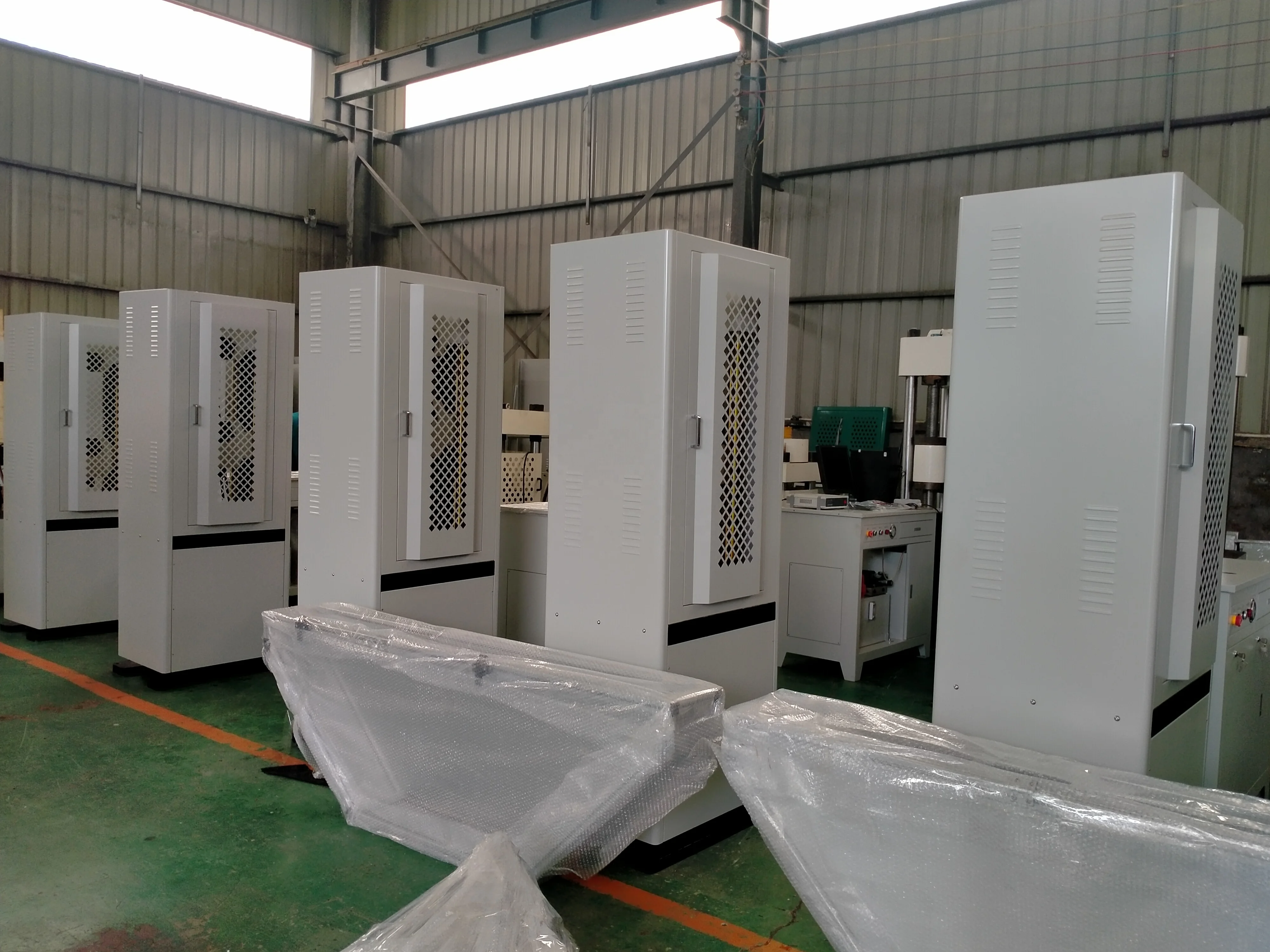

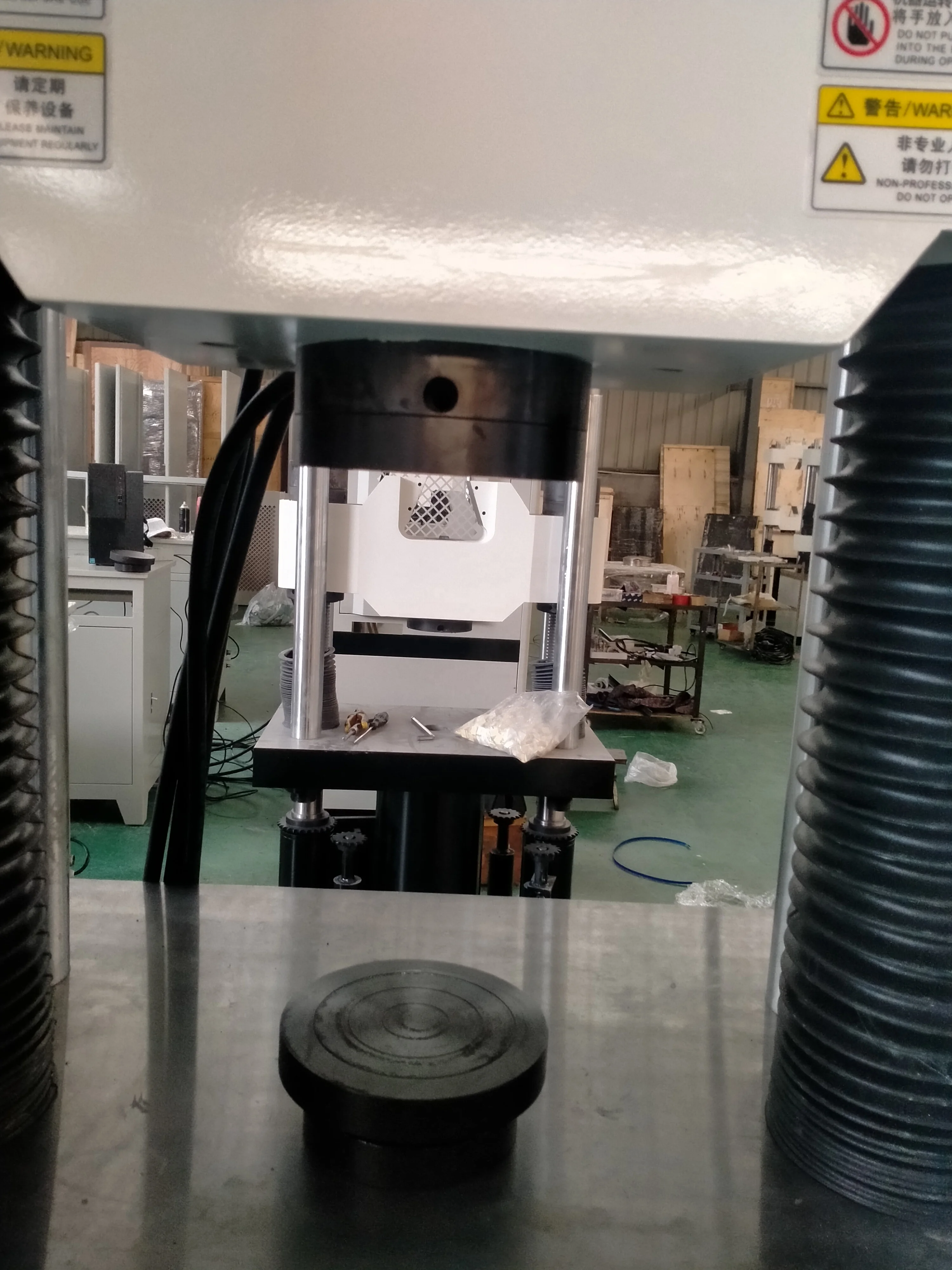

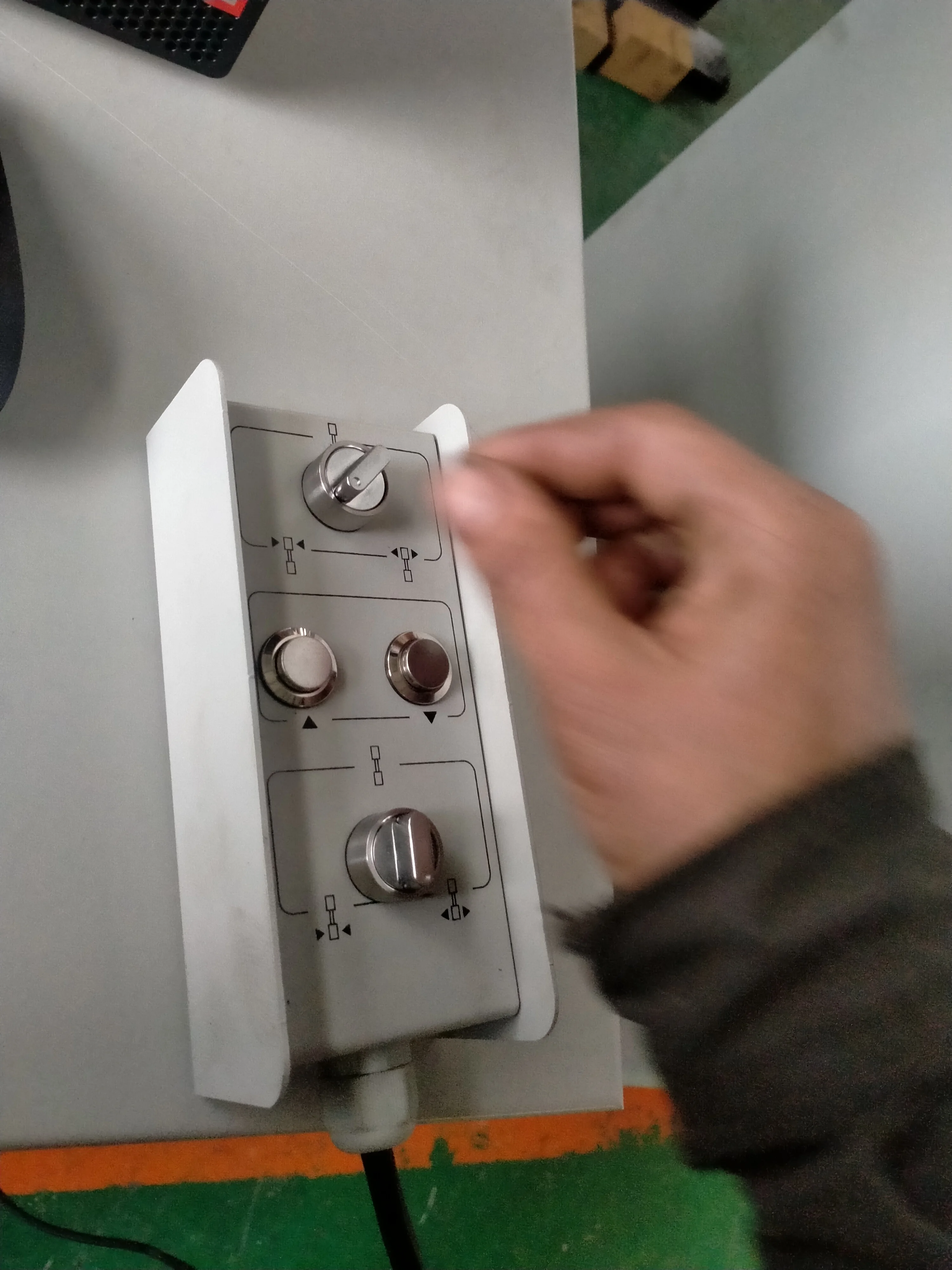

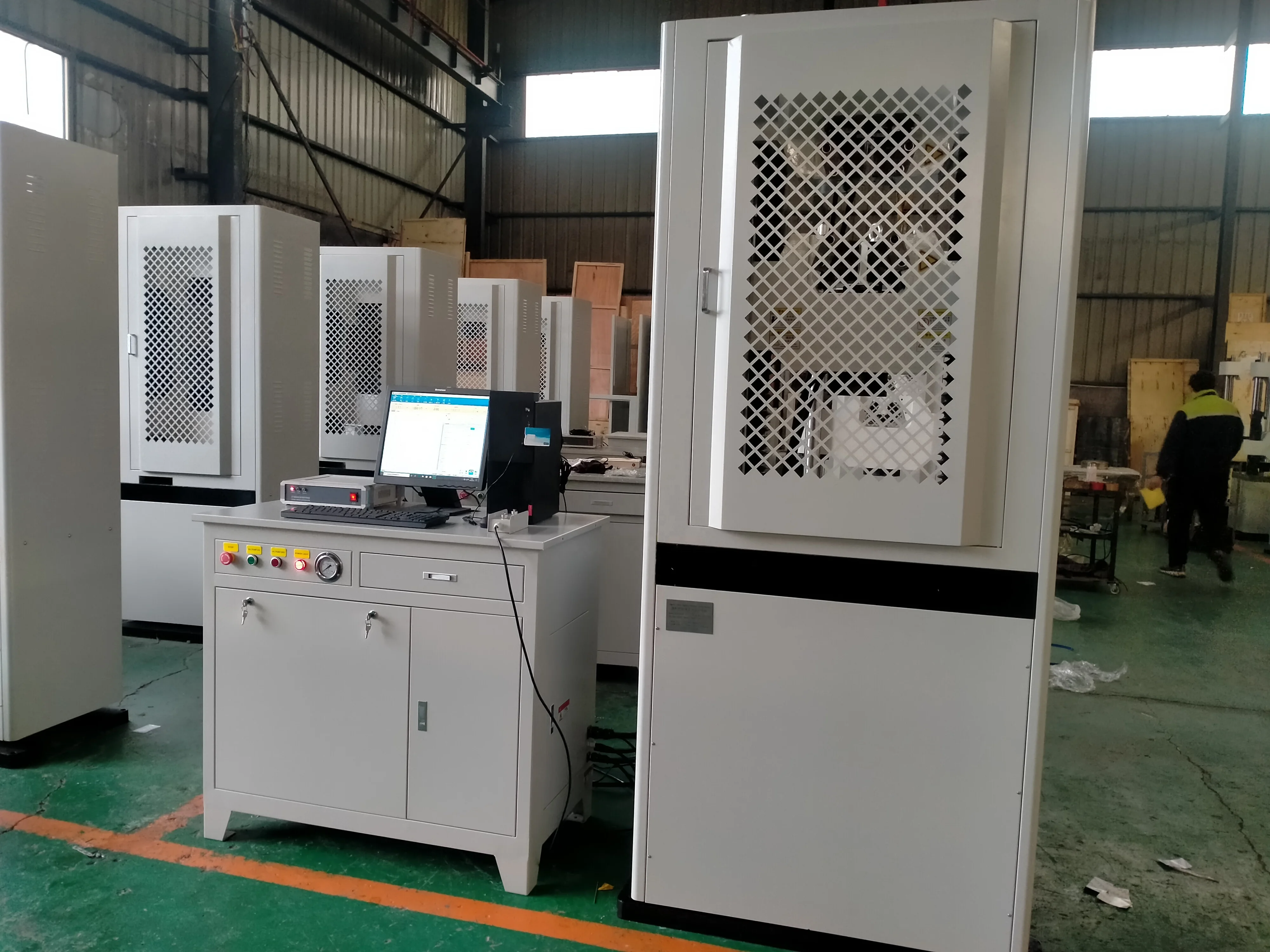

Realistic Pictures
FAQ
Contact
Factory price, wholesale price, good quality, best after-sales service
For more details, please kindly contact Ms.Nancy.
Leave an inquiry for more details and other testers,data,standard,packing, price, shipment, payment and discount……
