Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00
Серводвигатель переменного тока 130SY-M06025 220 кВт 6N.m 2500 об/мин по
- Категория: Motors >>>
- Поставщик: Taizhou,Xinyuhai,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 159.0 $* | 162.15 $* |
| Jul-19-2025 | 129.8 $* | 132.5 $* |
| Jun-19-2025 | 156.71 $* | 159.21 $* |
| May-19-2025 | 155.32 $* | 158.4 $* |
| Apr-19-2025 | 124.98 $* | 126.65 $* |
| Mar-19-2025 | 153.63 $* | 156.6 $* |
| Feb-19-2025 | 151.10 $* | 154.13 $* |
| Jan-19-2025 | 150.32 $* | 153.15 $* |
Характеристики

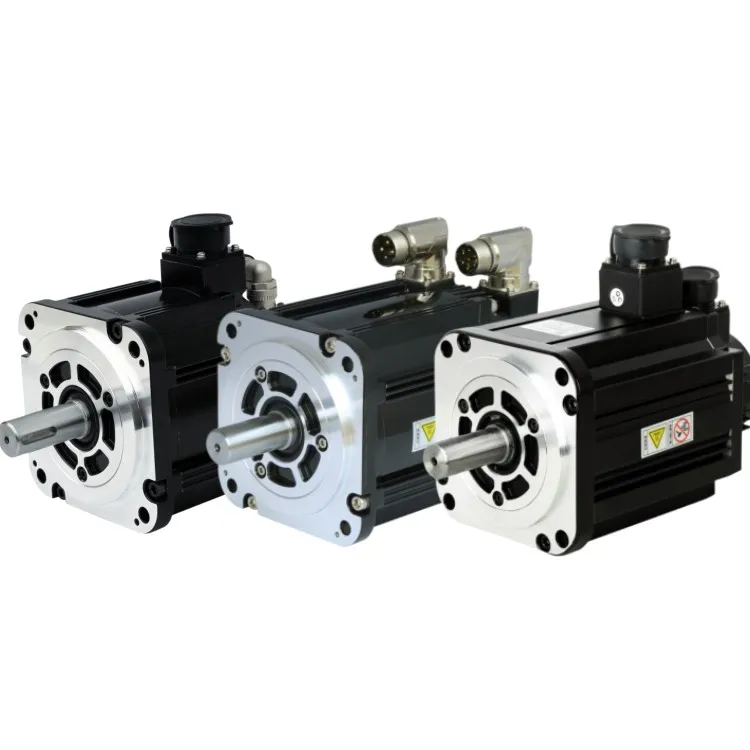

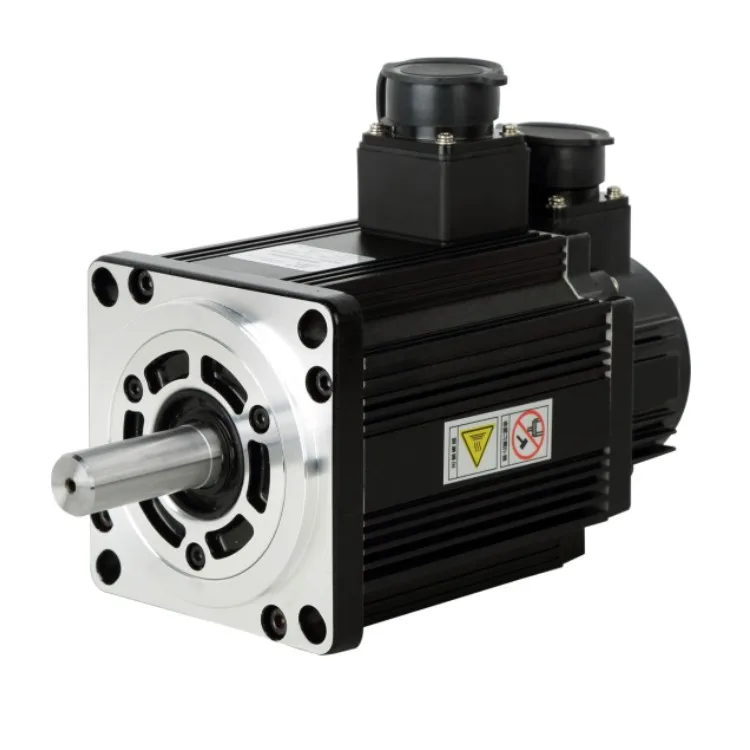

Factory price 220V CNC ON SELL130SY-M06025 1.5KW 6N.m 2500rpm AC Servo Motor
Motor Model | 130SY-M04025 | 130SY-M05025 | 130SY-M06025 | 130SY-M07725 | 130SY-M10015 | 130SY-M10025 | 130SY-M15015 | 130SY-M15025 | 130SY-M20015 |
Rated Power(Kw) | 1.0 | 1.3 | 1.5 | 2.0 | 1.5 | 2.6 | 2.3 | 3.8 | 3 |
Rated Torque(N.m) | 4 | 5 | 6 | 7.7 | 10 | 10 | 15 | 15 | 20 |
Max Torque(N.m) | 12 | 15 | 18 | 22 | 25 | 25 | 30 | 30 | 40 |
Rated Speed(Rpm) | 2500 | 2500 | 2500 | 2500 | 1500 | 2500 | 1500 | 2500 | 1500 |
Max Speed(Rpm) | 2800 | 2800 | 2800 | 2800 | 1800 | 2800 | 1800 | 2800 | 1800 |
Rated Current(A) | 4 | 5 | 6 | 7.5 | 6 | 10 | 9.5 | 17 | 15 |
Inertia (Kg.㎡) | 0.82*10-3 | 1.20*10-3 | 1.26*10-3 | 1.53*10-3 | 1.94*10-3 | 1.94*10-3 | 2.77*10-3 | 2.77*10-3 | 3.67*10-3 |
Motor Weight(Kg) | 6.5 | 7 | 7.5 | 8.5 | 10 | 10 | 12 | 12 | 15 |
Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement
1. Low noise and long life
2. Efficient and energy saving
3. Wide range of uses
4. Tamagawa incremental encoder 2500/5000PPR /10000PPR
Tamagawa absolute encoder 17bits /23 bits
Note:
1.We have Mikipulley brake , planetary gearbox , transfomer , inventer for matching
Also if you are interested in aboslute encoder and modbus , 485 ,Eathercat one . Pls do not hesitate to contact us !
Normally we supply 1-5 m cables , if you want longer , pls tell me .we can customized for you !
2.Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !
2. Efficient and energy saving
3. Wide range of uses
4. Tamagawa incremental encoder 2500/5000PPR /10000PPR
Tamagawa absolute encoder 17bits /23 bits
Note:
1.We have Mikipulley brake , planetary gearbox , transfomer , inventer for matching
Also if you are interested in aboslute encoder and modbus , 485 ,Eathercat one . Pls do not hesitate to contact us !
Normally we supply 1-5 m cables , if you want longer , pls tell me .we can customized for you !
2.Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !
1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..
2)Where is your factory located? How can I visit there?
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..
2)Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
6)How does your factory do regarding quality control?
"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.
7)Do you provide after-sale service?
Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set the parameters, etc.
